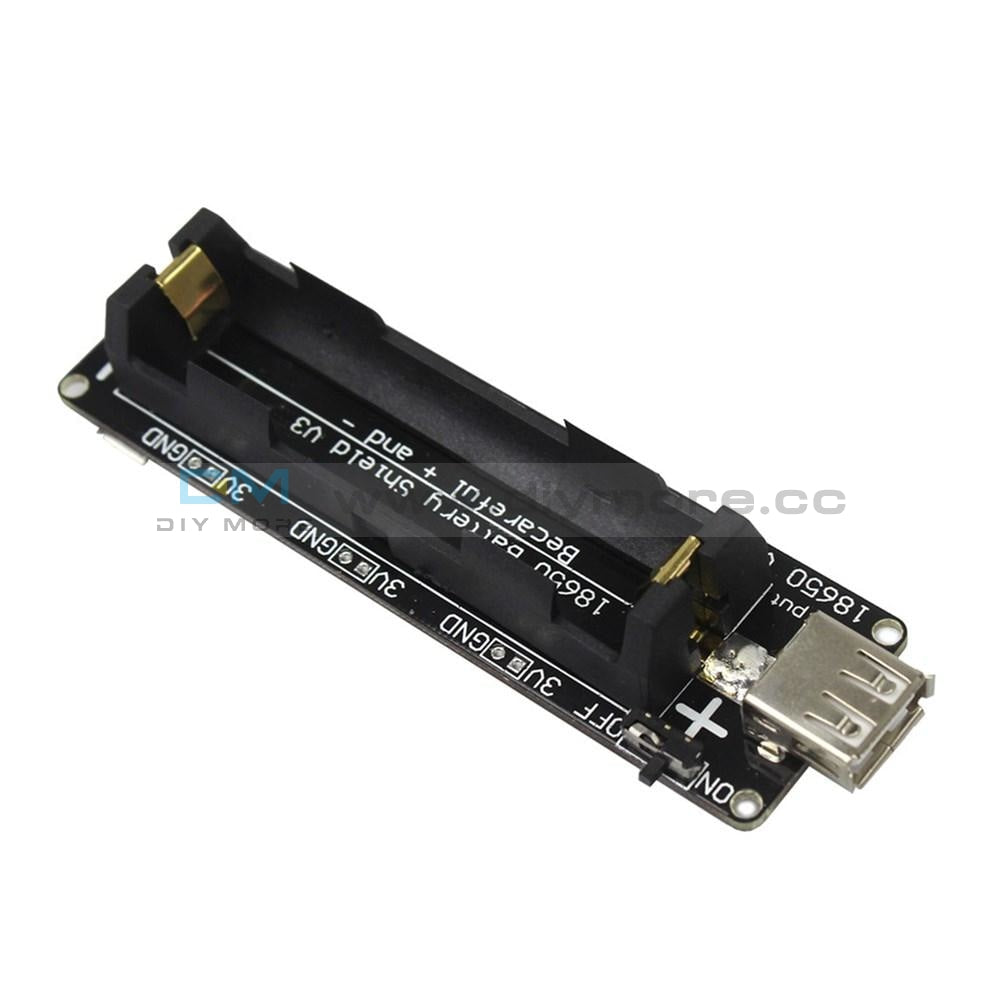

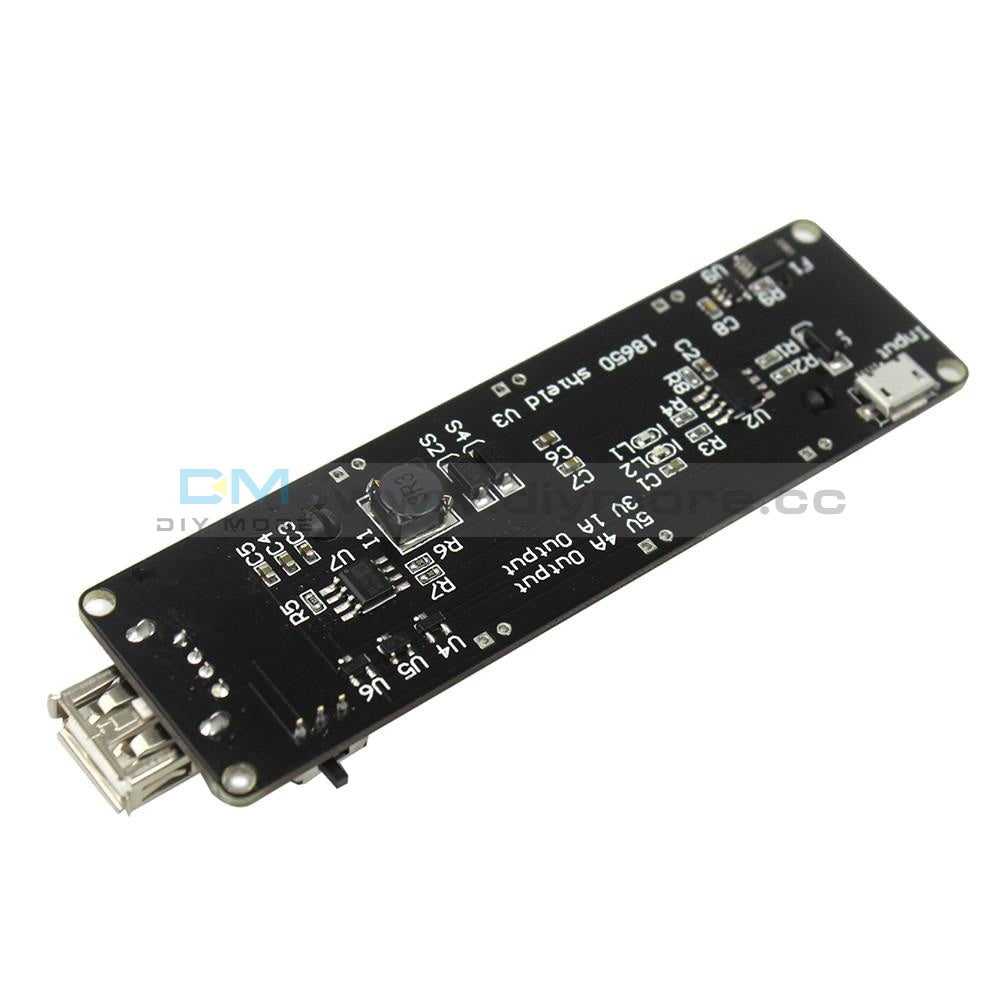

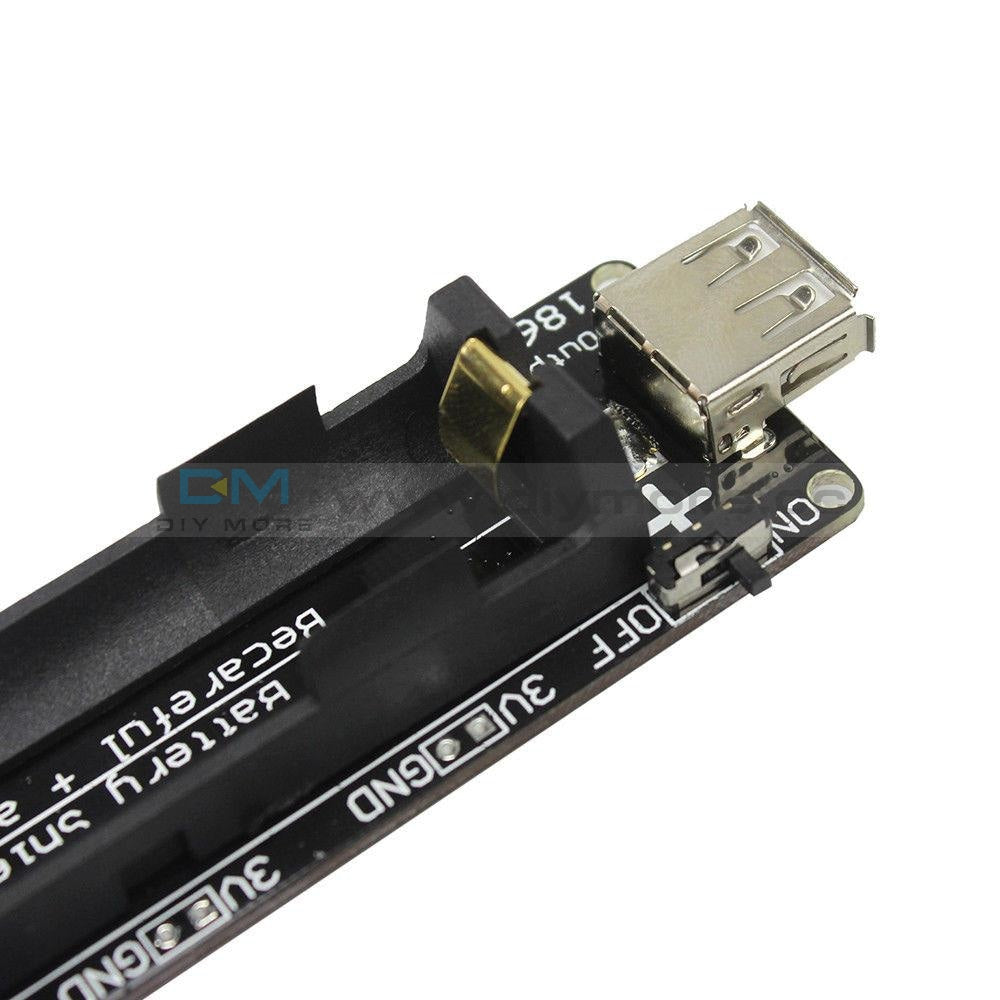

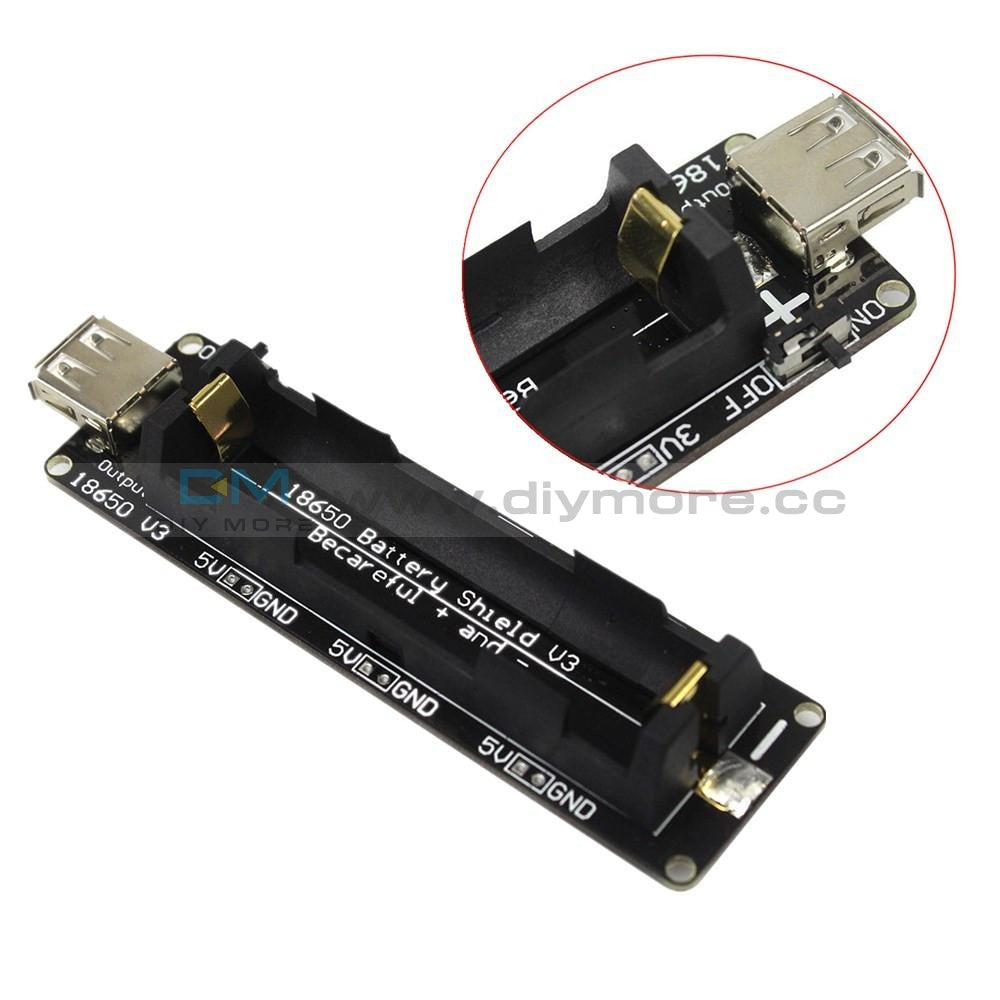

Micro USB Wemos ESP32 18650 Battery Shield V3 ESP-32 for Arduino Raspberry Pi
Micro USB Wemos ESP32 18650 Battery Shield V3 ESP-32 for Arduino Raspberry Pi
SKU:012590
Regular price
$7.99
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Features:
- Battery protection(Over charge or Over discharge)
- Micro USB port Input; Type-A USB Output
- 0.5A current charging; 5~8V Input Voltage
- 1 Switch control USB output
- 3V & 1A Output; 5V & 2A Output
- 3V output port x3; 5V output port x3
Note:
Please allow 1-5mm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
If you put wrong direction, charging chip will be destroyed.
This product does not include 18650 battery
Be careful of "+" and "-", You should follow the direction of "+""-" on the PCB.
Size: 9.8x2.9cm/3.86x1.14inch
LED indicate(Green means full,Red means charging)
Package include:
1 x Battery Shield Module ( Battery Not Included )
