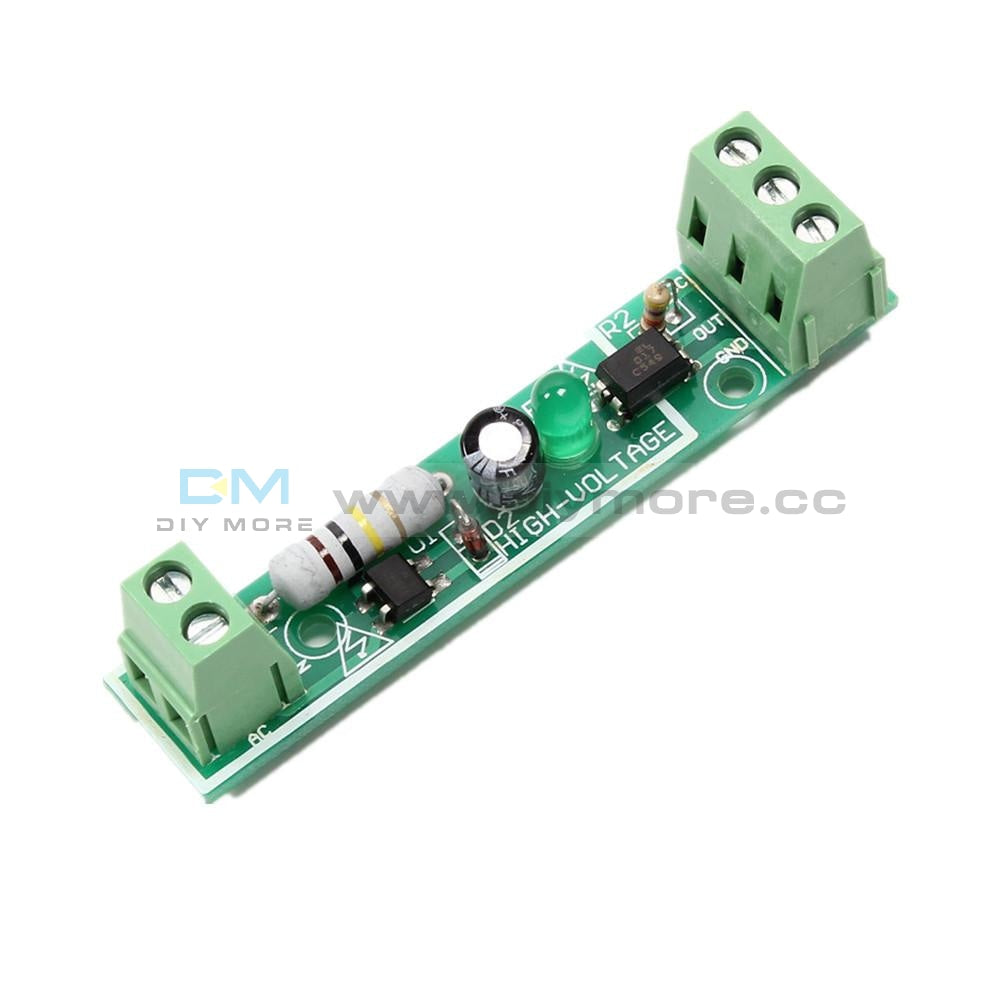

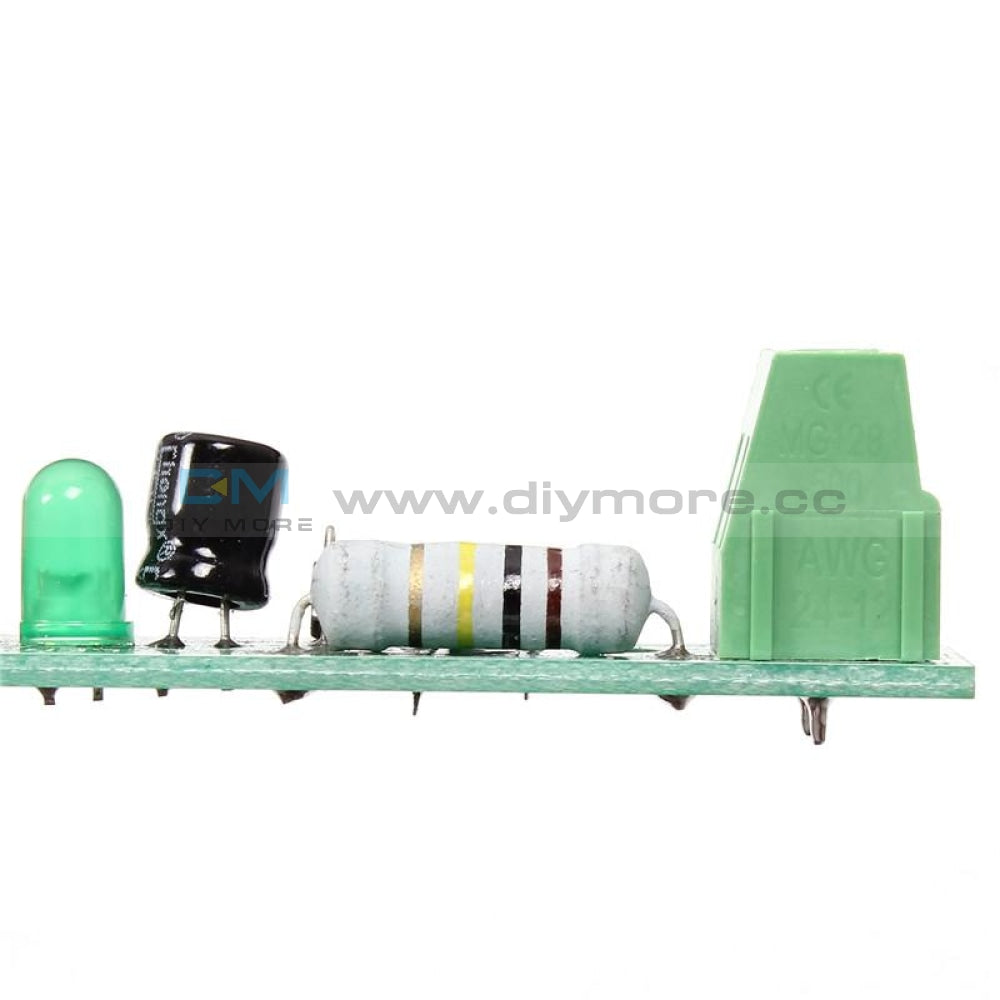

1-Bit AC 220V Optocoupler Isolation Module Voltage Detect Board Adaptive for PLC
1-Bit AC 220V Optocoupler Isolation Module Voltage Detect Board Adaptive for PLC
SKU:012303
Regular price
$5.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Specification：

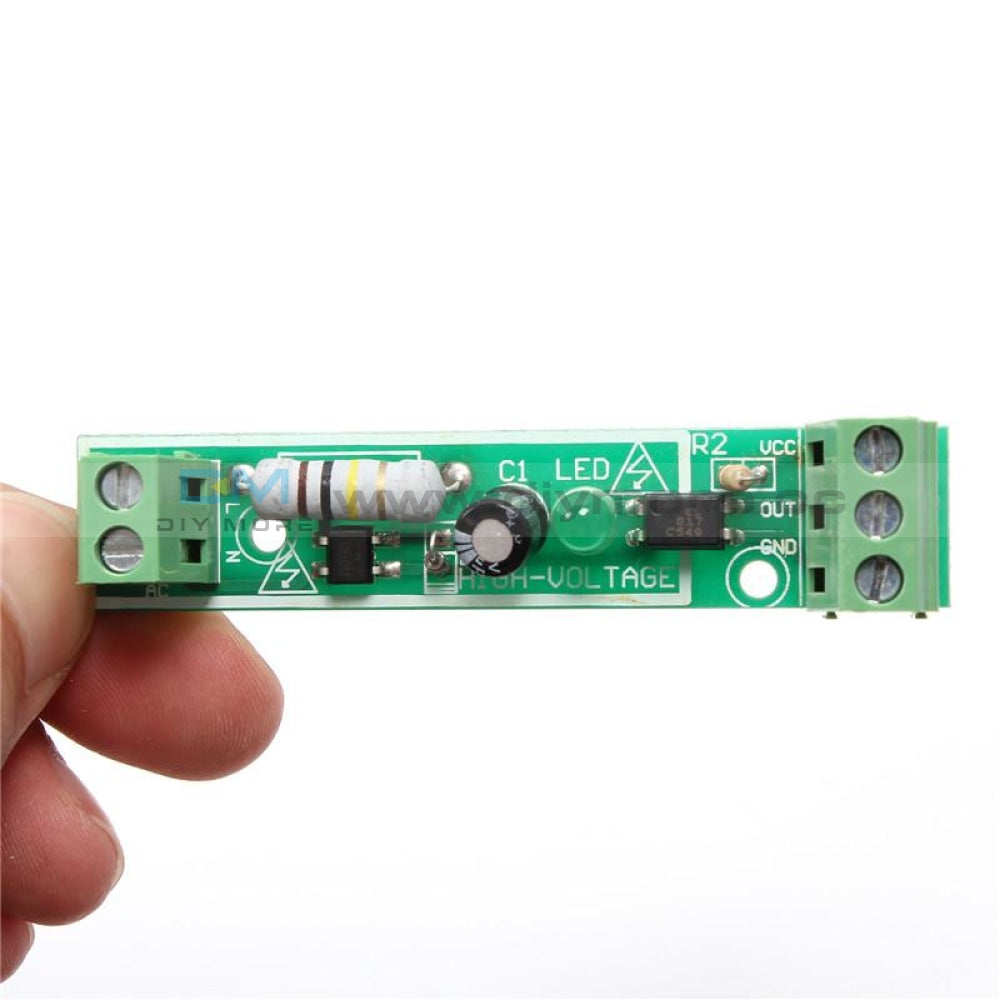

1.Board Size:73*15mm
2.Functuon:Testing whether AC 220V is existed
3.Ouput TTL Level:can use SCM to test,voltage is 3-5V
4.Adaptive to PLC 24V level
Product Introduction:
Output TTL level can be detected with the microcontroller.
The power supply can be 3-5V, can also access PLC24V level.
Then the PLC input terminal of the PLC COM power supply 24V input termination of the board signal output OUT, optocoupler board GND power negative

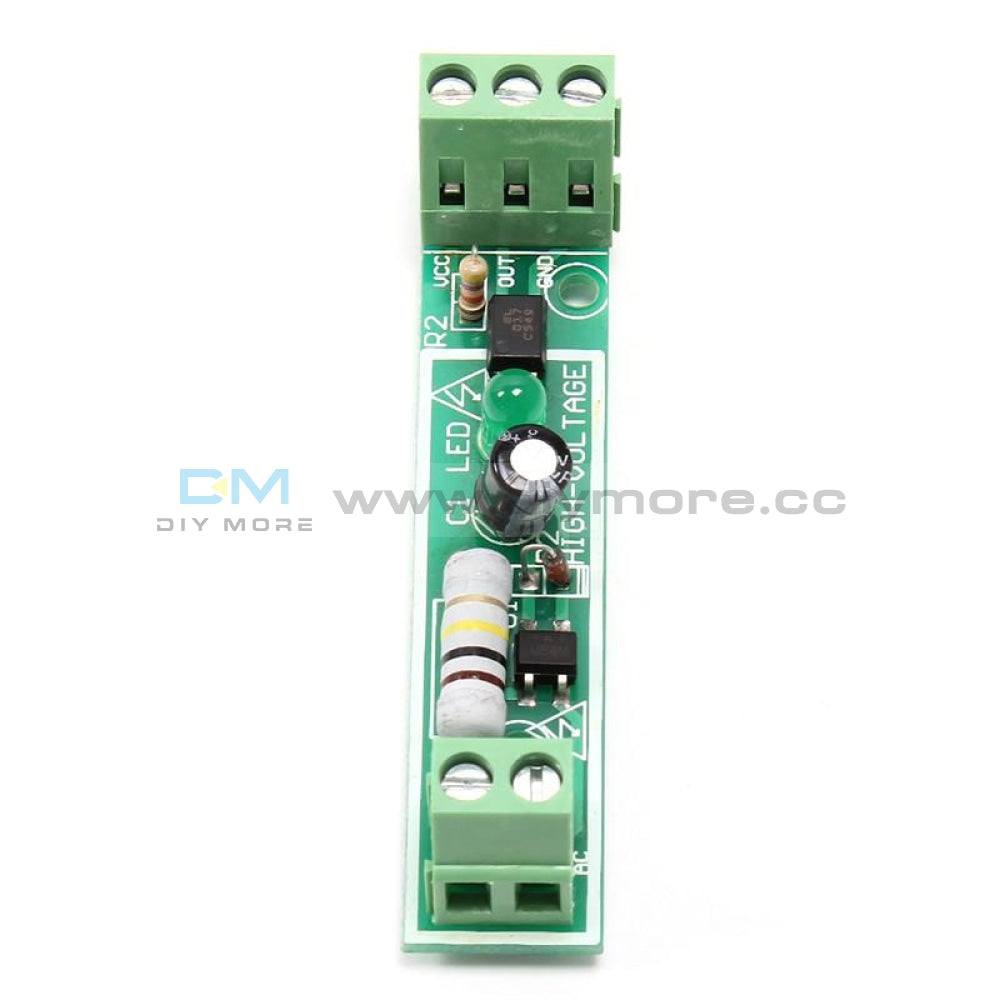

Blue 2P 5.0 terminal connected to 220V voltage

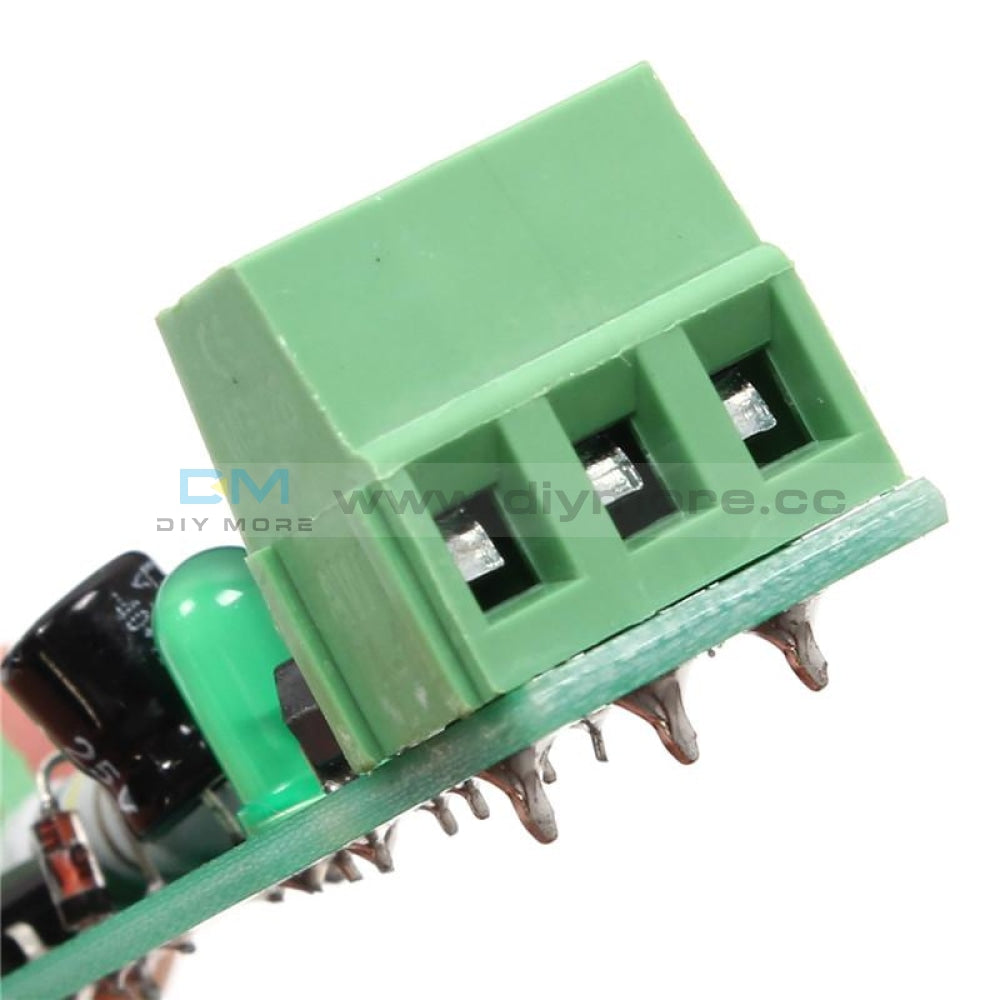

3P terminal connected to the microcontroller input.
Safety warning:

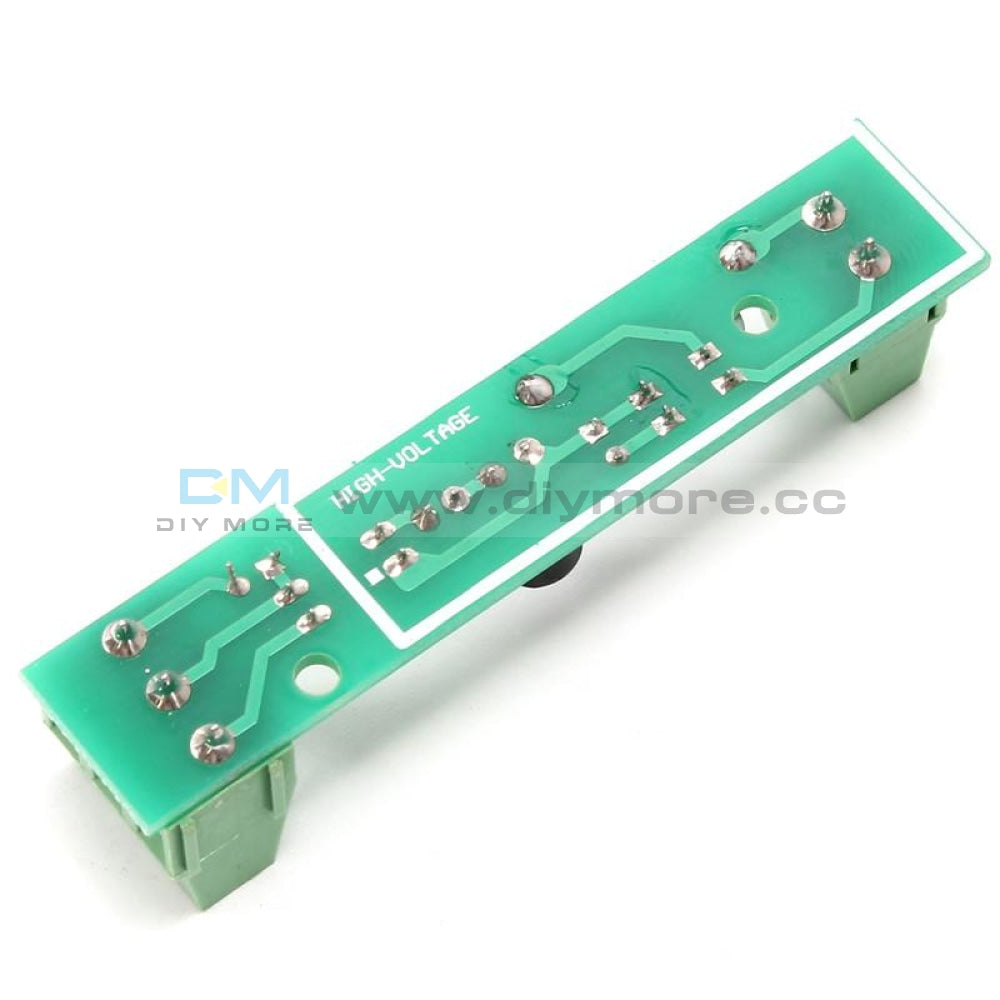

When the power module in the power of the board after the white wire frame can not touch any device, because it is high voltage.
Note the safety of electricity.
Package Included:
1 x 1-Bit AC 220V Optocoupler Isolation Module
1.Board Size:73*15mm
2.Functuon:Testing whether AC 220V is existed
3.Ouput TTL Level:can use SCM to test,voltage is 3-5V
4.Adaptive to PLC 24V level
Product Introduction:
Output TTL level can be detected with the microcontroller.
The power supply can be 3-5V, can also access PLC24V level.
Then the PLC input terminal of the PLC COM power supply 24V input termination of the board signal output OUT, optocoupler board GND power negative
Blue 2P 5.0 terminal connected to 220V voltage
3P terminal connected to the microcontroller input.
Safety warning:
When the power module in the power of the board after the white wire frame can not touch any device, because it is high voltage.
Note the safety of electricity.
Package Included:
1 x 1-Bit AC 220V Optocoupler Isolation Module
