Pro Micro Mini SS Beetle Virtual Keyboard BadUSB ATmega32u4 Module For Arduino 16Mhz 3.3V 5V IO UART I2C SPI PWM Interface Board
Pro Micro Mini SS Beetle Virtual Keyboard BadUSB ATmega32u4 Module For Arduino 16Mhz 3.3V 5V IO UART I2C SPI PWM Interface Board
SKU:011951
Regular price
$7.99
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
- 100% brand new and high quality
- Material: Electrical components
- Color: See pictures
-

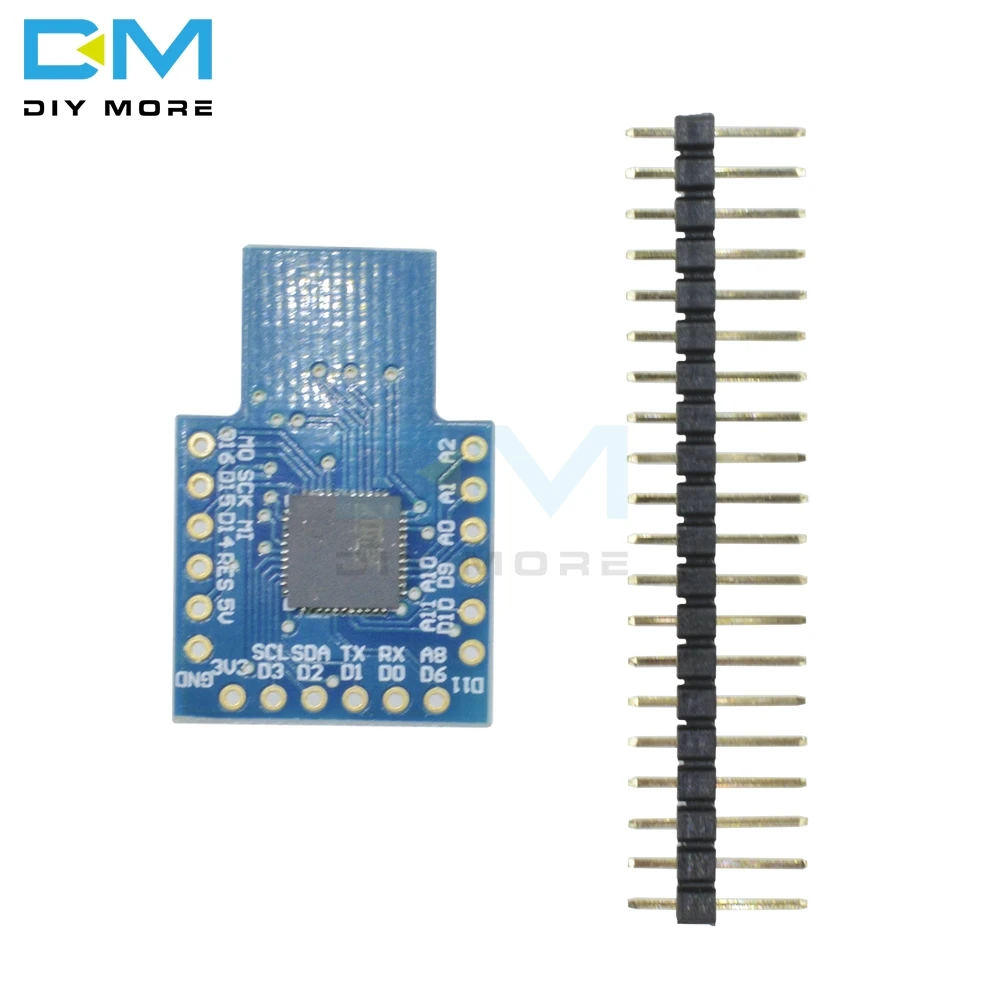

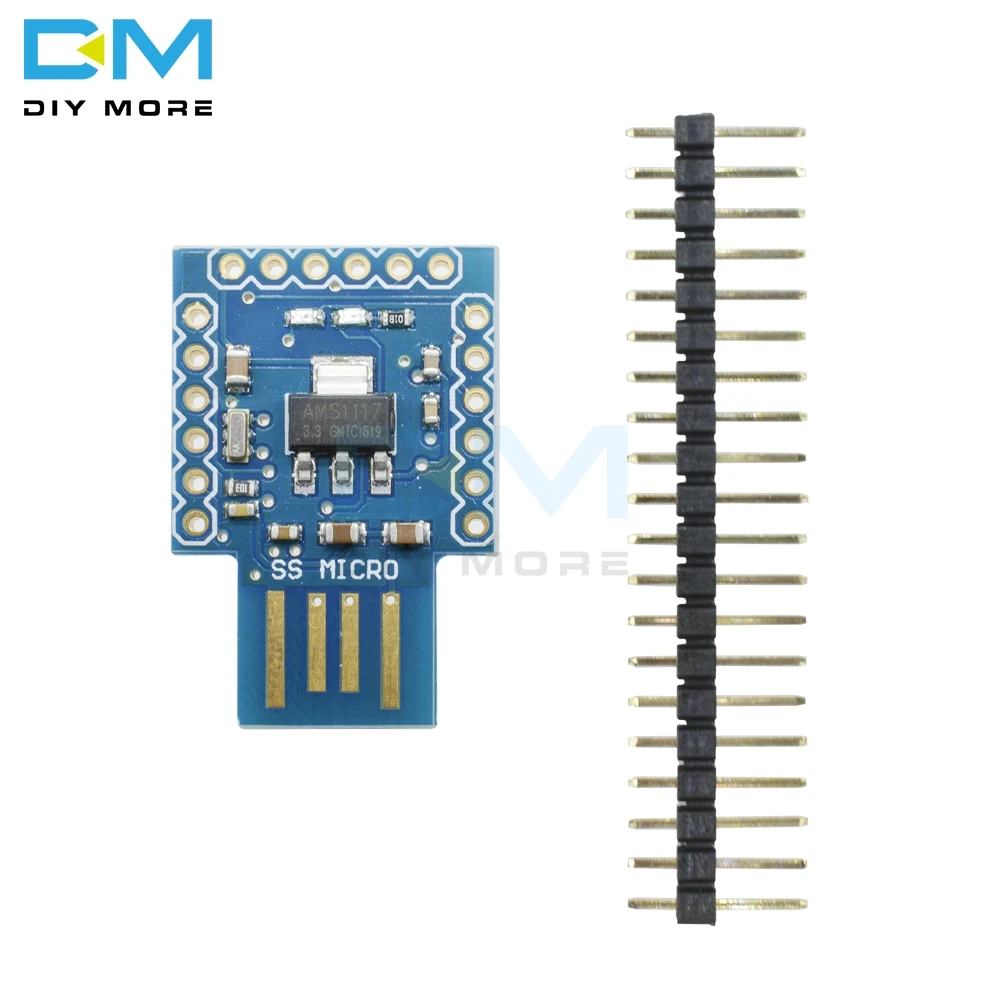

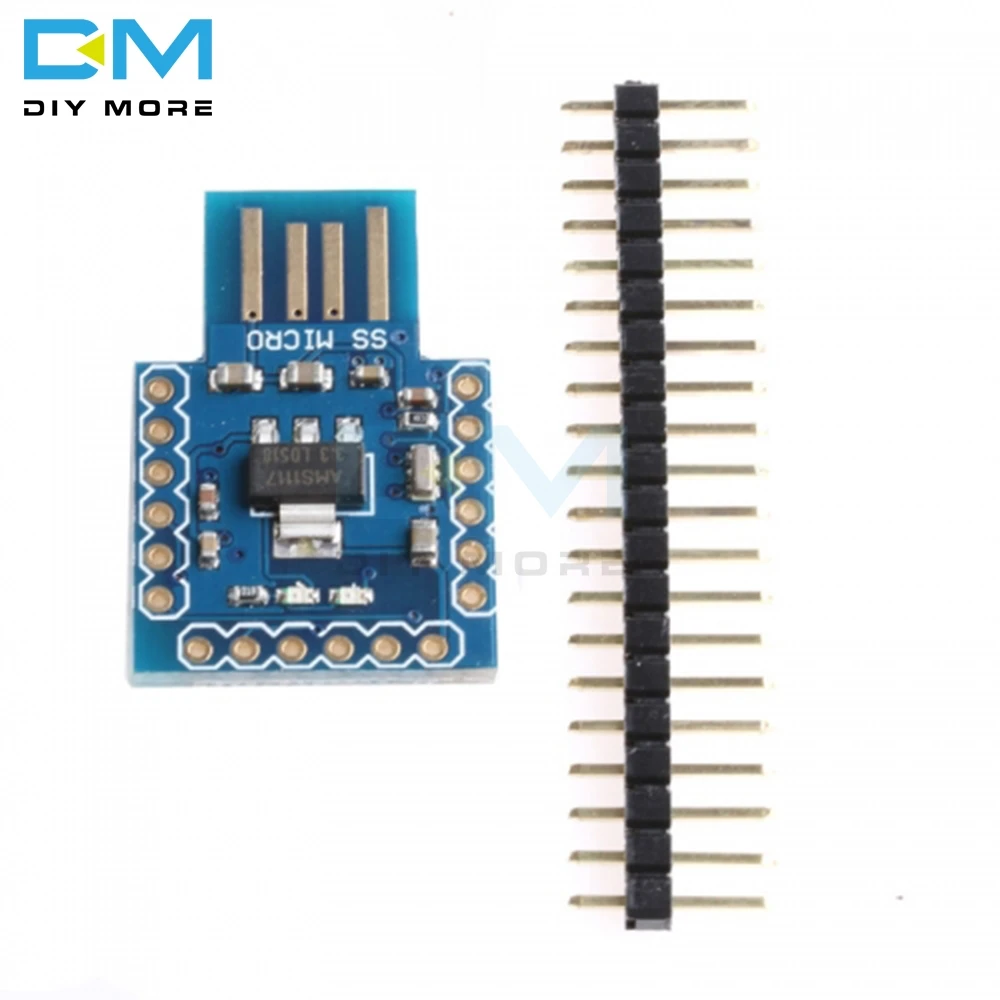

Micro SS is a microcontroller board based on ATmeag32U4. it has 14 digital general purpose input / output pins
(of which 5 may be used as PWM outputs, 6 may be used as analog inputs). on board for 16 MHz oscillator and a
USB-A type of PCB-based connector. in addition to an independent power supply to 3.3 V output, its output power
without affecting the operation of the MCU, the output power depends on the USB power capability but no greater than
the maximum 1.5A. the council was recording Ard uino bootloader, so it is compatible with the Ard uino IDE.
although it is small but it has a rich interface such that it is not only the traditional functions of the controller,
as well as implemented in a computer mouse, keyboard functions, series of functions, and can communicate
directly with the computer. - Master: ATmega32u4
- Operating voltage: 5 V
- Digital IO Number: 14
- PWM output number: 5
- Number of analog input: 6
- Other peripherals: USB, UART, I2C, SPI, 3.3 V Power supply output
- IO driving force: 40mA
- Flash: 32KB (ATmega32u4) where 4KB occupied by Ard uino bootloader
- SRAM: 2.5 KB (ATmega32u4)
- EEPROM: 1KB (ATmega32u4)
- Frequency: 16 Mhz
- Size: See the picture
- No retail packag
- Quantity: 1Pc
- Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!!
Package includes:
1Pc x Mini ATMEGA32U4 Compatible For Arduino SS Micro ATMEGA32U4 Module Board New
