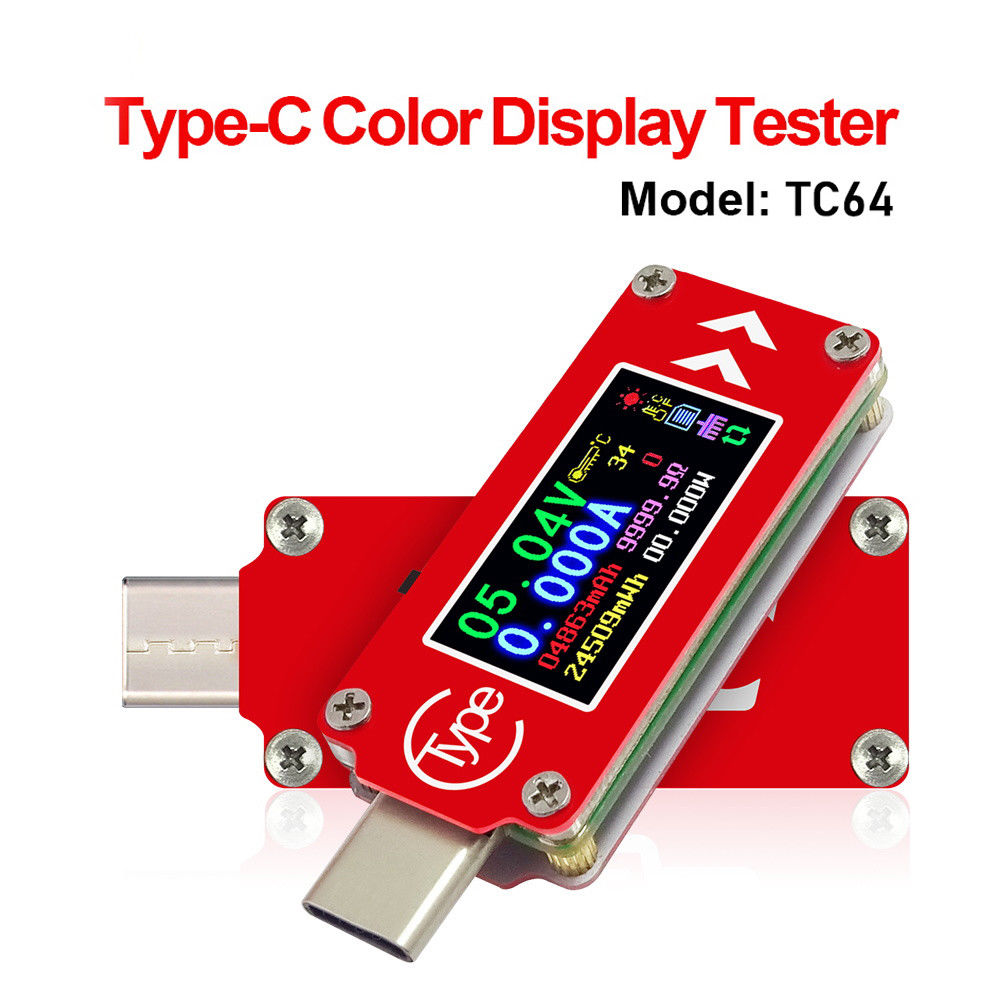

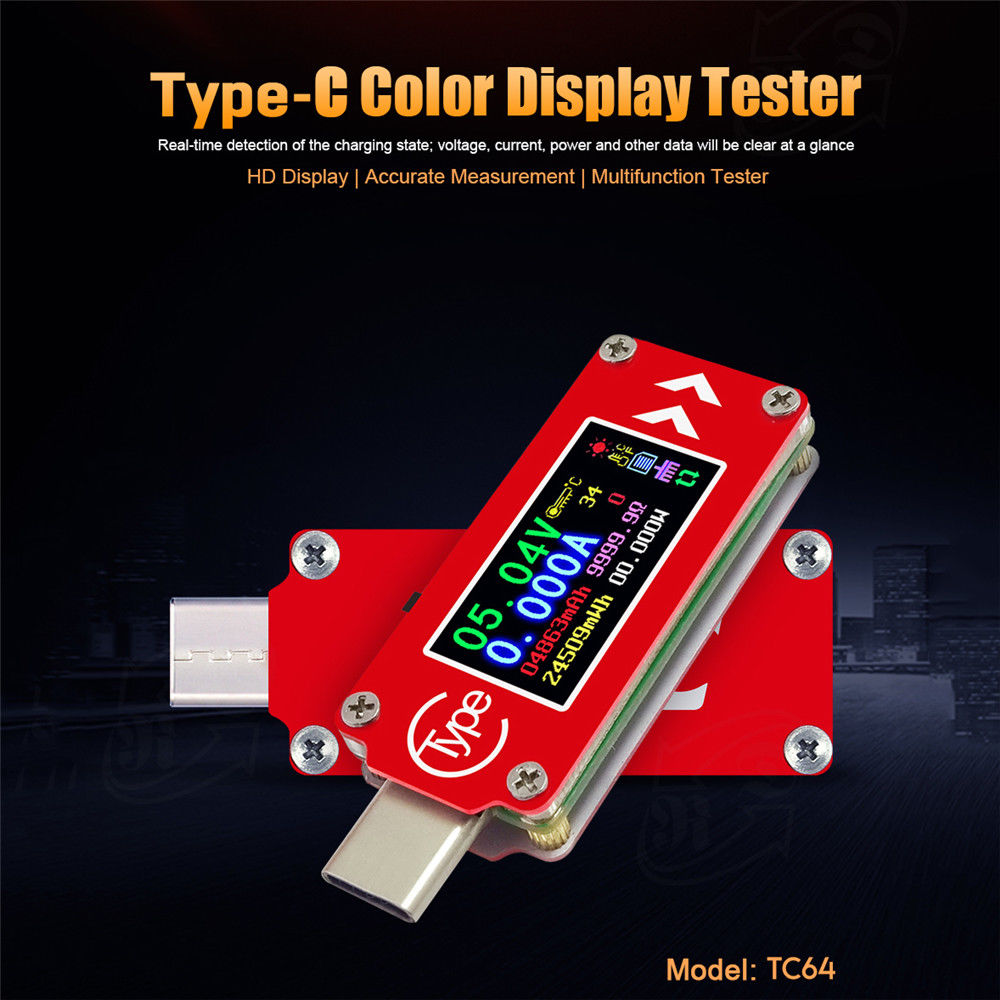

TC64 Type-C USB Color LCD Voltmeter Ammeter Voltage Current Meter Multimeter

TC64 Type-C USB Color LCD Voltmeter Ammeter Voltage Current Meter Multimeter

SKU:X13242
Regular price $10.99

Features:
  • The voltage, current,capacity,energy,power,equivalent,impedance,temperature and other indicators are clear at a glance.
  • Wide appliance: Laptop,Mobile,Power bank,,Charger,Car charger,Data cable,electronic load.
  • Power off storage-data guaranteed,when the power bank is off,the capacity and the data can be stored,which is convenient for subsequent inspection,and convenient for capacity and energy measurement and of the power bank.
Specifications:
  • Product Model:TC64

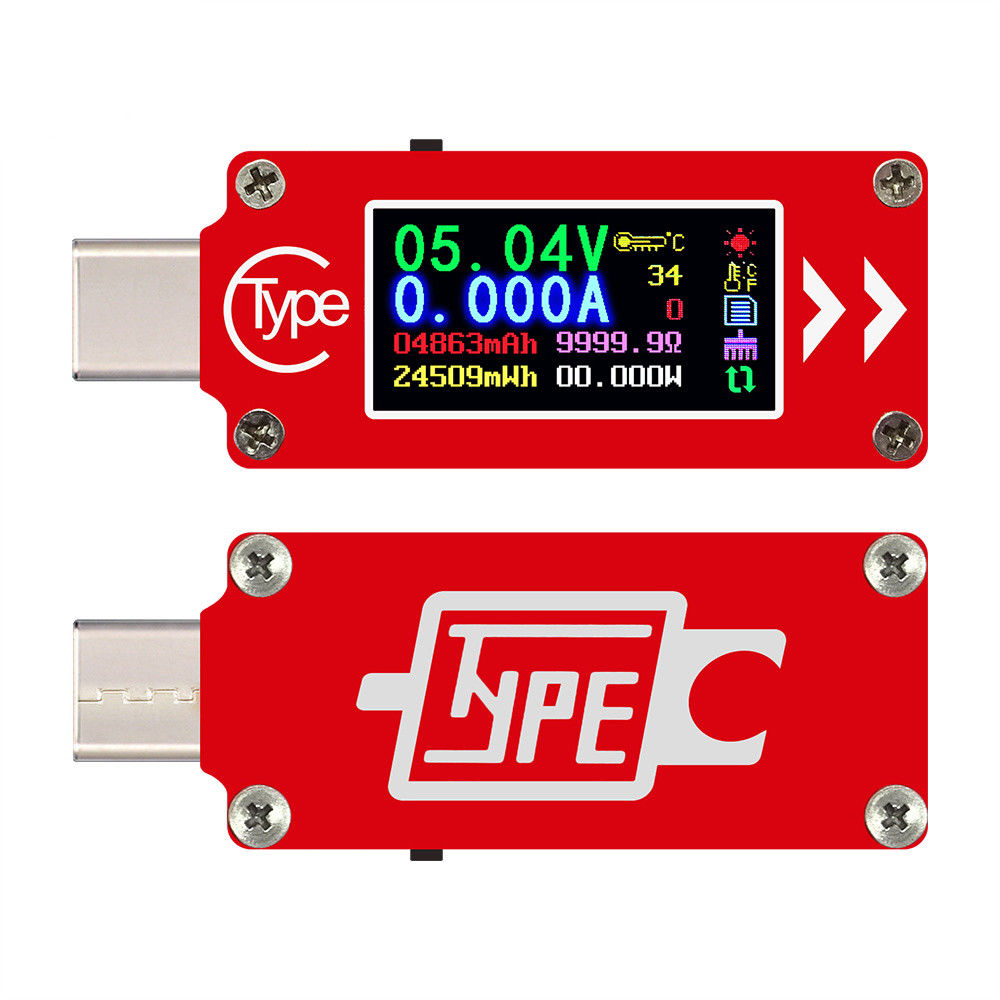

  • Display screen:0.96 Inch color LCD display
  • Voltage measurement range:3.70-30.00V
  • Voltage measurement resolution:0.01V
  • Current measurement range:0-4.000A
  • Current measurement resolution:0.001A
  • Capacity accumulation rannge:0-99999mAh

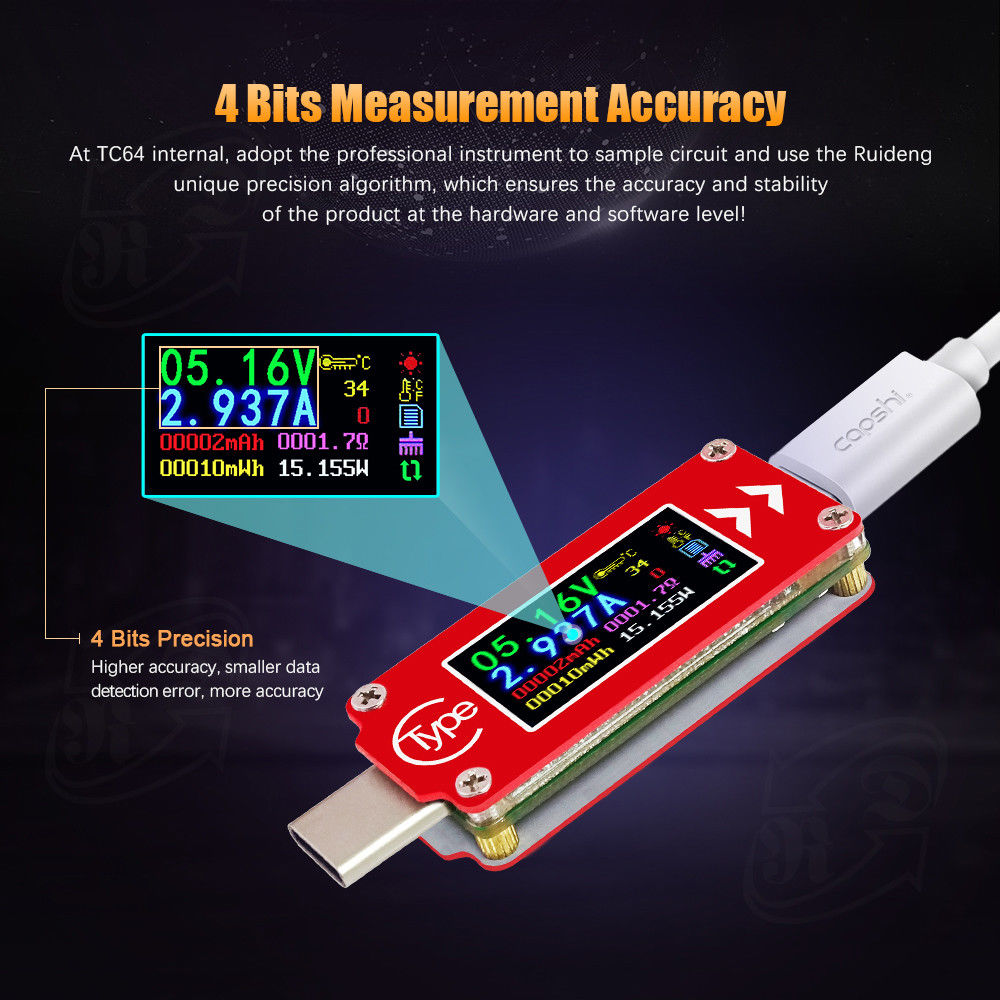

  • Voltage measurement accuracy:±(0.8%+4digits at 25℃)
  • Energy sccumulation range:0-99999mWh 999.99Wh
  • Current measurement accuracy: ±(1%+4 digits, at 25℃)
  • Load impedance range: 1Ω-9999.9Ω
  • Power measurement range:0-120W
  • Temperature range:-0℃~80℃/32℉~176℉
  • Temperature measurement error:±3℃/±6℉
  • Working temperature range: 0~45℃/32℉~113℉
  • Product size:50mmx19mmx9mm
  • Refresh rate:2Hz
  • Product weight:7g( With packaging 14g)

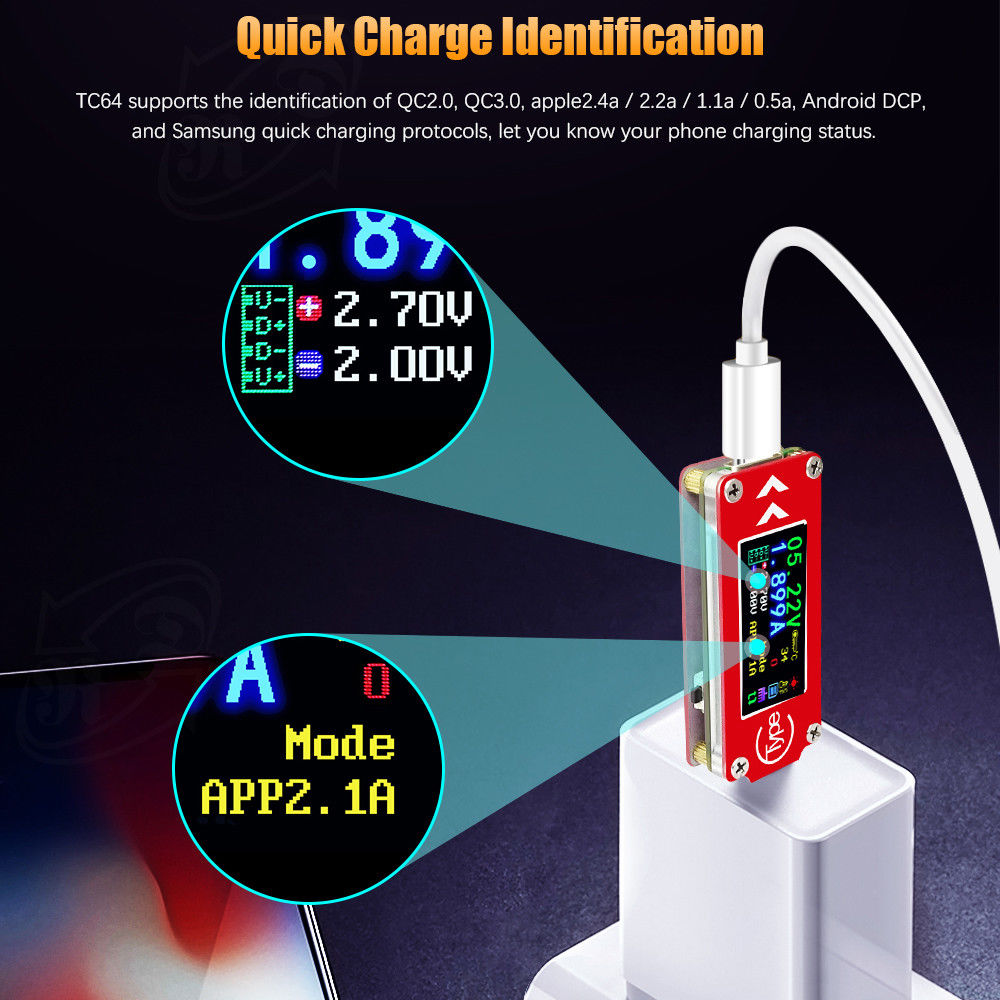

  • Quick charge recognition mode:QC2.0、QC3.0、APPLE 2.4A/2.1A/ 1A/0.5A、Android DCP、SAMSUNG (This quick charge agreement recognition model is for reference only, because cell phone updated quickly, it can't be absolutely accurate identification )
Notes:
  • The product current only flow from male connector to female connector (one-way current), the reverse is still energized but the current is shown to be 0. Pay attention when using.
  • If you use our TC64 meter to connect phone, you must have PD charger , or have many converter cable ..
  • Type-C port is full function port , support Type-C fast charge and most all type-c device , but not Type-c identity resistance (no type-c trigger)
  • Application: PD charger measurement; PD car charger measurement; Type-C U flash measurement, and etc.
Package included :
  • 1 x Type-C Full-Color LCD Display Tester
trust seal
  • guaranteeQuality checked
  • Special gift cardsSpecial gift cards
  • Free return Within 60 days
  • Consultancy86-0755-85201155
Features:
  • The voltage, current,capacity,energy,power,equivalent,impedance,temperature and other indicators are clear at a glance.
  • Wide appliance: Laptop,Mobile,Power bank,,Charger,Car charger,Data cable,electronic load.
  • Power off storage-data guaranteed,when the power bank is off,the capacity and the data can be stored,which is convenient for subsequent inspection,and convenient for capacity and energy measurement and of the power bank.
Specifications:
  • Product Model:TC64
  • Display screen:0.96 Inch color LCD display
  • Voltage measurement range:3.70-30.00V
  • Voltage measurement resolution:0.01V
  • Current measurement range:0-4.000A
  • Current measurement resolution:0.001A
  • Capacity accumulation rannge:0-99999mAh
  • Voltage measurement accuracy:±(0.8%+4digits at 25℃)
  • Energy sccumulation range:0-99999mWh 999.99Wh
  • Current measurement accuracy: ±(1%+4 digits, at 25℃)
  • Load impedance range: 1Ω-9999.9Ω
  • Power measurement range:0-120W
  • Temperature range:-0℃~80℃/32℉~176℉
  • Temperature measurement error:±3℃/±6℉
  • Working temperature range: 0~45℃/32℉~113℉
  • Product size:50mmx19mmx9mm
  • Refresh rate:2Hz
  • Product weight:7g( With packaging 14g)
  • Quick charge recognition mode:QC2.0、QC3.0、APPLE 2.4A/2.1A/ 1A/0.5A、Android DCP、SAMSUNG (This quick charge agreement recognition model is for reference only, because cell phone updated quickly, it can't be absolutely accurate identification )
Notes:
  • The product current only flow from male connector to female connector (one-way current), the reverse is still energized but the current is shown to be 0. Pay attention when using.
  • If you use our TC64 meter to connect phone, you must have PD charger , or have many converter cable ..
  • Type-C port is full function port , support Type-C fast charge and most all type-c device , but not Type-c identity resistance (no type-c trigger)
  • Application: PD charger measurement; PD car charger measurement; Type-C U flash measurement, and etc.
Package included :
  • 1 x Type-C Full-Color LCD Display Tester
