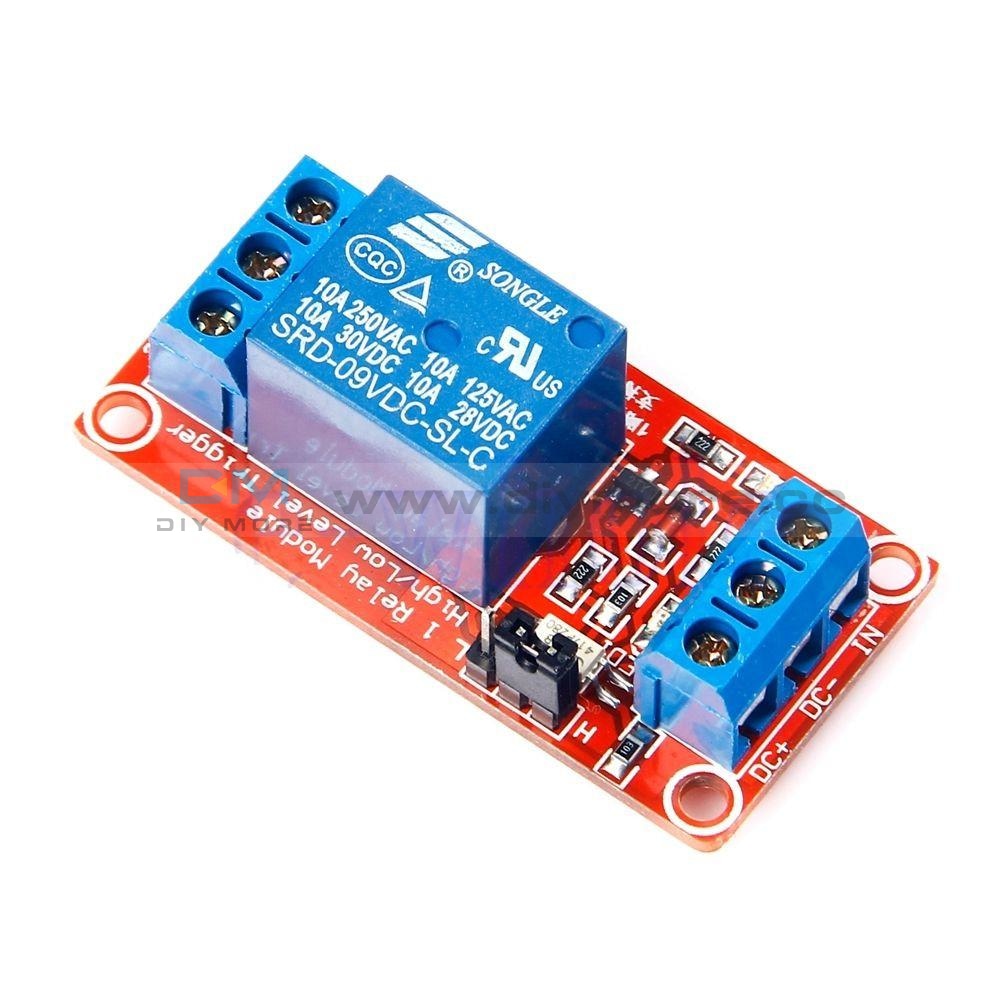

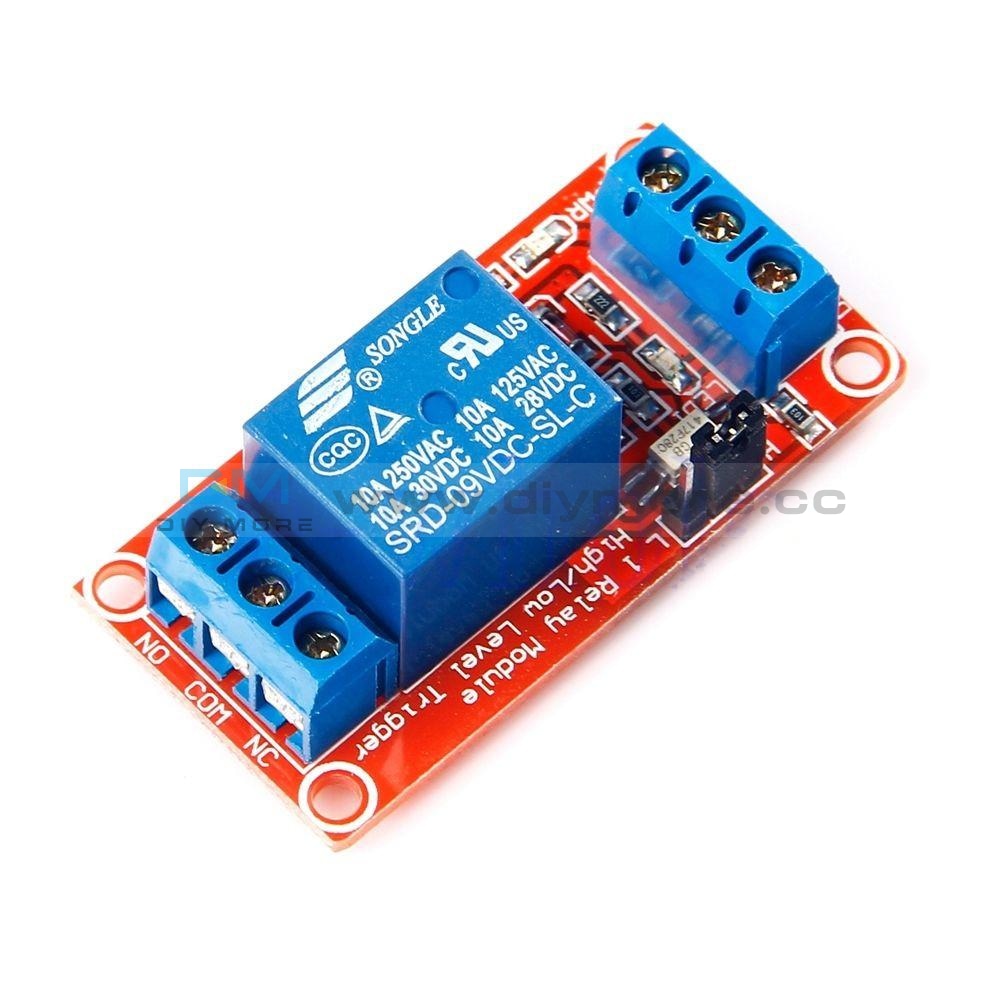

1 Channel Optocoupler Relay Module Support High and Low Trigger DC 5V/9V/12V/24V

1 Channel Optocoupler Relay Module Support High and Low Trigger DC 5V/9V/12V/24V

SKU:011545
Regular price $4.99

Description :
  • The module uses genuine quality relay , normally open interfaces Maximum load : AC 250V/10A, DC 30V/10A;
  • Using SMD optocoupler isolation , driving ability , stable performance ; trigger current 5mA;
  • The module voltage is 5V, 9V,12V, 24V are available ;
  • The module can be set to high or low triggered by jumper ;
  • Fault-tolerant design , even if the control line is broken , the relay will not operate ;
  • The power indicator ( green ) , relay status indicator ( red );
  • Interface design humane, all interfaces can be connected directly via terminal wiring leads , very convenient;
  • Module size : 50mm * 26mm * 18.5mm ( L * W * H );
  • Has four mounting bolts holes , hole 3.1mm, 44.5mm * 20.5mm pitch.

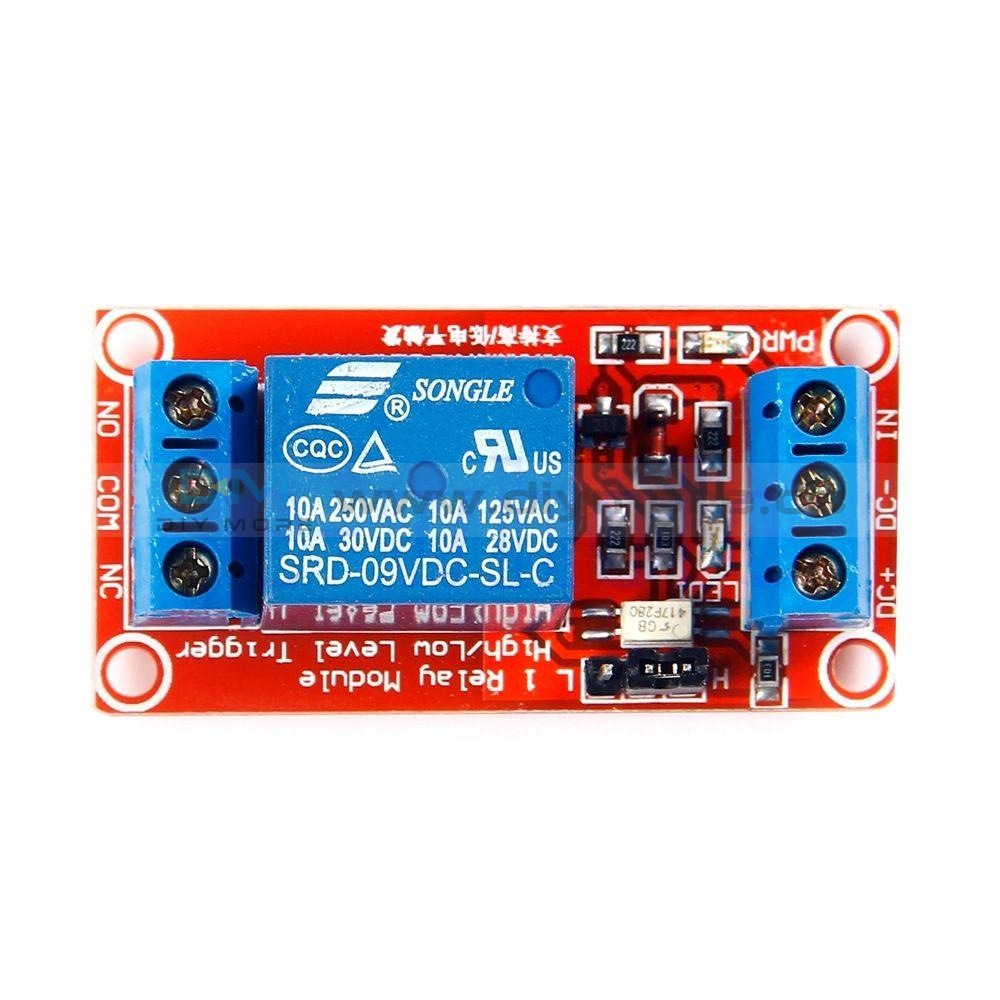

Two module interface :
  • DC +: Positive power supply ( voltage required by the relay , there 5V.9V.12V and 24V choice );
  • DC-: Negative power connection;
  • IN: Can be high or low level control relay.
Relay outputs :
  •  NO: Normally open relay interface, the relay before the vacant after the pull shorted with COM;
  • COM: Common Interface Relays;
  • NC: Normally closed relay interface relay shorted with COM ago , after the pull- vacant.
High and low trigger selection ends :
  • Short jumper with LOW LOW triggered when connected ;
  • When the jumper is high with high short trigger .
Package Included:
  • 1 x Relay Module with Optocoupler
