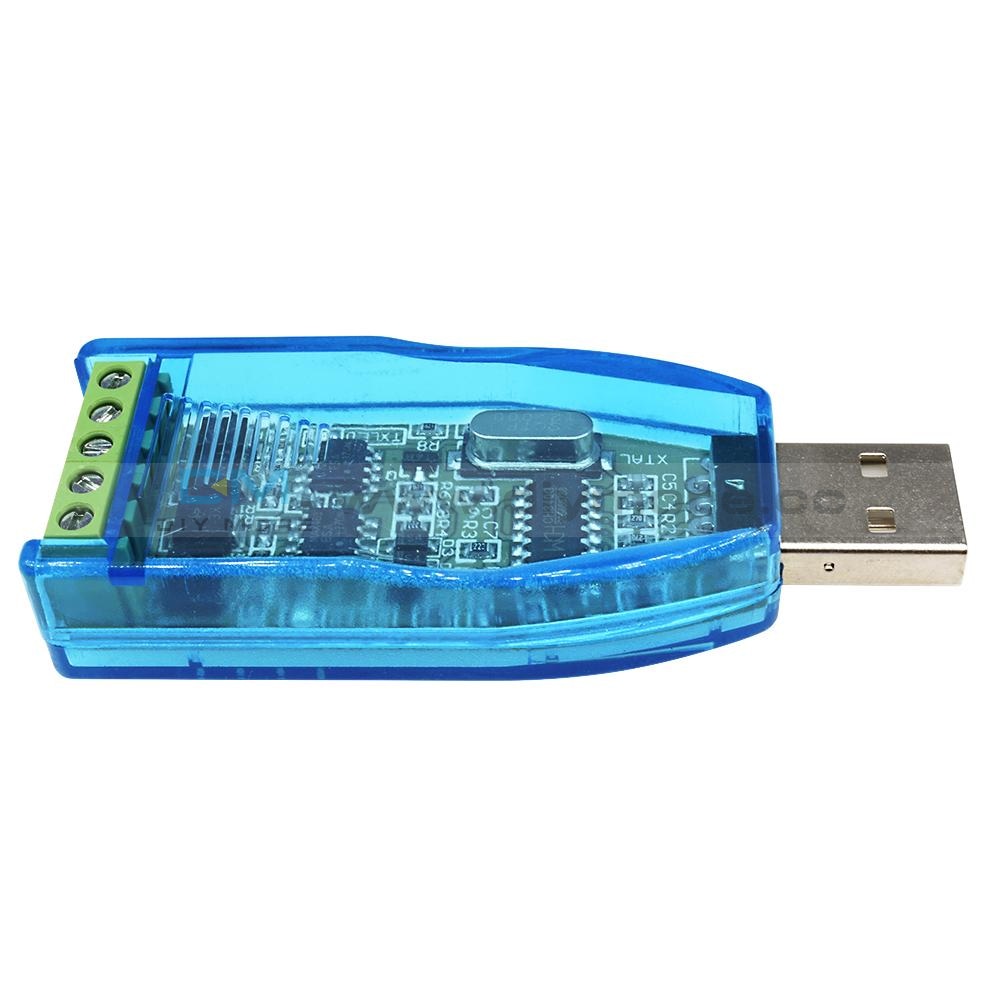

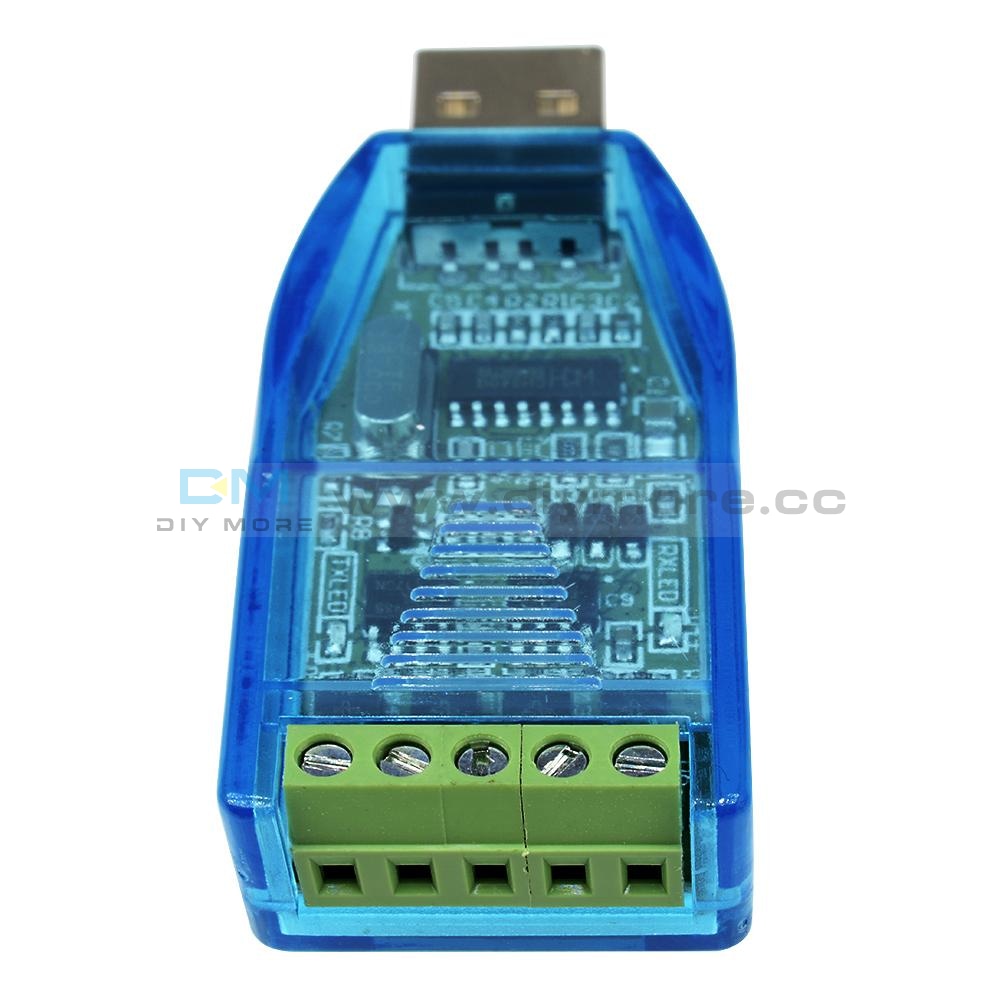

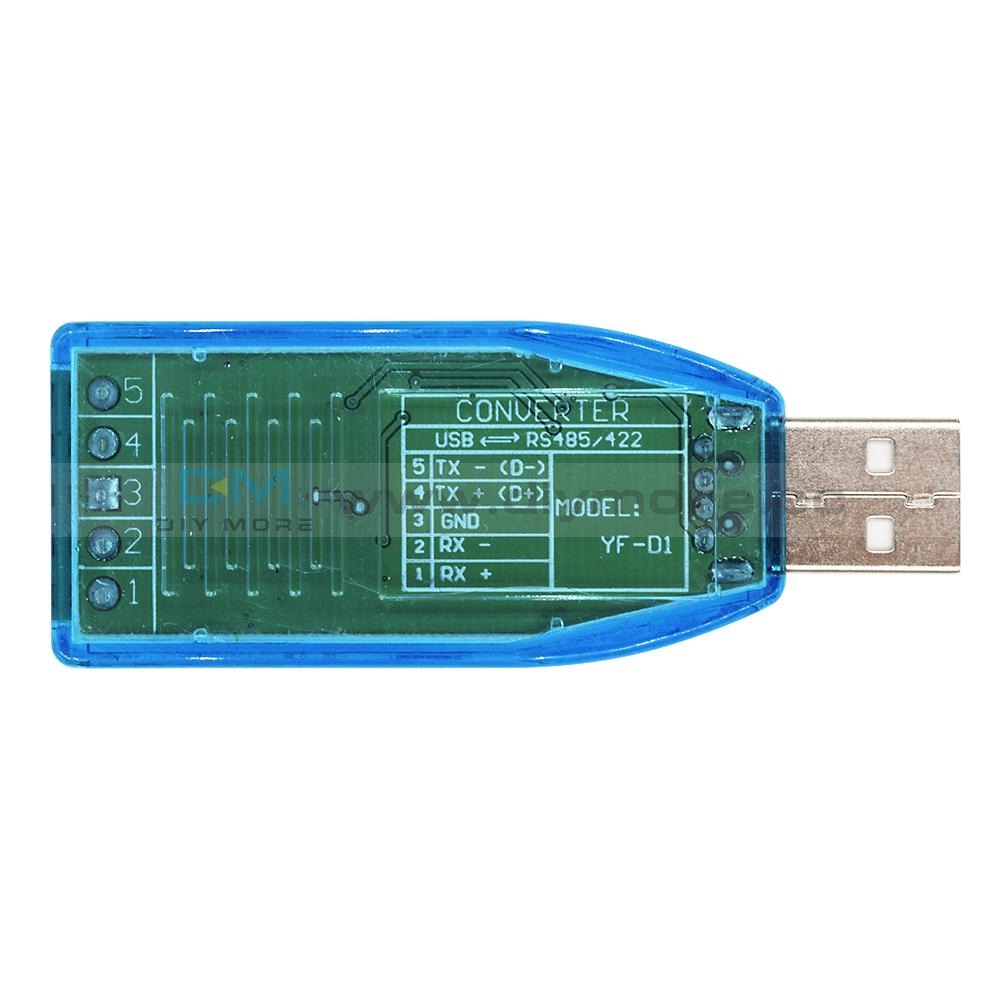

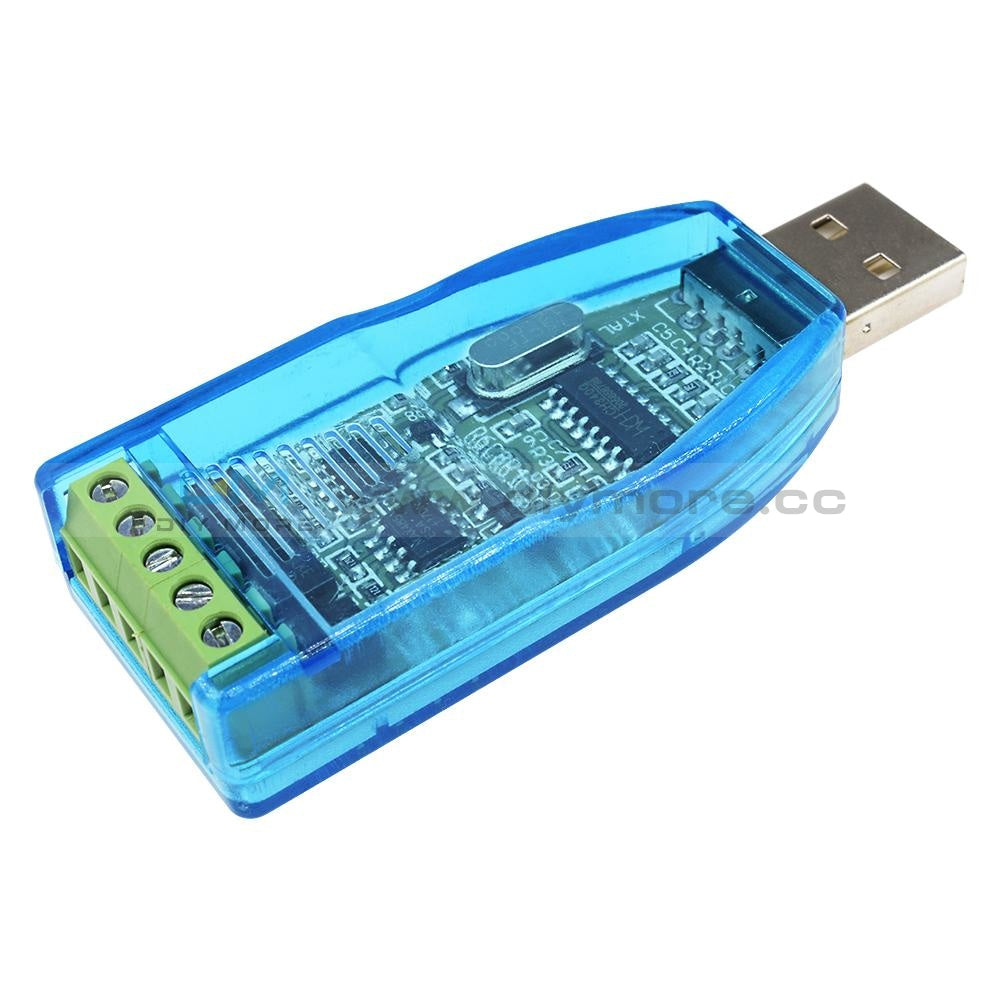

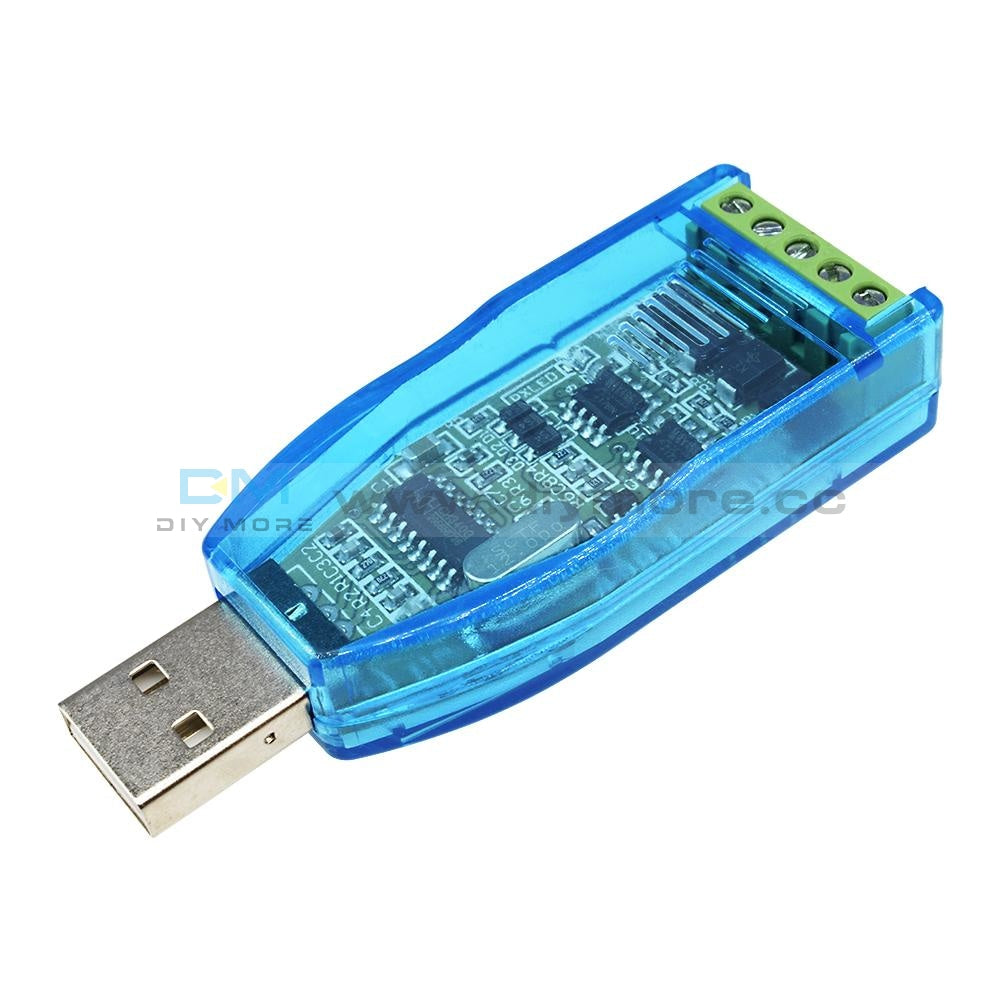

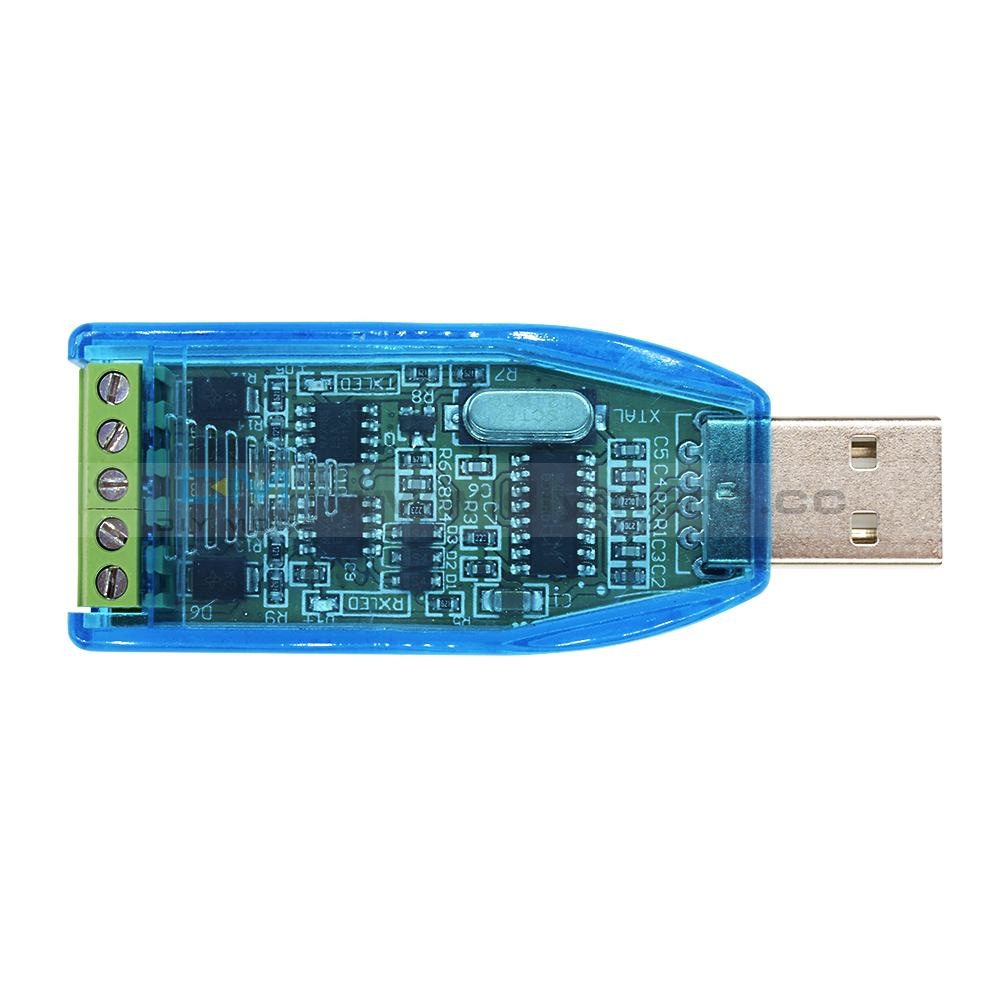

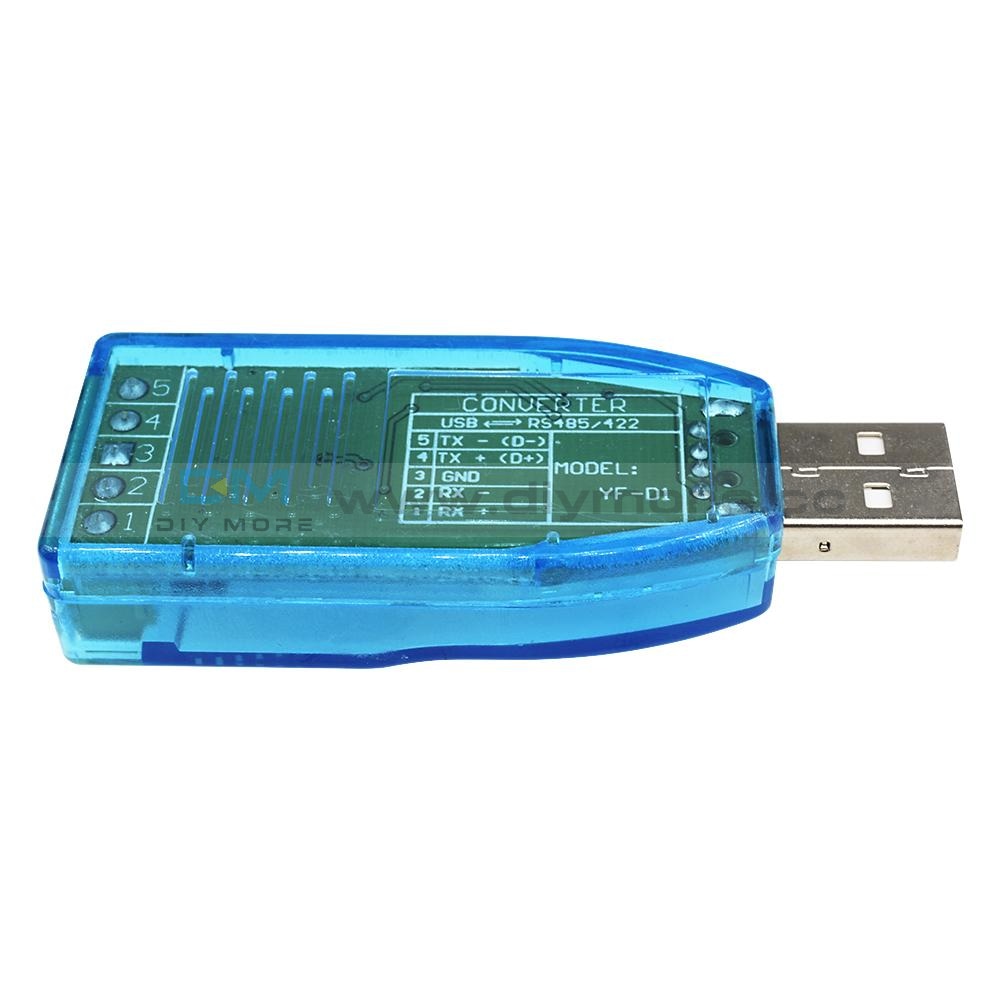

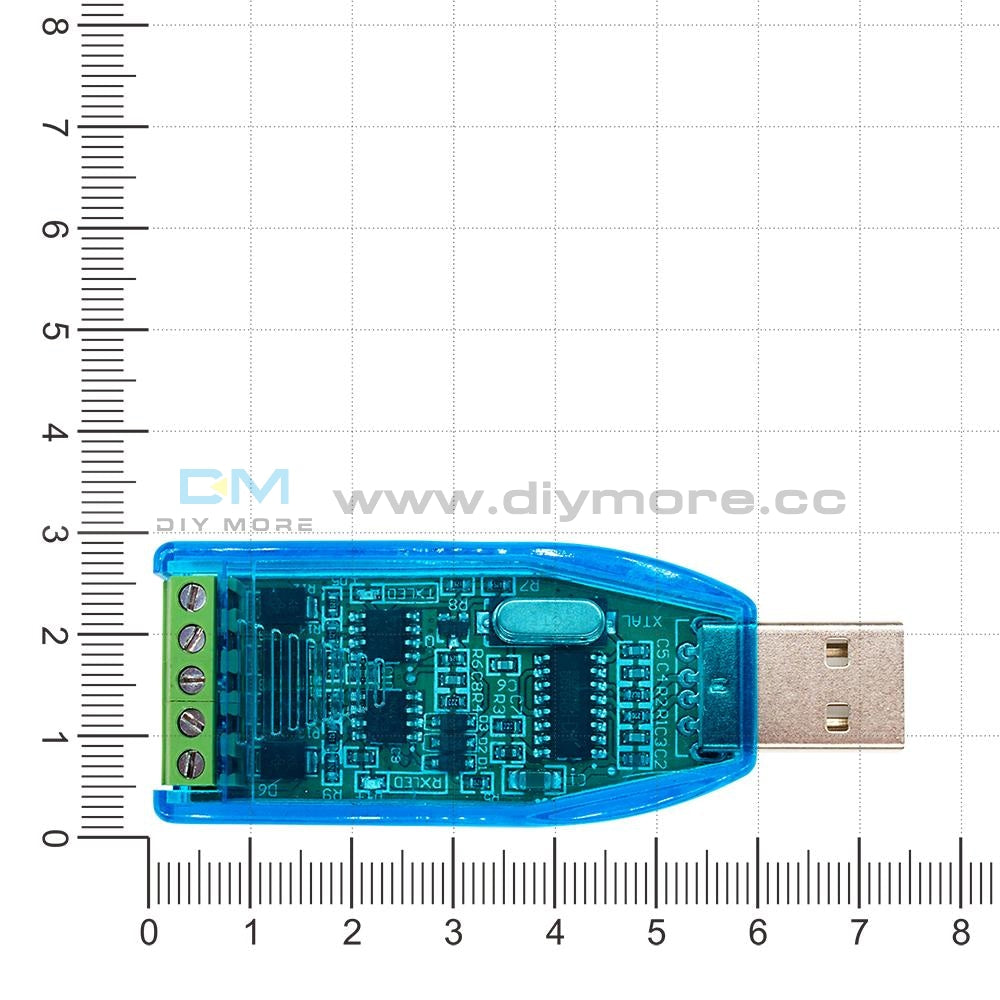

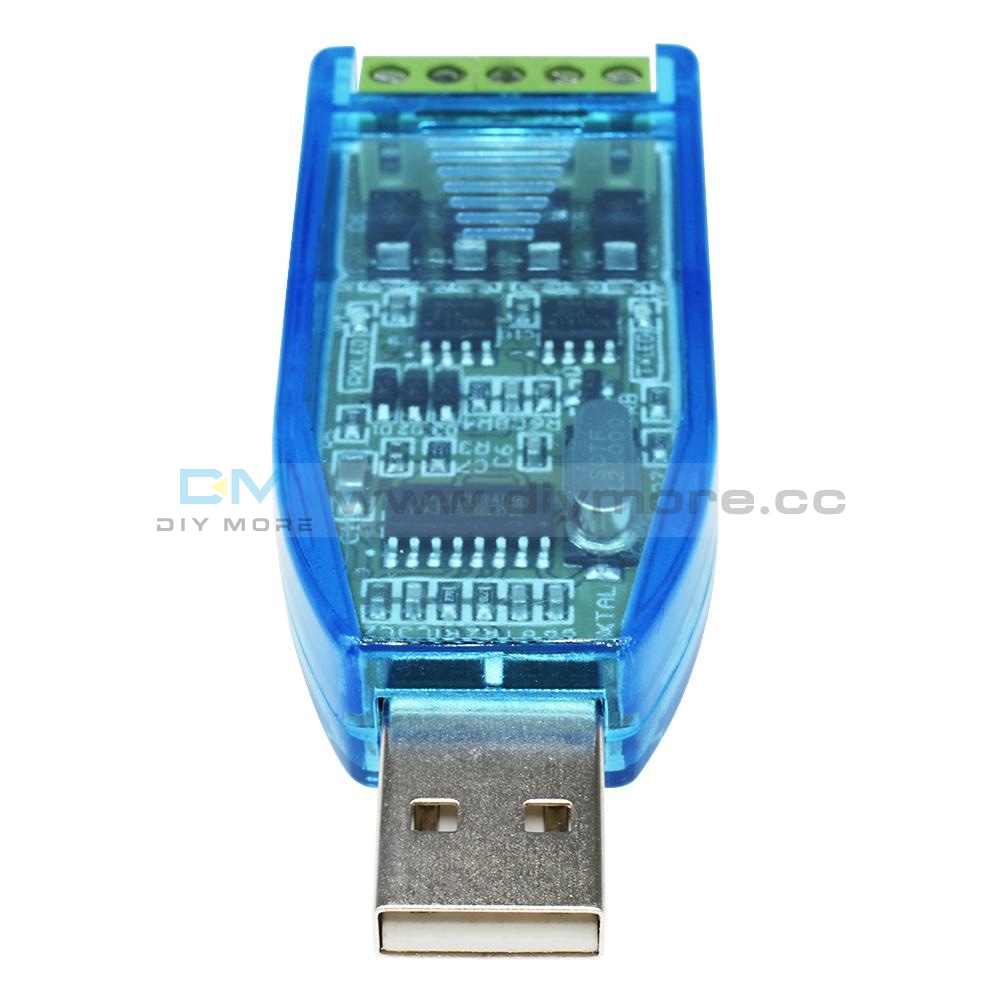

Industrial USB To RS485/422 Converter Upgrade Protection CH340 RS485
Industrial USB To RS485/422 Converter Upgrade Protection CH340 RS485
SKU:011140
Regular price
$6.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Overview:
Specifications:
Package Included:
1 *USB To RS485/422 Converter
- USB To RS485/422 converter allows PC users to connect their RS-485/422 devices to systems that use USB interface.
- By attaching the converter to a PC, it will no longer be necessary to open the chassis or turn off the PC to install the hub. With the converter, the user instantly gets one extra high-speed RS-485 or RS-422 ports.
- In addition, since the power is derived from the USB port, there are not any cumbersome power adapters.
- The converter especially suitable for PLCs, printers, POS system and industrial control devices.
Specifications:
- Compatibility: USB v2.0 standard
- Interface: Network:USB
- Serial:RS-485/RS-422
- Port: One Independent RS-485 or RS-422 ports
- Connector: Network: USB-type A connector

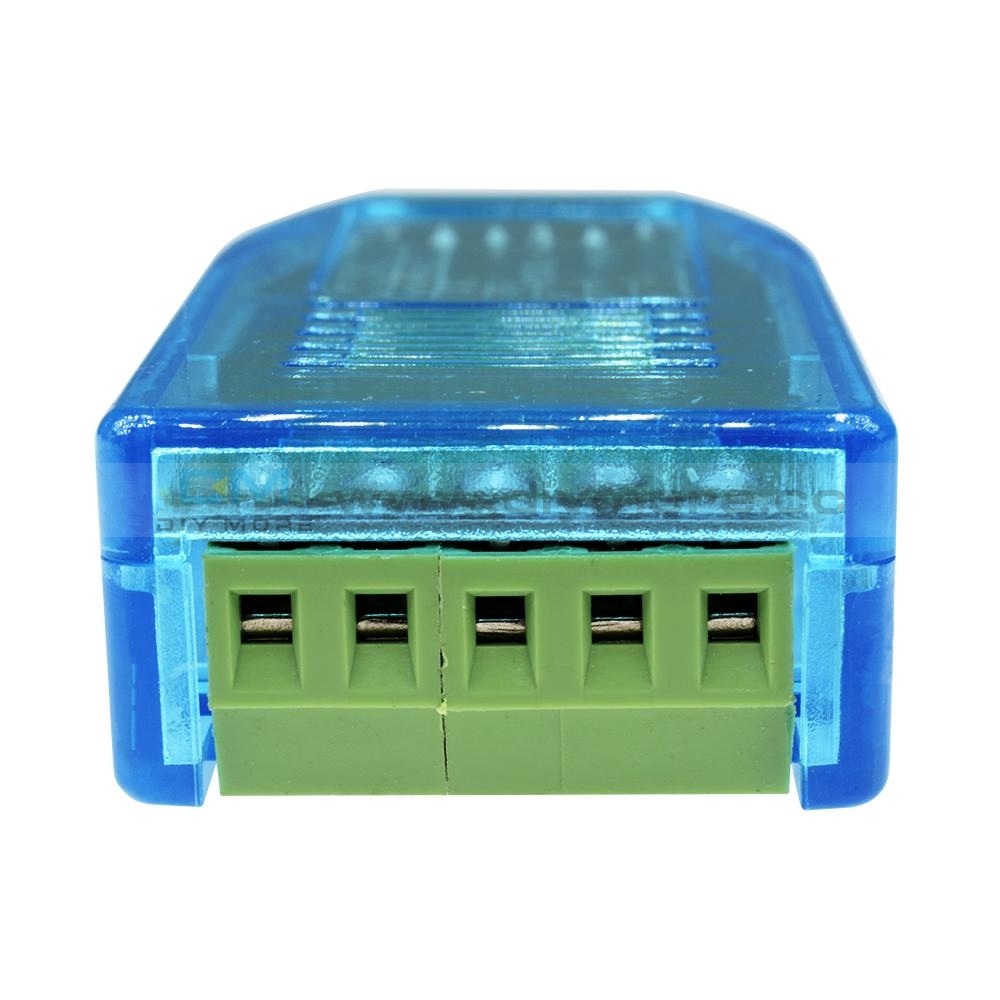

- Serial: Screw terminal
- Transmission speed: 600bps to 115.2Kbps
- Parity bit: odd, even, none
- Data bit: 5, 6, 7, 8
- Stop bit: 1, 1.5, 2
- Driver Support: Windows 2000/2003/XP/Vista/7 (32bit and 64bit)
- Power Consumption: 1.5W @ 5V
- Max. Distance: 4000ft (1200m) @ 19.2Kbps
- Case: Blue transparent ABS
- Operating Temperature: -20℃~+65℃
- Operating Humidity: 20% to 95% (non-condensing)
Package Included:
1 *USB To RS485/422 Converter
