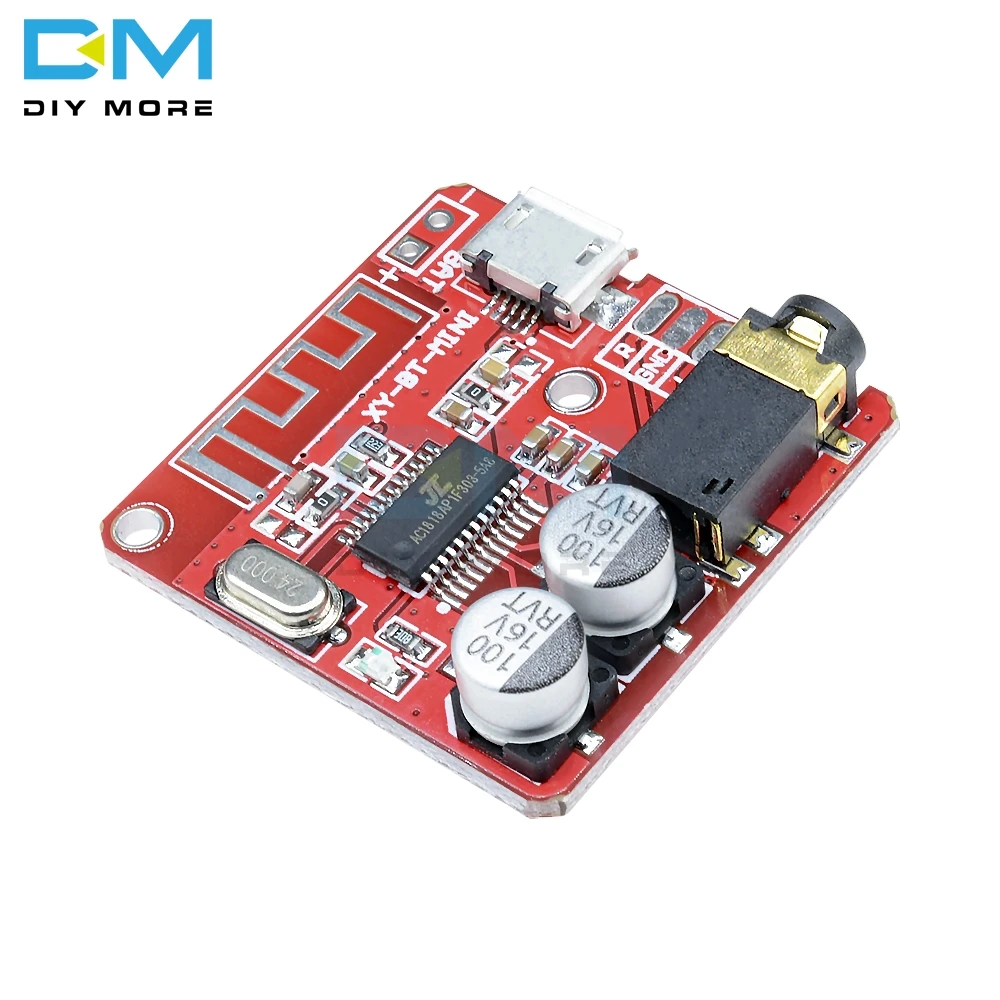

Mini MP3 Bluetooth 4.1 Lossless Decoder Stereo Output Board Car Speaker Amplifier Module Circuit Board Module 3.7V 5V Micro Usb

Mini MP3 Bluetooth 4.1 Lossless Decoder Stereo Output Board Car Speaker Amplifier Module Circuit Board Module 3.7V 5V Micro Usb

SKU:012704
Regular price $4.99



Bluetooth 4.1 support, support for automatic connection, WAV+APE+FLAC+MP3 lossless decoding, stereo output.

1.Parameter characteristics

Power Supply

3.7-5V

SNR

90dB

THD+N

-70dB

Crosstalk

-86dB

DNR

91dB

Support Profile

A2DP/AVCTP/AVDTP/AVRCP/HFP

LOS

>15m


2.Interface details

USB powered
 Universal Micro USB 5V power supply

3.7-5V Supply Pad
 External 3.7-5V lithium battery power conversion

LED indicator
 Bluetooth mode long blue light

3.5mm stereo audio interface
 Standard 3.5mm interface, output stereo

Instructions:

After the power is turned on, the blue indicator lights up and enters the Bluetooth mode; the English “The bluetooth device is ready to pair” is displayed, indicating that the Bluetooth mode is entered and waiting for pairing; the “XY_BT” searched by the mobile phone Bluetooth is the device name of the decoding board. , Click on the connection, the decoder board prompts "The bluetooth device is connected successfully", indicating that the decoder board and the mobile phone are connected successfully, you can play music. As shown below

Package Contents:

1X 3.7-5V Mini Bluetooth MP3 Decoder Board Power amplifier Board Bluetooth 4.1
