0.96" I2C IIC Serial 128X64 128*64 White OLED LCD LED Display for Arduino STM32
0.96" I2C IIC Serial 128X64 128*64 White OLED LCD LED Display for Arduino STM32
SKU:030513BA
Regular price
$9.99
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155

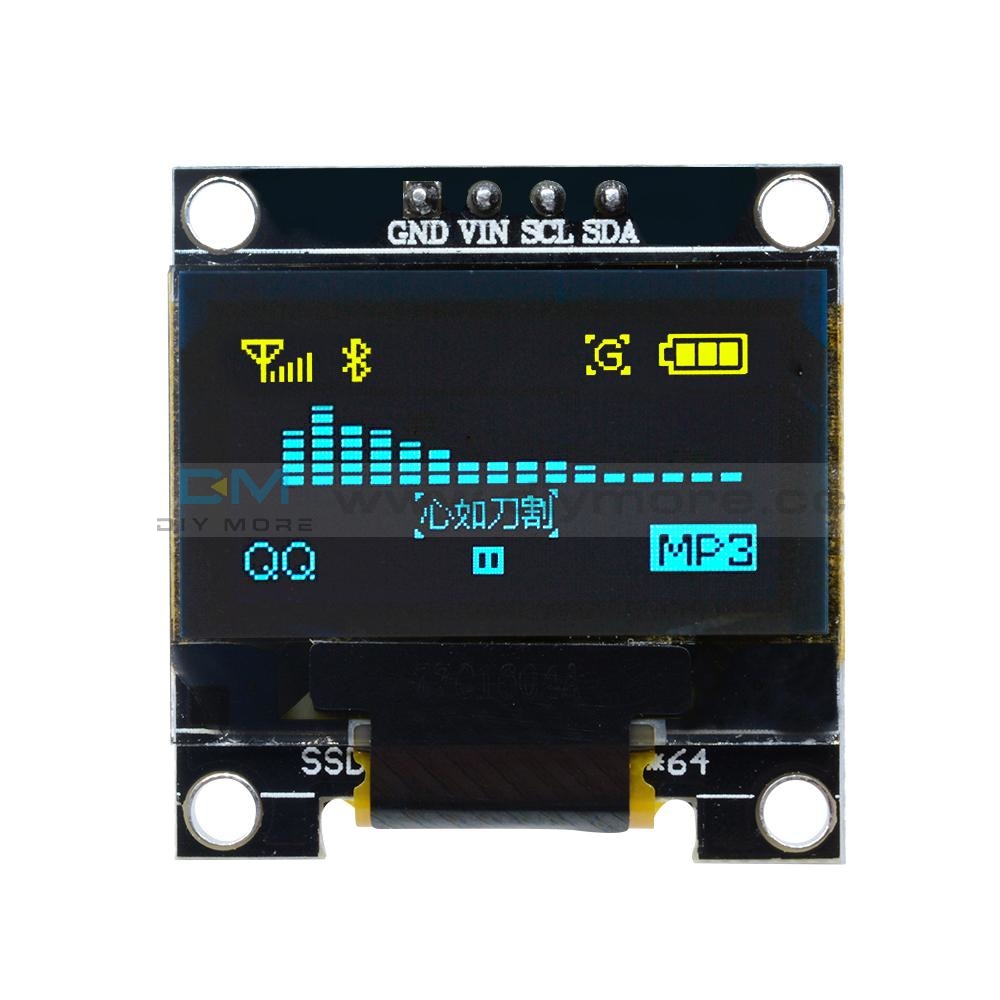

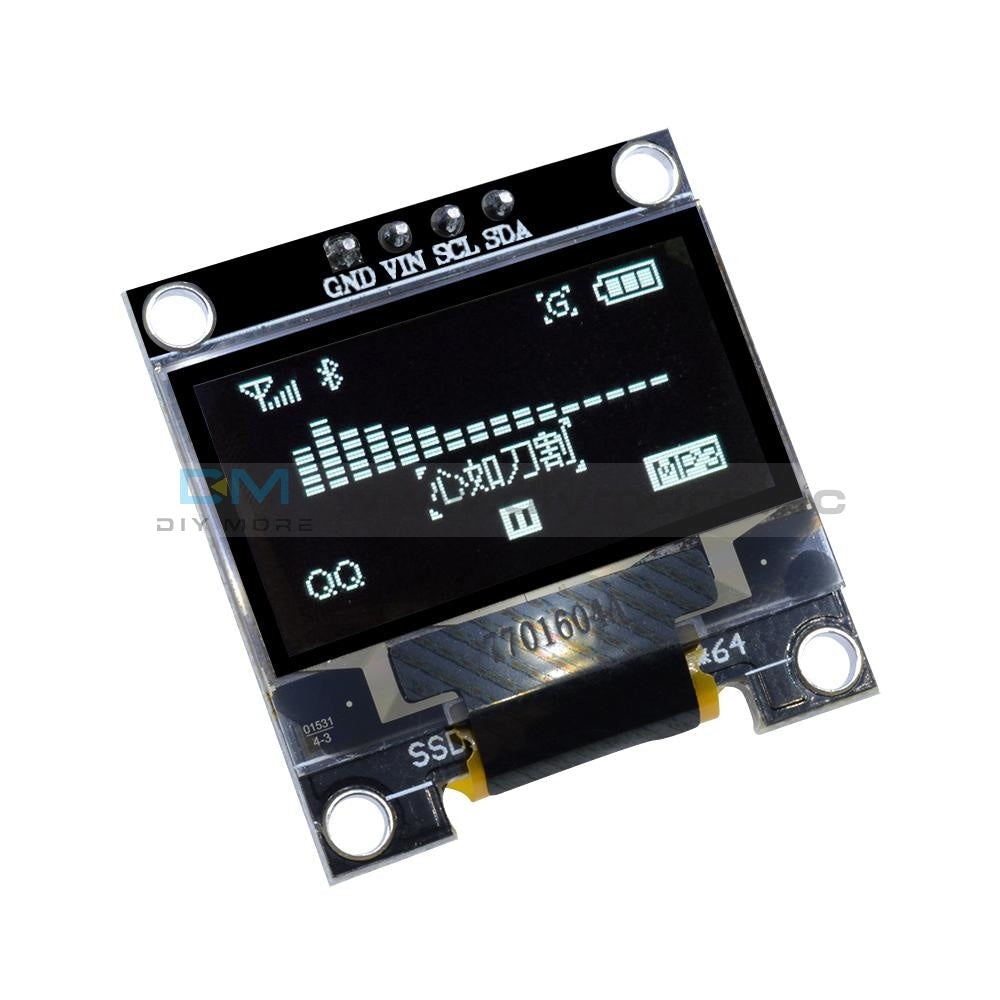

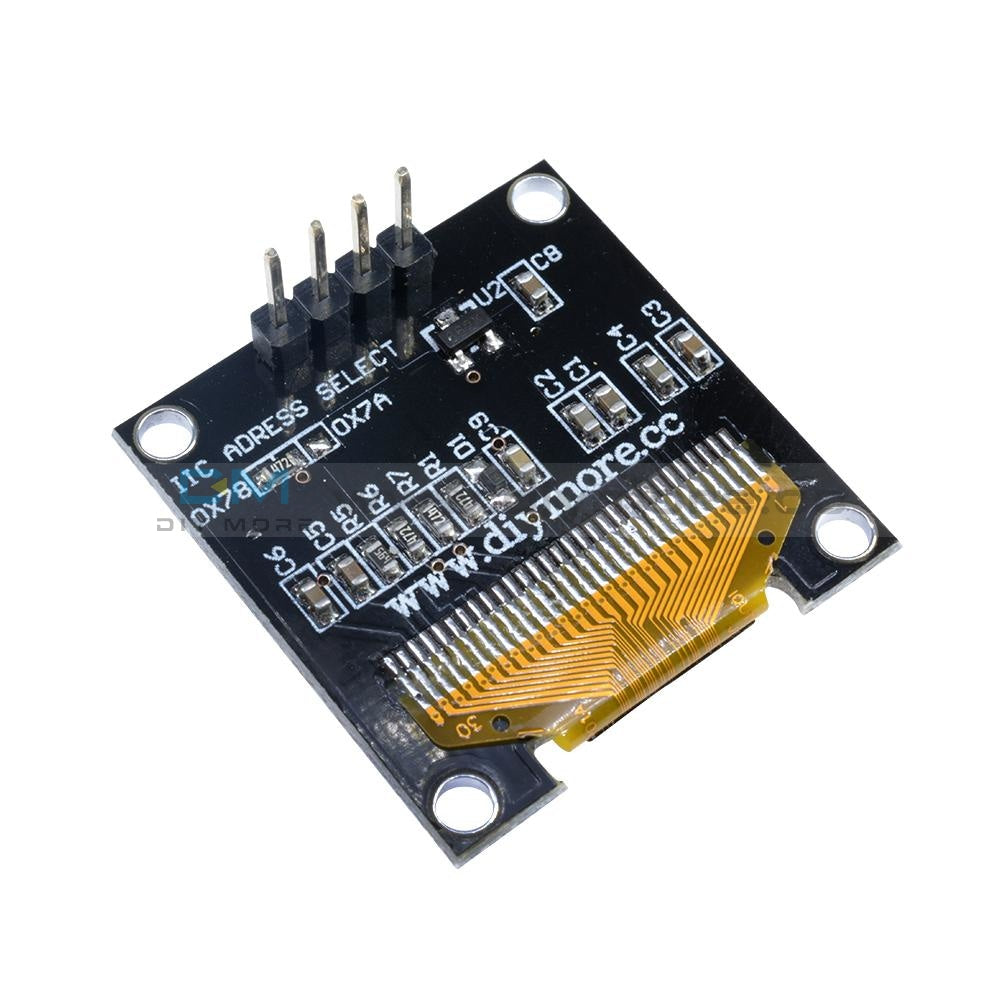

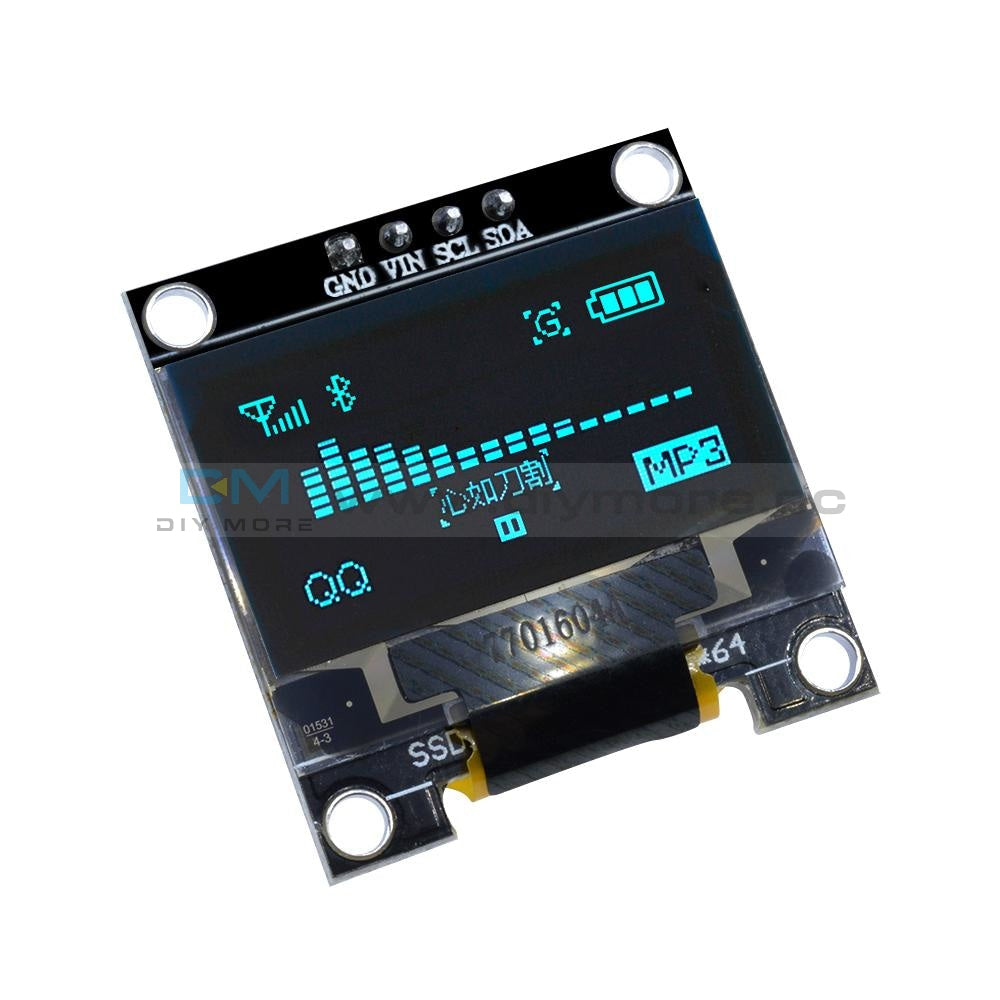

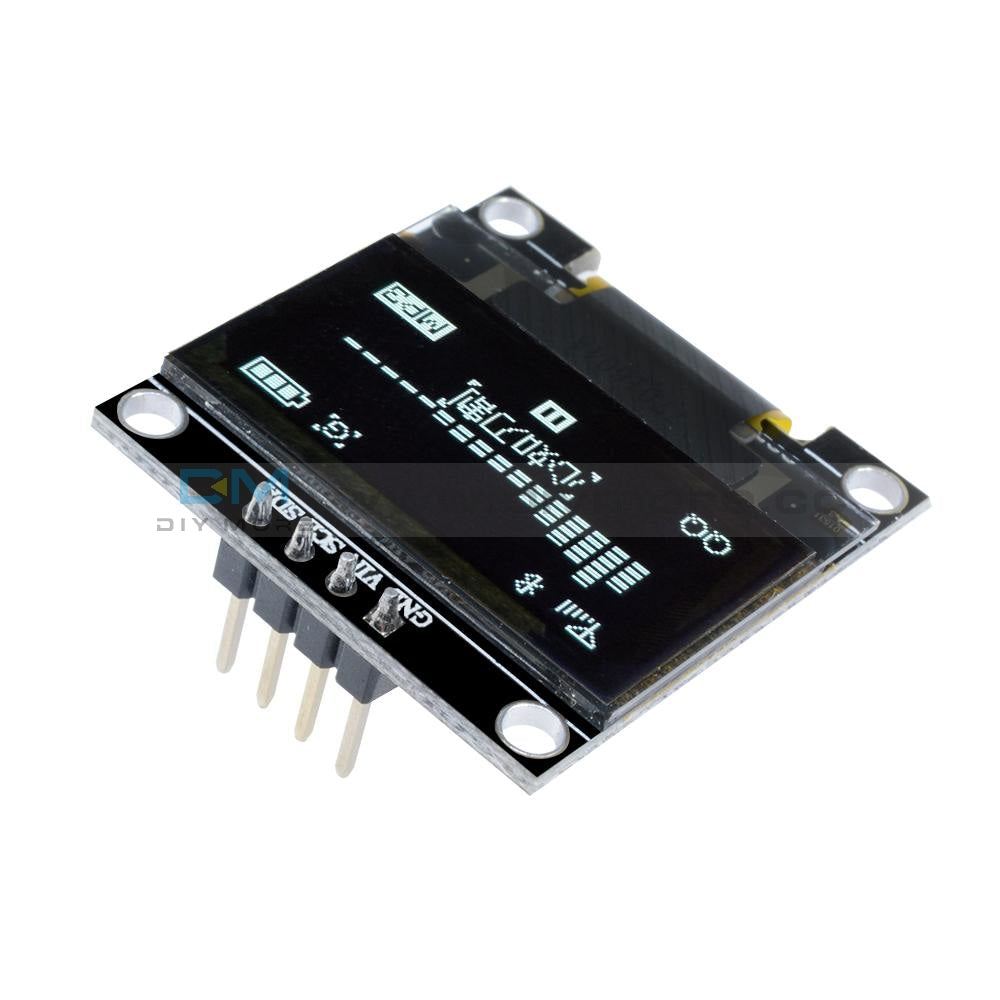

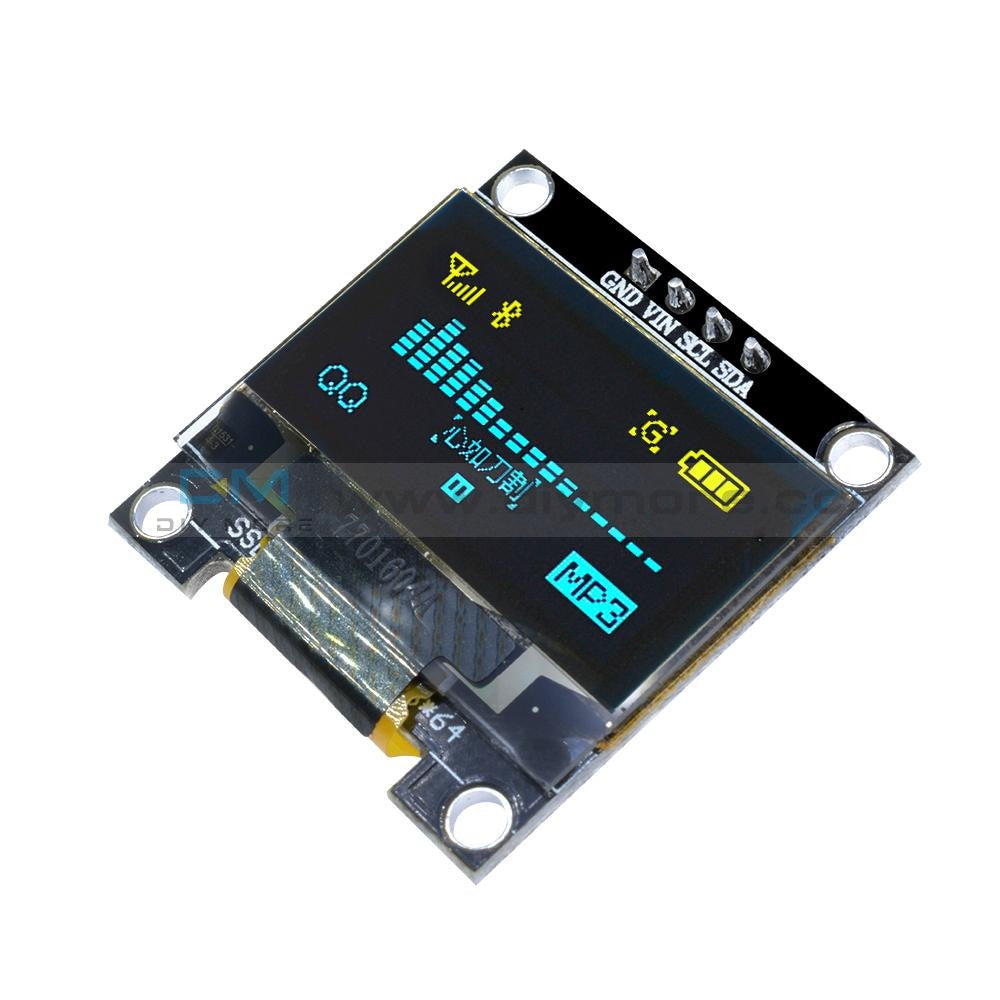

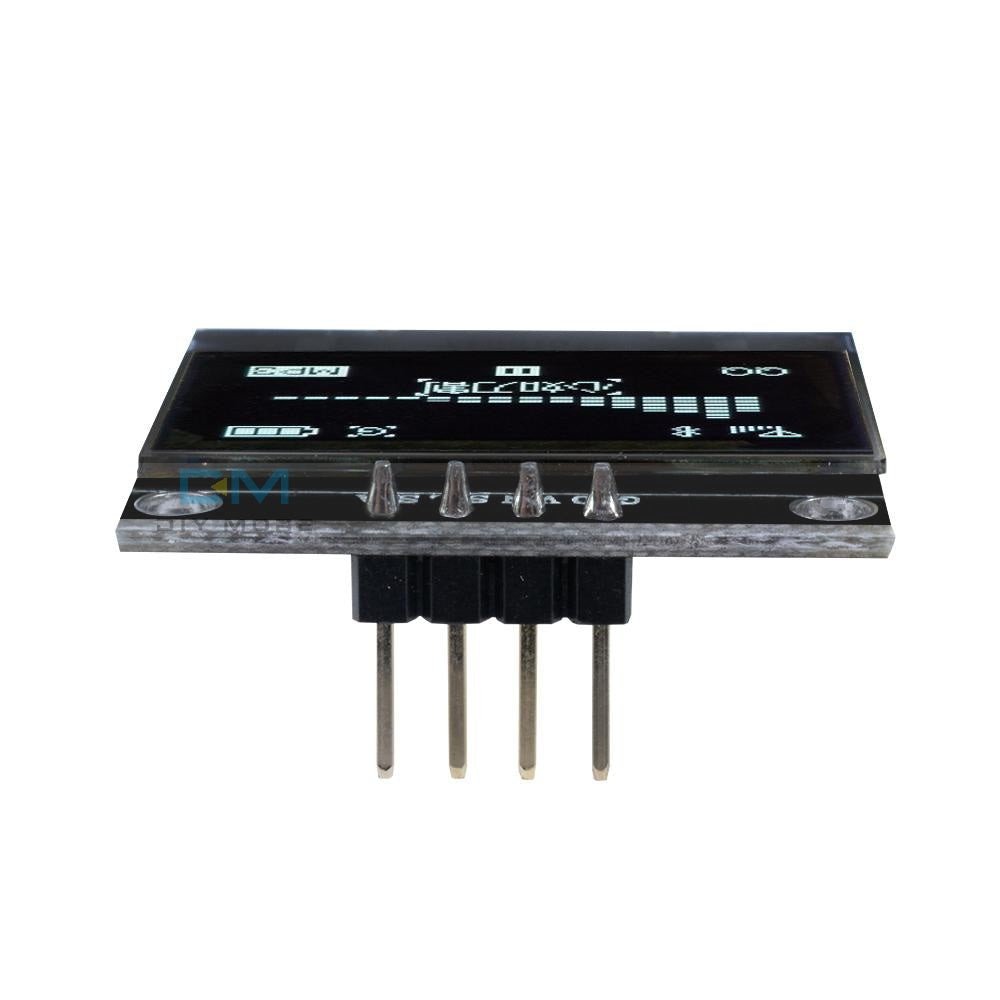

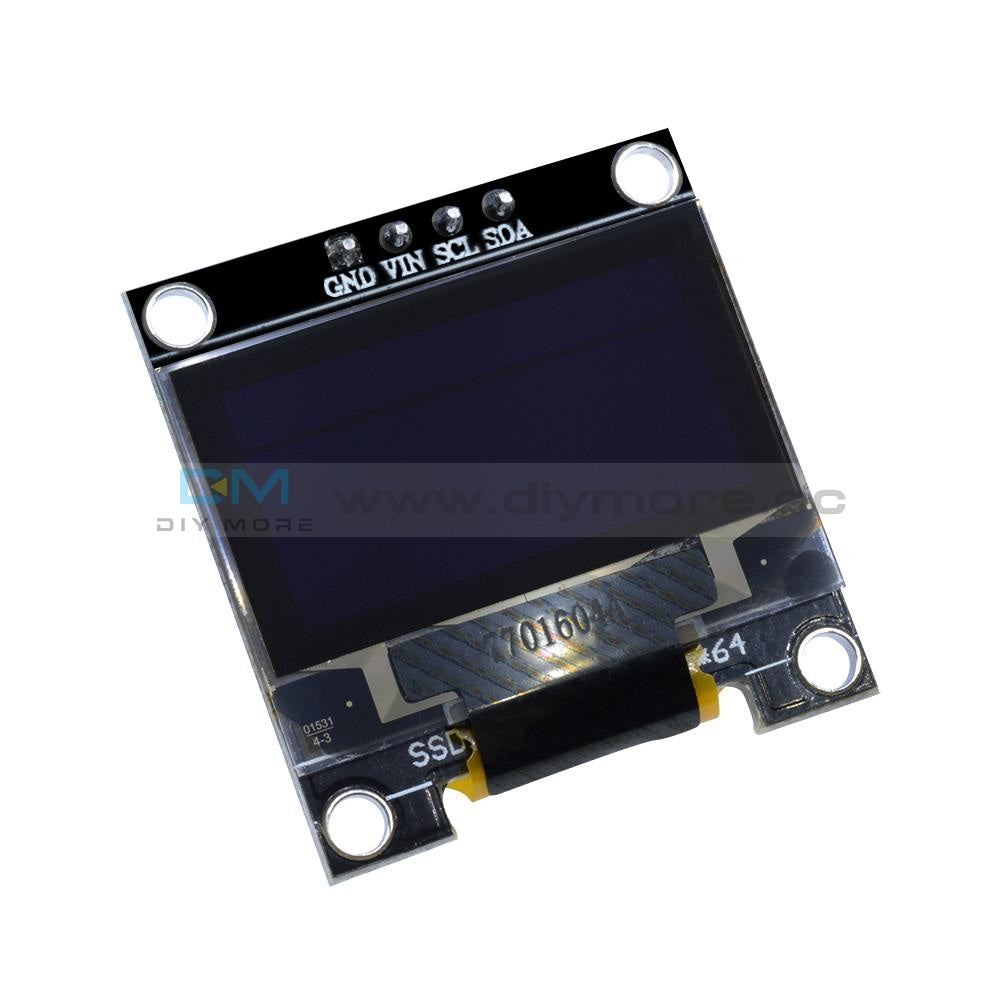

128*64 LED display module for Arduino, supports many control chip.
- Fully compatible with Arduino, 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc.
- Ultra-low power consumption: full screen lit 0.08W
- Super high brightness and contrast are adjustable
- With embedded driver/controller
- Interface type is IIC
- Pin Definition: GND, VCC ,SCL, SDA
- Pins: 4 pins
- Voltage: 3V ~ 5V DC
- Working Temperature: -30 ° ~ 70 °
- Character Colors: Blue/White/Yellow&Blue(as pictures show)
- Drive Duty: 1/64 Duty
- High resolution: 128 * 64
- Panel Dimensions: 26.70* 19.26* 1.85mm/1.03*0.76*0.07 inch(approx)
- Active Area: 21.74* 11.2mm /0.86*0.44 inch(approx)
- Driver IC: SSD1306
Note:
- The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness
Package Included:
- 1PC*128x64 Blue/White/Yellow&Blue LED display module for Arduino ( It depends your choice )
