5PCS OV2640 ESP32 CAM Wireless WiFi Bluetooth Module Camera Development Board ESP32 OV7670 Dual core 32 bit CPU 2MP TF card 5V

5PCS OV2640 ESP32 CAM Wireless WiFi Bluetooth Module Camera Development Board ESP32 OV7670 Dual core 32 bit CPU 2MP TF card 5V

SKU:X132375
Regular price $27.99

Low-power dual-core 32-bit CPU for application processors
Main frequency up to 240MHz, computing power up to 600 DMIPS
Built-in 520 KB SRAM, external 4M PSRAM
Supports interfaces such as UART/SPI/I2C/PWM/ADC/DAC
Support OV2640 and OV7670 cameras, built-in flash
Support image WiFi upload
Support TF card
Support multiple sleep modes
Embedded Lwip and FreeRTOS
Support STA/AP/STA+AP working mode
Support Smart Config/AirKiss one-click distribution network
Support secondary development

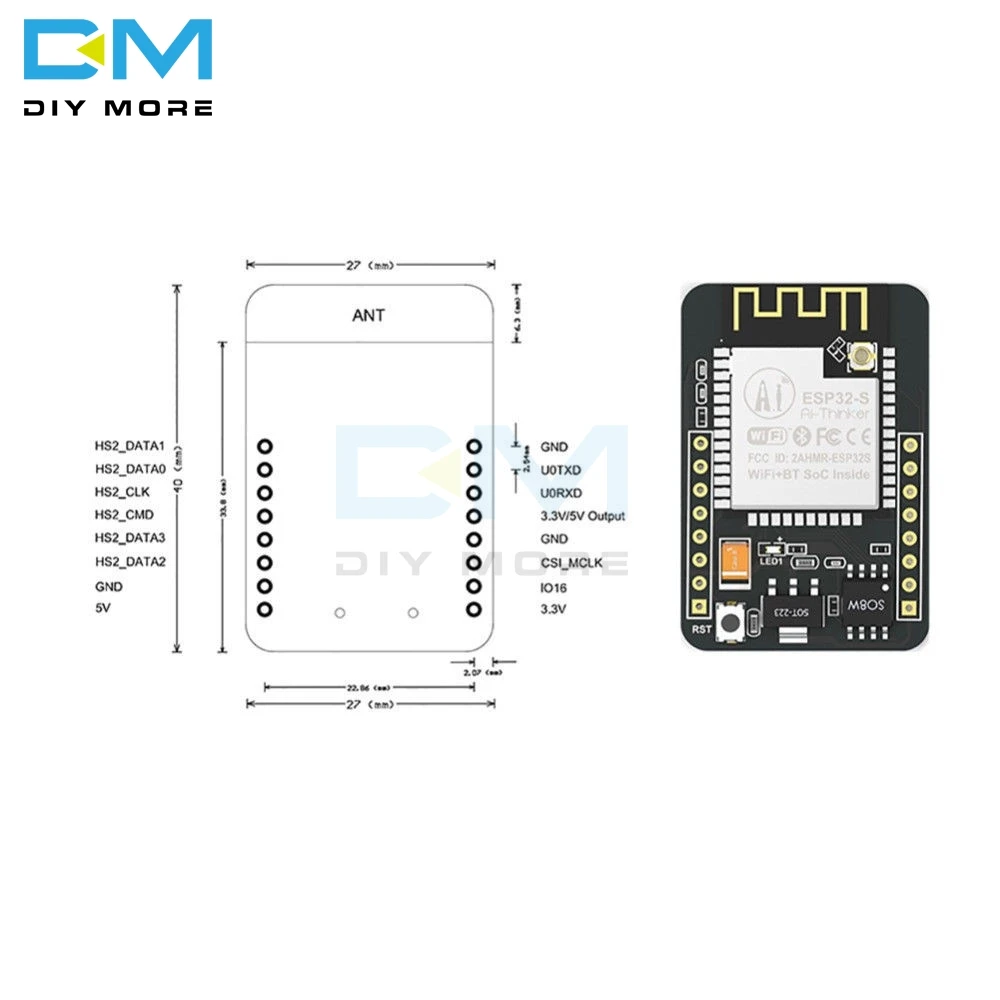

The ESP32-CAM has a very competitive small form factor camera module that can operate independently as a minimum system with a footprint of only 27*40.5*4.5mm and a deep sleep current of up to 6mA.
ESP-32CAM can be widely used in various IoT applications. It is suitable for home smart devices, industrial wireless control, wireless monitoring, QR wireless identification, wireless positioning system signals and other IoT applications. It is an ideal solution for IoT applications.
ESP-32CAM is packaged in DIP and can be directly plugged into the backplane for quick production. It provides customers with a highly reliable connection method and is convenient for use in various IoT
hardware terminals.
Package Include:
5* ESP32-CAM module
5* Camera Module OV2640 2MP

X13237 (233)X13237 (99999)X13237 (1)X13237 (11)X13237 (2)X13237 (9)X13237 (4)X13237 (10)
