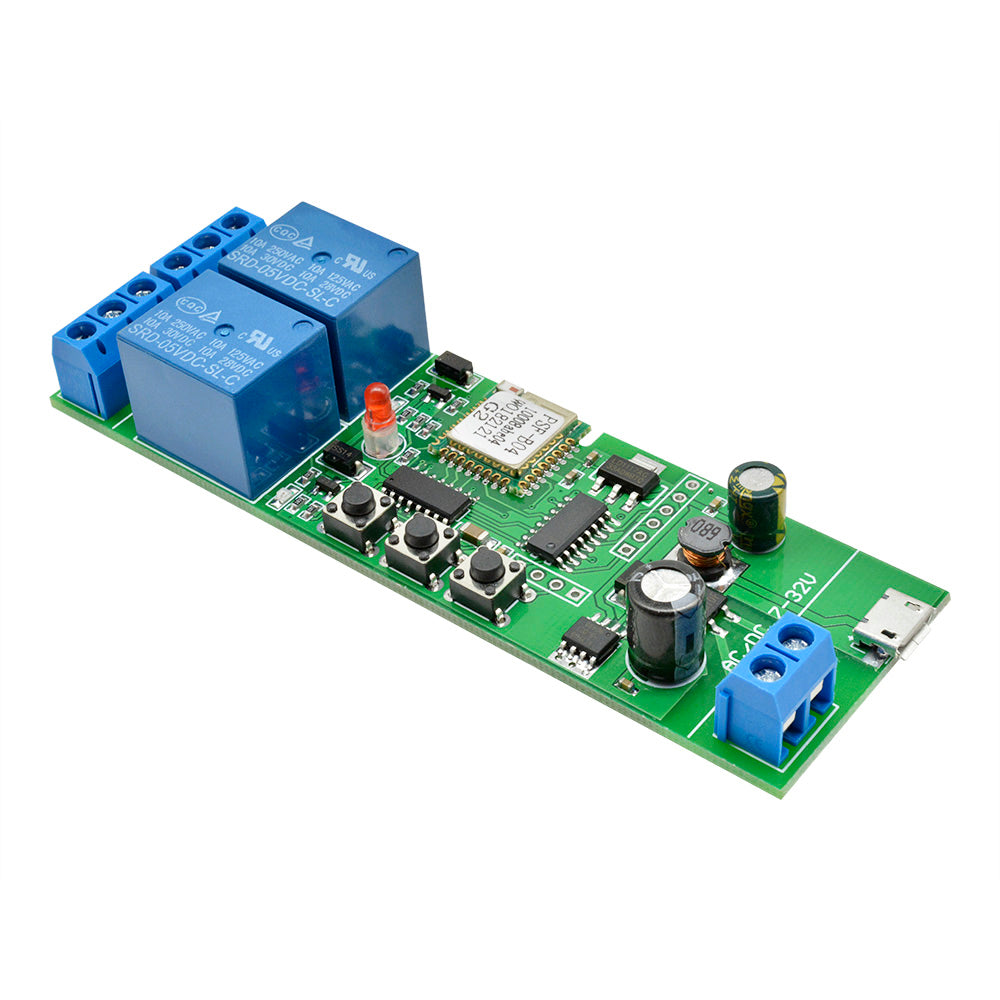

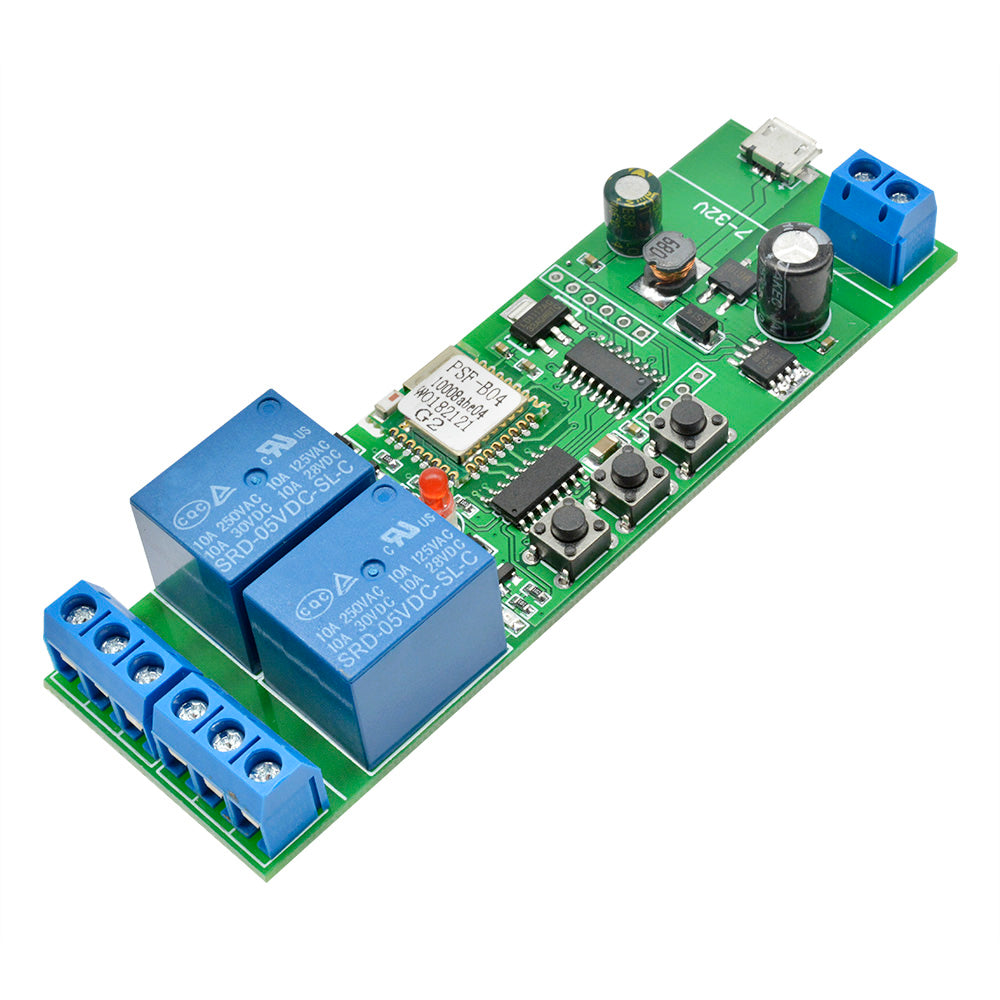

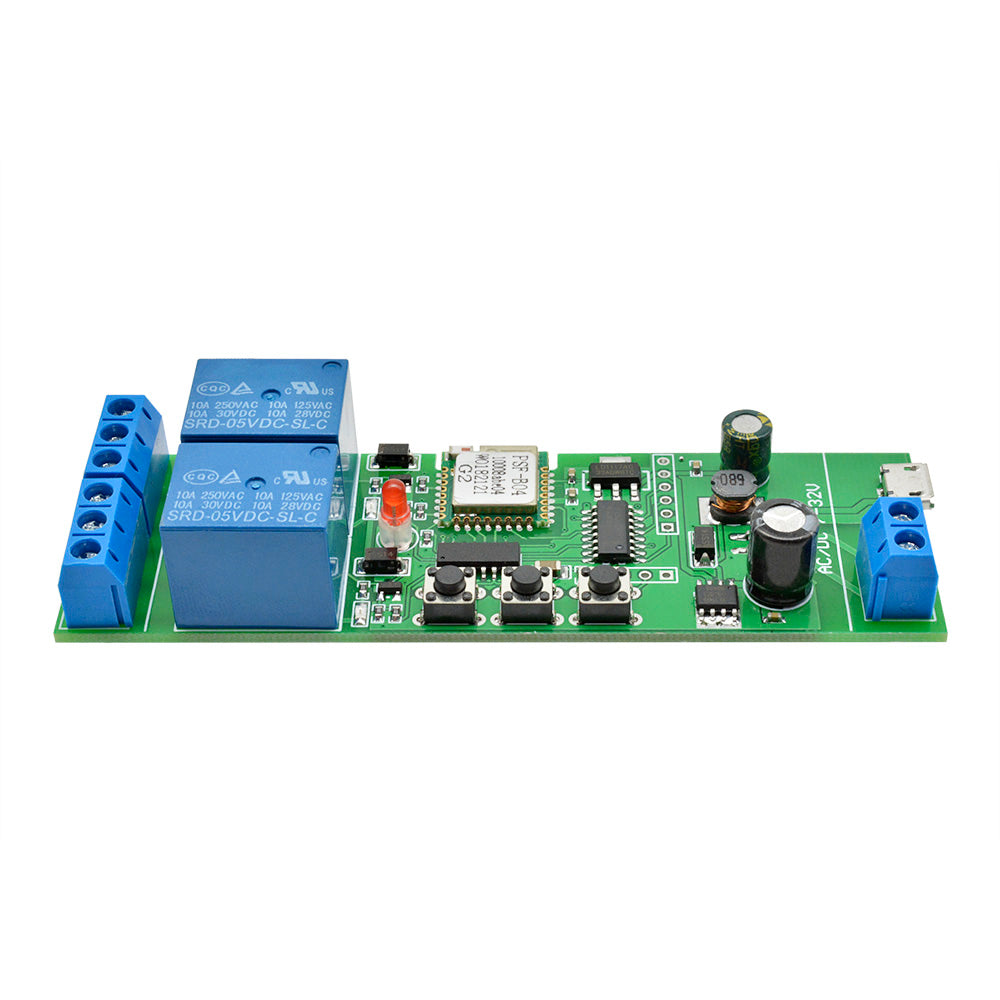

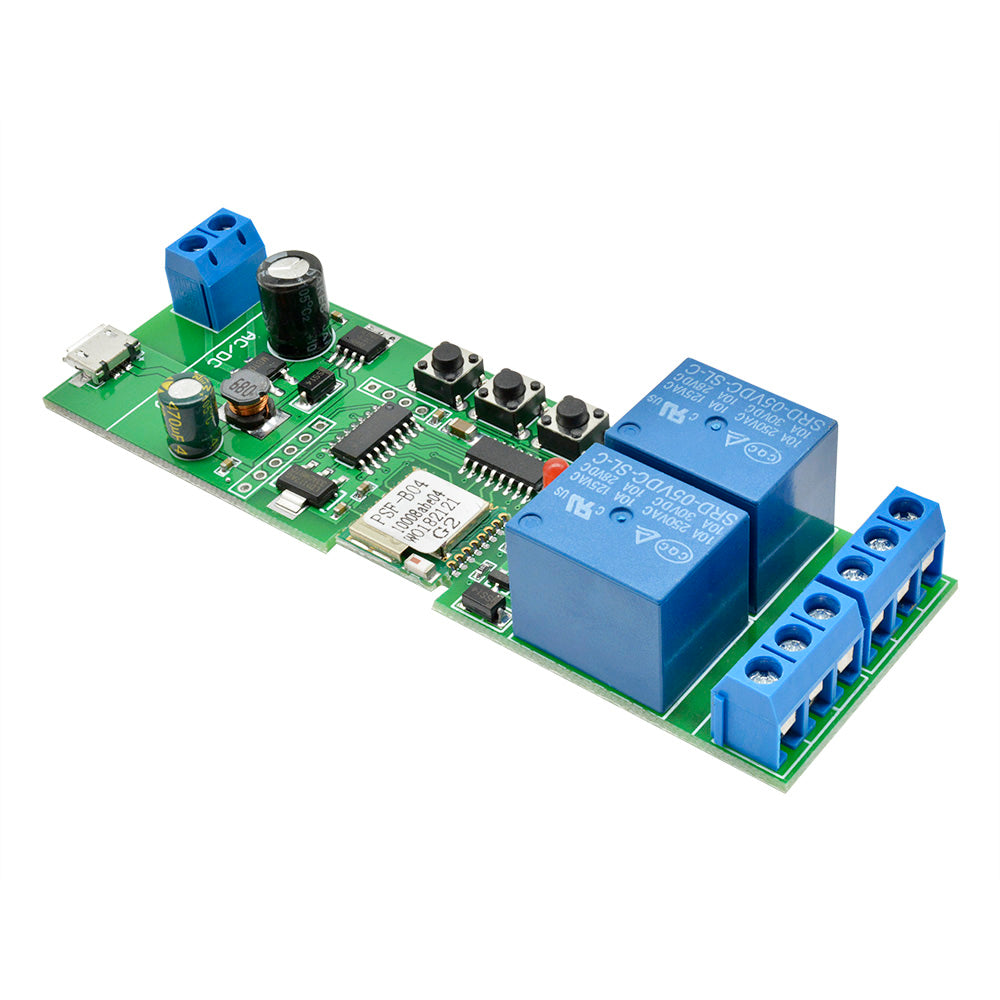

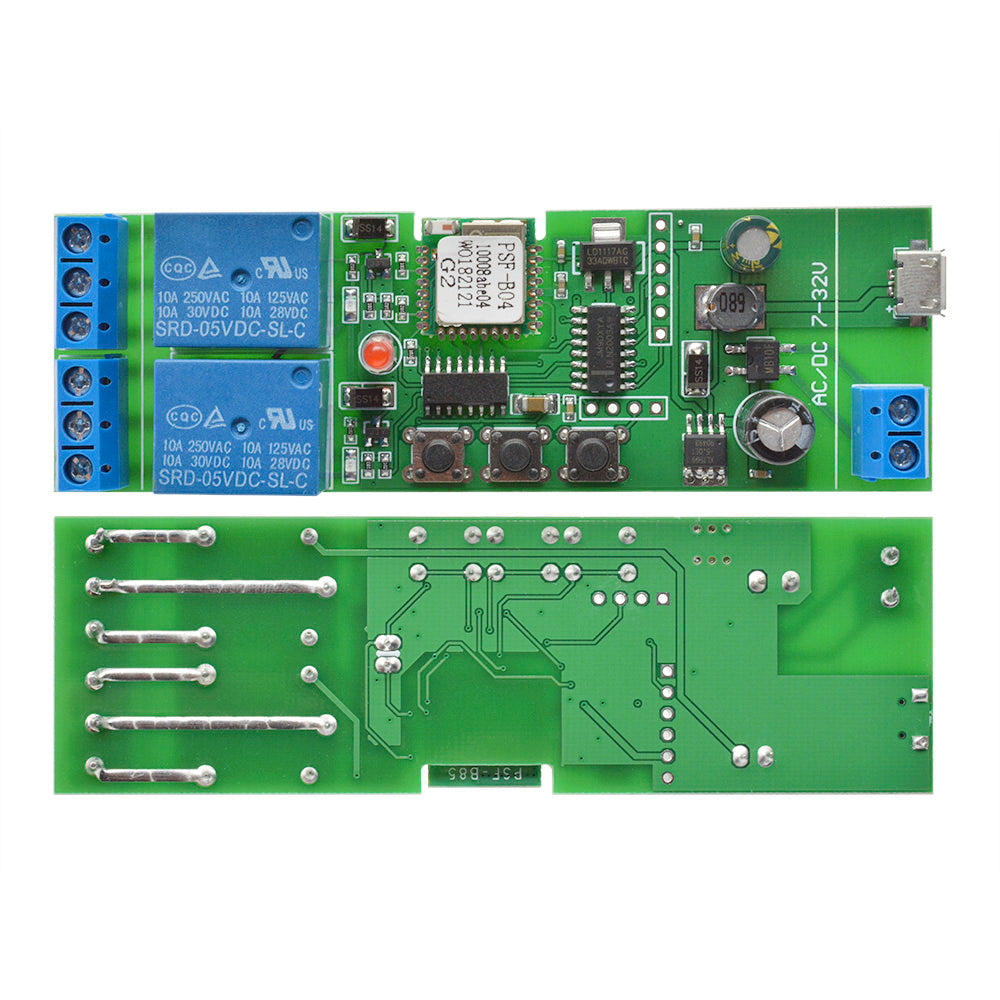

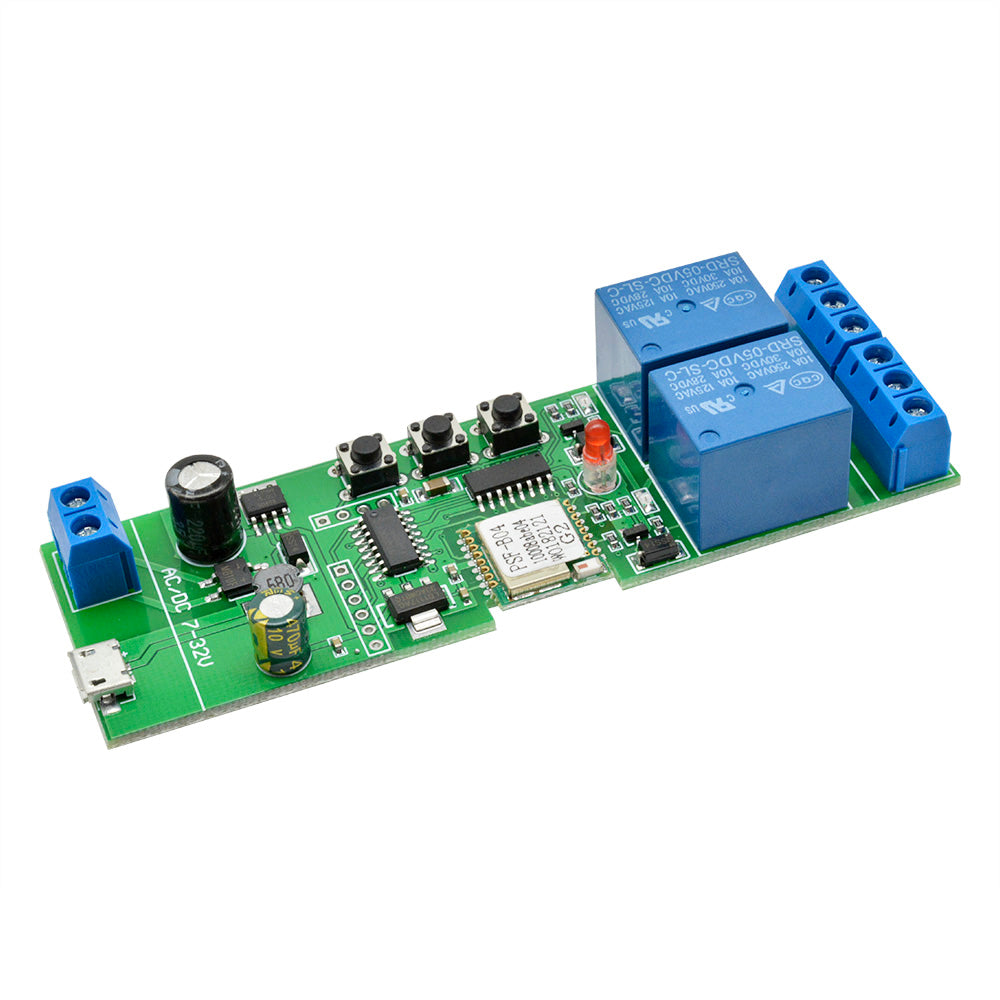

DC 7-32V 2/4 Channel Smart Switch WiFi Wireless Relay Module Home Remote Control
DC 7-32V 2/4 Channel Smart Switch WiFi Wireless Relay Module Home Remote Control
SKU:X13556
Regular price
$10.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Description:
- This wireless switch is a cost-effective device with WI-FI control module, no programming, only need to download an APP and link WIFI then can control the own cloud. As long as the module links WIFI, the connected appliances of different types and brands can be controlled via phone APP EWeLink from anywhere anytime in the world. Meanwhile, by setting timing schedules for your appliances and sharing control your smart home together with your family, you can maintain an carefree life.
- Supports WiFi network. Supports numerous WiFi smart switches on one smart phone.
- Supports status tracking: device status timely provided to the EWeLink.
- Supports remotely turn on or off connected appliances, for example light, electric kettle, electric rice cooker, electric curtain/door, reversing motor, etc.
- Supports max 8 enabled scheduled/countdown/loop timers for each device.
- Voice Control: Compatible with "Amazon" Alexa/for Google Home/Nest, IFTTT.
- Share Control: Control your smart home together with your family.
- Working voltage: 5V/7-32V DC
- USB port power supply more convenient
- Controlled Device Voltage: AC/DC7-32V/AC85-250V
- Supports to control different voltage ranges
- Indicator: With a signal indicator, relay pull the light
- Board consumption: <1W
- Standby current: 80mA
- Standby power: <0.5W
- Input current: ≤10A; Wattage: ≤2200W
- 2 Channel Total Load: 10A/2200W
- Single Load: 10A/2200W
- Relay lifespan: ≥1000000 times
- Electrical insulation resistance: 100M
- Electric shock voltage: 1000V
- Relay maximum suction time: 15ms
- Relay maximum release time: 5ms
- Working mode: Inching /self-locking, Interlock
- Transmission mode: Wi-Fi communication
- Wireless Standard: 2.4GHz, 802.11 b/g/n
- Mobile App: EWeLink on Android/IOS
- Applicable occasions: smart home. Wifi control
- Control distance: infinity
- Controlled lines: 2
- Enclosure Material: Fire-retardant ABS
- Operating temperature: -40 degrees to +70 degrees
- Operating Humidity 40% ~ 80% RH
- Item Size: 105*35*20 (mm)
- Package Size: Approx. 12*10*2.5cm / 4.7*3.9*0.98in
- Package Weight: Approx. 42g / 1.5oz
- 1 x Smart Wifi Relay Switch Universal Module 2CH USB DC5V/7-32V Wireless Switch Timer Phone Remote Control For Alexa Google Home
