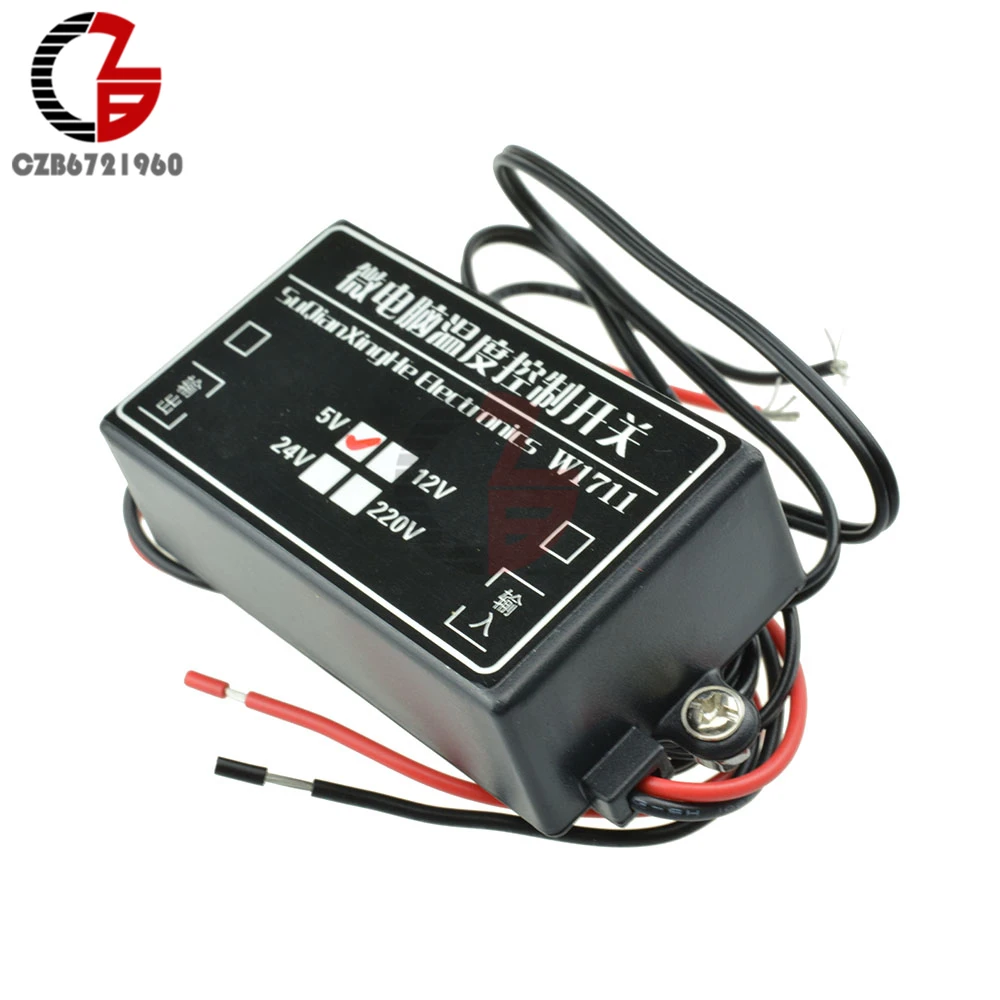

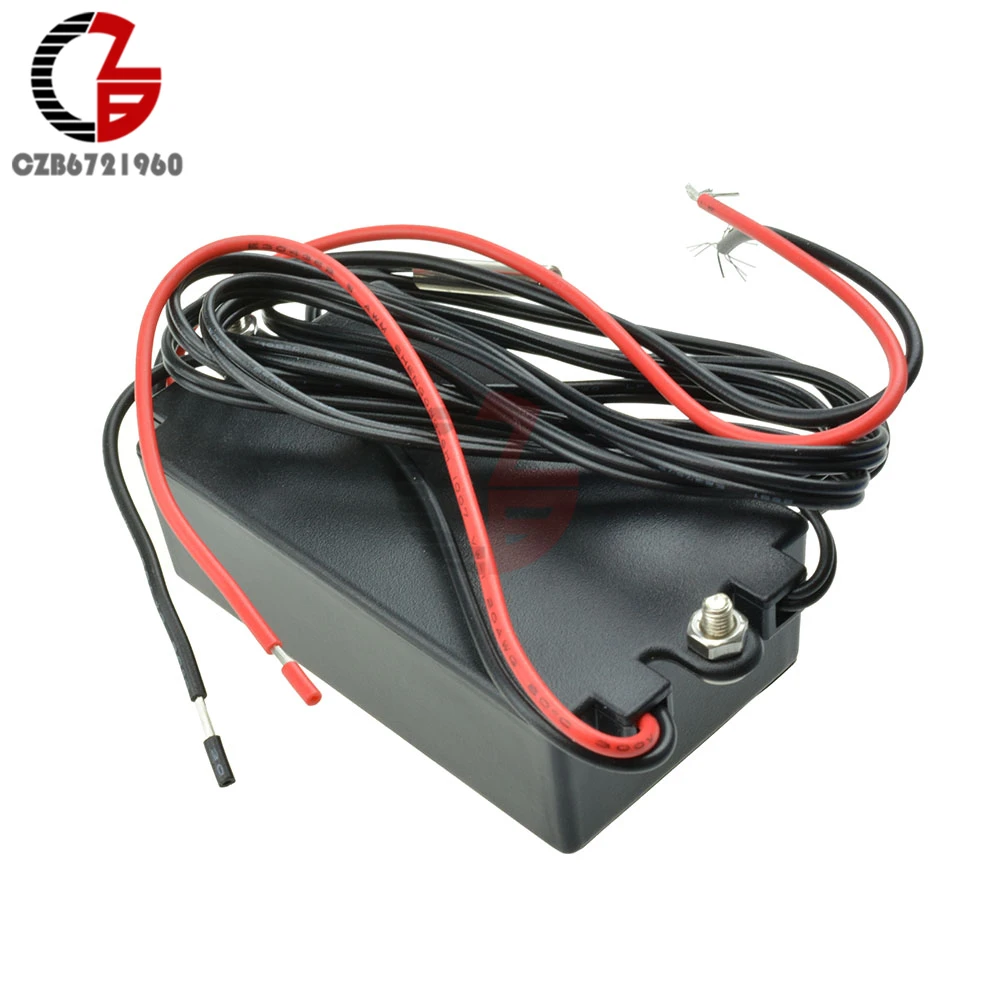

W1711 DC 5V Adjustable Switching Microcomputer Temperature Control Thermostat

W1711 DC 5V Adjustable Switching Microcomputer Temperature Control Thermostat

SKU:010965
Regular price $7.99

Description

W1711 DC 5V 5A Microcomputer Temperature Control Switch Adjustable Thermostat Controller Sensor Switch Temperature Regulator

Features:
  • Supply voltage: 5V
  • Output Capacitance: Max Current 5A, Max Power 1000W
  • Temperature range: -15-70 °C
  • Control accuracy: 0.1 °C
  • Setting Accuracy: 5 °C
  • Default Temp Difference Setting : 2 °C
  • Thermostat probe: NTC 3950 / B = 10K (waterproof type 1M)
Instructions for use:
  • Product Description: : Determine the mode
  • Heating mode: the 5th switch up
  • Cooling mode: the 5th DIP switch down
  • Set the temperature
  • Setting the desired temperature need to adjust the four DIP switch,
  • Please refer to the picture of "Temperature Control Setting".
  • Connect the circuit
  • Directly connected to the power at the input, the output connect to the load directly,
  • such as heaters, light bulbs, fans, etc.,
  • the temperature probe connect to the place you want to control the temperature.
Package:
  • 1 x Temperature Control Switch


1_2_3456
