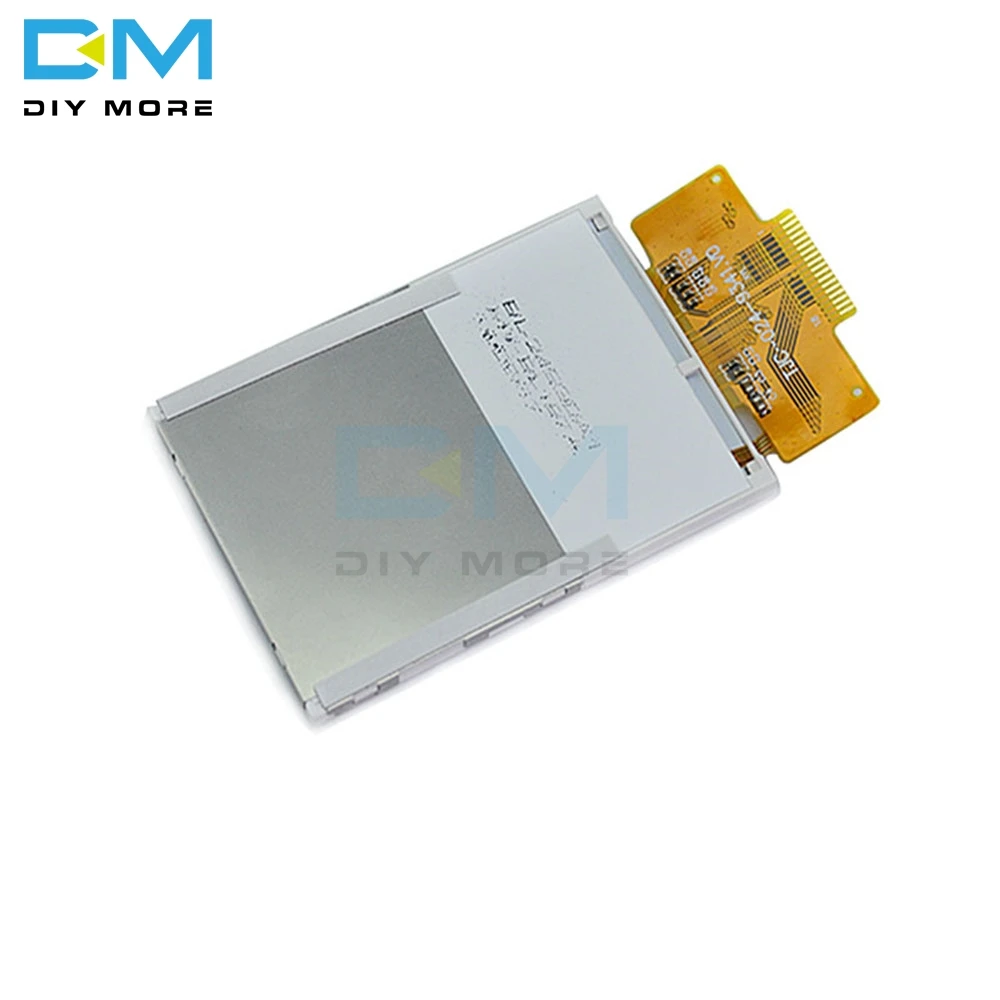

240x320 SPI Serial TFT Color LCD Module+ILI9341 Touch Panel 2.4" Screen
240x320 SPI Serial TFT Color LCD Module+ILI9341 Touch Panel 2.4" Screen
SKU:030075
Regular price
$12.00
Sale price
$7.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
100% brand new and high quality
Type: Touch panel
Driver IC: ILI9341
Display size:2.4 inch
Resolution (dots): 240RGB*320Dots
Interface: SPI serial port (available 4pcs IO ports)
Display area:36.72(W)X48.96(H)mm
Backlight: White LED
Size:78x41mm(approx)
Using 4 LED lamp backlight, brightness uniformity is more than 96%, no light eyes no light leakage
Only need 4 IO ports to use or SPI directly
Meet the industrial standard, strong interference immunity (using industrial grade ILI9341 enhanced version: ILI9341V)
The visual angle is good, ultra wide angle polarizing film, in addition to the sun than generally screen
Package Included:
1 x 2.4"240x320 SPI Serial TFT Color LCD Display Module+ILI9341 Touch Panel Screen
