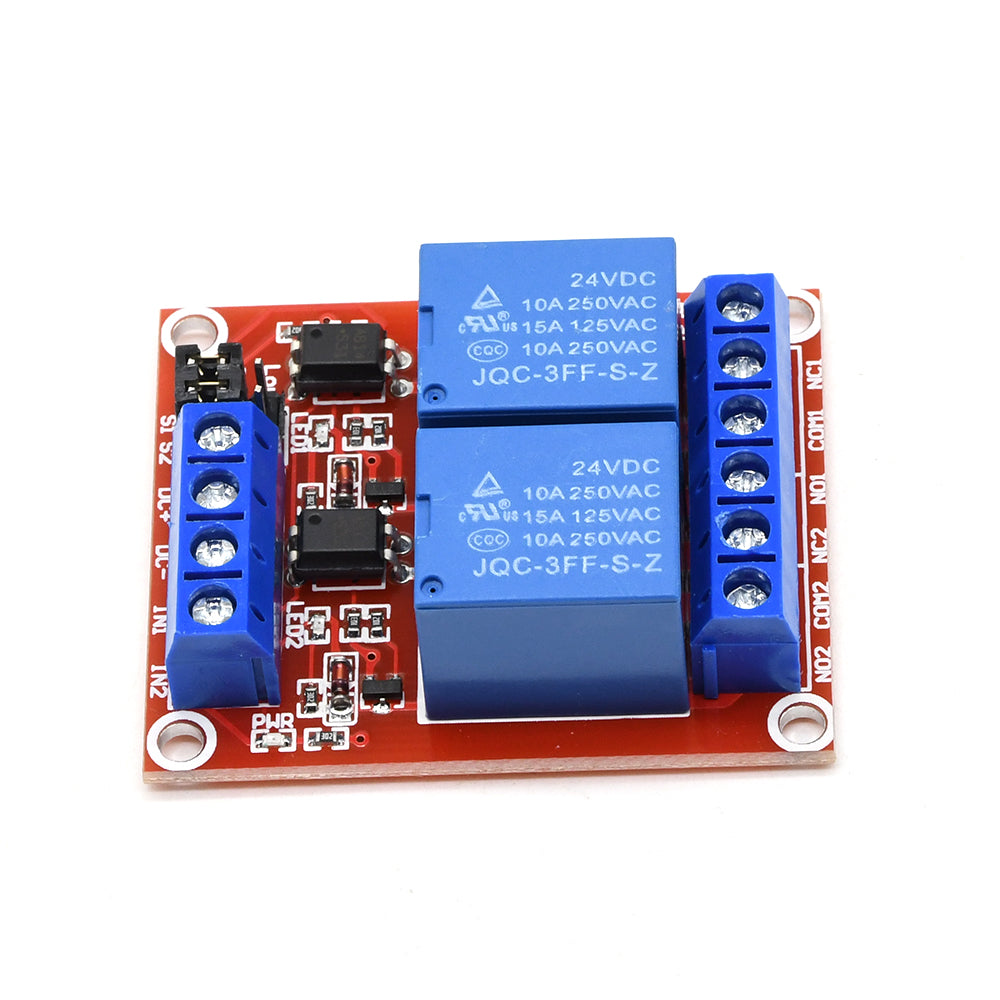

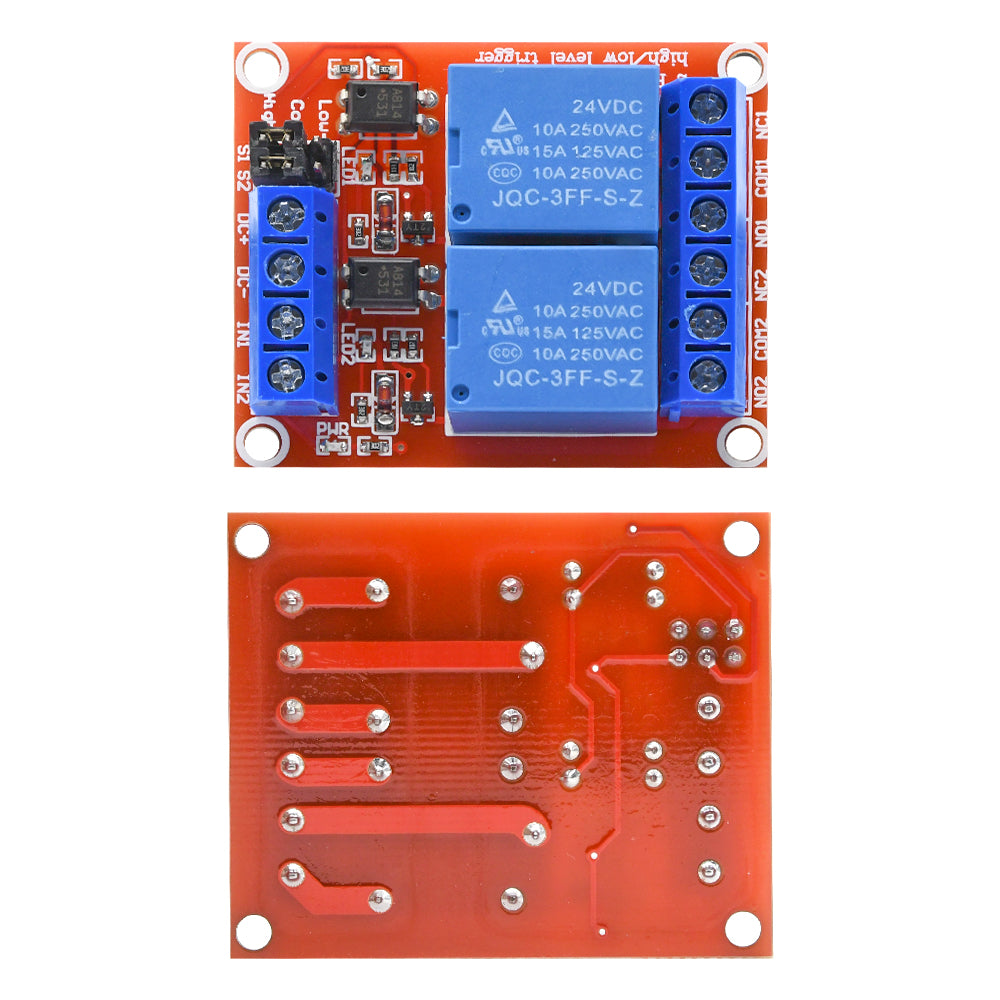

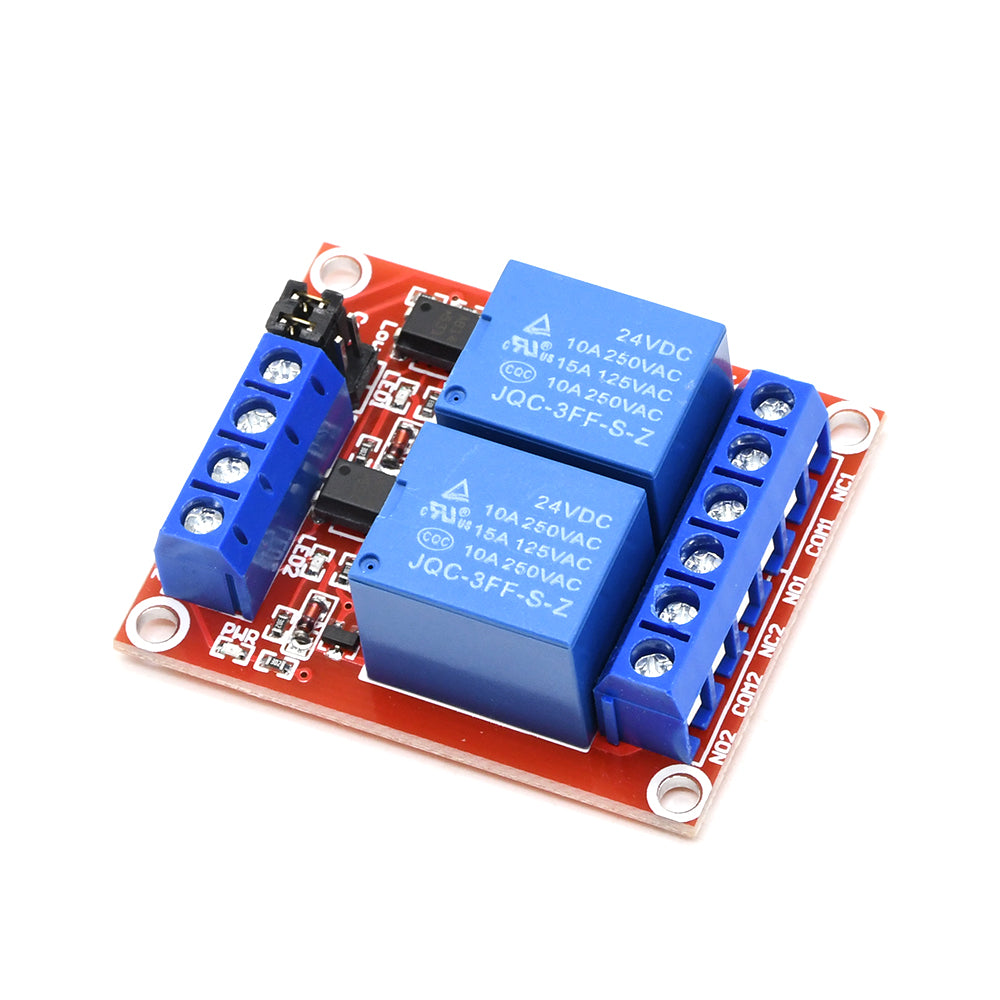

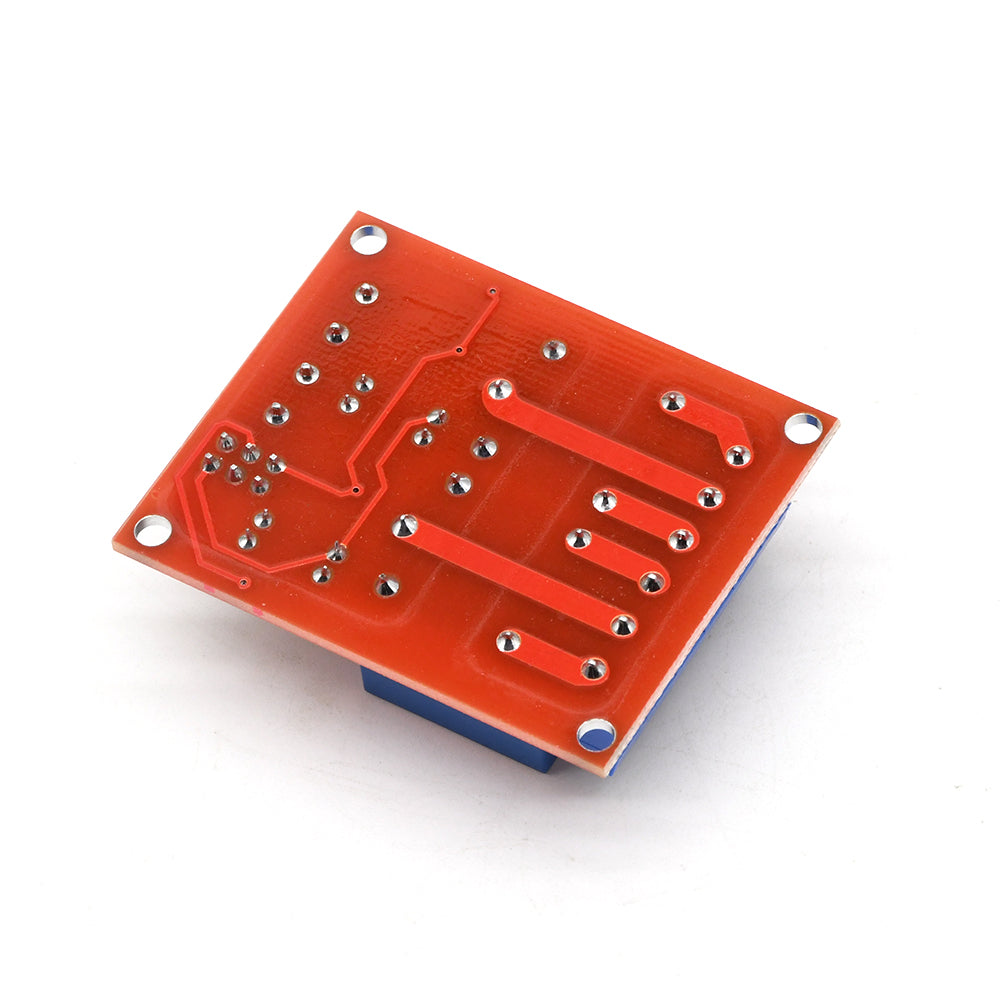

2 Channel Relay Module 24V With Optocoupler Support High and Low Level Trigger

2 Channel Relay Module 24V With Optocoupler Support High and Low Level Trigger

SKU:011436
Regular price $5.99

Description :
  • The module uses genuine quality relay , normally open interfaces Maximum load : AC 250V/10A, DC 30V/10A;
  • Using SMD OPTOCOUPLER isolation , driving ability , stable performance ; trigger current 5mA;
  • The module voltage is 5V, 9,12 V, 24V are available ;
  • The module can be set to high or low triggered by jumper ;
  • Fault-tolerant design , even if the control line is broken , the relay will not operate ;
  • The power indicator ( green ) , relay status indicator ( red )
  • Interface design humane, all interfaces can be connected directly via terminal wiring leads , very convenient
  • Module size : 50mm * 41mm * 18.5mm ( L * W * H )
  • Has four mounting bolts holes , hole 3.1mm, 44.5mm * 35.5mm pitch

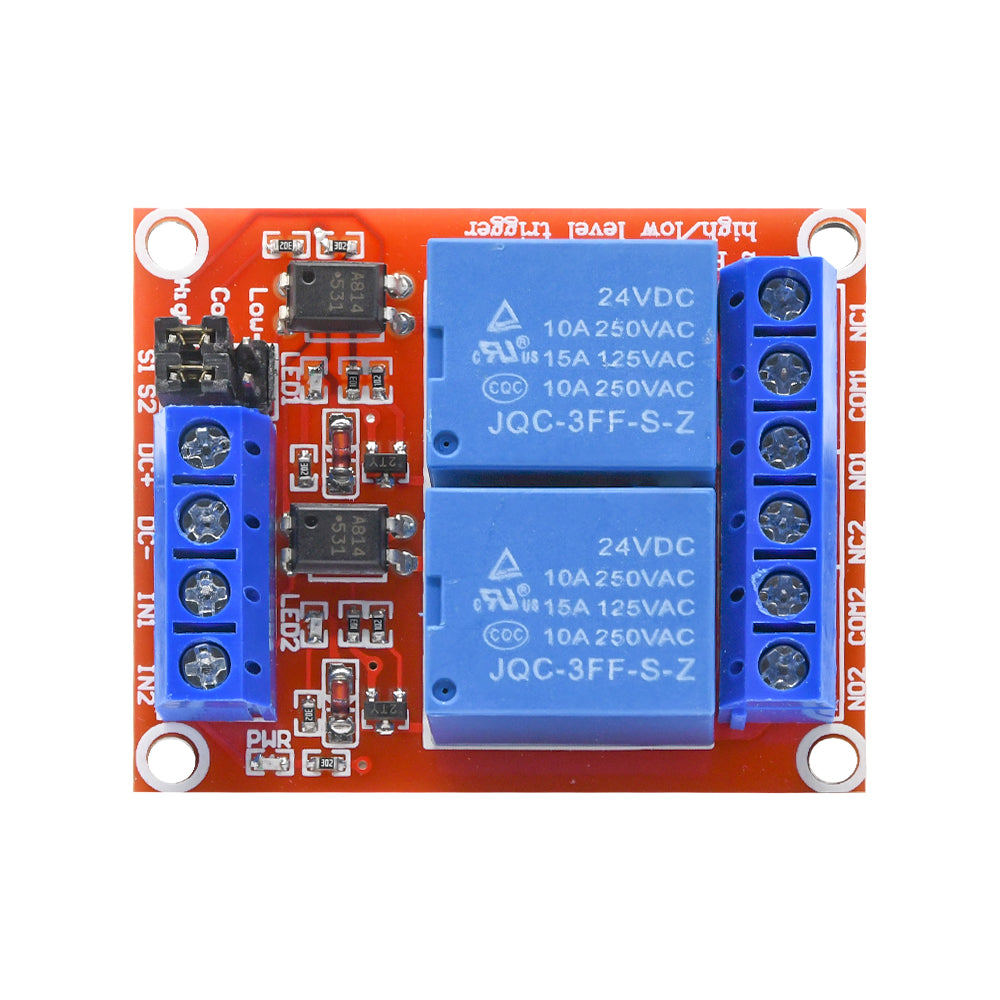

Interface :
  • DC +: positive power supply ( voltage required by the relay , there 5V.9V.12V and 24V choice )
  • DC-: negative power connection
  • IN1: 1 channel signal to trigger the end , you can set a high or low level control relay
  • IN2: 2 -channel signal to trigger the end , you can set a high or low level control relay
Outputs :
  • NO1: After a relay normally open interfaces , relay before floating, shorted pull with COM1
  • COM1: 1 relay common interface
  • NC1: 1 relay normally closed port, COM1 relay shorted before and after the pull- vacant
  • NO2: 2 -way normally open relay interface, the relay before floating , pull back and COM2 short
  • COM2: 2 Common Interface relay
  • NC2: 2 -way normally closed relay interface relay short front and COM2 , pull vacant post

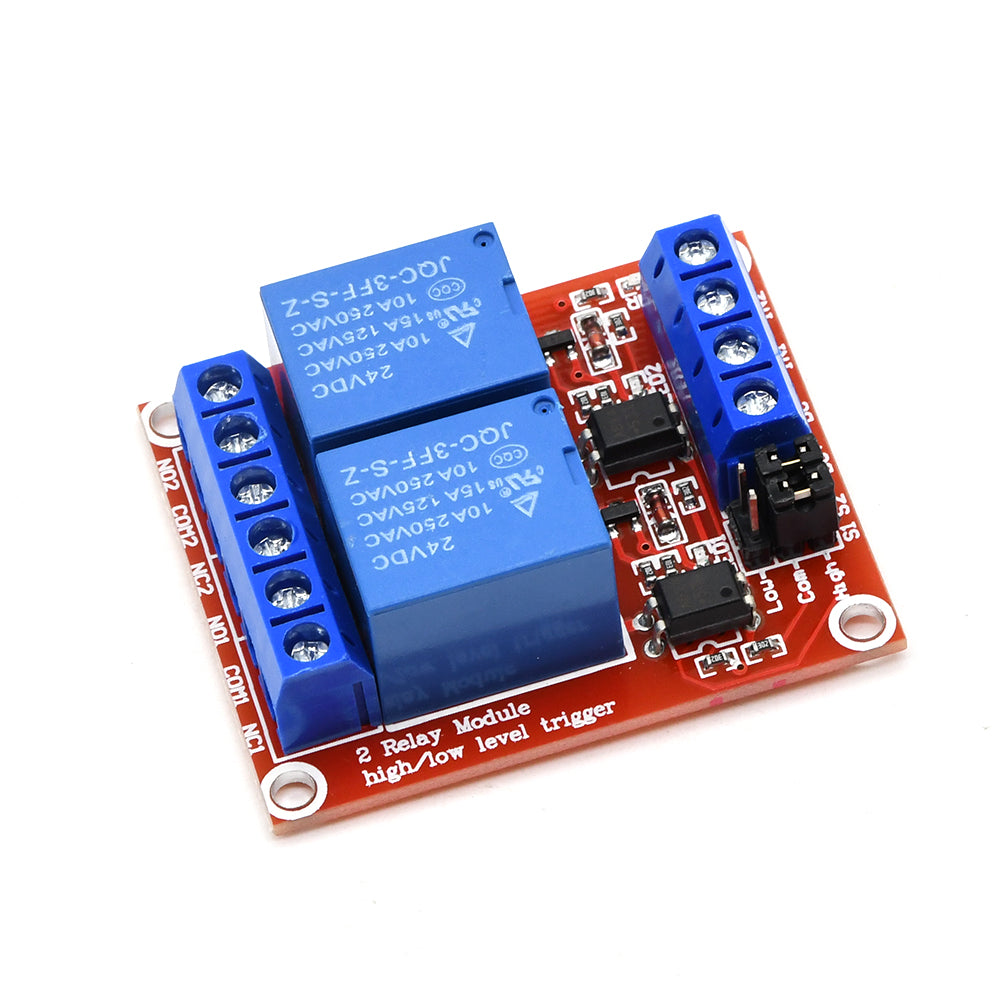

High and low trigger selection :
  • S1 as a relay trigger selection of high and low ;
  • S2 high and low for the two -way relay trigger selection ;
  • Com with low short circuit, triggering the corresponding relay is low , while the high end of the short com high trigger
Package Included:
  •    1 x  24V 2 Channel Relay Module With Optocoupler High and Low Level Trigger
