YZC-133 Mini Scale Electronic Load Cell Weighing Sensor 1/2/3/5/10/50Kg 100g MF

YZC-133 Mini Scale Electronic Load Cell Weighing Sensor 1/2/3/5/10/50Kg 100g MF

SKU:010822
Regular price $4.99





HTB1ZYSui4PI8KJjSspoq6x6MFXaU

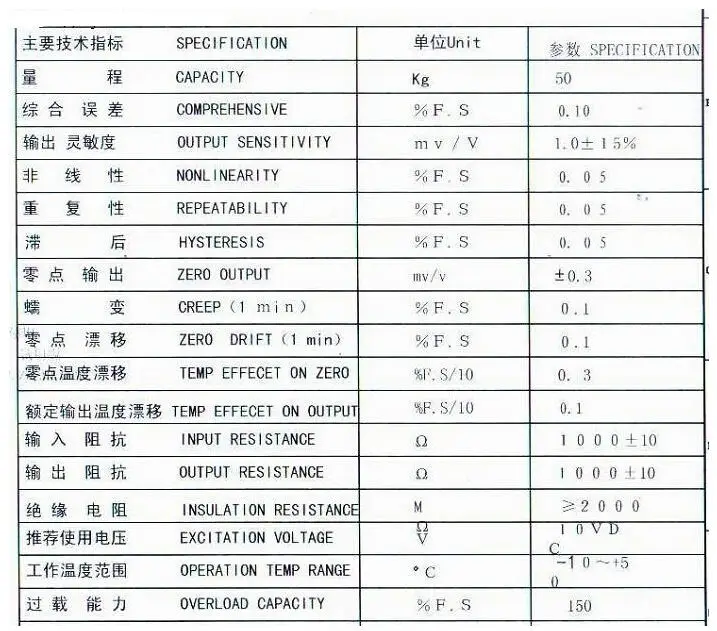

Specification:

  • Size: 34mmX34mm

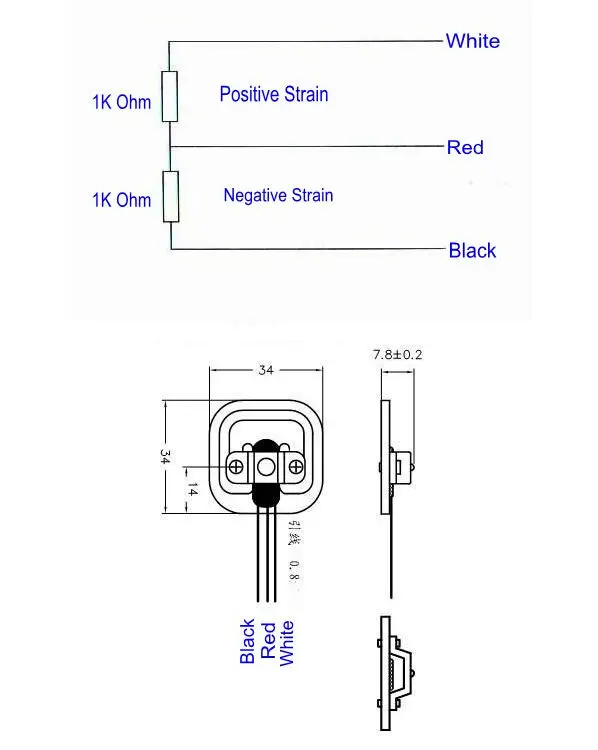

  • Internal 1000 Ohm half-bridge strain gauge load cell, range is 50kg, half-bridge structure.
  • When measuring, the correct force is applied to the outer side of the strain E-shaped beam portion of the sensor (i.e., a strain gauge affixed to the middle, with a beam of white plastic cover arm) and the outside edges to form a shear force in the opposite direction, i.e., in the middle of strain beam bending necessary changes can occur under stress, strain beam side by another force can not have a barrier.
The sensor use the following three methods:
  • using a sensor with external resistors full bridge measurement range of a sensor range: 50kg. Higher requirements for external resistor
  • the use of only two full-bridge sensors measuring range is the range of the two sensors and: 50kgx2 = 100kg
  • the use of four full-bridge sensors measuring range is the range of four sensors and: 50kgx4 = 200kg
aeProduct.getSubject()
aeProduct.getSubject()

Package Included:



  • 1 x DIY 50Kg Body Load Cell Weighing Sensor Resistance strain Half-bridge Original
