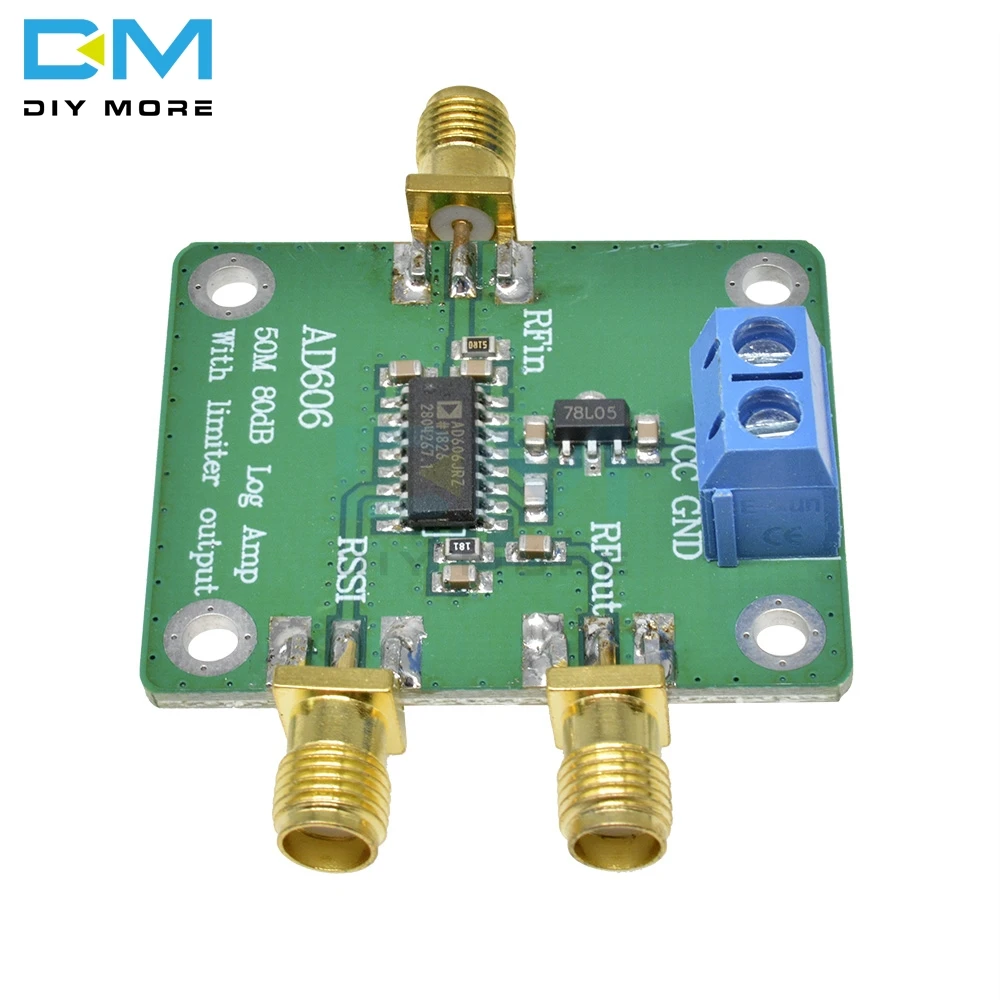

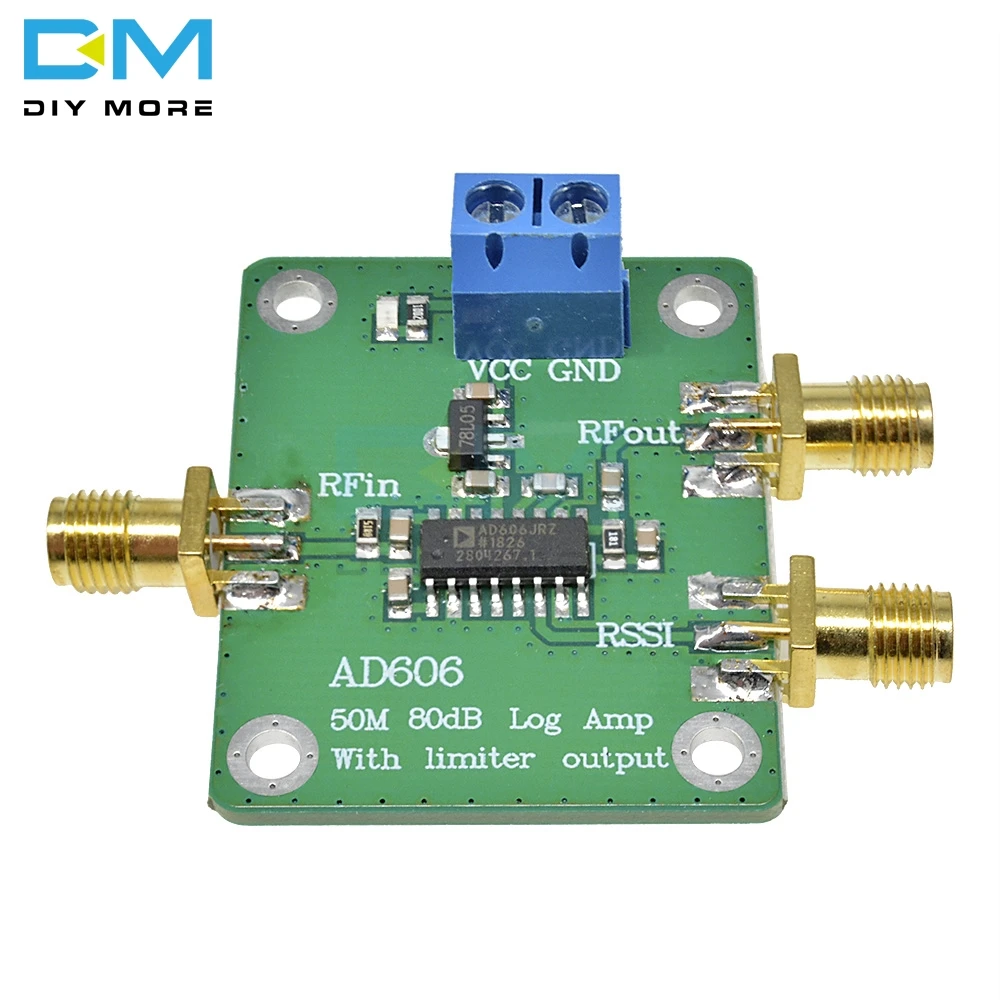

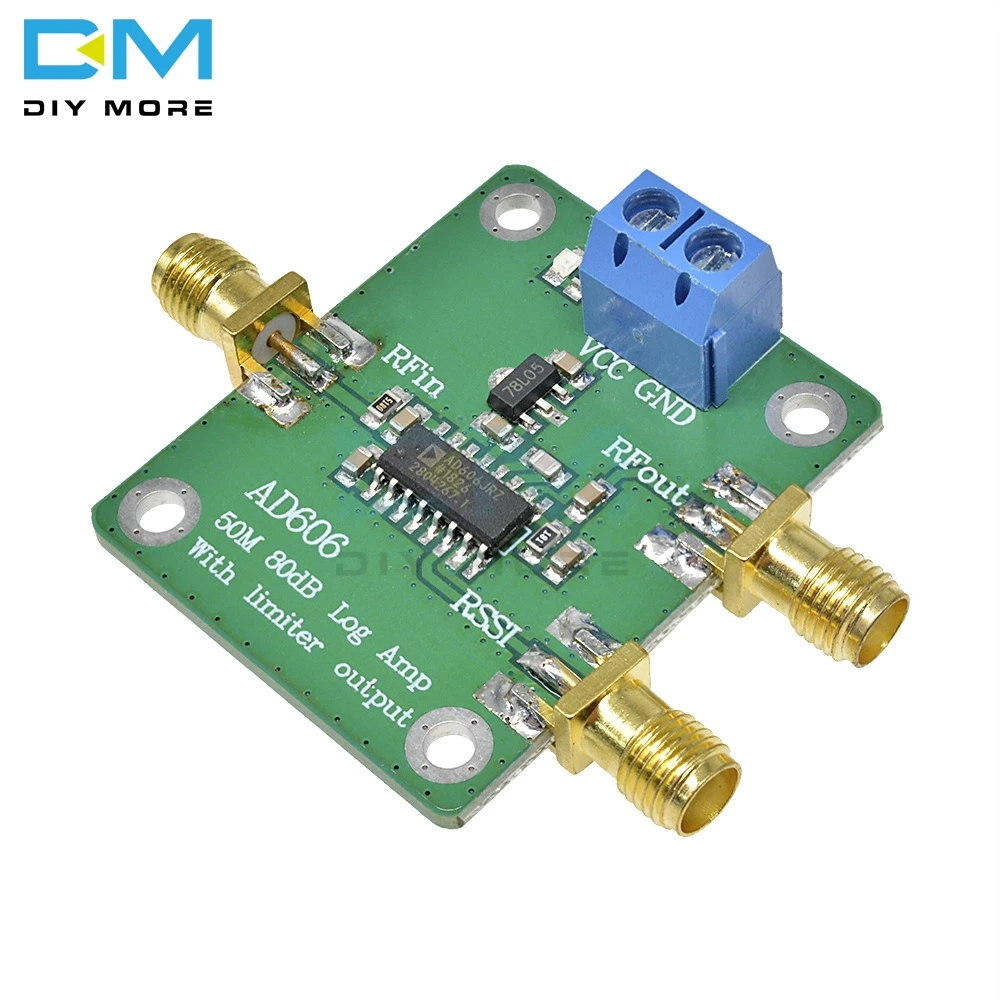

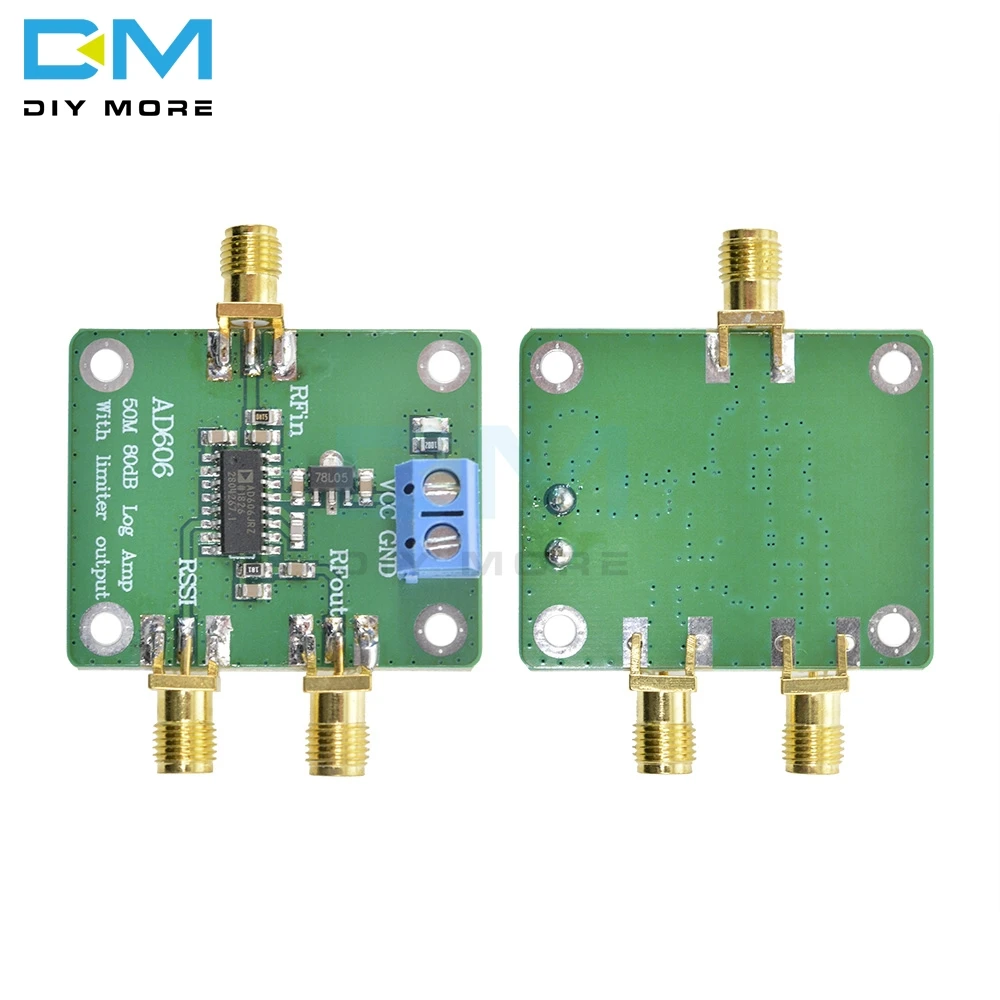

AD606 Demodulating Logarithmic Amplifier Logarithmic Detector Module 8

Ad606 Demodulating Logarithmic Amplifier Detector Module 80Db Low Power Log Output Board Adjustable

AD606 Demodulating Logarithmic Amplifier Logarithmic Detector Module 80dB Low Power LOG Output Board Adjustable Limited Output

SKU:X13777

$11.99 $9.00

Feature:

AD606 80dB demodulation logarithmic amplifier for over 50MHz

Supporting limiter output

Output flatness: ±1 dB (within 80dB)

Phase stabiility: ±3°(10.7 MHz, whithin 80dB)

Output amplitude adjustable

Low power consumption

With Offset control circuit to eliminate input offset voltage

Dimensions: 42mm * 35mm

Supply Voltage Range: 5V

Chip Features:

Logarithmic Amplifier Performance

-75 dBm to +5 dBm Dynamic Range

≤1.5 nV/√Hz Input Noise

Usable to >50 MHz

37.5 mV/dB Voltage Output

On-Chip Low-Pass Output Filter

Limiter Performance

61 dB Output Flatness over 80 dB Range

638 Phase Stability at 10.7 MHz over 80 dB Range

Adjustable Output Amplitude

Low Power

+5 V Single Supply Operation

65 mW Typical Power Consumption

CMOS-Compatible Power-Down to 325 mW typ

<5 ms Enable/Disable Time

Applications:

Ultrasound and Sonar Processing

Phase-Stable Limiting Amplifier to 100 MHz

Received Signal Strength Indicator (RSSI)

Wide Range Signal and Power Measurement

Package include

1× AD606 Demodulating Logarithmic Amplifier Module 80dB Low Power LOG Output Board
