DC 13.8V 10A 45W SSB AM Linear Power Amplifier CW FM HF Radio Transcei

DC 13.8V 10A 45W SSB AM Linear Power Amplifier CW FM HF Radio Transceiver Shortwave Module Board DIY Kit

SKU:012096

$41.98 $14.99

Common used in SSB, AM linear power amplifier, the CW, FM, power amplifier, and the most basic signal amplification.

Easy installation and operation.

Low noise, high cost performance, very suitable for DIY enthusiasts.

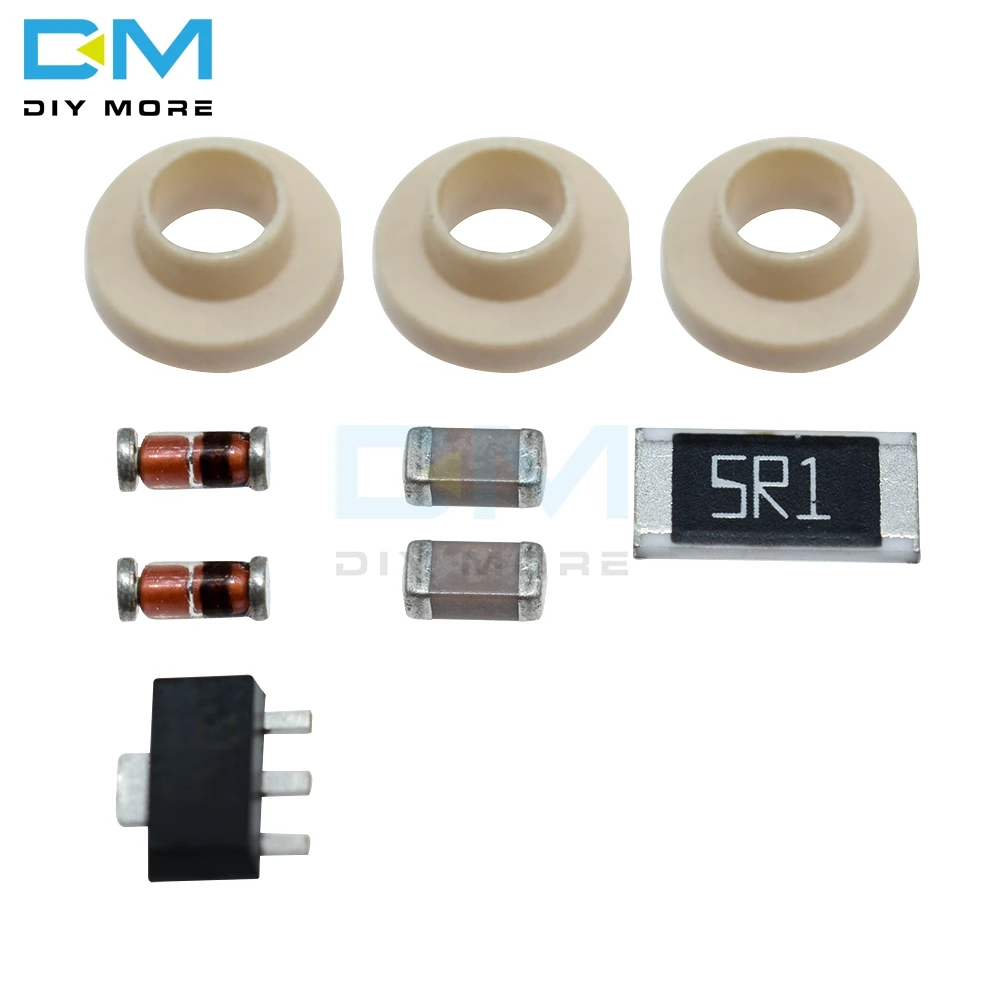

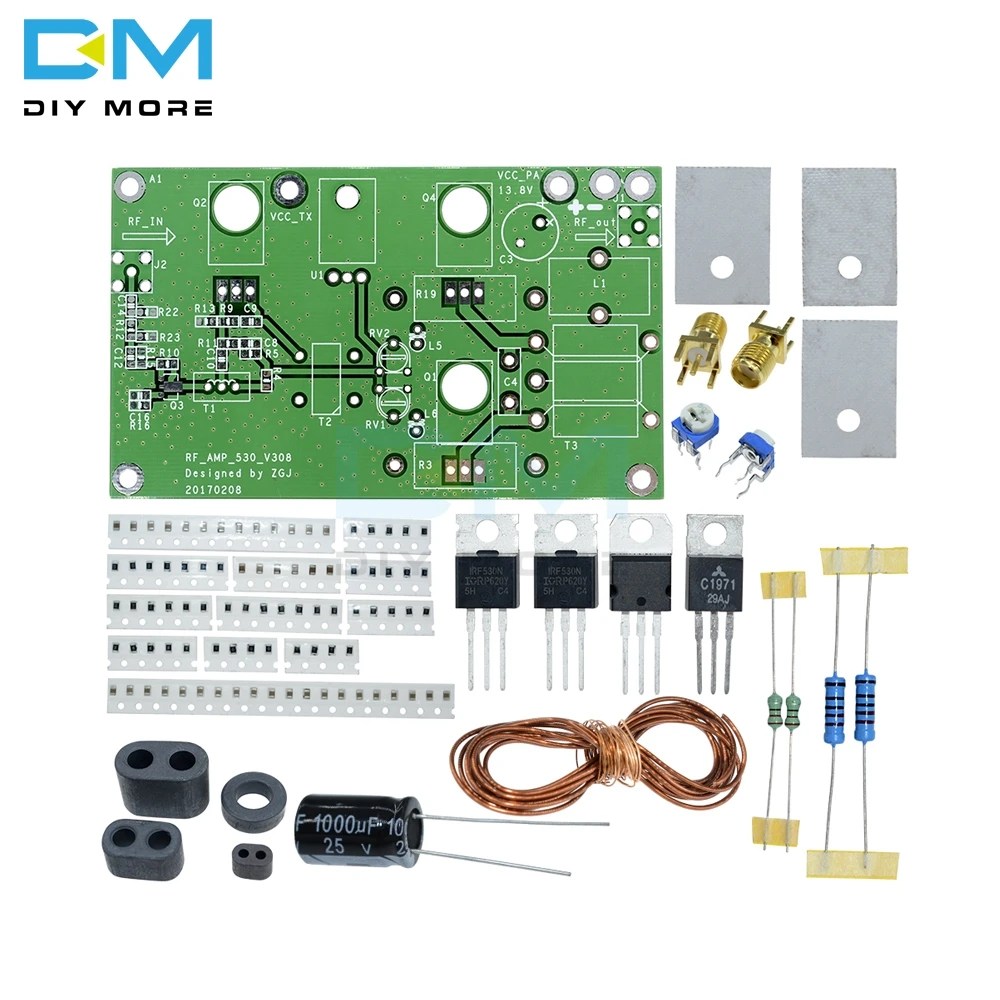

Our product is sent by parts, which not include heat radiator, please help yourself to assemble.

The overall gain more than 40db, which is 10000 times, 10W input 1mW output.

Specifications:

Input Power: 1-5mW

Output Power: 45W (Max.)

Input Voltage: DC 13.8V 10A or higher

Max. Output Power: 57W (not with cooling fin)

Output Impedance: 50 ohm, can according to need to adjust between 10-200 ohm

Input Frequency Range: 3M-30MHz(HF channel)

Input/Output Interface: Standard SMA interface, external thread hole

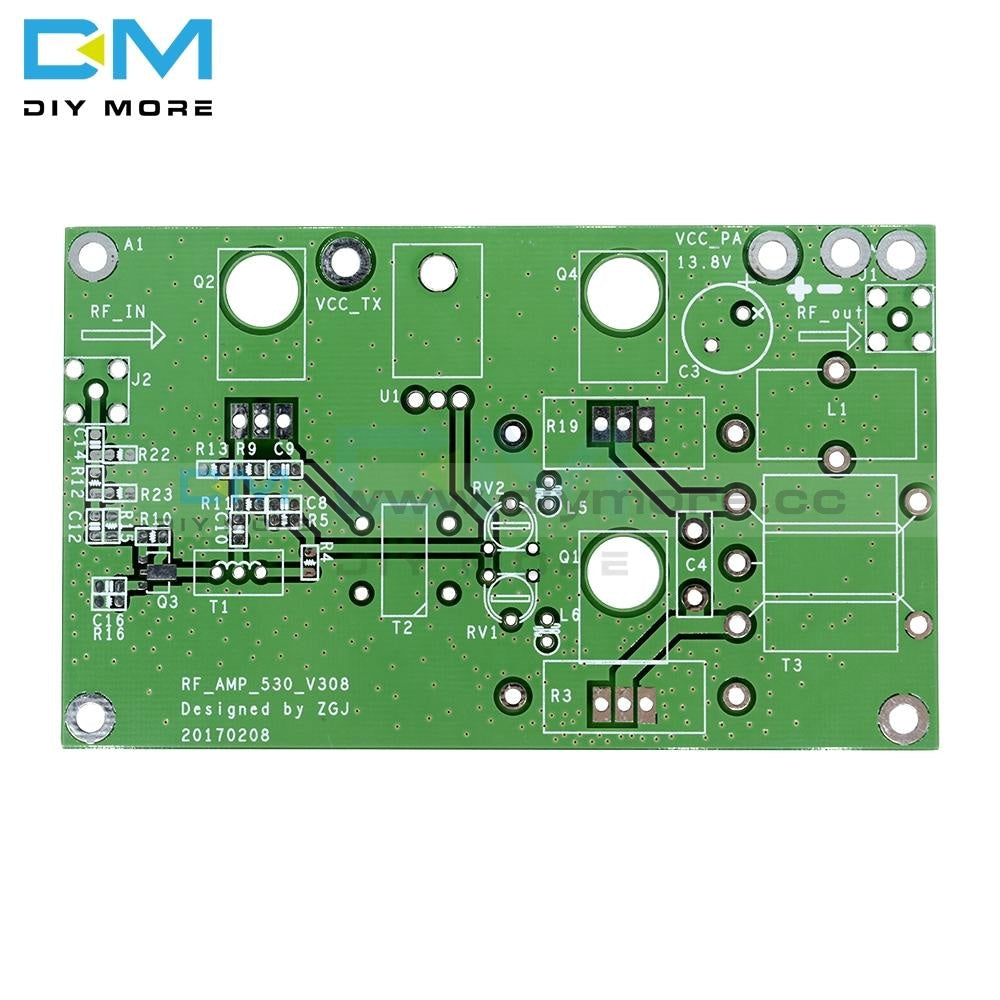

PCB Size: 60 * 100 mm

Diameter of Located Hole: 3mm

Color: Green

Package Size: 13 * 8 * 1.5cm

Package Weight: 58g / 2.07oz

Note:

-The following data to test in person, these data sheet is in a large heat sink can withstand 200W above measured, there is not enough cooling capacity, please do not limit, it's not safe.

-The upgrade board test data,so it can be used for all HF Channel,

-In 3 to 5 MHz this period, because of the low frequency, small inductance, lead to the gain has a certain loss, the output power is lower than 7 MHz this point.

3.500MHz 54W

7.050MHz 56W

10.000MHz 57W

14.270MHz 55W

21.400MHz 41W

24.000MHz 37W

28.100MHz 25W

29.600MHz 20W

Package List:

1 * SSB Linear Power Amplifier
