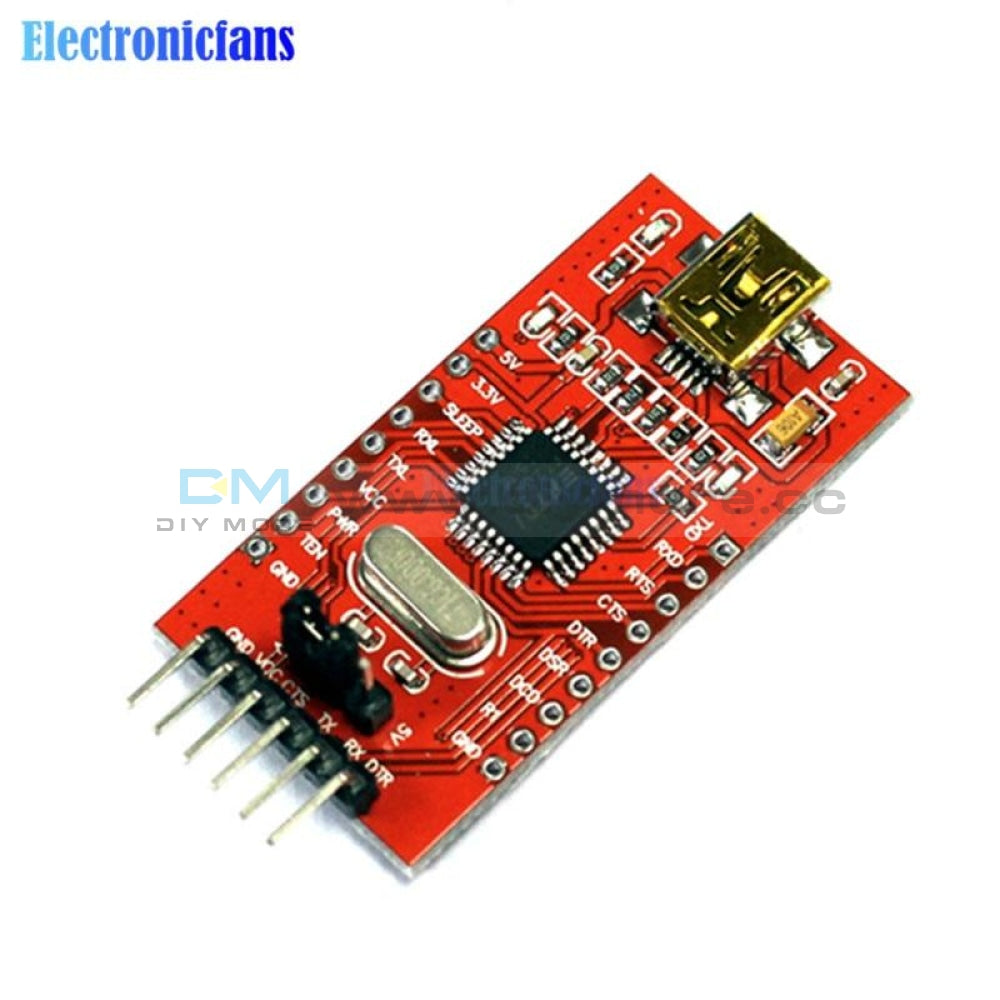

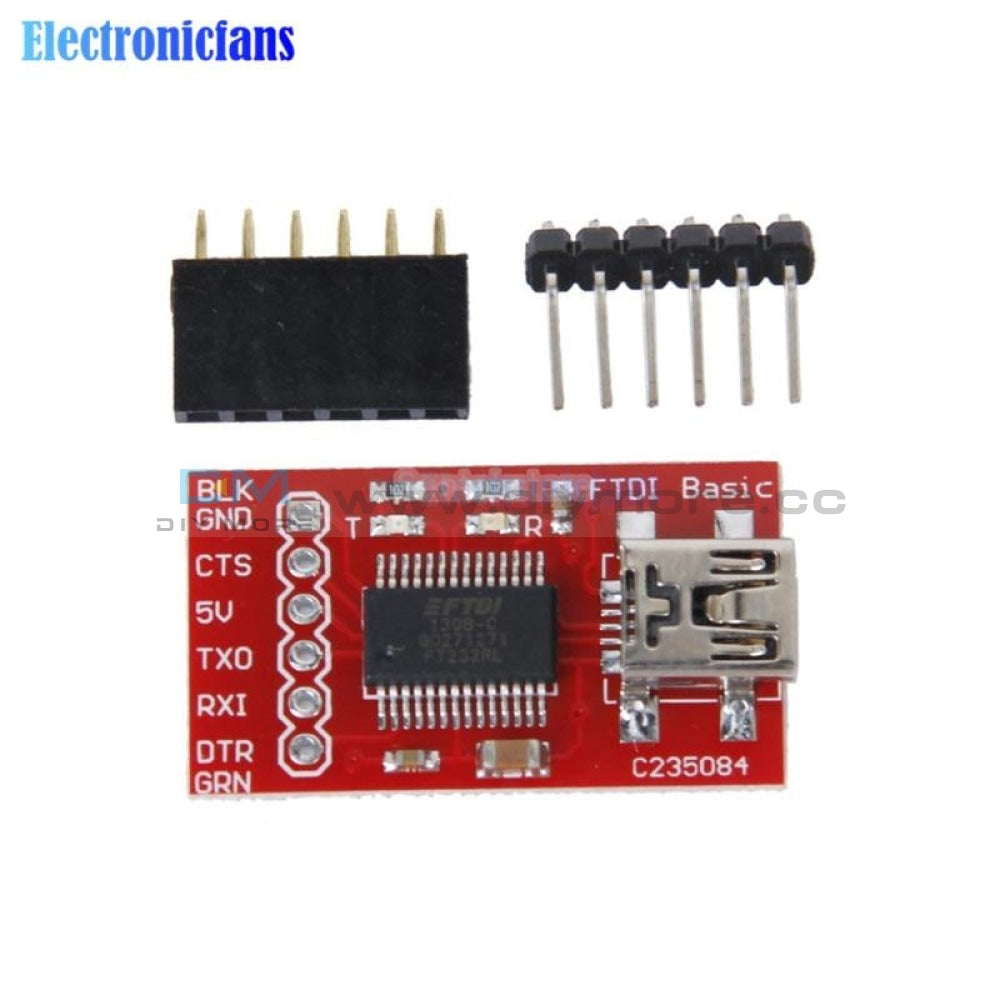

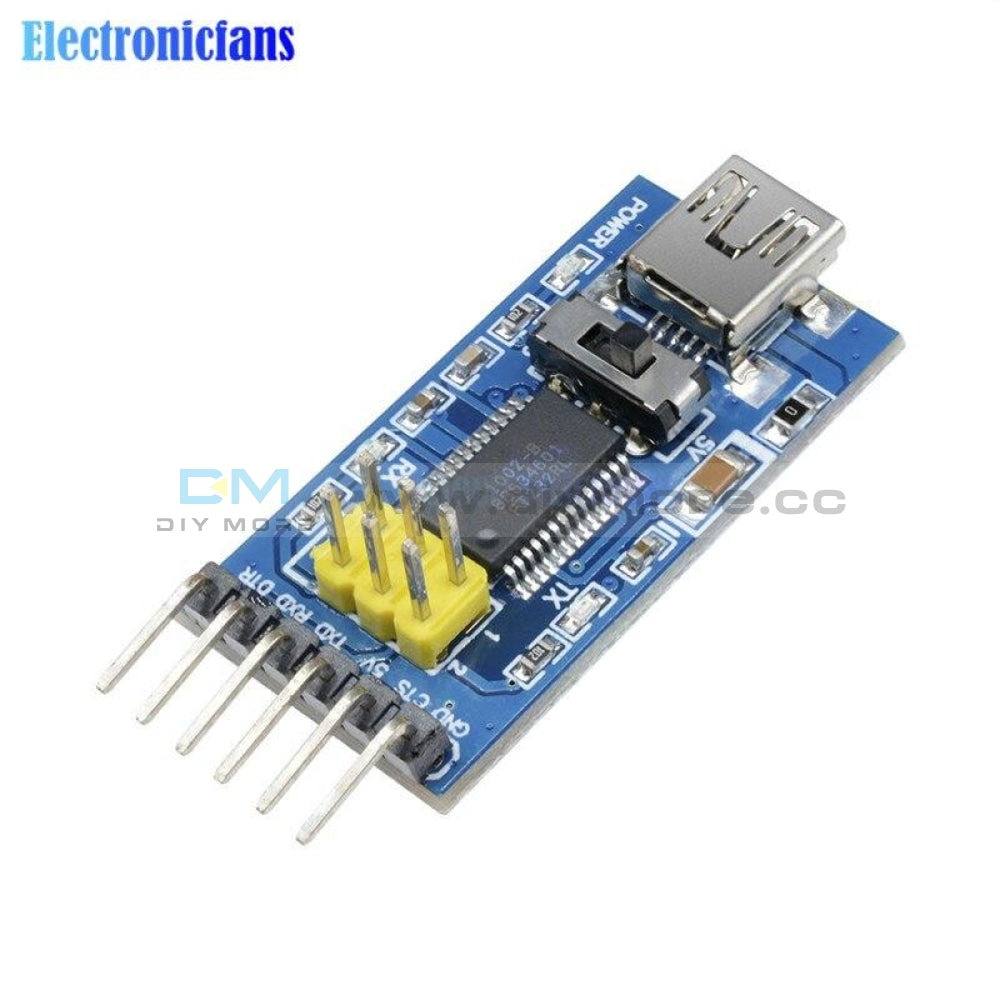

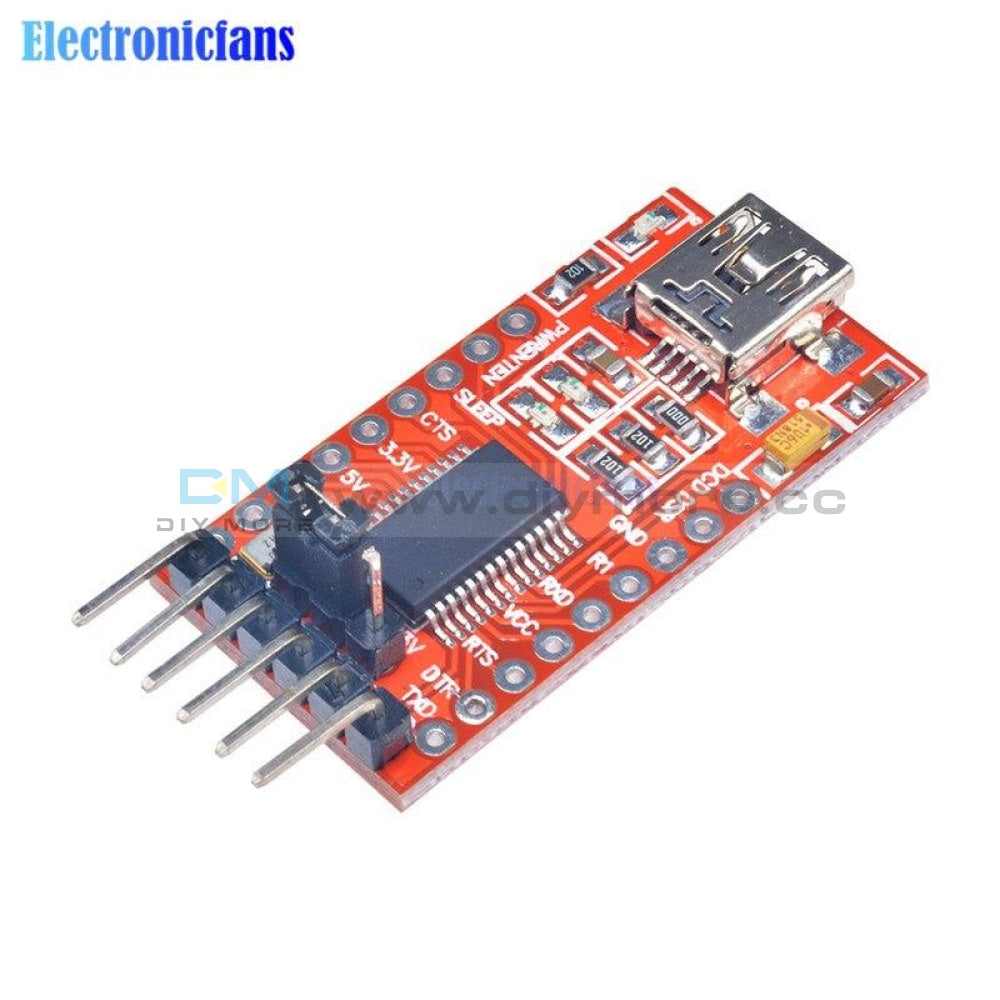

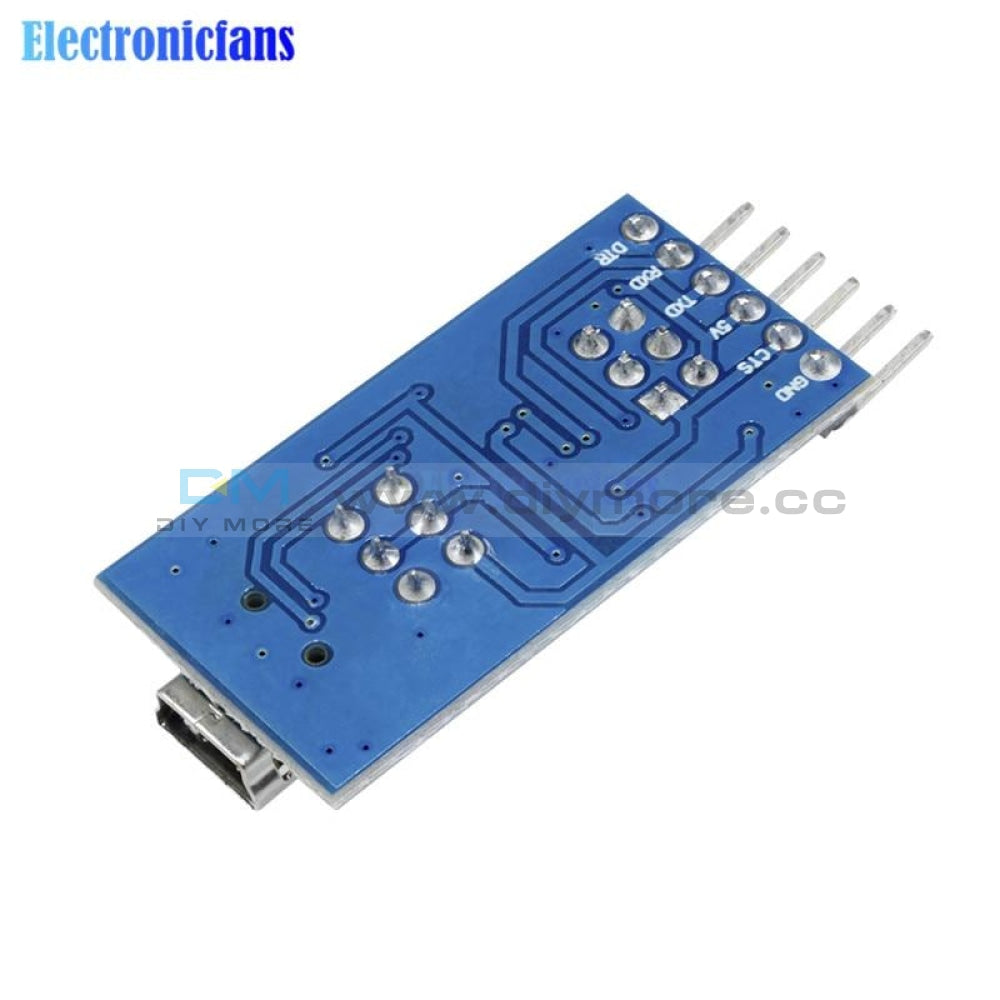

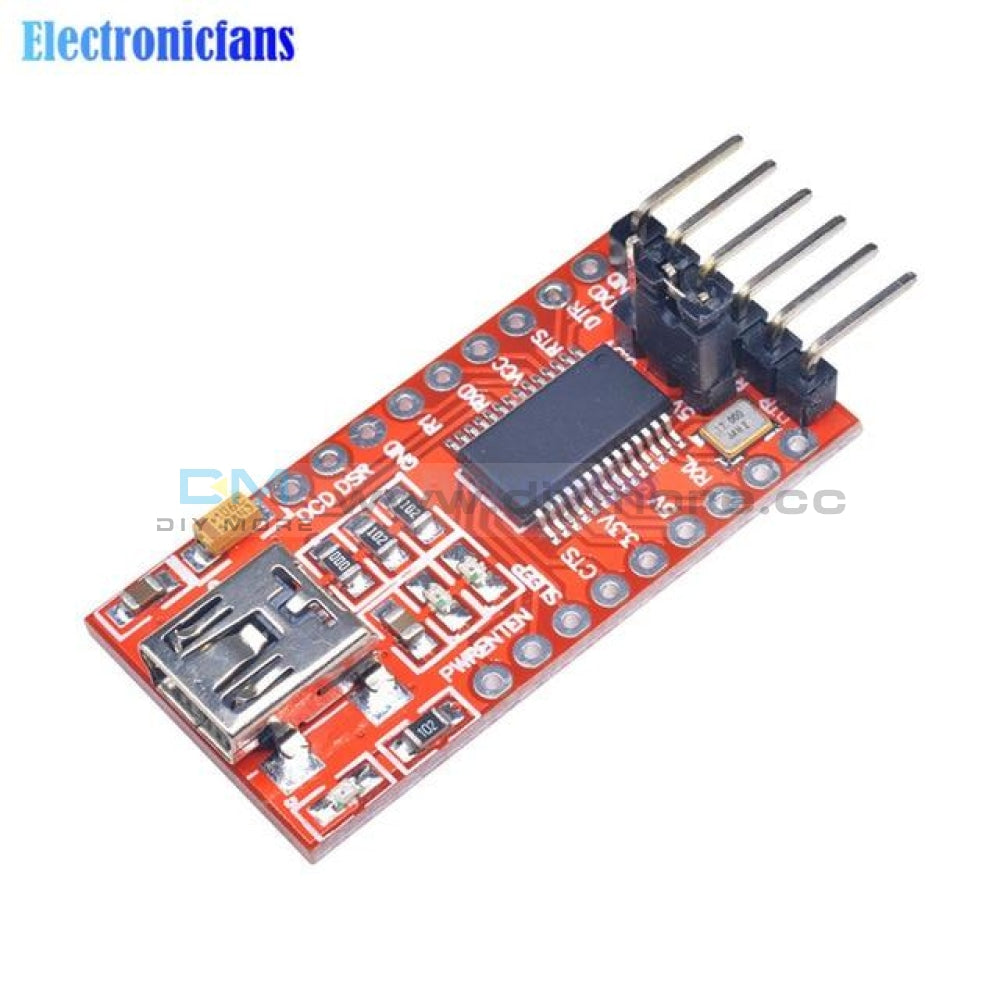

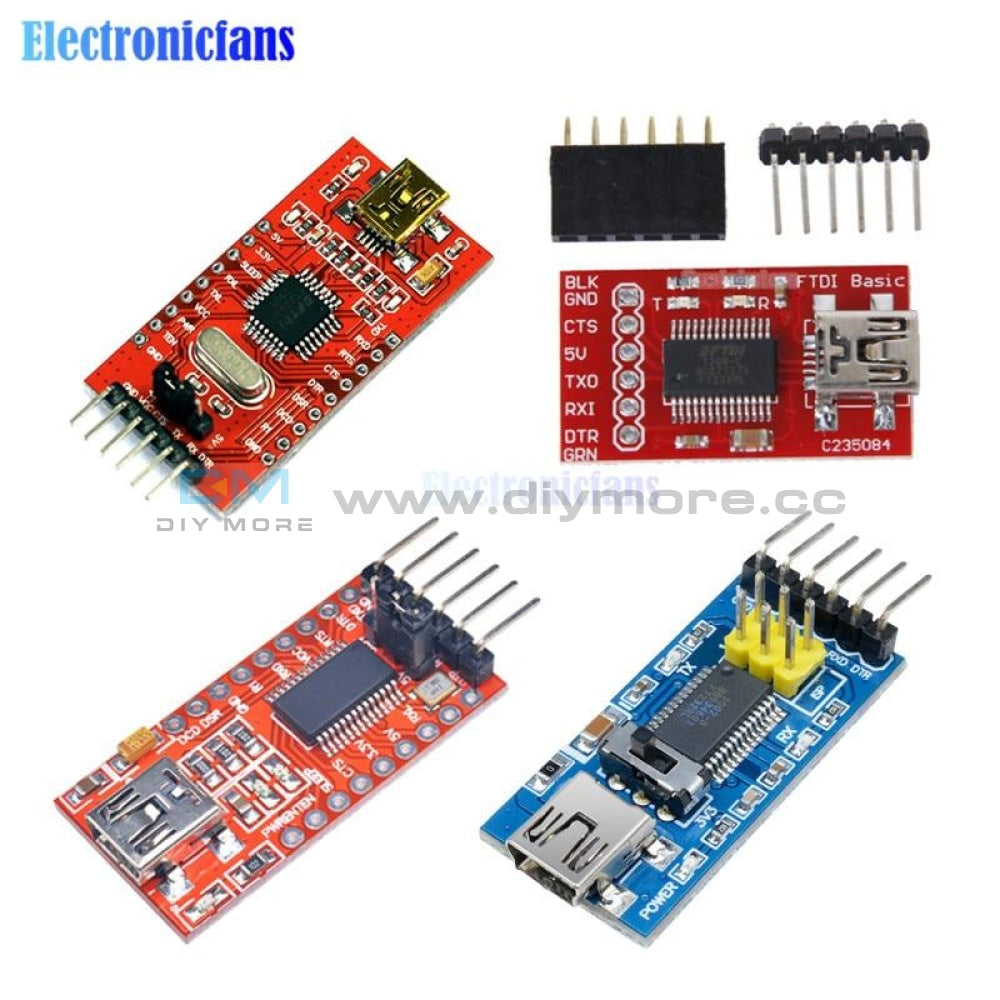

diymore FT232RL FT232 FTDI USB 3.3V 5.5V to TTL Serial Adapter Module Mini USB Port for arduino pro mini USB TO 232 USB to TTL
diymore FT232RL FT232 FTDI USB 3.3V 5.5V to TTL Serial Adapter Module Mini USB Port for arduino pro mini USB TO 232 USB to TTL
SKU:012379
Regular price
$5.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
[Introduction to FT232R]
With the development of computer technology, the parallel port and serial port slowly disappeared on the PC, and now there are few parallel ports on the desktop. But for engineers, both the parallel port and the serial port are essential interfaces, especially the serial port. For a computer without a serial port, the most convenient solution is to use a USB to serial port chip to virtualize a serial port. Many manufacturers have such chips, such as the CP210x series of silicon LABS, the TUSB3410 of TI, and the CH34x series of Nanjing Yuheng. FTDI's FT232 series, Prolific's PL230x series, Aike's ARK3116 and more. From the perspective of stability, the FT232 series is the most reliable, and it can be used to safely debug the program without worrying about the blue screen.
The FT232R chip is a single-chip solution that typically uses essentially no peripherals. The EEPROM, USB matching resistors, and EEPROM for placing product information are already integrated. The FT232R has some more useful features. See the FT232R data sheet for details.
[Hardware Introduction
· Adopt FTDI FT232RL chip;
·Export all signal ports of FT232RL chip, TTL/CMOS level;
· RXD/TXD transceiver communication indicator;
USB powered, selectable 5V or 3.3V interface level (if other levels are required, the target voltage can be provided directly on the VCC and GND pins).
The six pin definitions are: DTR RX TX VCC CTS GND FT232RL USB to serial port module USB to TTL level Brush in the USB-RS232-TTL line USB2TTL protected version overcurrent protection version! ! With USB2.0FT232RL chip, USB power supply protects your USB power and equipment with 500MA fuse (FUSE)! More stable performance! ! This product uses a new design to convert USB to serial port. Available in two power versions. Each module is tested by the self-receiving 10W bytes before leaving the factory! ! PCB board size: 17mmx32.5mm The FT232R chip is a single-chip solution that typically uses essentially no peripherals. The EEPROM, USB matching resistors, and EEPROM for placing product information are already integrated. The FT232R has some more useful features. See the FT232R data sheet for details. [Hardware Introduction] · Adopted FT232RL chip; ·Export all signal ports of FT232RL chip, TTL/CMOS level; · RXD/TXD transceiver communication indicator; USB powered, selectable 5V or 3.3V interface level (if other levels are required, the target voltage can be provided directly on the VCC and GND pins).
