3.2" inch TFT LCD 5V Expansion Shield Touch Screen with Touch Pen for Arduino
3.2" inch TFT LCD 5V Expansion Shield Touch Screen with Touch Pen for Arduino
SKU:X30543
Regular price
$13.99
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Description:
Package Included:
1*Shield
1*Touch pen

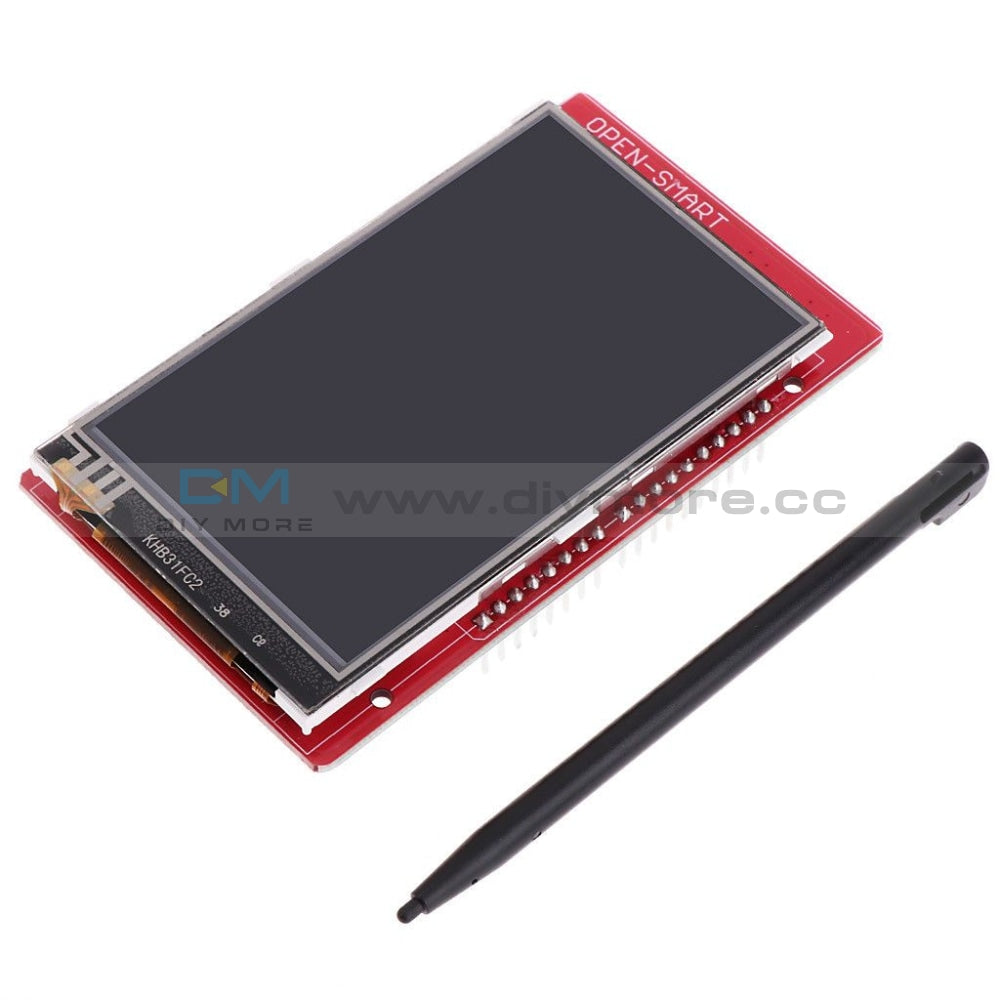

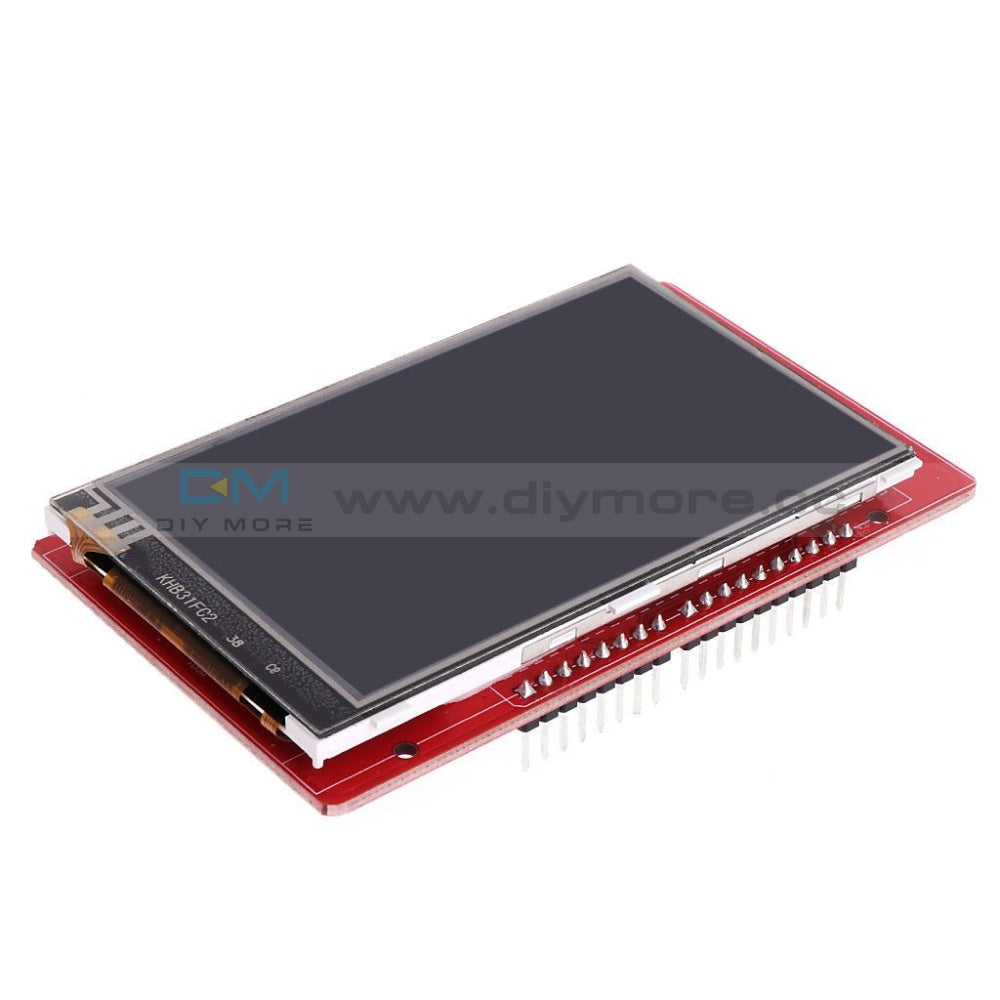

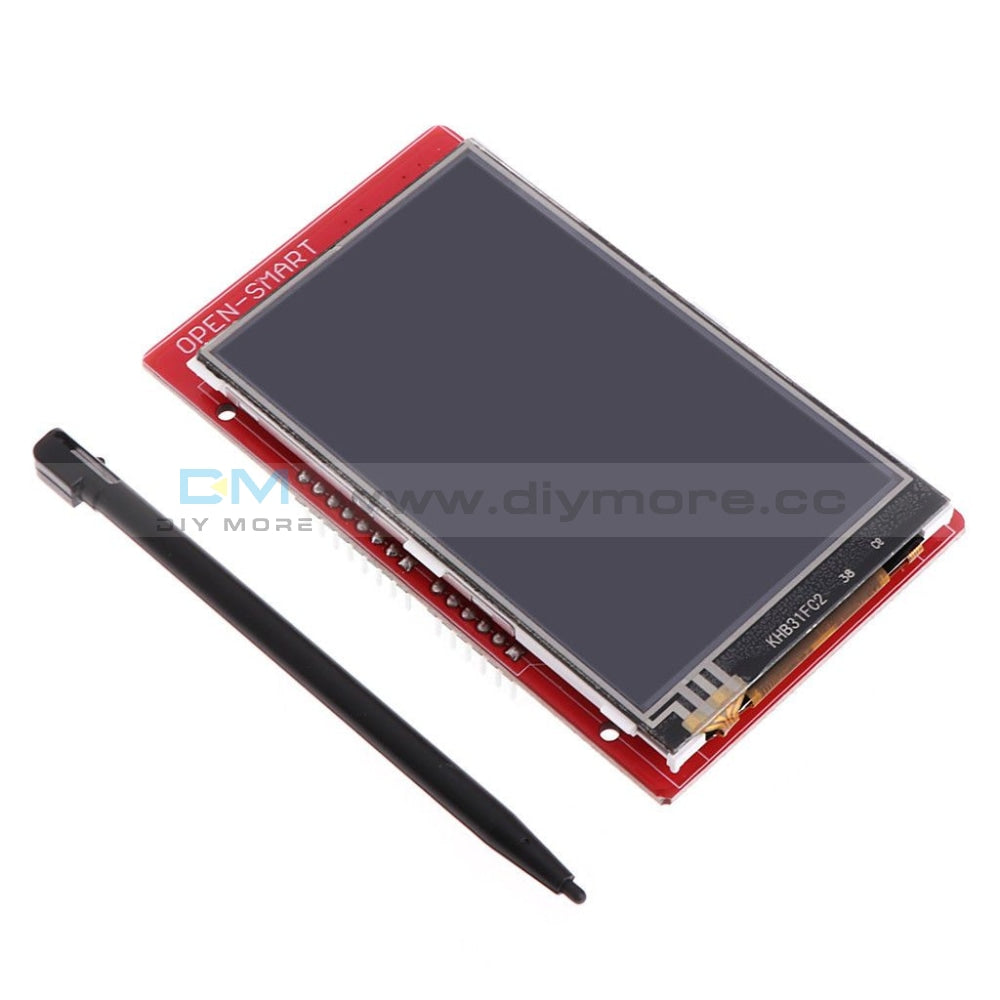

- This is a 3.2 inch TFT touch screen expansion board using standard Arduino Shield interface and it has good compatibility.
- It integrates a 3.2-inch touch screen, I2C temperature sensor, TF card holder, level conversion circuit, and the secondary development is easy.
- With GPRS module, you can design your Arduino phone.
- With NFC reader module, you can create access control systems with the photos show.
- With voltage and current sensor, you can make oscilloscope.
- Can use it directly to display characters, graphics and BMP format images. And touch controlling is available;
- Compatibility: As the SD card is connected to SPI pins of ICSP interface, compatible with Arduino UNO R3 / Arduino Mega2560 / Arduino Leonardo
- Touch screen type: resistive touchscreen.

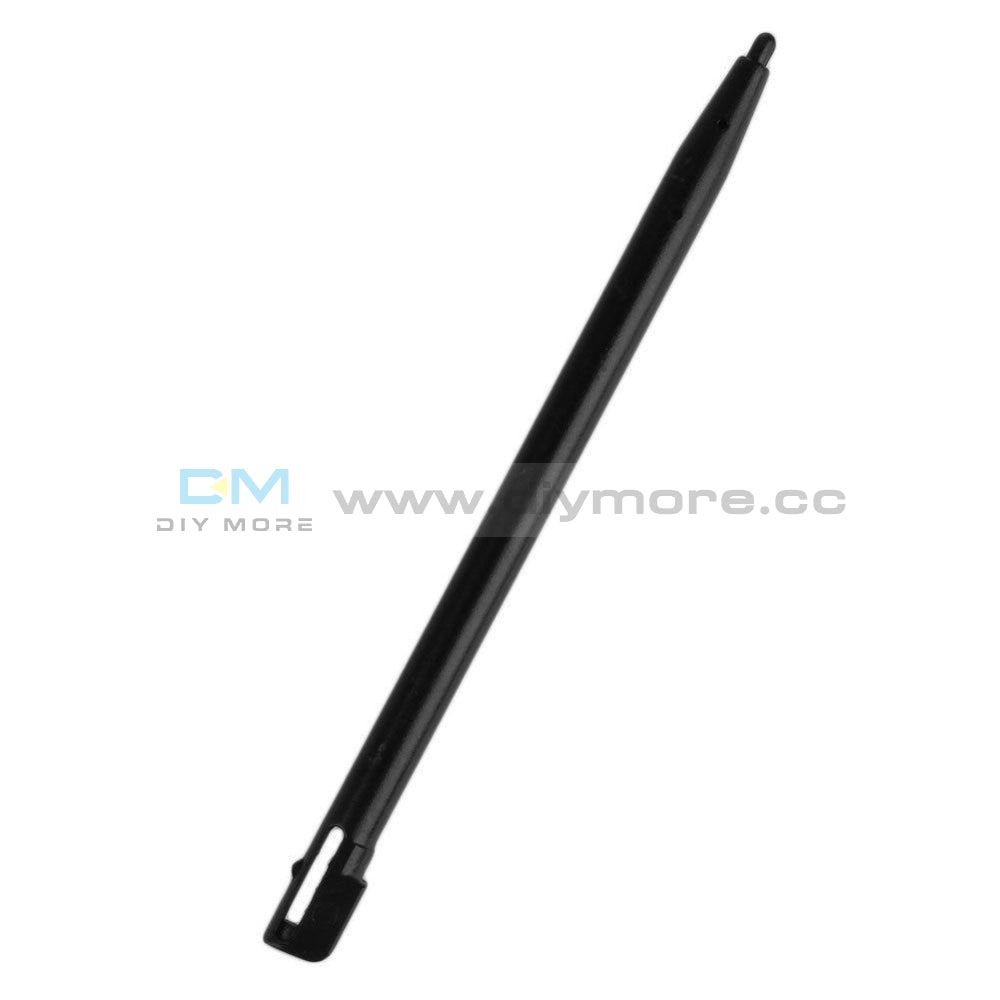

- Touch Pen: length is 9cm;
- Resolution: 240X400;

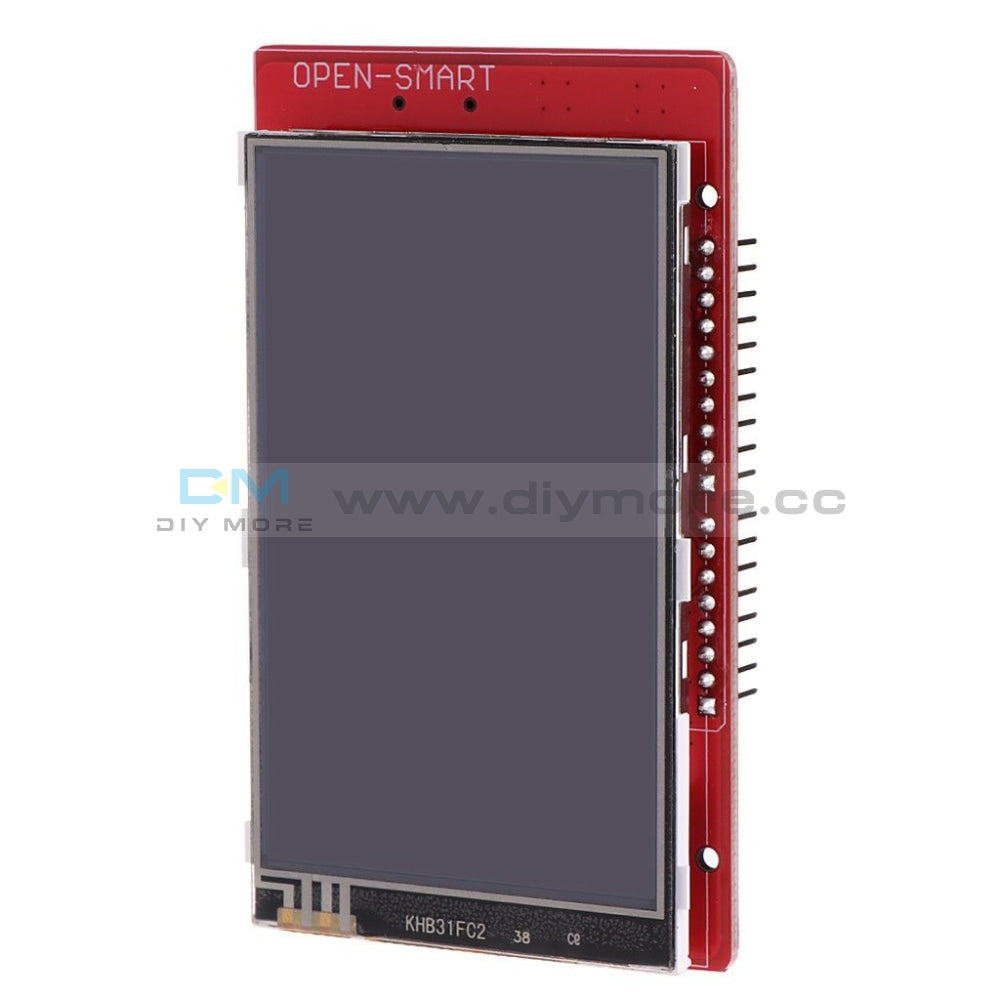

- Display size: 3.2 inch;
- Operating voltage: 5V;
- Logic level: 5V / 3.3V;
- On-board 3.3V / 300mA regulator circuit;
- Operating current: the maximum is 150mA

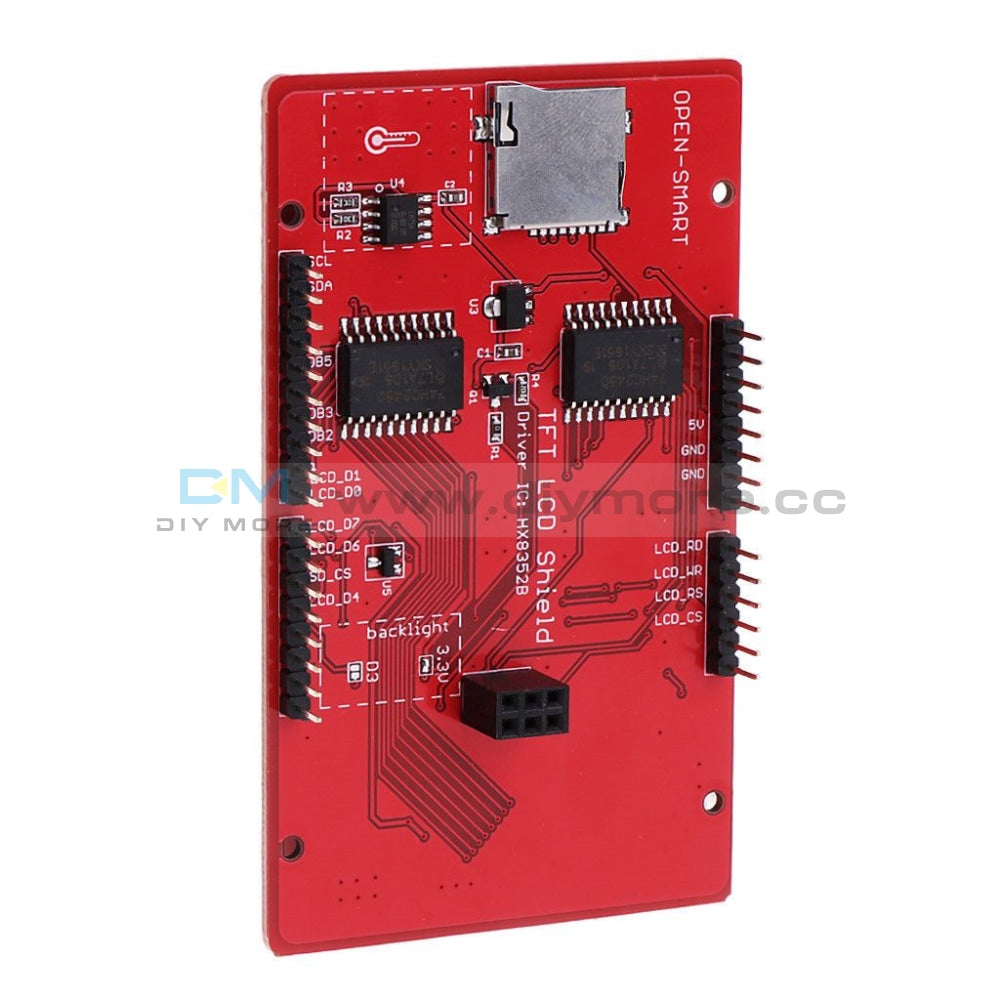

- Use the A0 ~ A3 pins, D4 ~ D13 pins. And I2C interface, D0 / D1 / D2 / D3 is available, please refer to the product schematics for the details.

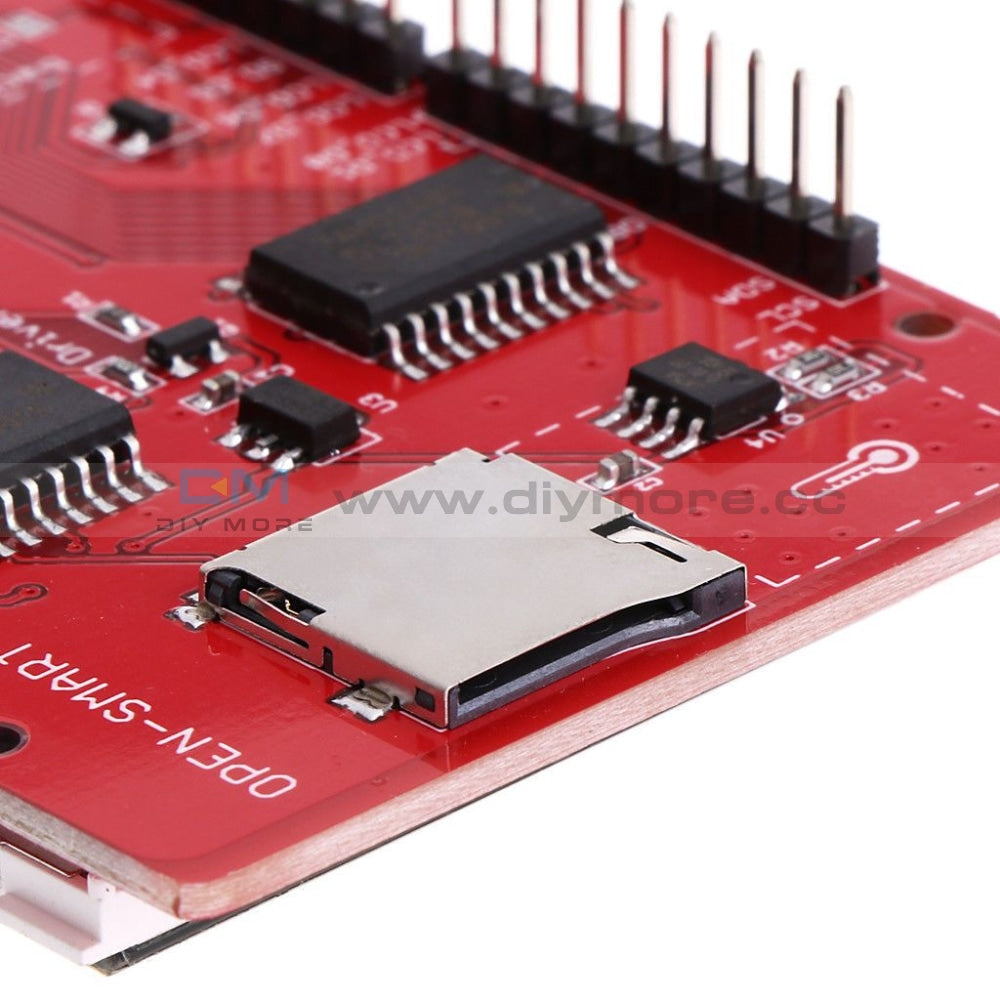

- Onboard Micro SD slot, support Micro SD / TF Card;
- Onboard LM75 temperature sensor: default I2C address is 0X48, scale is -55 ~ 125'C
- Very suitable for digital photo frame, oscilloscope, function generator, detection system monitor
- Size: 9*5.3cm/3.54"*2.09"
Package Included:
1*Shield
1*Touch pen
