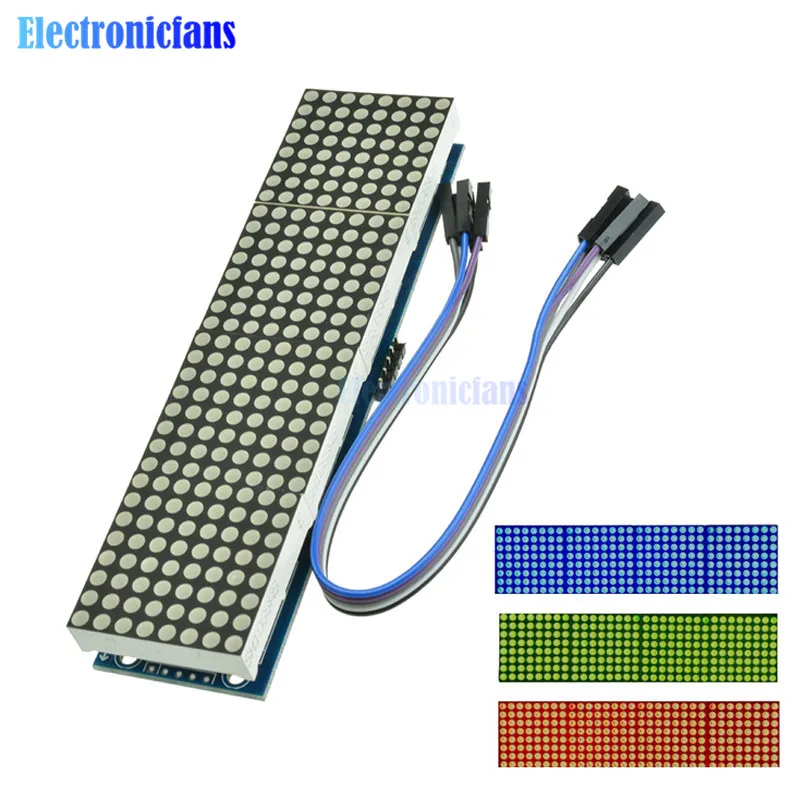

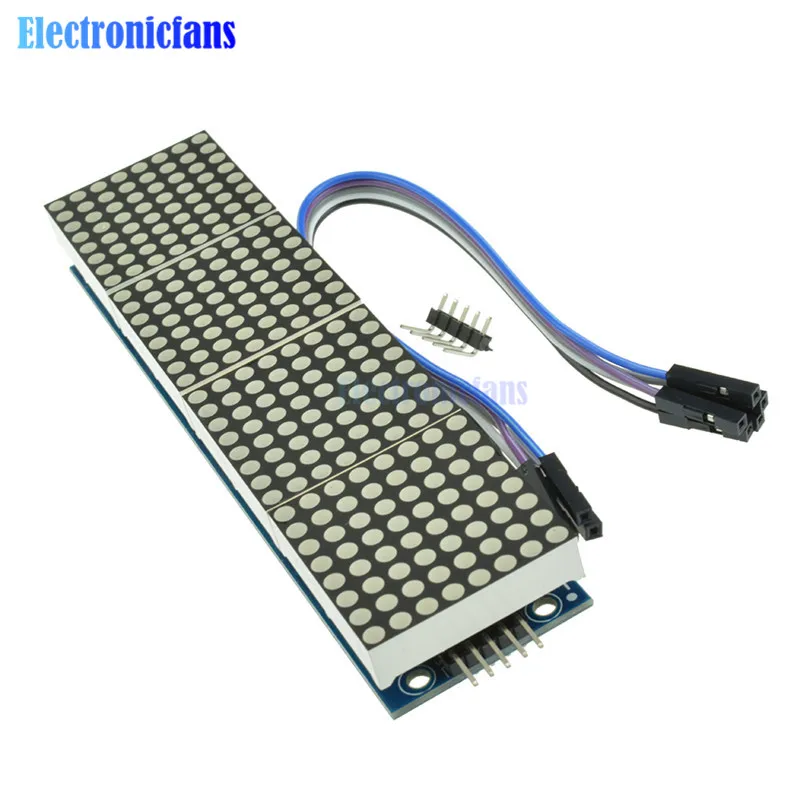

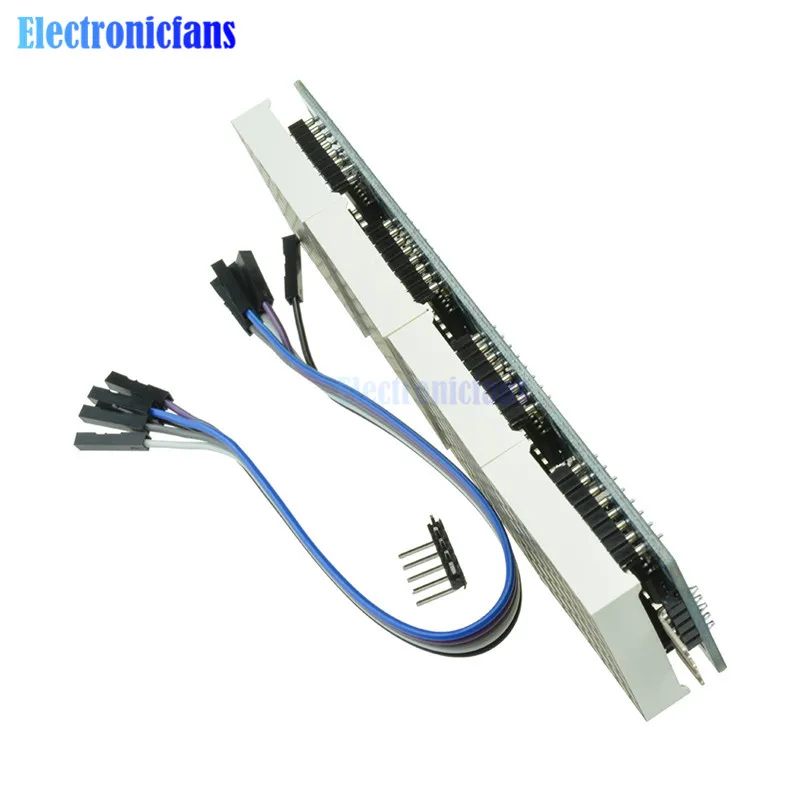

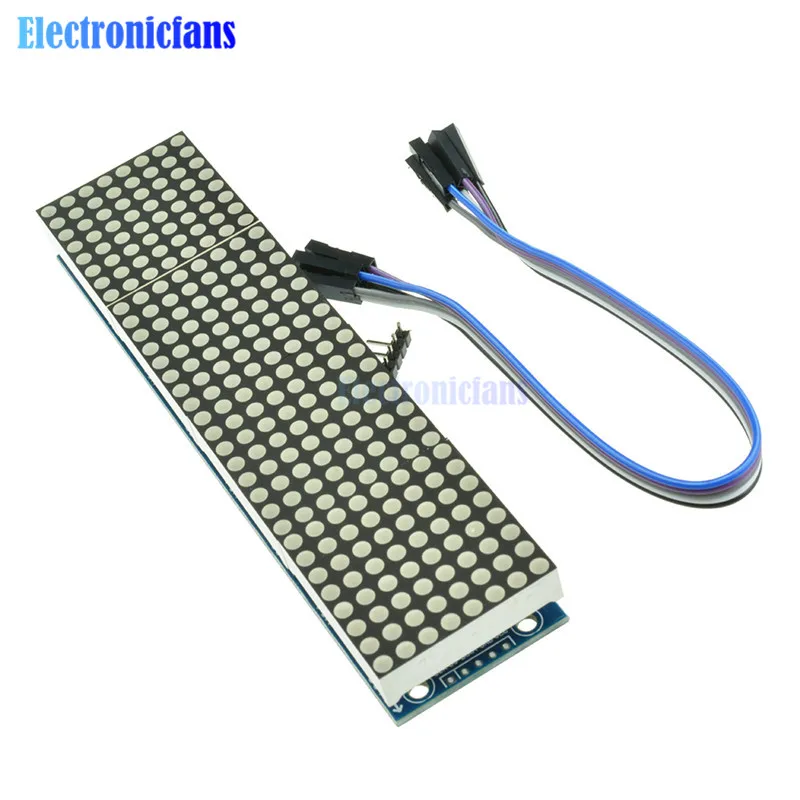

MAX7219 LED Microcontroller 4 In 1 Display with 5P Line Dot Matrix Module 5V Operating Voltage for Arduino 8x8 Dot Matrix Common

MAX7219 LED Microcontroller 4 In 1 Display with 5P Line Dot Matrix Module 5V Operating Voltage for Arduino 8x8 Dot Matrix Common

SKU:010856
Regular price $8.60 Sale price $4.99

HTB1ZYSui4PI8KJjSspoq6x6MFXaU

100% brand new and high quality

Description:

A single module can drive a 8x8 dot matrix common cathode
Operating Voltage: 5V
Dimensions: 12.8X12.8X1.3cm/
Fixing screws with 64 holes with a diameter 3mm

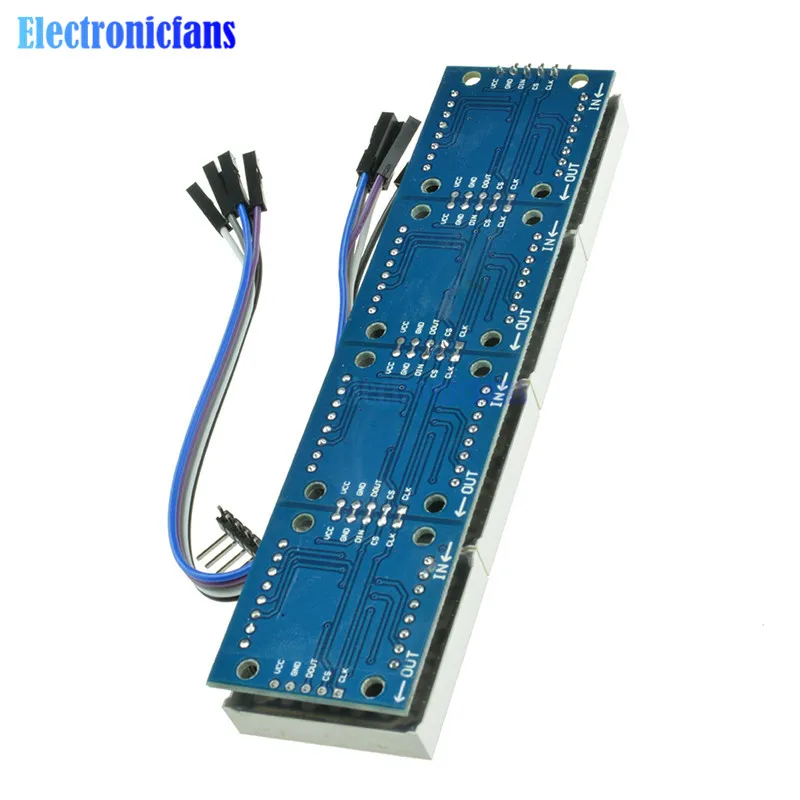

Module with input and output interfaces, support for cascading multiple modules


Wiring Instructions:

The left side of the module to the input port, the right to an output port
When the control of a single module, simply input port connected to CPU
When a plurality of cascaded modules, input and output termination CPU,
an input terminal of the second output end of the first module a module, t
he first two modules of the input terminal of the three termination modules, and so on...
51 microcontrollers,
For example:


VCC → 5V
GND → GND
DIN → P2.2
CS → P2.1
CLK → P2.0

Package Included:

  • 1 x MAX7219 Microcontroller 4 In 1 Display with 5P Line Dot Matrix Module for Arduino

HTB1jCuMiY_I8KJjy1Xaq6zsxpXaS

11DSC_0071DSC_0073DSC_0072DSC_0076DSC_0077DSC_0078

HTB1CoFQi_TI8KJjSsphq6AFppXax
