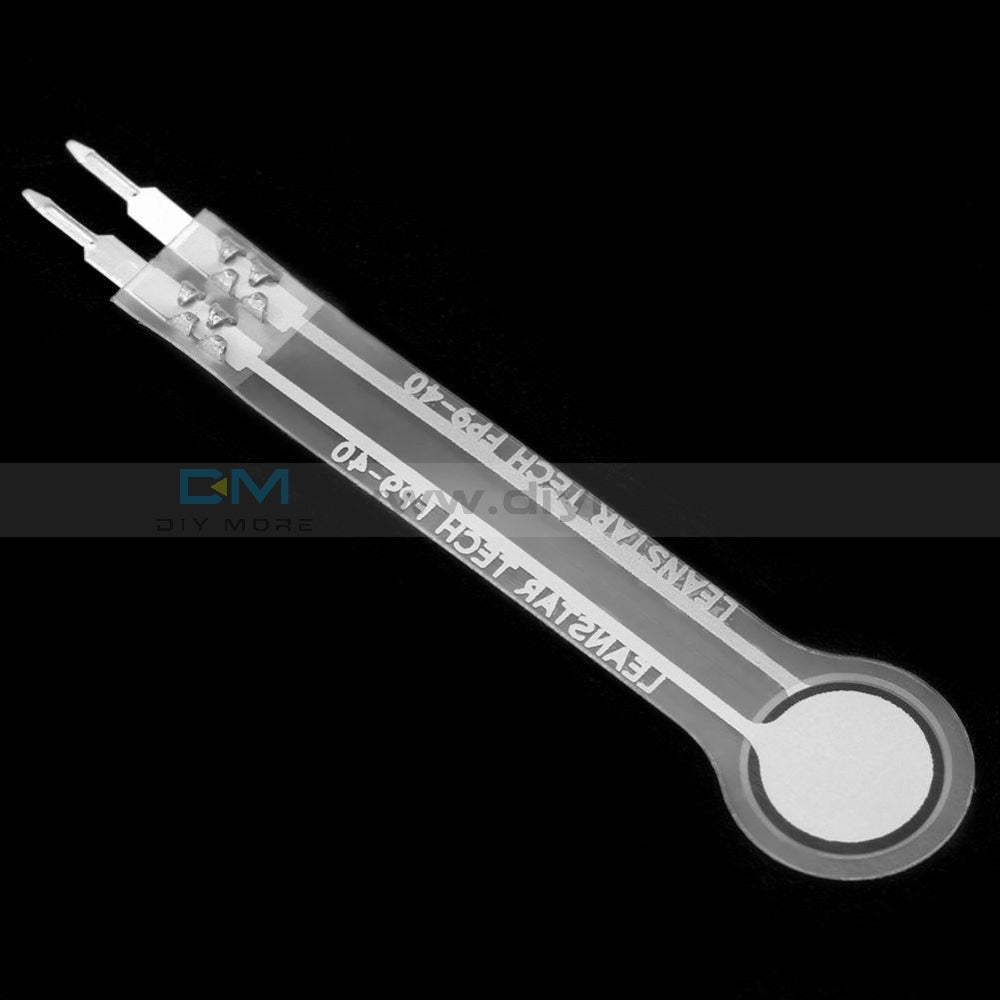

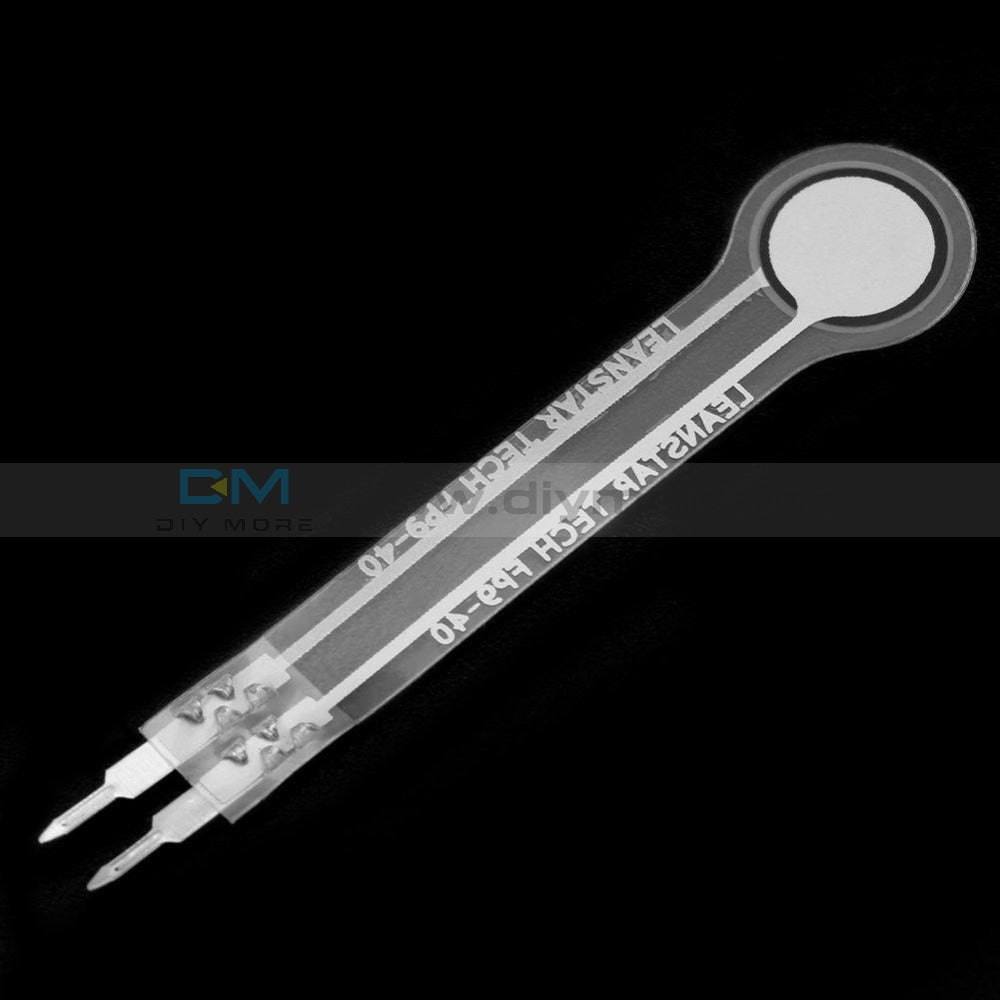

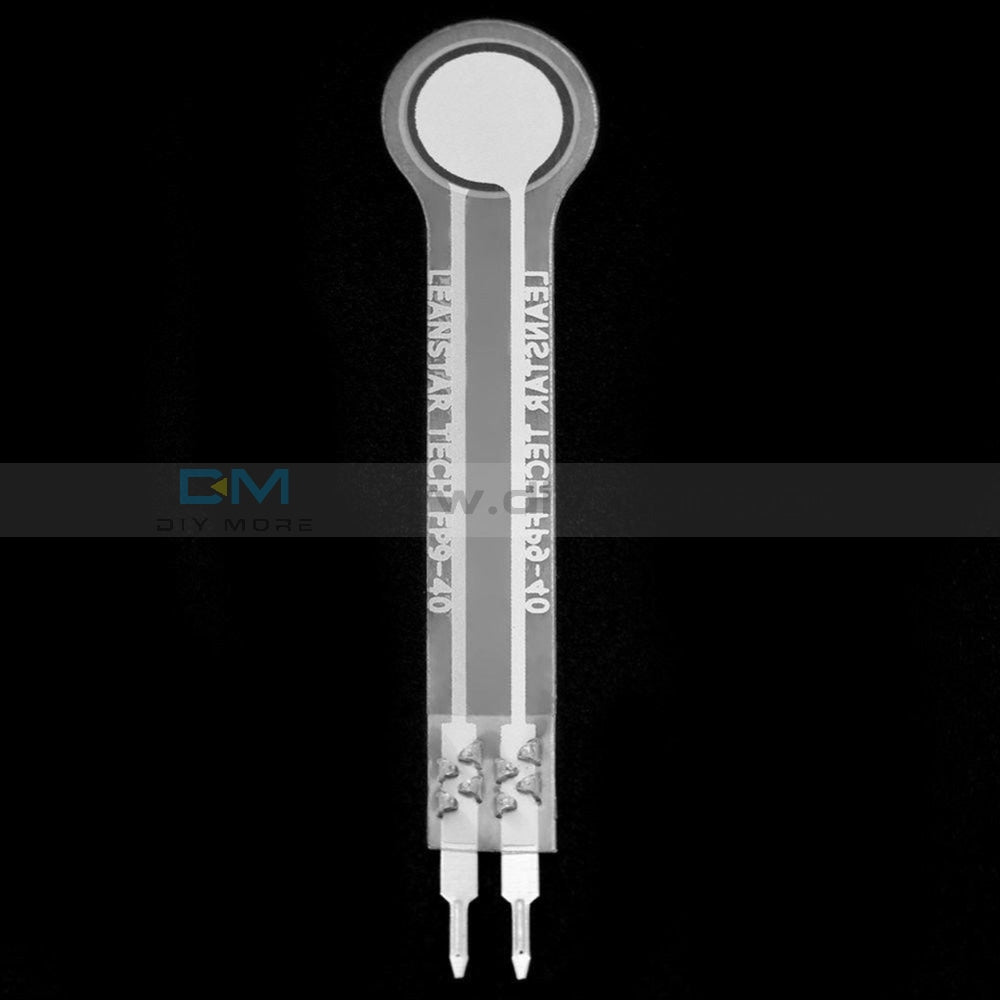

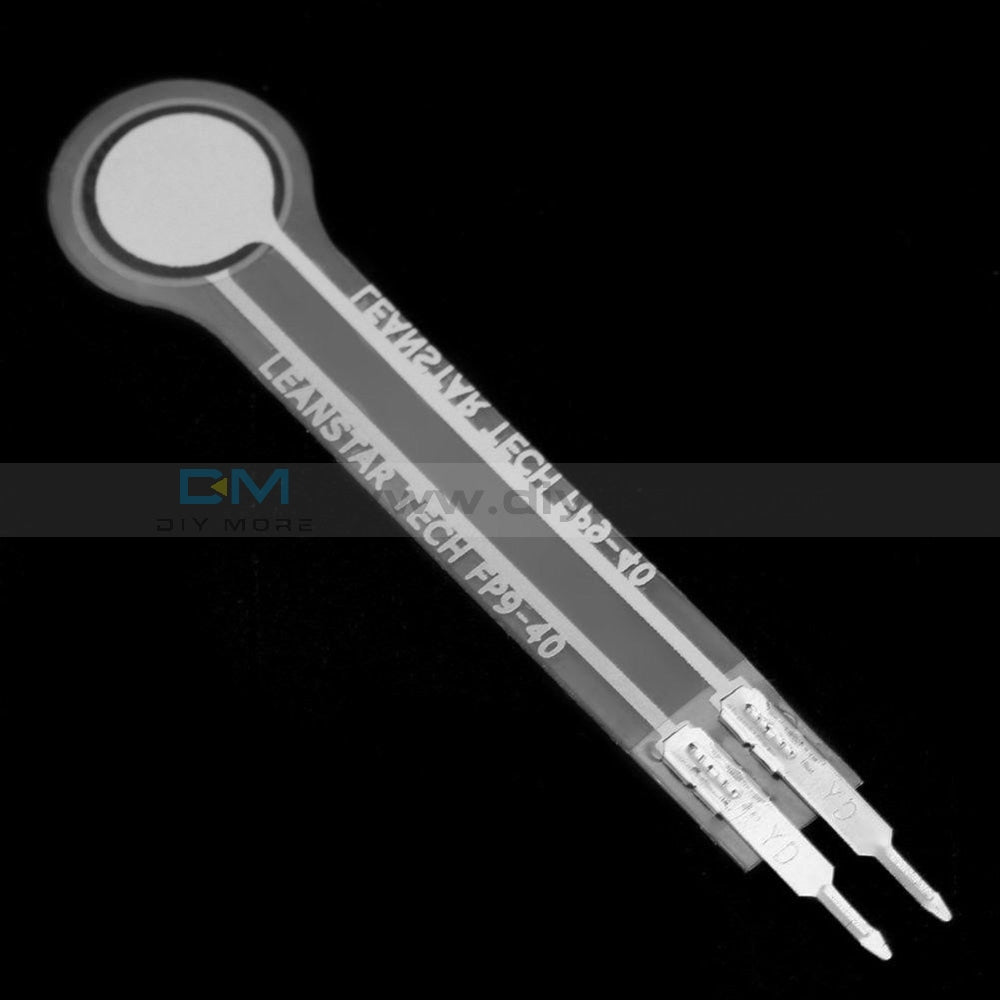

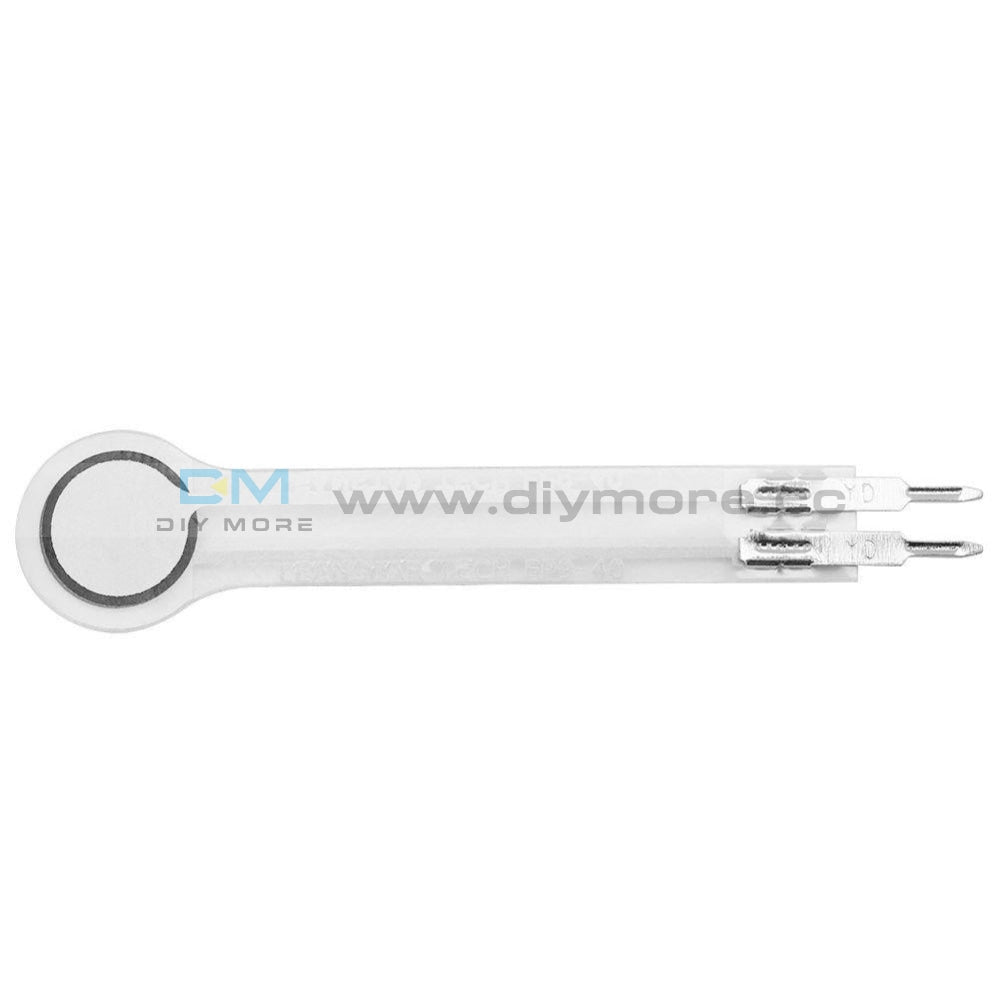

0-20Kg DF9-40 DC 3.3V High Precision Resistive Film Waterproof Pressure Sensor

0-20Kg DF9-40 DC 3.3V High Precision Resistive Film Waterproof Pressure Sensor

SKU:012819
Regular price $3.59

shipped within one bussiness day

Features:
This flexible pressure sensor is based on a new nano-pressure-sensitive material and is complemented by an ultra-thin substrate.
Highly sensitive flexible nanomaterials enable highly sensitive pressure sensing.
It has a pressure sensitive function as well as a waterproof function.
When the sensor detects an external pressure, the resistance of the sensor changes.
The pressure signal can be converted to a corresponding electrical signal output using a simple circuit

Product Specifications:
Measuring range: 0-20kg
Thickness: <0.25mm
Accuracy: ±2.5% (85% measurement range)
Repeatability: <±5.8 (50% load)
Lifespan: > 1 million times
Initial resistance: >10MΩ (no load)
Response time: <1ms
Recovery time: <15ms
Test voltage: DC 3.3V (typical)
EMI: will not produce
EDS: not sensitive
Induction area outer diameter: 9 mm
Induction area inner diameter: 7.5 mm
Pin pitch: 2.54mm

Package Included:
1*DF9-40 Pressure Sensor
