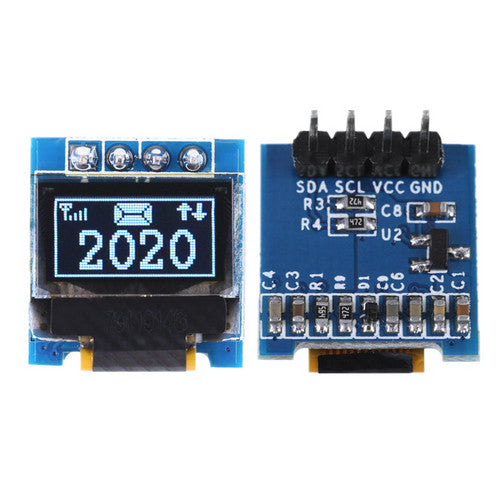

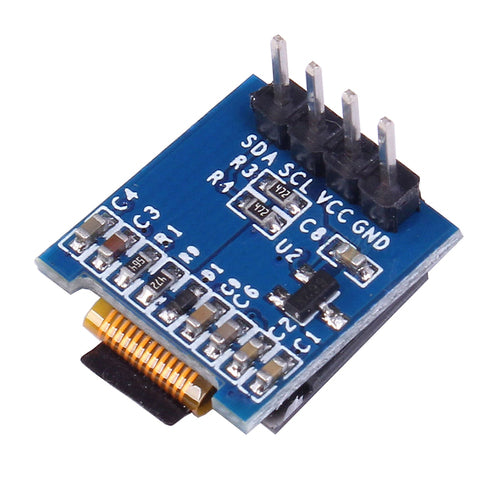

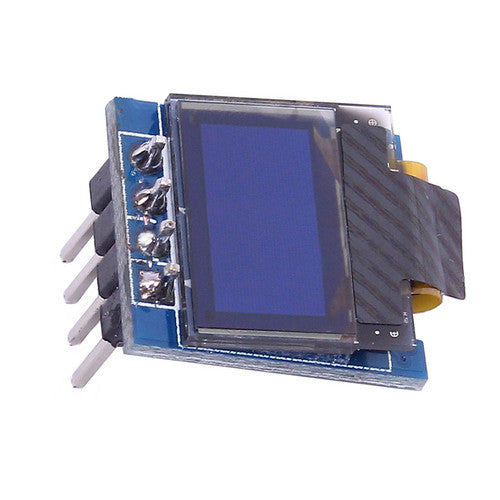

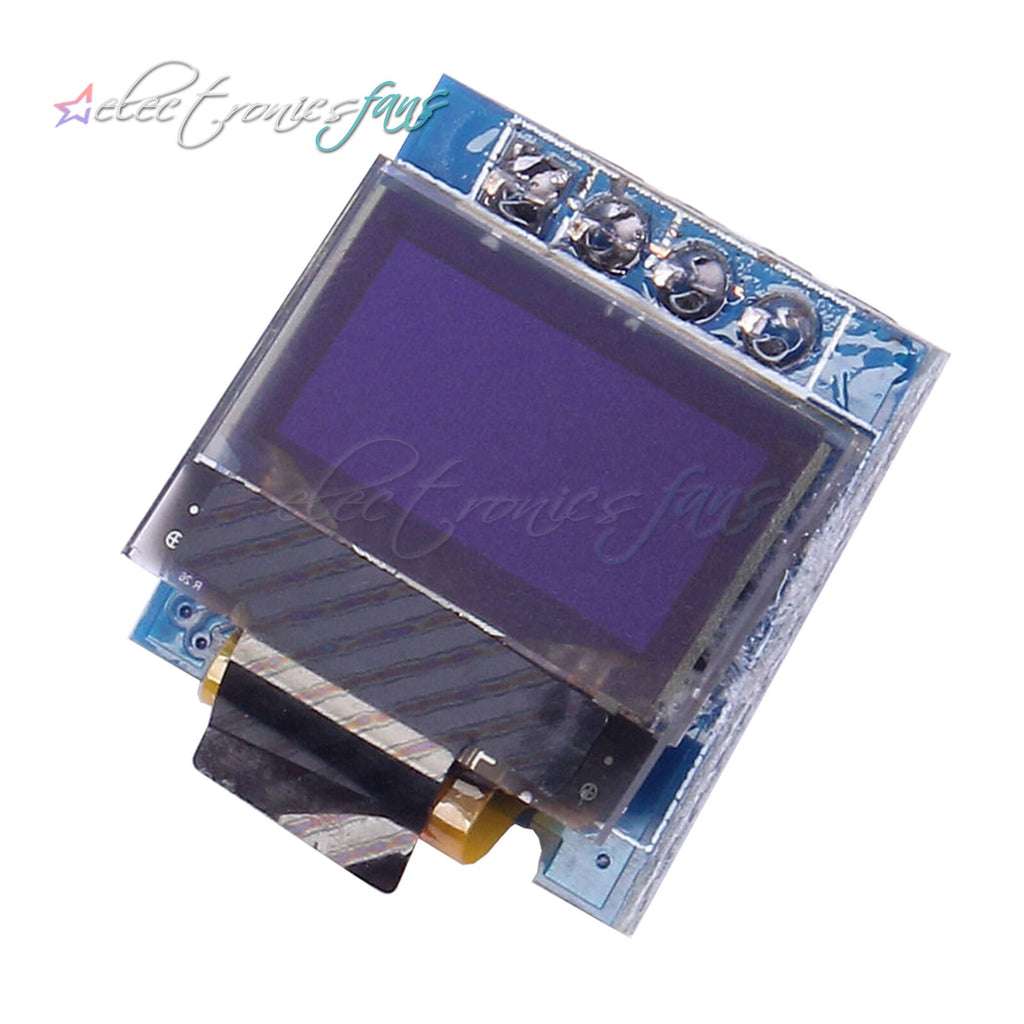

0.49 inch OLED Display Screen Module SSD1306 64x32 I2C IIC For Arduino DIY
0.49 inch OLED Display Screen Module SSD1306 64x32 I2C IIC For Arduino DIY
SKU:X30587
Regular price
$5.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Features:
- This is a 0.49 inches OLED display module of 64x32resolution in which the emissive electroluminescent layer is a film of organic compound that emits light in response to an electric current.
- Working without backlight, the OLED display module could give out light by itself.
- In low ambient light conditions such as a dark room, an OLED screen can achieve a higher contrast ratio than an LCD.
- OLED display module also has a much faster response time than an LCD.
- The display with small dimension is suitable for MP3, function cellphone, smart health device, etc.
Specifications:
- Display Size: 0.49in
- Resolution: 64*32
- Text Color: White
- Driver IC: SSD1306
- Interface Type: IIC
- Pin Quantity: 4Pin
- Pixel Size: 0.155*0.155mm
- Operating Temperature: -40~85℃
- Working Voltage: 3.3V-5V

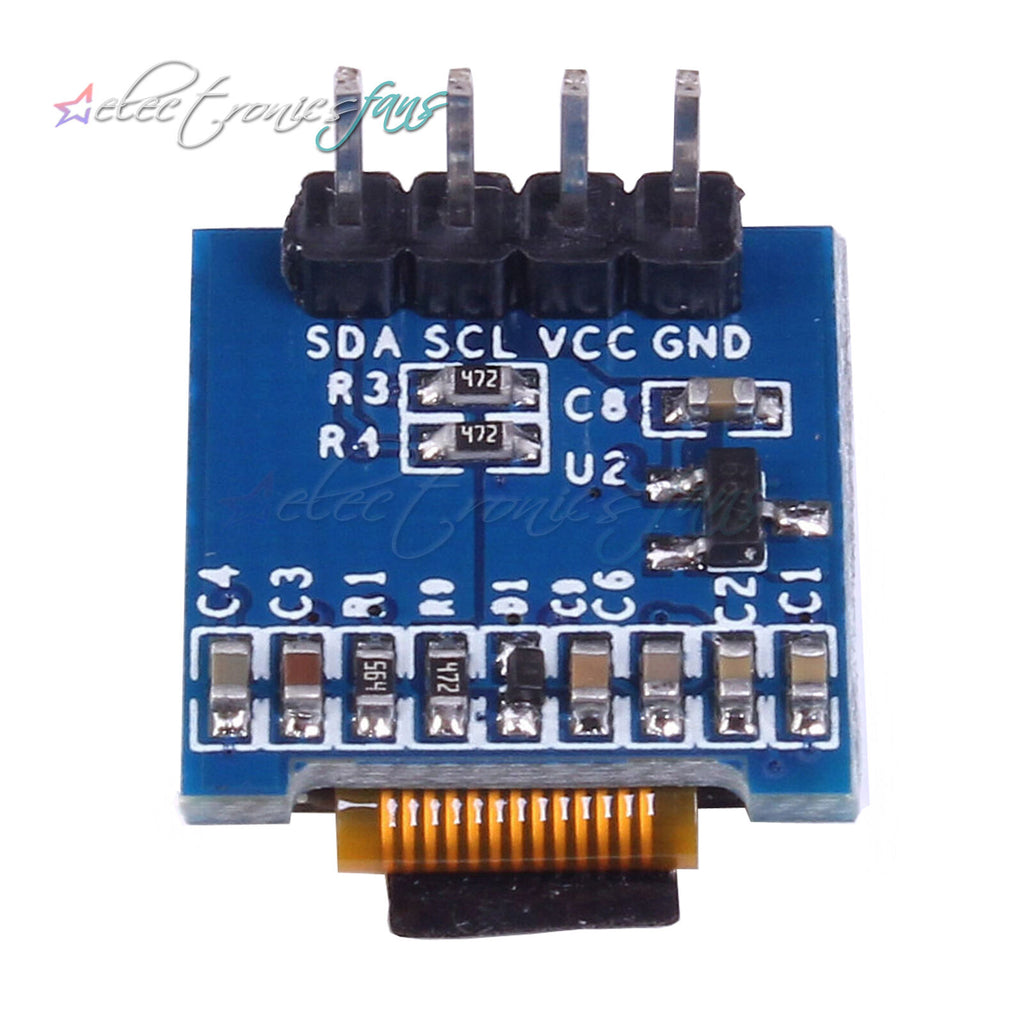

Interface:
- GND: Ground
- VCC: Power supply+ 3.3~5V
- SCL: IIC clock
- SDA: IIC data
Package included:
- 1 x 0.49" inch White SSD1306 IIC I2C OLED Display Module 64x32 Screen For Arduino
Note:
- This kit requires certain professional knowledge and ability, please make sure you know how to wire and use it.
- OLED display module could give out light by itself and it has no backlight, so it will not response if connecting to power supply only . It can only display with program and right operation.
