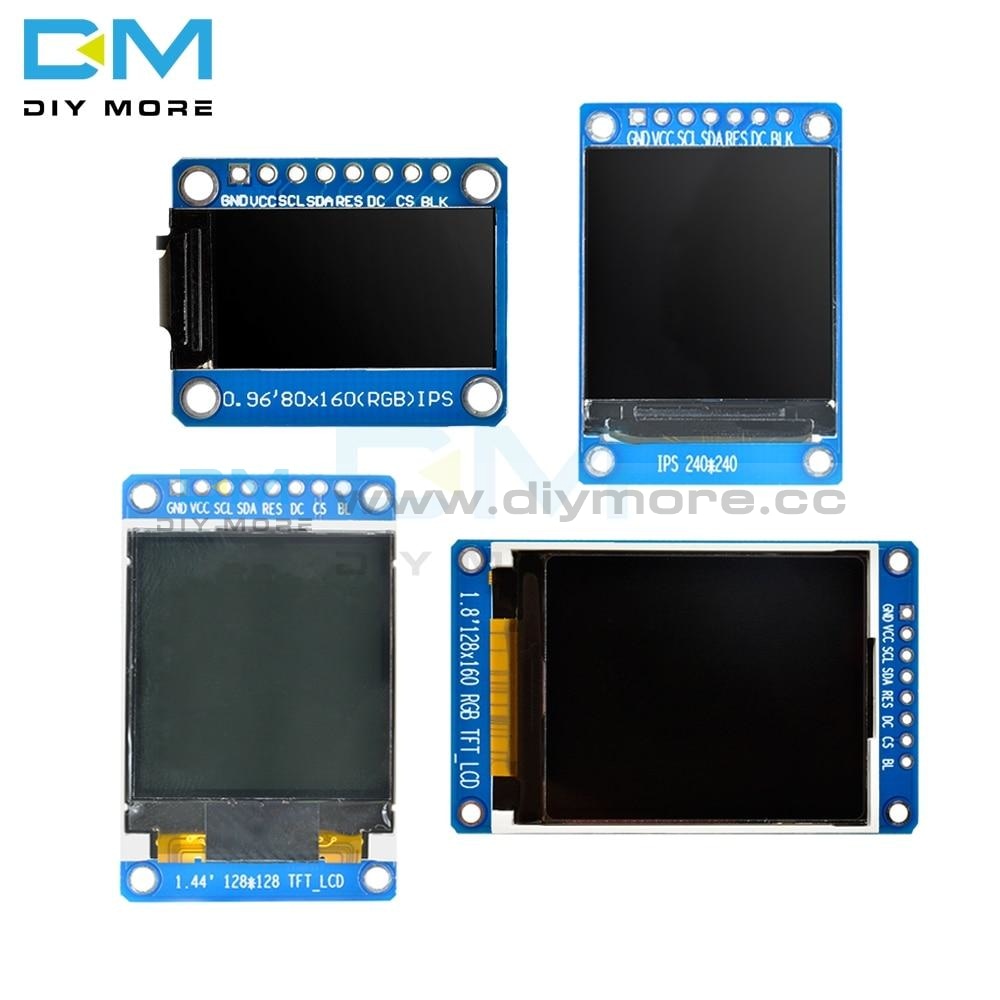

0.96/1.3/1.44/1.8 inch Serial 128*128 128*160 80*160 240*240 65K SPI Full Color TFT IPS LCD Display Module Board

0.96/1.3/1.44/1.8 inch Serial 128*128 128*160 80*160 240*240 65K SPI Full Color TFT IPS LCD Display Module Board

SKU:030532
Regular price $4.99







Description:

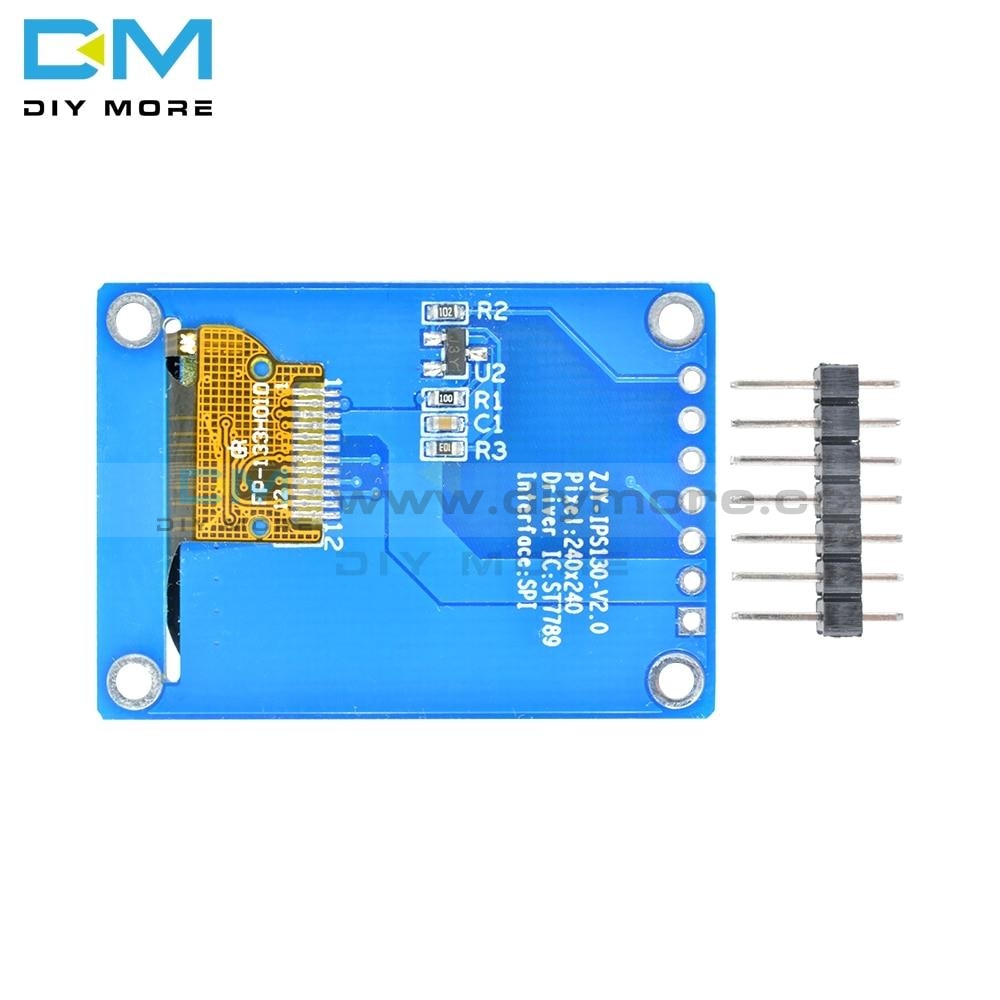

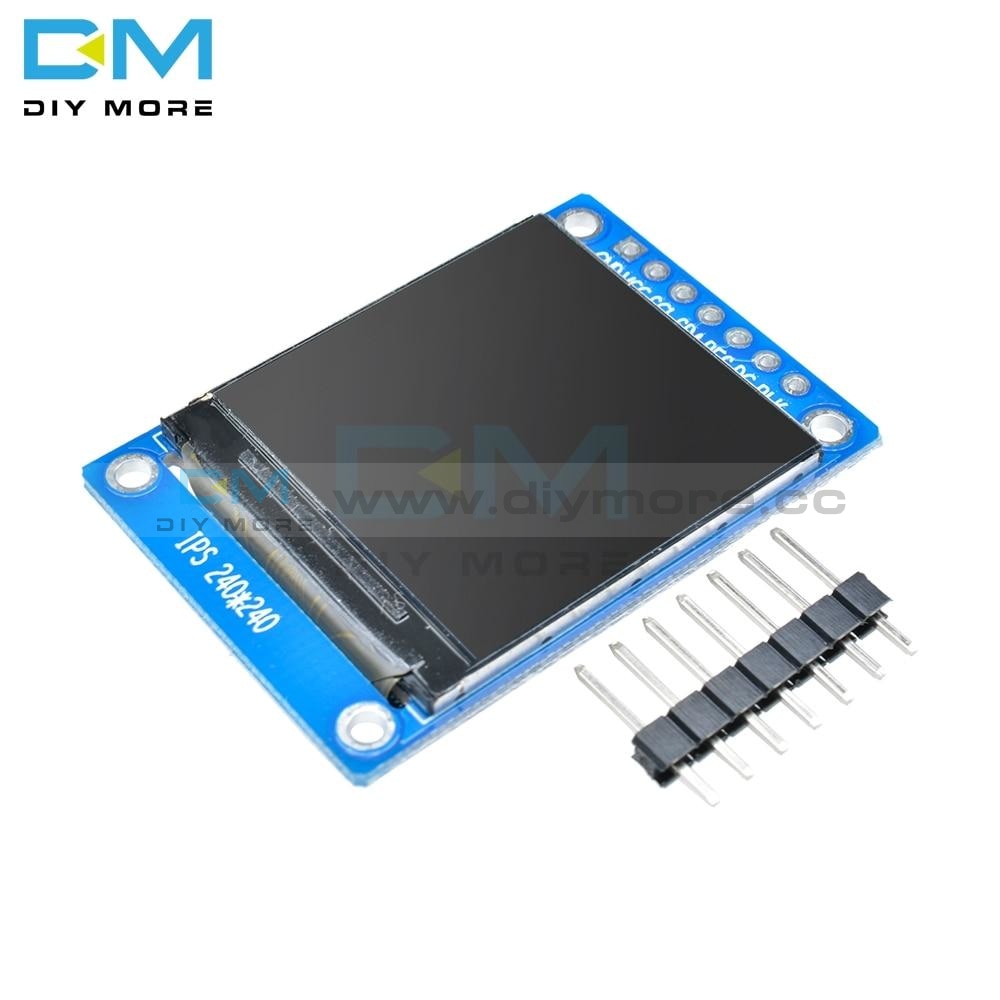

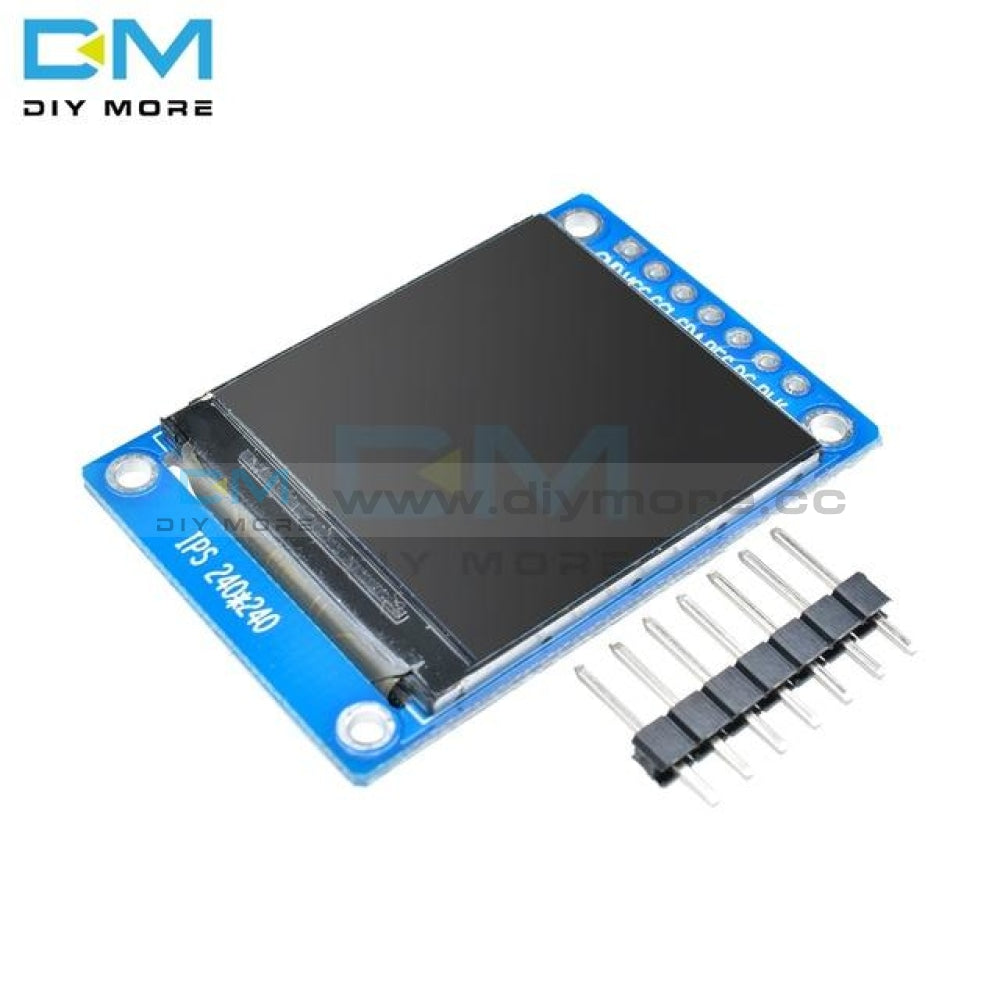

  • 1.3 inch IPS HD TFT ST7789 Drive IC 240*240 SPI Communication 3.3V Voltage SPI Interface Full Color LCD OLED Display
Features:
  • SIZE 1.3inch
  • Display Mode Normally black IPS
  • Display Format Graphic 240RGB*240 Dot-matrix
  • Input Data SPI interface
  • Drive IC ST7789VW
  • Dimensional outline 27.78(W)*39.22 (H)*3.0+/-0.1(T)mm
  • Resolution 240RGB*240 Dots
  • LCD Active area 23.4 (W)*23.4 (H)
  • Dot pitch 0.0975(H) x 0.0975(V) mm
  • Viewing Direction All View
  • Operating Temperature -20~70°C
Pin Descriptions:
  • PIN No Symbol Description
  • GND Ground
  • VCC Power 3.3V
  • SCL Serial clock pin.
  • SDA Serial data input
  • RES LCM Reset pin
  • This pin is reset signal input. When the pin is low, initialization of the chip is executed. Keep this pin pull high during normal operation.
  • DC Data/Command Control
  • BLK Backlight control pin

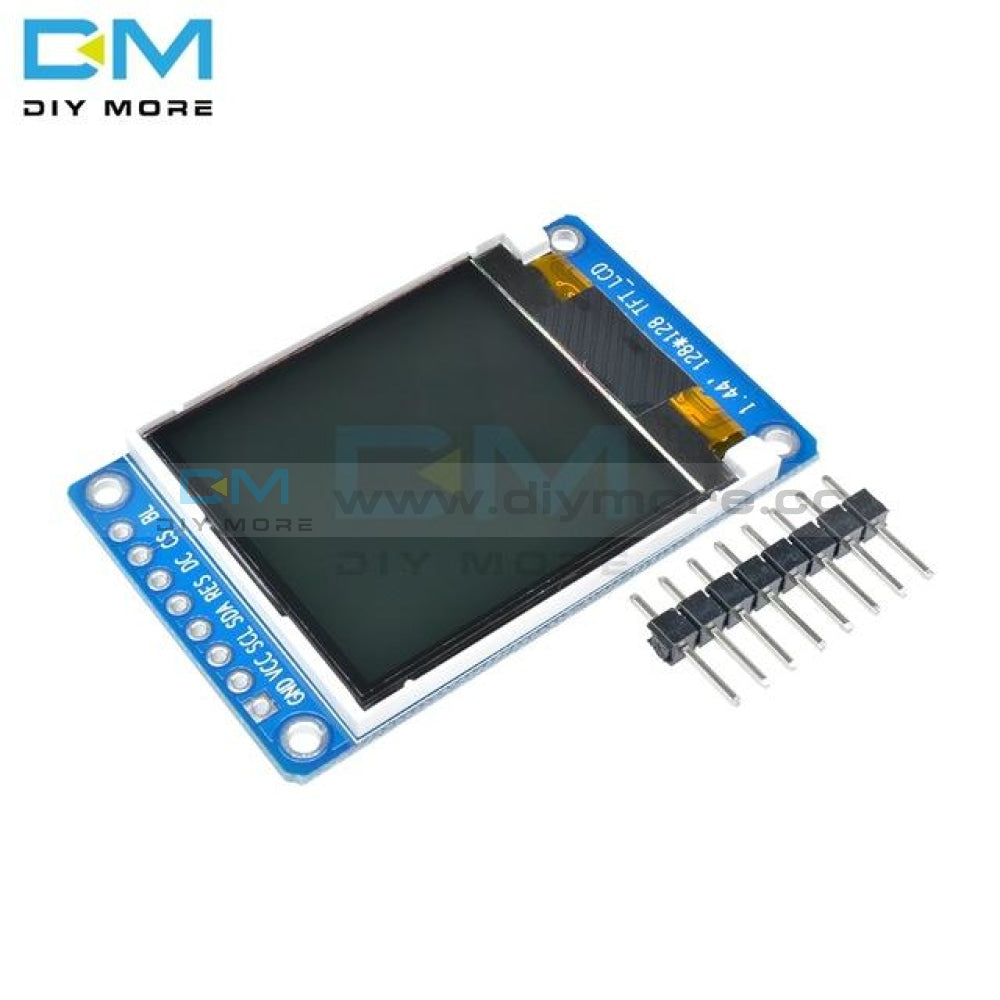

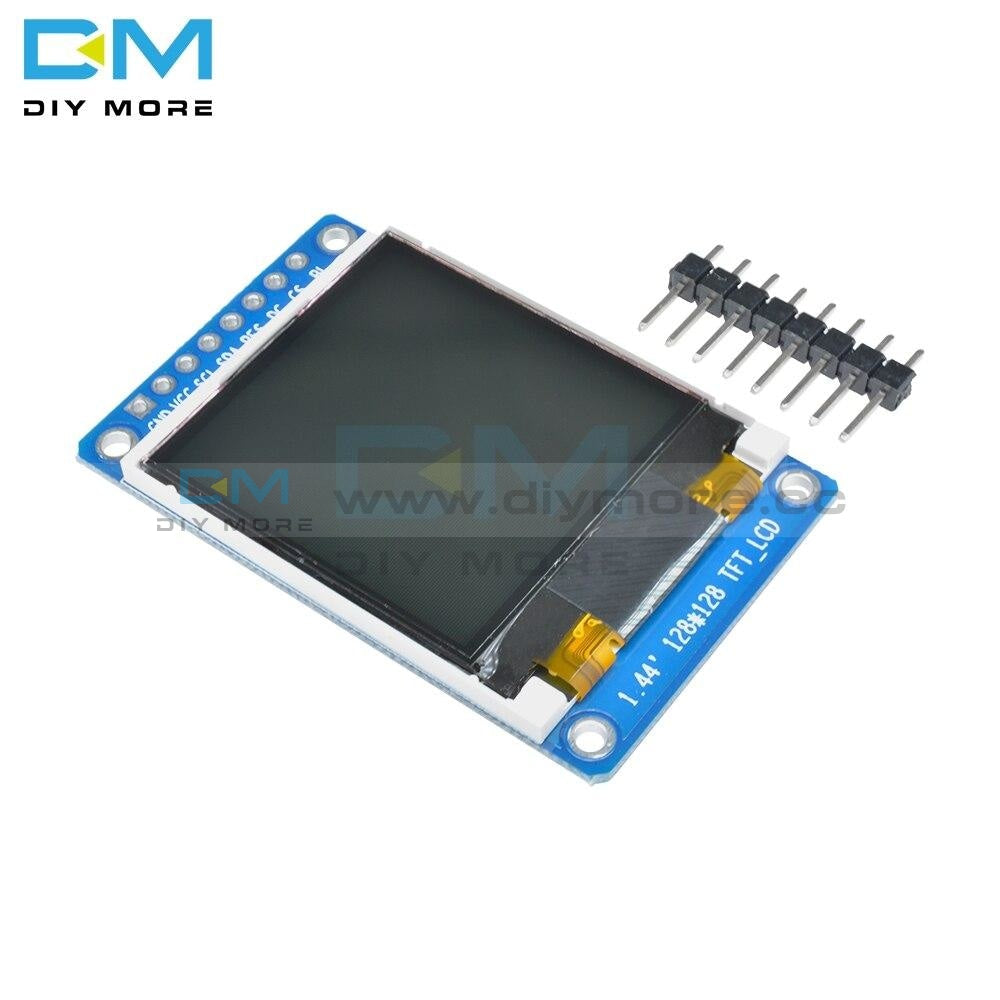

  • New Arrival 1.44" inch Serial 128x128 128*128 65K SPI Full Color TFT LCD Display Module Board Replace OLED
  • LCD PANEL : CPT
  • Driver IC : ST7735S
  • Resolution : 128*RGBX128
  • PIN feet :8 pin (SPI serial interface)
  • PIN feet spacing:2.54mm
  • connection mode : Row needles
  • 3V3: 3.3V POWER INPUT
  • GND: Grounding power communication system
  • SDI: SPI DATA input
  • SCL : spi clock signal input
  • CS: spi chip select signal input
  • RST: reset
  • RS: command /data signal input selection
  • BLK : Backlight control signal inpuT

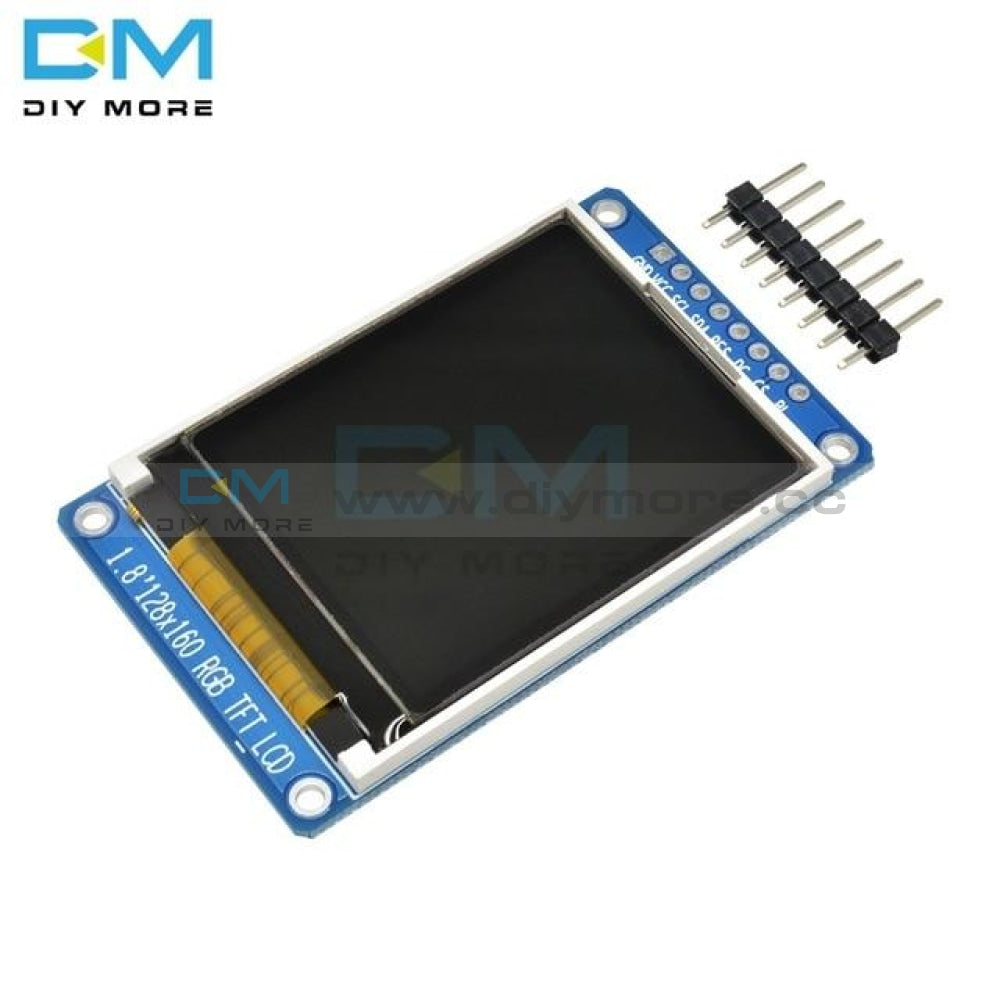

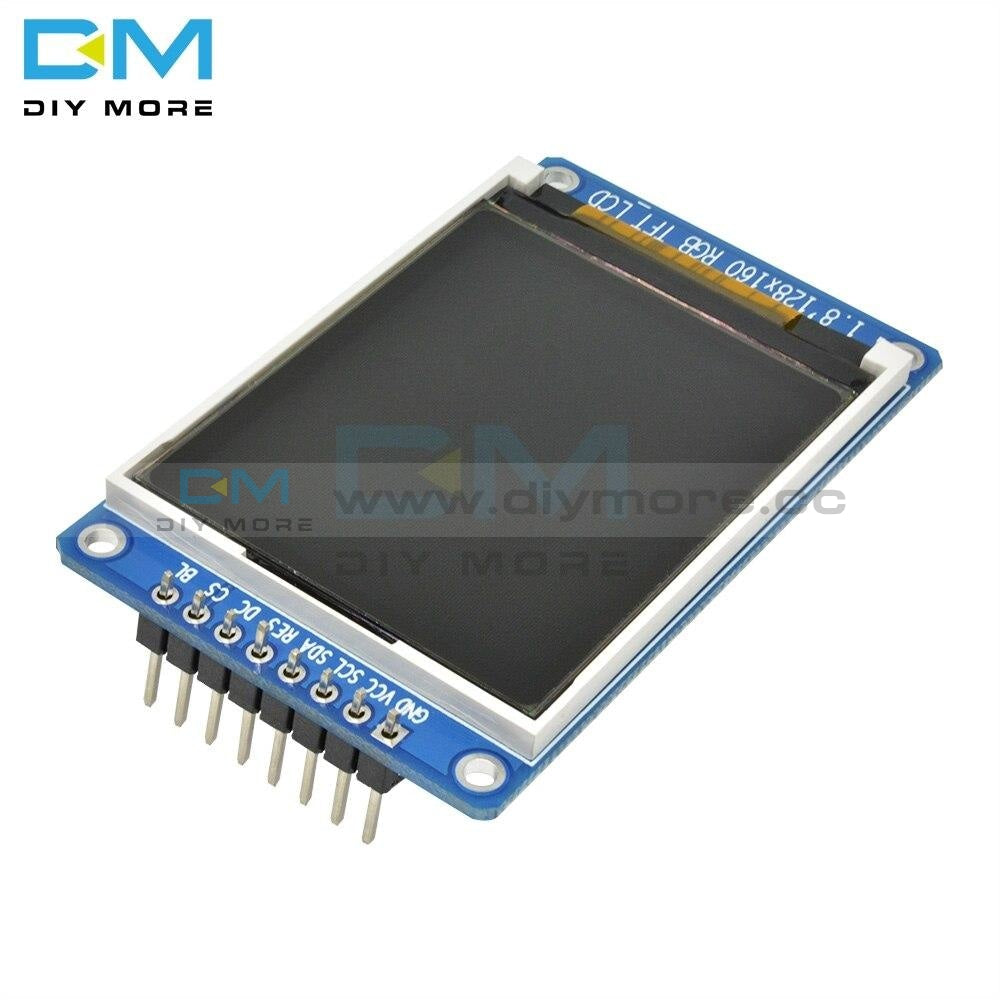

  • New Arrival 1.8" Inch Full Color 128x160 128*160 SPI Full Color TFT LCD Display Module Board Replace OLED
  • Resolution 128*RGB*160
  • PIN feet :8 pin (SPI serial interface)
  • PIN feet spacing:2.54mm
  • connection mode : Row needles
  • GND: Grounding power communication system
  • VCC: power supply
  • SDA: SPI DATA input
  • SCL : spi clock signal input
  • CS: spi chip select signal input
  • RST: reset
  • RS: command /data signal input selection
  • BLK : Backlight control signal input

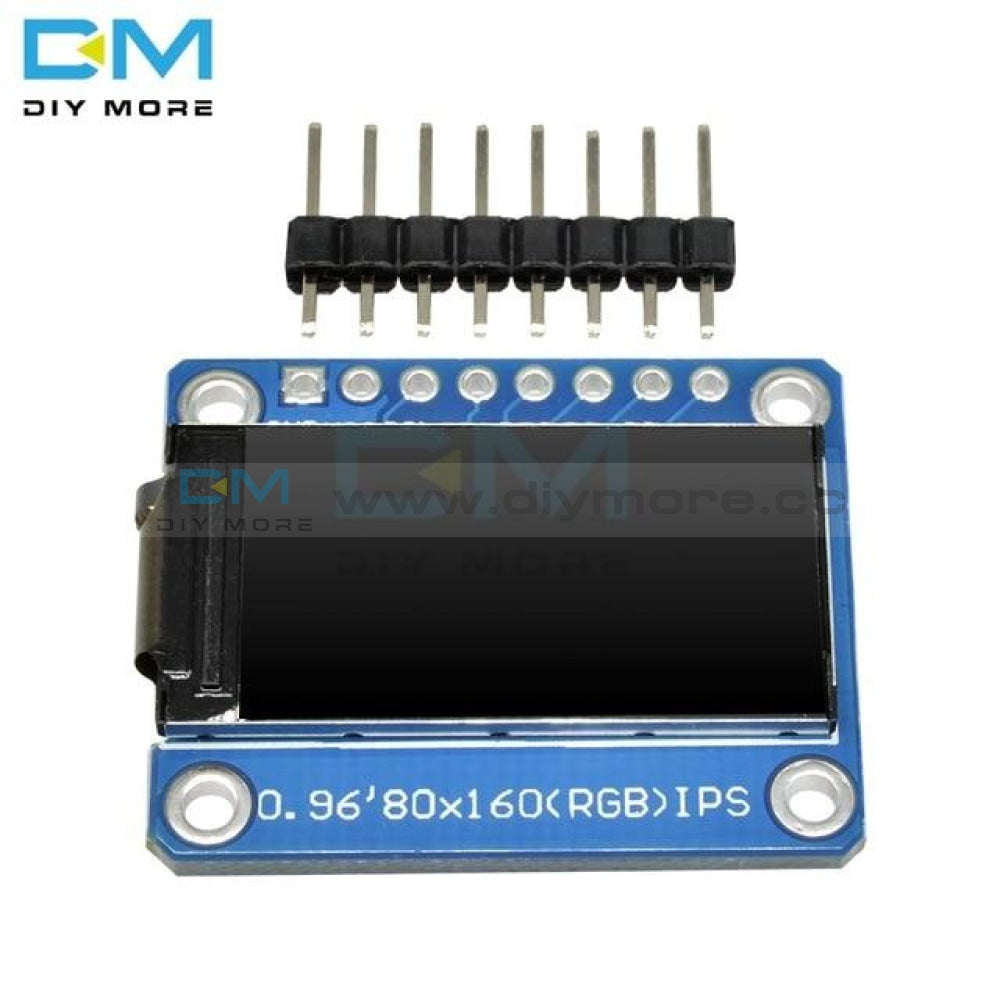

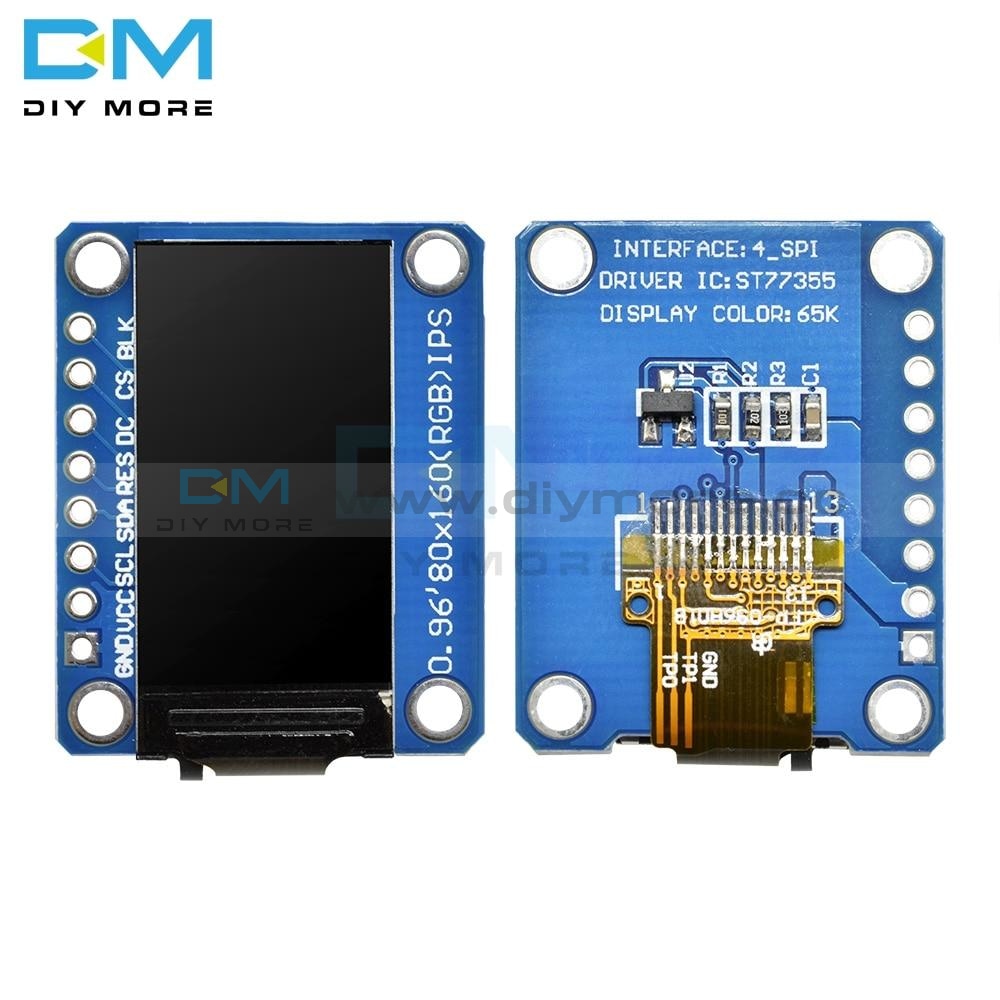

  • 1pcs IPS 0.96 inch 7P SPI HD 65K Full Color OLED Module ST7735 Drive IC 80*160 80x160
  • 1. LCD Size: 0.96 inches
  • 2. Dot Matrix Size: 80*160 (Display direction can be adjusted, horizontal screen and vertical screen are ok)
  • 3. LCD Color: 65K Full Color
  • 4. Hardware Interface: SPI interface
  • 5. Driver IC: ST7735
  • 6. Operating Temperature: -20 - 70
  • 8. Working Power Supply: 3.3V
  • 9. PIN NO: 13Pin
  • 10. Display Area: 10.8*21.696mm
  • 11. Size: 13.3*27.95mm
  • 12 Viewing Direction: Full viewing angle (IPS)
  • 1 GND
  • 2 VCC (3.3-5 v)
  • 3 SCL (SPI clock line)
  • 4 SDA (SPI data cable)
  • 5 RES
  • 6 DC
  • 7 BLCK
Package Include:
  • 1PC x LCD Display Module Board Replace OLED
