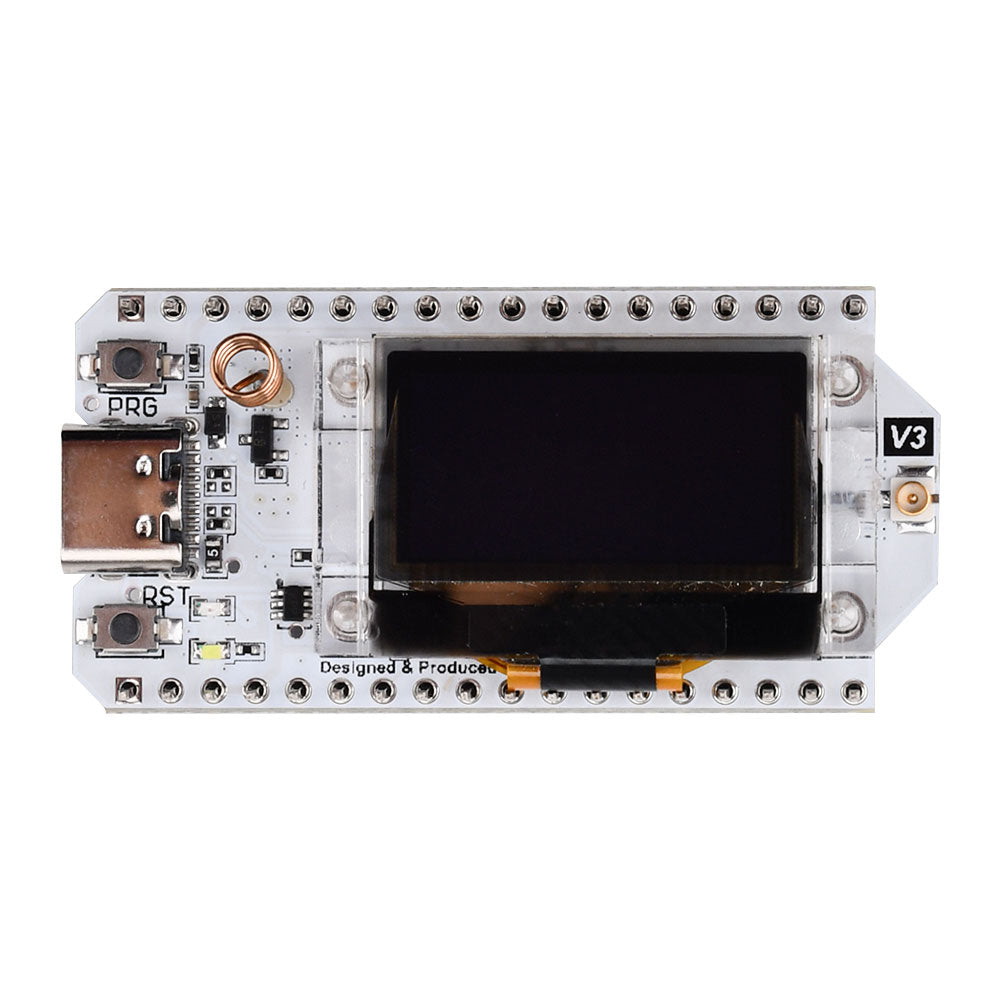

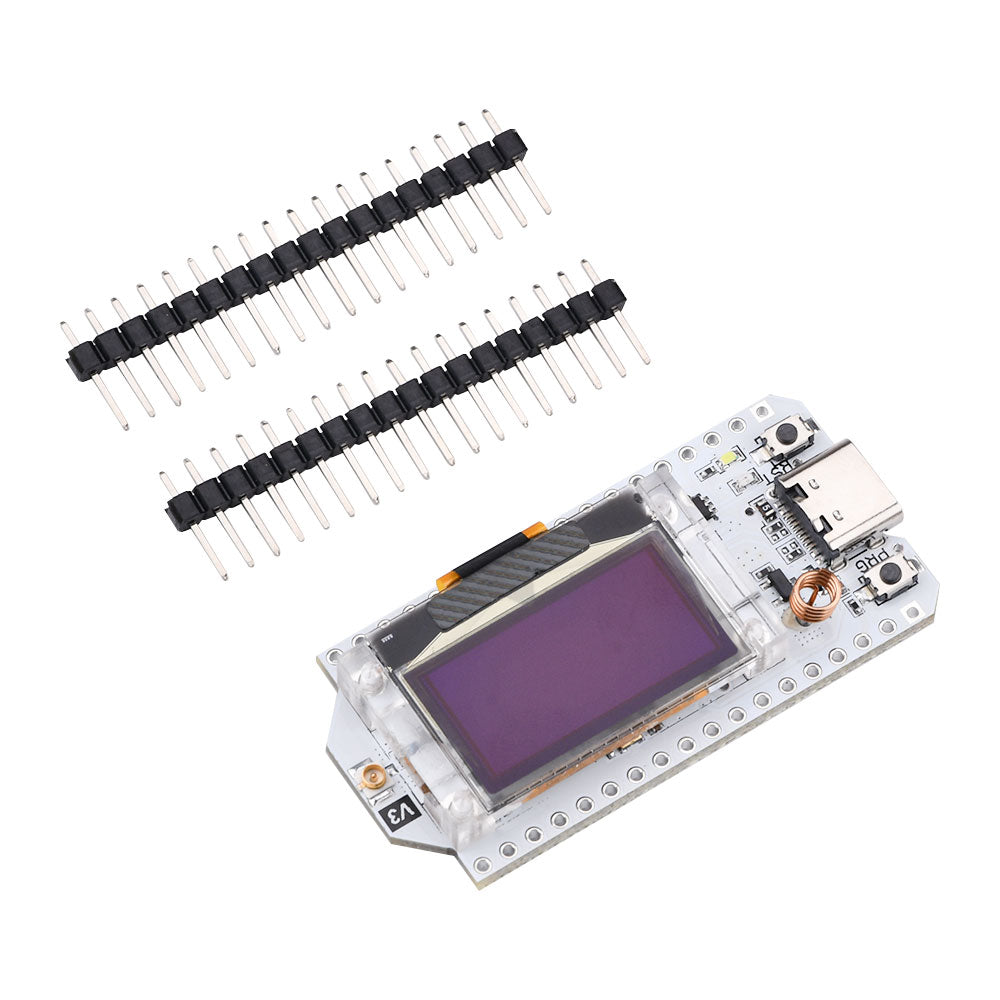

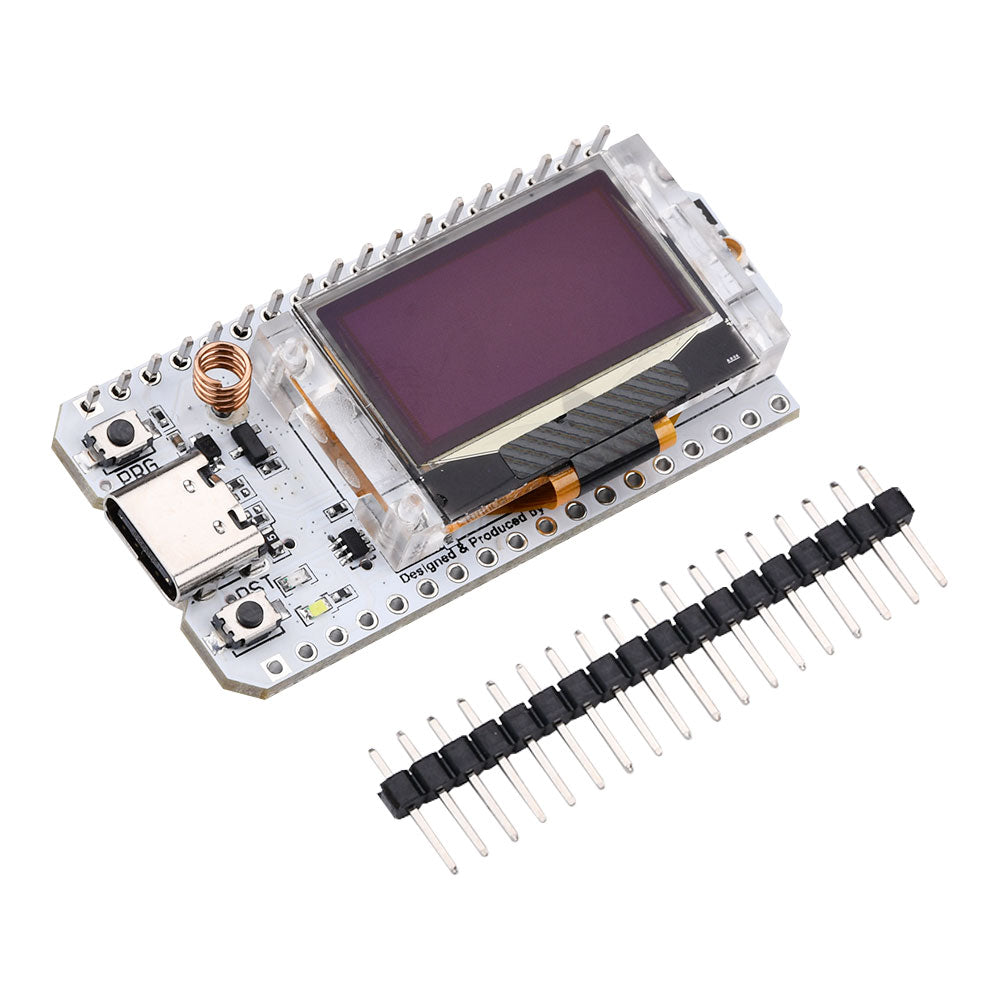

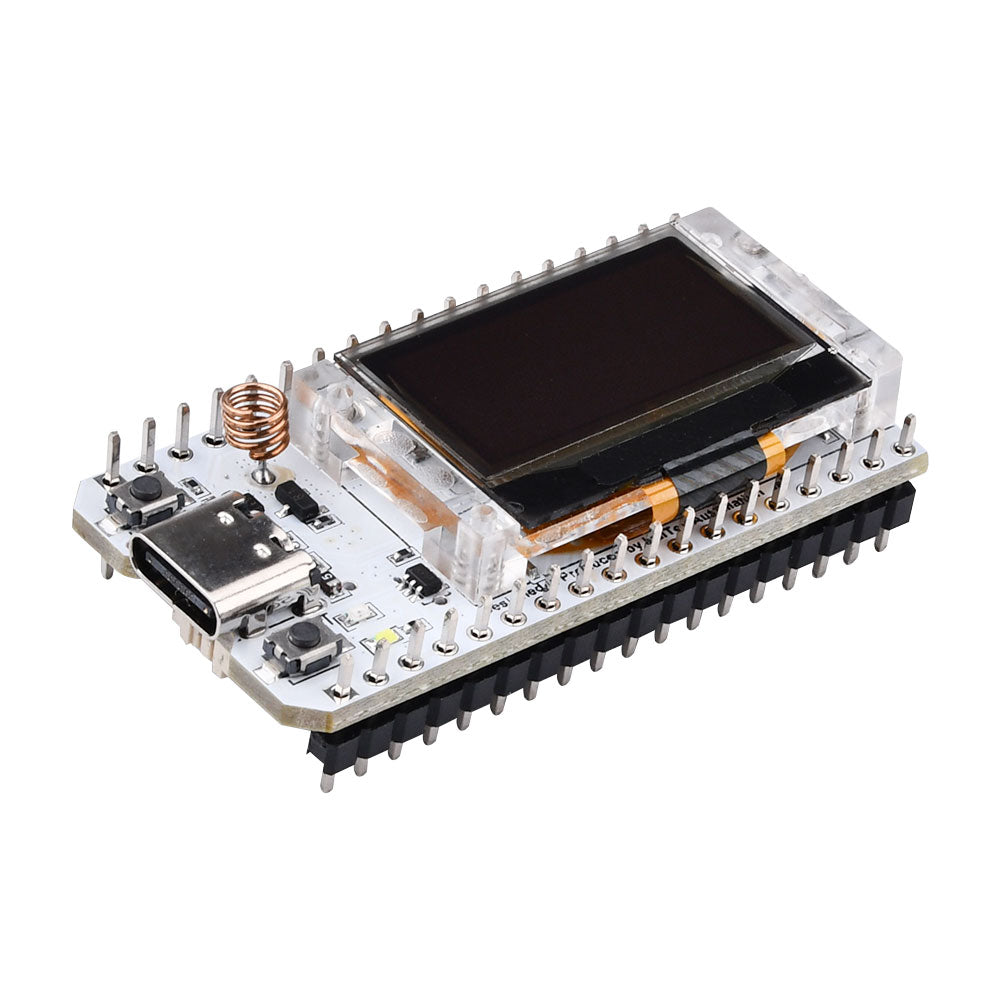

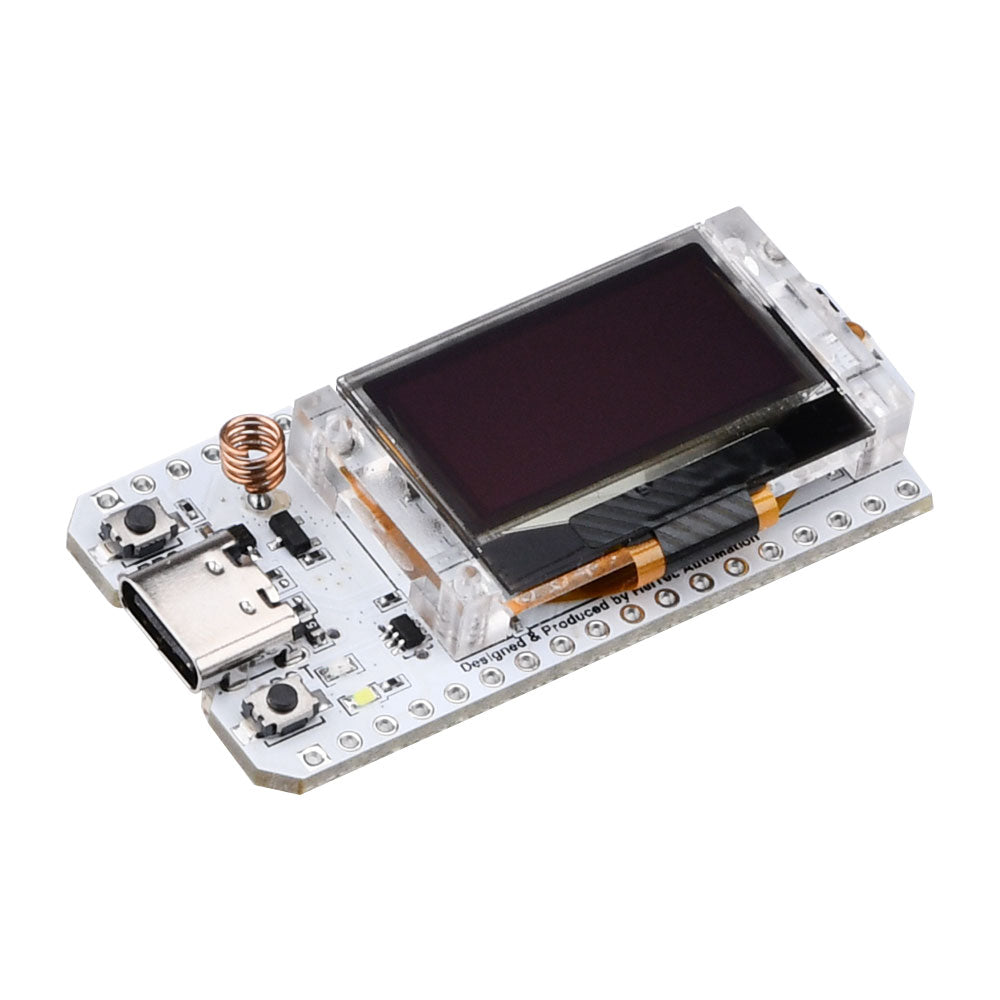

0.96" SX1278 LoRa ESP32 OLED Display Blue Bluetooth WIFI 433mhz for Arduino
0.96" SX1278 LoRa ESP32 OLED Display Blue Bluetooth WIFI 433mhz for Arduino
SKU:GXFB0418-001
Regular price
$17.99
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Product features:
Microprocessor: ESP32-S3FN8 (Xtensa ® A 32-bit LX7 dual core processor with a five stage pipeline rack structure and a main frequency of up to 240MHz.
SX1262 LoRa node chip.
C-type USB interface, equipped with complete voltage regulator, ESD protection, short circuit protection, circuit protection, RF shielding, and other protective measures.
Car mounted SH1.25-2 battery interface, integrated with lithium battery management system (charging and discharging management, overcharging protection, battery power detection, USB/battery power automatic switching).
Integrated WiFi, LoRa, Bluetooth network connection, in car Wi Fi, Bluetooth dedicated 2.4GHz metal spring antenna, reserved IPEX (U.FL) interface for LoRa.
On board 0.96 inch 128 * 64 dot matrix OLED display, which can be used to display debugging information, battery level, and other information.
Integrated CP2102 USB to serial port chip, convenient for program download and debugging information printing.
Support Arduino development environment. We provide ESP32+LoRaWAN protocol Arduino ® Library, this is a standard LoRaWAN protocol that can be used to run the LoRaWAN protocol.
The newly launched V3 version has the same pin sequence as the V2 version and retains Wi Fi, BLE, LoRa, OLED display, and other features.
It is the best choice for developers of smart cities, farms, homes, industrial control, house safety, wireless meter reading, and the Internet of Things.
Has good RF circuit design and low-power design.
Parameter Description
Main chip: ESP32-S3FN8 (Xtensa ® 32-bit lx7 dual core processor)
LoRa chipset: SX1262
USB to serial chip: CP2102
Frequency: 433-510MHz; 863-928 MHz
Maximum transmission power: 21 ± 1 dBm
Maximum receiving sensitivity: -139 dBm
Wi Fi: 802.11 b/g/n, up to 150Mbps
Bluetooth: Bluetooth 5,
Bluetooth LE: Bluetooth grid
Hardware resources: 7 * ADC1+2 * ADC2; 7 * Touch; 3 * UART; 2 * I2C; 2 * SPI; ETC
Memory: 384KB ROM; 512KB SRAM; 16KB RTC SRAM; 8MB SiP Flash
Interface: Type-C USB; 2 * 1.25 lithium battery interface; LoRa; ANT (IPEX1.0); 2 * 18 * 2.54 Header Pin
Battery: 3.7V lithium battery power supply and charging
Working temperature: -20~70 ℃

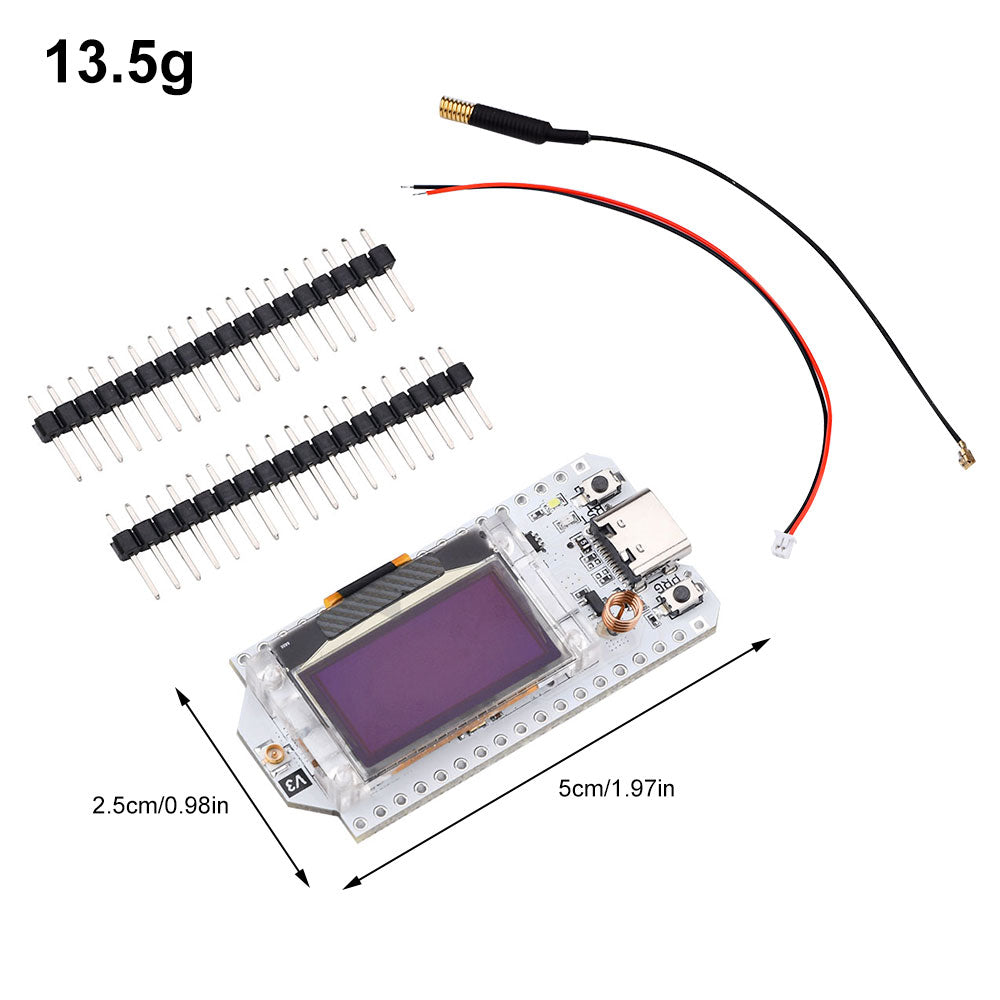

Size: 50.2 * 25.5 * 10.2 mm

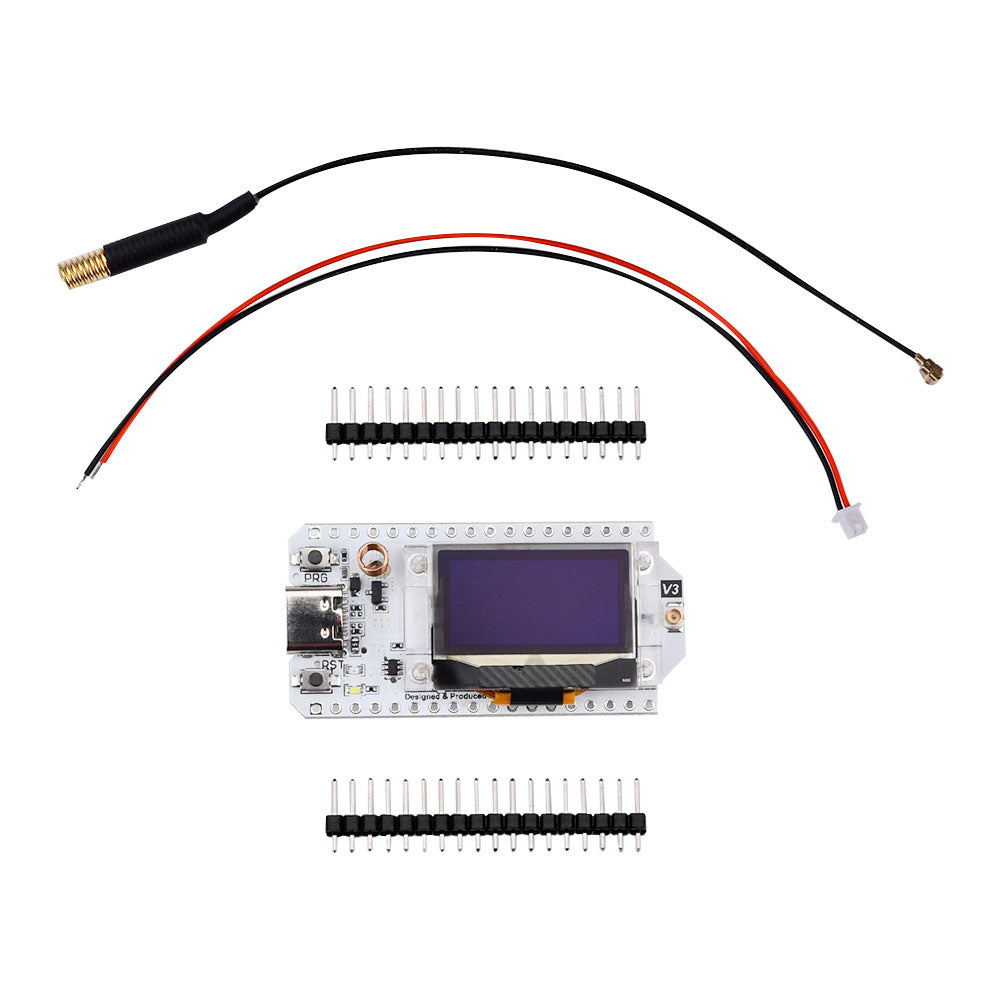

Product List:
Module x1
Spring antenna X1
Pin arrangement x2;
Terminal wire x1
Microprocessor: ESP32-S3FN8 (Xtensa ® A 32-bit LX7 dual core processor with a five stage pipeline rack structure and a main frequency of up to 240MHz.
SX1262 LoRa node chip.
C-type USB interface, equipped with complete voltage regulator, ESD protection, short circuit protection, circuit protection, RF shielding, and other protective measures.
Car mounted SH1.25-2 battery interface, integrated with lithium battery management system (charging and discharging management, overcharging protection, battery power detection, USB/battery power automatic switching).
Integrated WiFi, LoRa, Bluetooth network connection, in car Wi Fi, Bluetooth dedicated 2.4GHz metal spring antenna, reserved IPEX (U.FL) interface for LoRa.
On board 0.96 inch 128 * 64 dot matrix OLED display, which can be used to display debugging information, battery level, and other information.
Integrated CP2102 USB to serial port chip, convenient for program download and debugging information printing.
Support Arduino development environment. We provide ESP32+LoRaWAN protocol Arduino ® Library, this is a standard LoRaWAN protocol that can be used to run the LoRaWAN protocol.
The newly launched V3 version has the same pin sequence as the V2 version and retains Wi Fi, BLE, LoRa, OLED display, and other features.
It is the best choice for developers of smart cities, farms, homes, industrial control, house safety, wireless meter reading, and the Internet of Things.
Has good RF circuit design and low-power design.
Parameter Description
Main chip: ESP32-S3FN8 (Xtensa ® 32-bit lx7 dual core processor)
LoRa chipset: SX1262
USB to serial chip: CP2102
Frequency: 433-510MHz; 863-928 MHz
Maximum transmission power: 21 ± 1 dBm
Maximum receiving sensitivity: -139 dBm
Wi Fi: 802.11 b/g/n, up to 150Mbps
Bluetooth: Bluetooth 5,
Bluetooth LE: Bluetooth grid
Hardware resources: 7 * ADC1+2 * ADC2; 7 * Touch; 3 * UART; 2 * I2C; 2 * SPI; ETC
Memory: 384KB ROM; 512KB SRAM; 16KB RTC SRAM; 8MB SiP Flash
Interface: Type-C USB; 2 * 1.25 lithium battery interface; LoRa; ANT (IPEX1.0); 2 * 18 * 2.54 Header Pin
Battery: 3.7V lithium battery power supply and charging
Working temperature: -20~70 ℃
Size: 50.2 * 25.5 * 10.2 mm
Product List:
Module x1
Spring antenna X1
Pin arrangement x2;
Terminal wire x1
