1.2V Light Control Constant Bright Dual Side Solar Road Stud Light Circuit Board
1.2V Light Control Constant Bright Dual Side Solar Road Stud Light Circuit Board
SKU:XH0023
Regular price
$4.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Features:
- Drive 1 to multiple LED lamp beads or parallel light strings;
- Suitable for 1.2V single Ni-MH battery power supply;
- Can drive red, yellow, blue, white and green LED lamp beads;
- White lamp beads are used by default, and other color lamp beads can be used after modifying the parameters in batch;

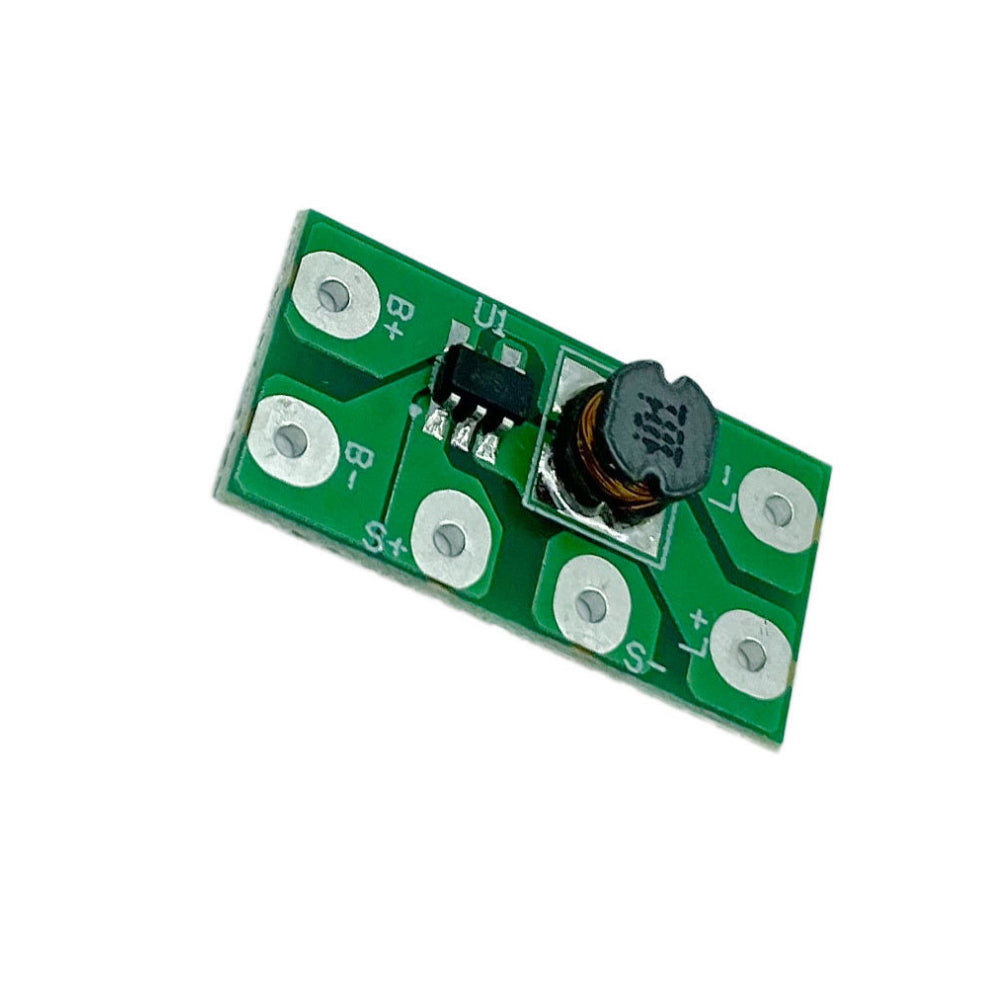

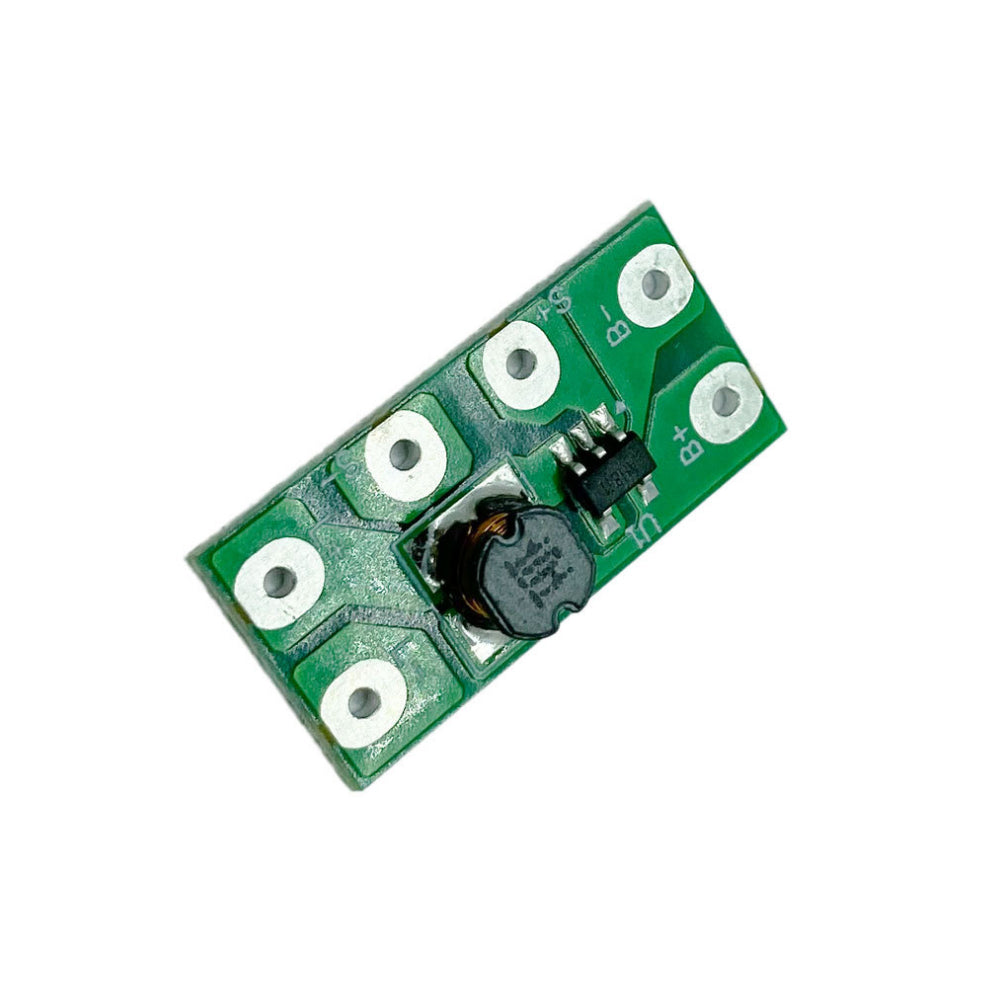

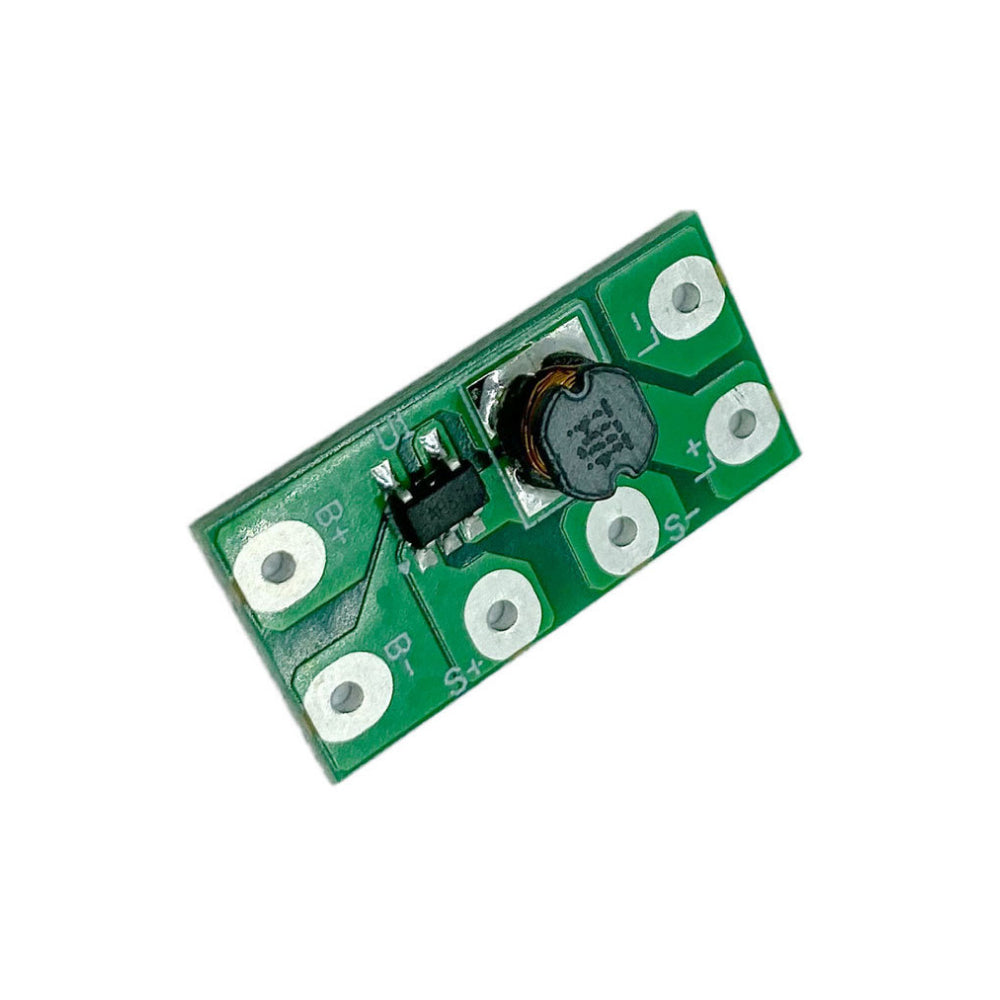

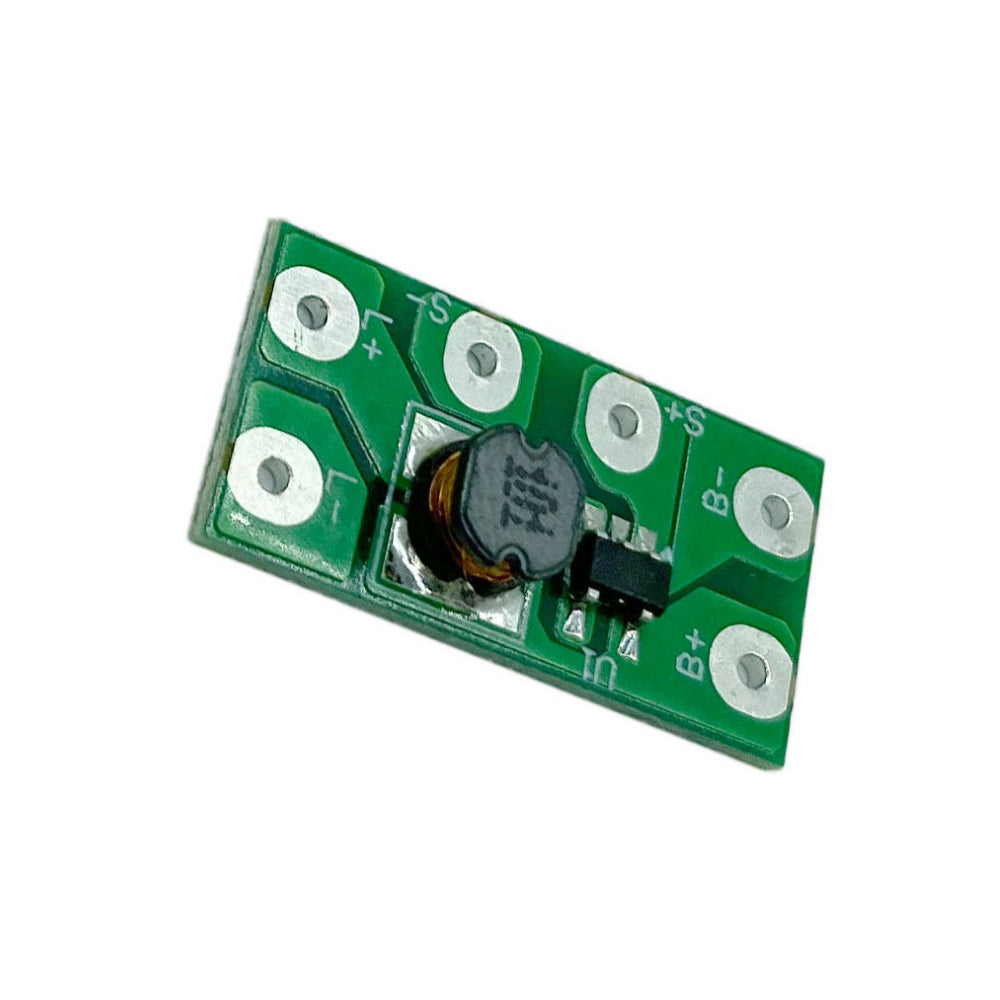

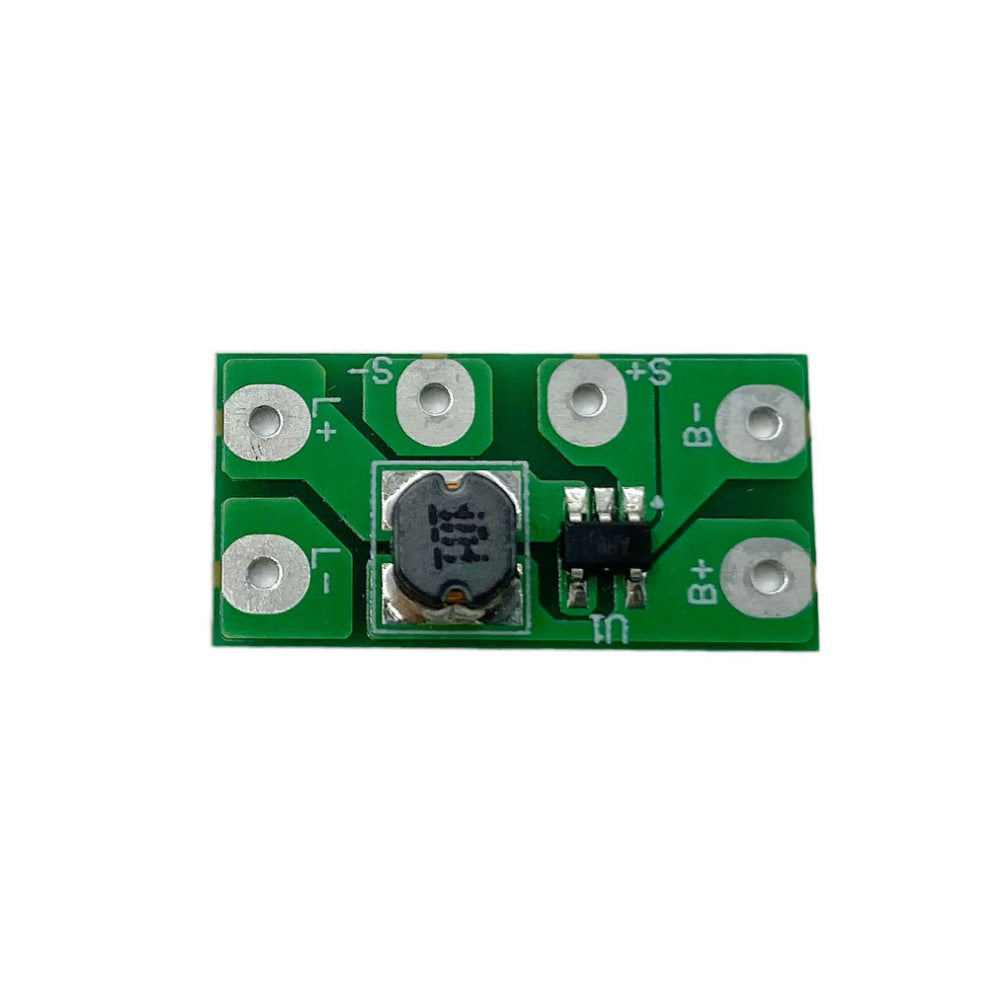

- The circuit board uses an I-shaped inductor, with high conversion efficiency, long lighting time, and high brightness of the lamp beads;
- With light control function, charge during the day and automatically turn on the light at night;
- The battery discharge current is about 30ma by default, and the current can be changed in batches;

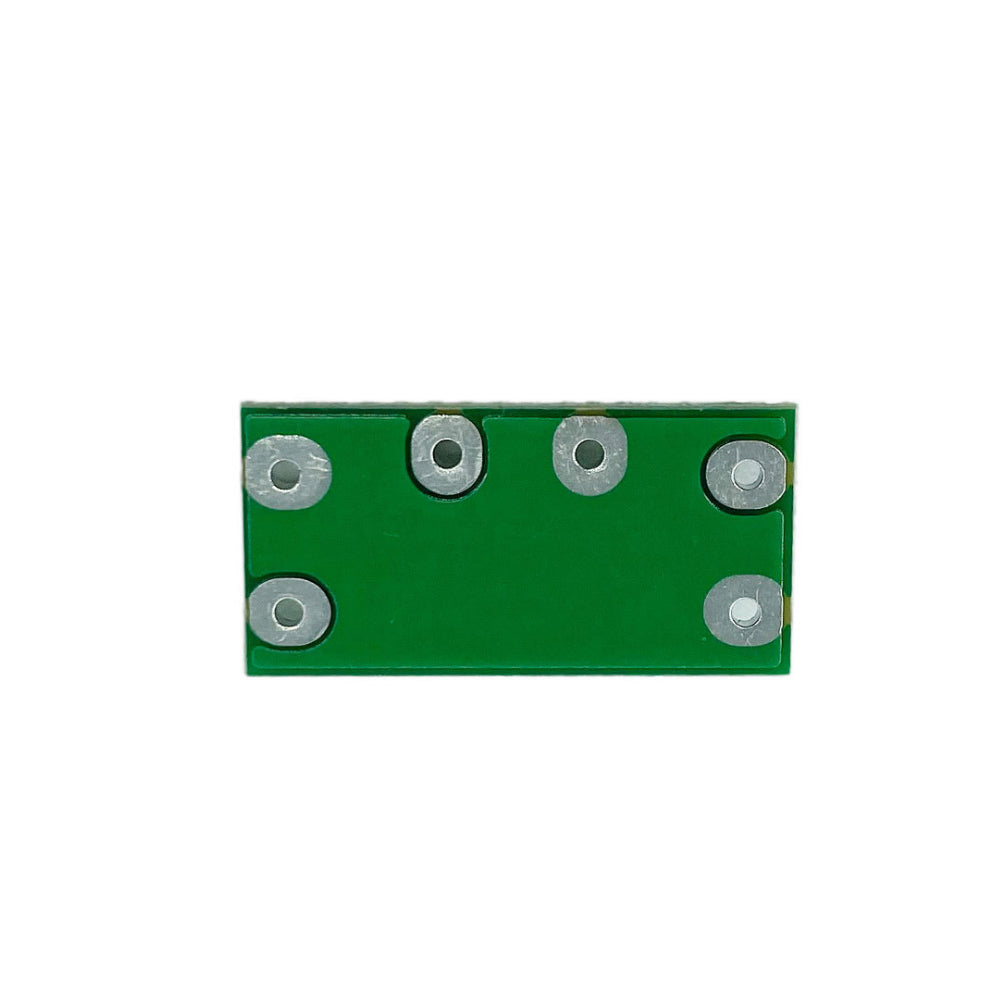

- Circuit board size: length 20mm * width 10mm.
Applicable occasions:
- Solar single and double-sided road studs, solar ship warning lights, solar contour lights, solar navigation lights;
- Home solar landscape light, solar mason light jar, solar lawn light, solar Christmas light, solar gypsophila
- Charging of solar light strings and light-sensitive switch light control.
Eelectrical parameters:
- Solar panel voltage is about 2V
- Solar panel current ≤120mA
- Battery specification: single-cell Ni-MH No. 5 or No. 7 rechargeable batteryBattery capacity: about 60OmAH is recommended
- Battery discharge current: about 30mA (can also be customized)
- Flashing frequency: no flashing
4. Wiring diagram:
5. Lamp beads requirements:
- The circuit board uses white lamp beads or lamp strings by default. When using the lamp string, the built-in lamp beads of the lamp string are connected in parallel. If you use other colors of lamp beads,
- It is possible that the battery discharge current increases. The lamp bead is directly connected to the circuit board without current limiting resistor. In the case of batches, you can customize the circuit board to use other colors of lamp beads, or adjust the parameters yourself. For specific adjustment methods, please see Chapter 6.
- This circuit board is not suitable for connecting LED lamp beads with built-in chips, so avoid!!
Battery discharge current adjustment:
- When the battery voltage and the color of the lamp bead have been determined, the discharge current of the battery is determined by the inductance.
- The default inductance is 100uH. When the battery voltage is 1.2V and the white light is used,
- The discharge current of the battery end is about 30m4. When using other colors of lamp beads, you can change the inductance to obtain the discharge current you need, and increase the inductance to reduce the discharge current.
- Reduce the inductance and increase the discharge current. The discharge current of the battery terminal needs to be controlled between 10 and 135mA. Exceeding this current range will damage the circuit board.
Welding requirements:
- The circuit board uses a large-scale integrated circuit chip, which is sensitive to static electricity, and anti-static measures must be taken when soldering.
- Otherwise it will damage the circuit board;
- When assembling the lamps, the lamp beads should be welded first, and then the solar panels and batteries should be welded strictly in accordance with this process.
- Otherwise it will cause damage to the circuit board.
Light control function:
- The circuit board automatically controls the light on and off by detecting the voltage level of the solar panel, without manual intervention in the whole process.
- To achieve the purpose of charging during the day and automatically turning on the lights at night.
Package Include:
- 1x 1.2V Light Control Constant Bright Dual Side Solar Road Stud Light Circuit Board
