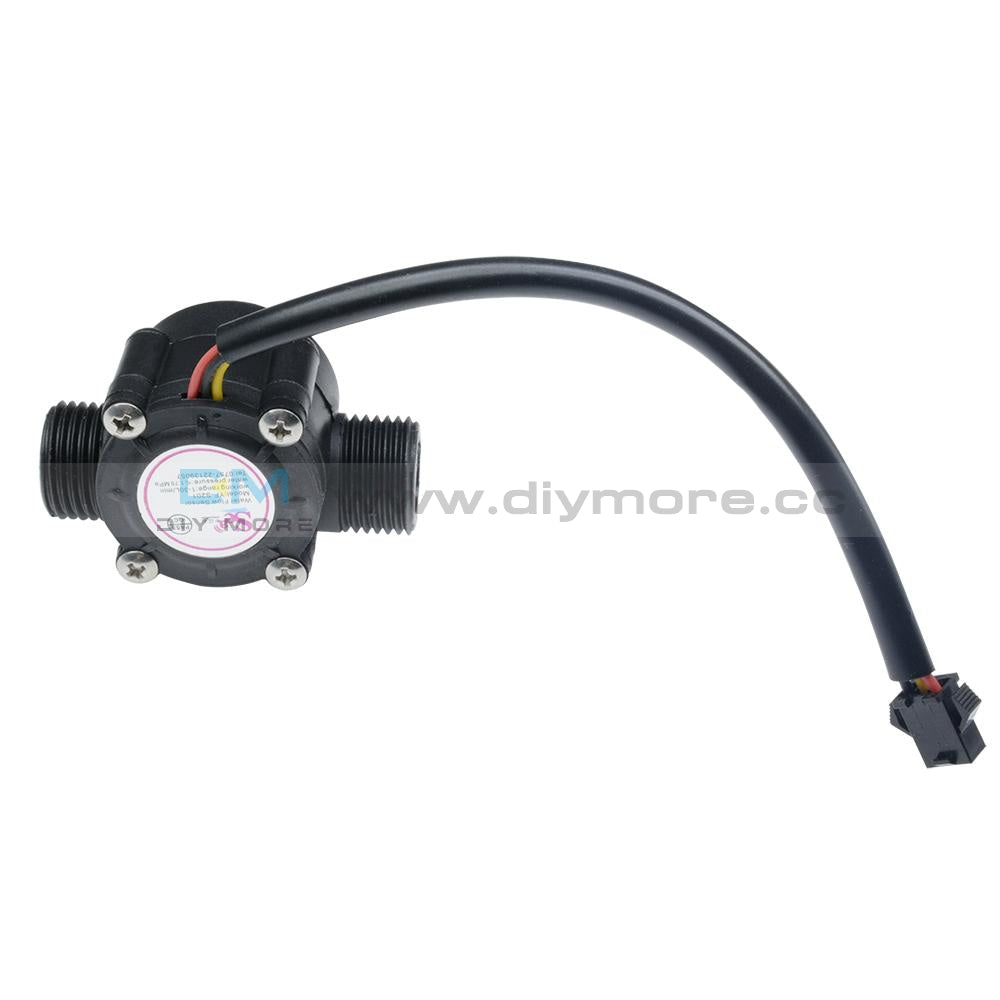

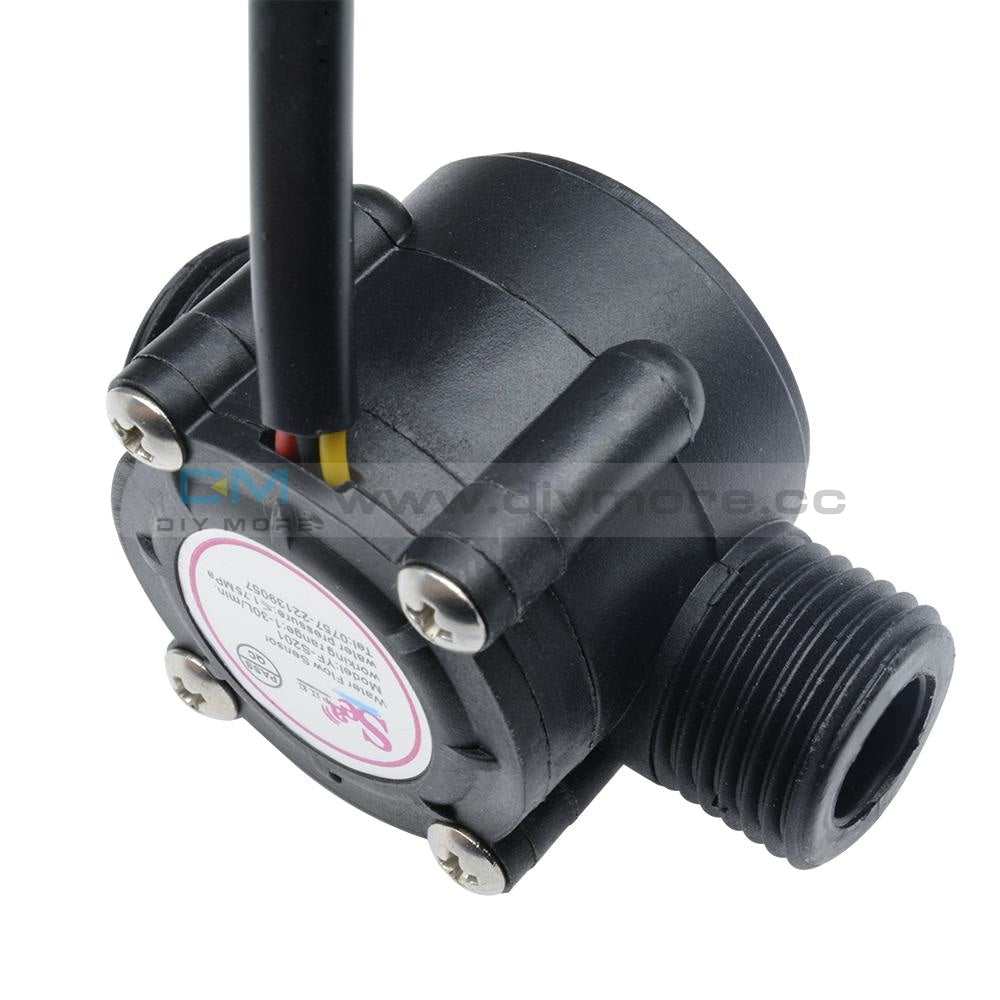

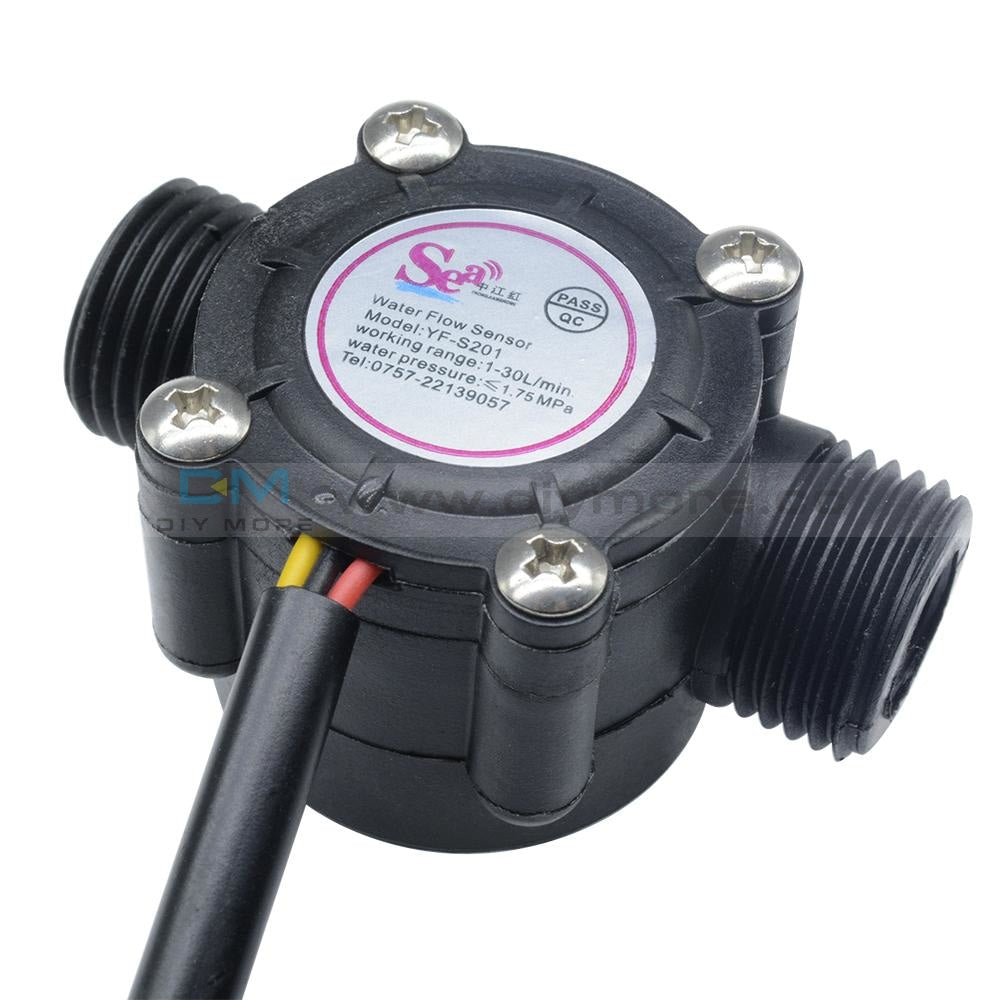

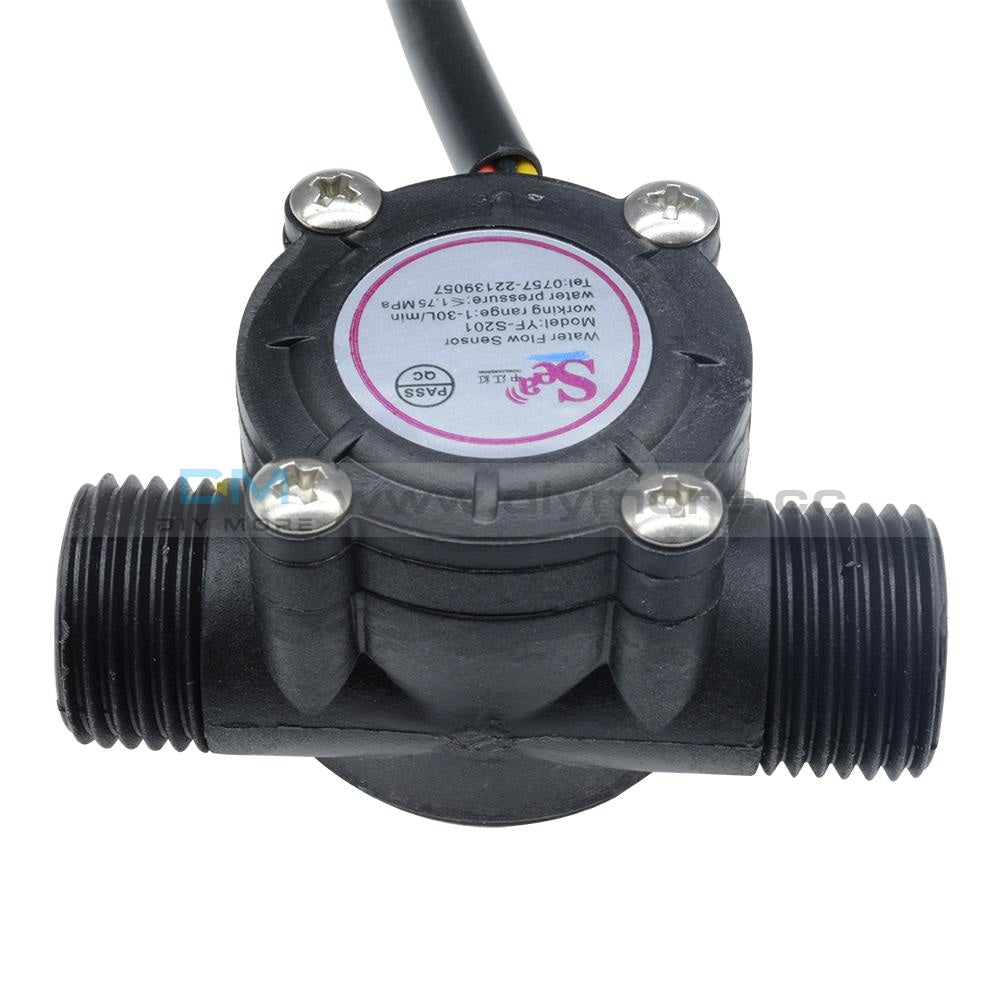

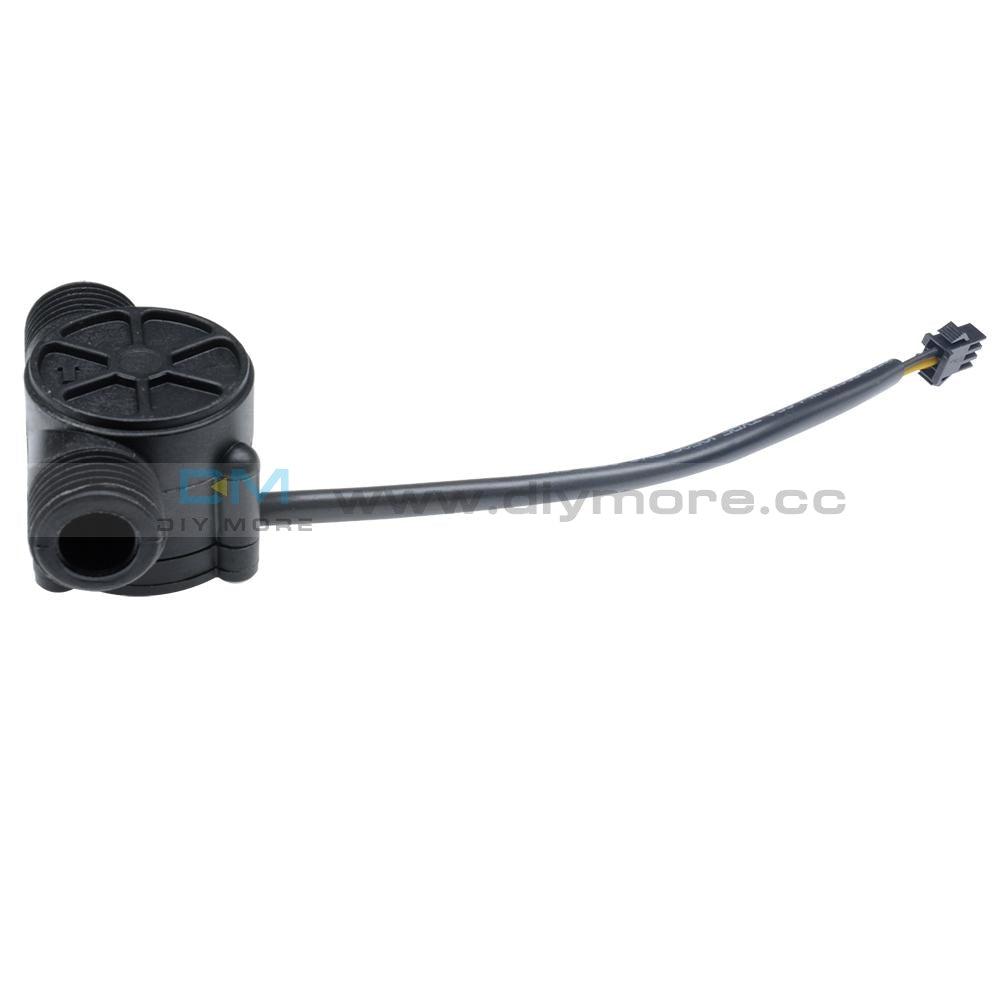

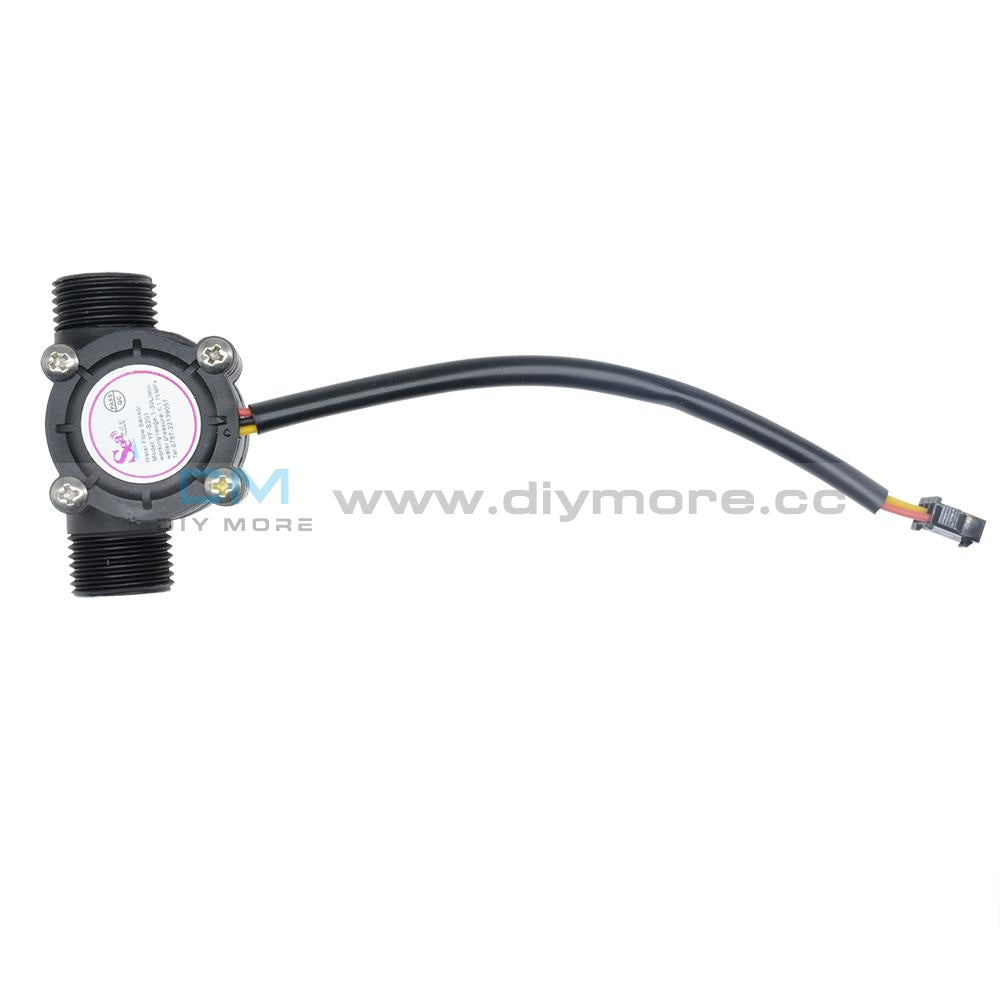

1-30L/min Water Flow Sensor Flowmeter Hall Flow Sensor Water Control 1/2" 2.0MPa
1-30L/min Water Flow Sensor Flowmeter Hall Flow Sensor Water Control 1/2" 2.0MPa
SKU:010370
Regular price
$6.99
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Feature:
Mainly used for water testing, water cooling system
Application: Water heaters, credit card machines, water vending machine, flow measurement device
High amplitude: ≥ 4.6V
Low amplitude: ≤ 0.5V
Electric strength: 1250V/min
Insulation resistance: ≥ 100MΩ
Hydrostatic pressure testing: ≤ 2.0Mpa
Specification:
The lowest rated working voltage: DC4.5 5V-24V
Maximum operating current: 15mA (DC 5V)
Working voltage range: DC 5~18V
Load capacity: ≤ 10mA (DC 5V)
Use temperature: ≤ 80°C
Operating humidity range: 35%~90%RH (no frost)
Allowing pressure: pressure 2.0Mpa
Temperature: -25 ~ +80 °C
External threads: 1/2"
Outer diameter: 20mm
Intake diameter: 9mm
Outlet diameter: 12mm
Package included:
1 x Water Flow Sensor
