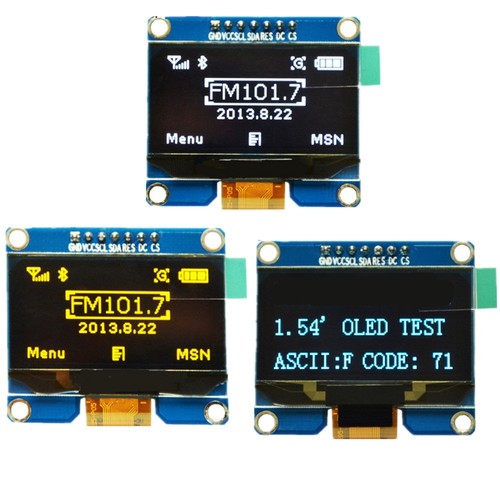

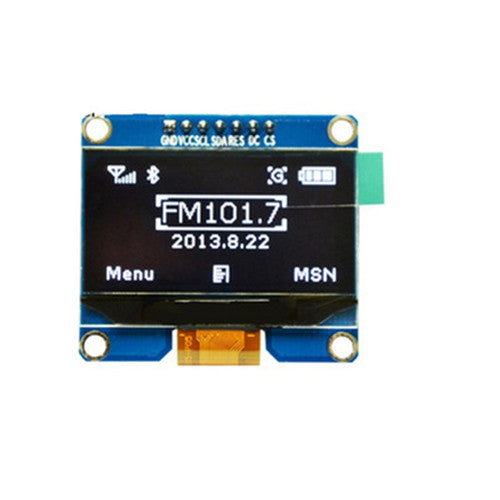

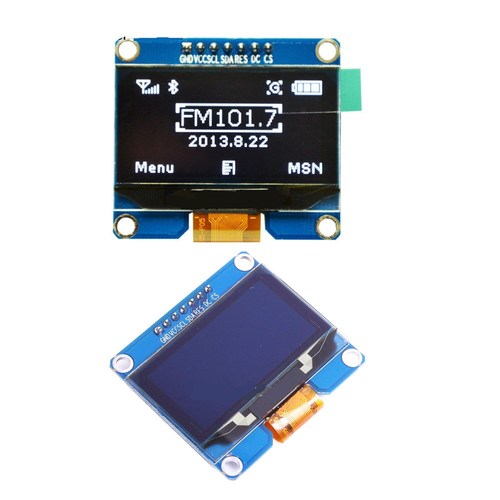

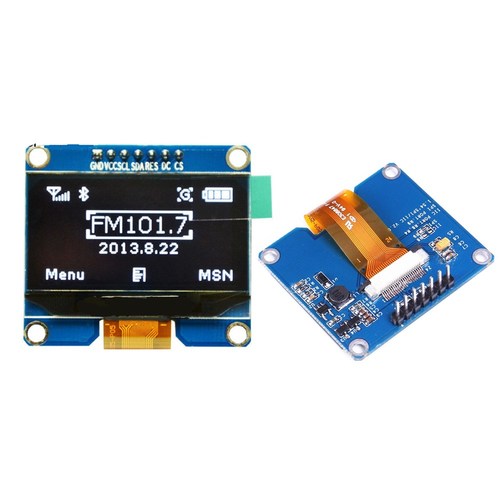

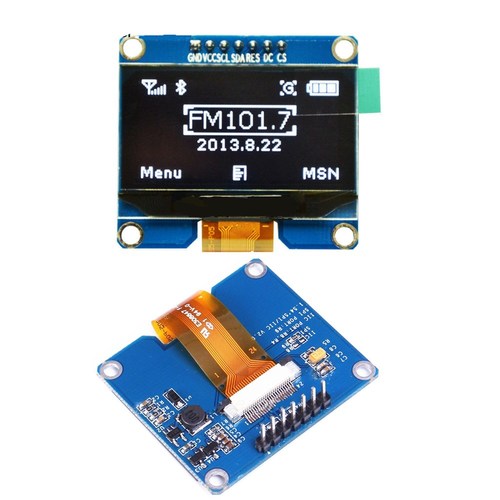

1.54" inch Serial 7pin Oled SPD0301 I2C SPI Display Self-luminous Module Board
1.54" inch Serial 7pin Oled SPD0301 I2C SPI Display Self-luminous Module Board
SKU:X30552BA
Regular price
$10.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Description:
|
SIZE |
1.54inch |
|
Display Mode |
PM OLED |
|
Number of Pixels |
Graphic 128*64 Dot-matrix |
|
Input Data |
SPI interface |
|
Drive IC |
SPD0301 |
|
Dimensional outline |
42.4(W)*38 (H) mm |
|
LCD Active area |
35.052 × 17.516 (mm) |
|
Dot pitch |
0.274 × 0.274 (mm) |
|
Viewing Direction |
All View |
|
Operating Temperature |
-70～70°C |
|
Weight |
10g |
Pin Descriptions:
|
PIN No |
Symbol |
Description |
|
1 |
GND |
Ground |
|
2 |
VCC |
Power 3.3V |
|
3 |
SCL |
Serial clock pin. |
|
4 |
SDA |
Serial data input |
|
5 |
RES |
OLED Reset pin This pin is reset signal input. When the pin is low, initialization of the chip is executed. Keep this pin pull high during normal operation. |
|
6 |
DC |
Data/Command Control |
|
7 |
CS |
chip select，Low level effectiveness |
Pacakge Included:
1PC*SPD0301 7PIN White 1.54" inch OLED Display Module IIC I2C SPI interface 128*64 Replace SSD1309
