1.54 inch TFT IPS LCD Display Module 240x240 SPI for Arduino AVR Raspberry Pi
1.54 inch TFT IPS LCD Display Module 240x240 SPI for Arduino AVR Raspberry Pi
SKU:XC0178
Regular price
$6.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Description：

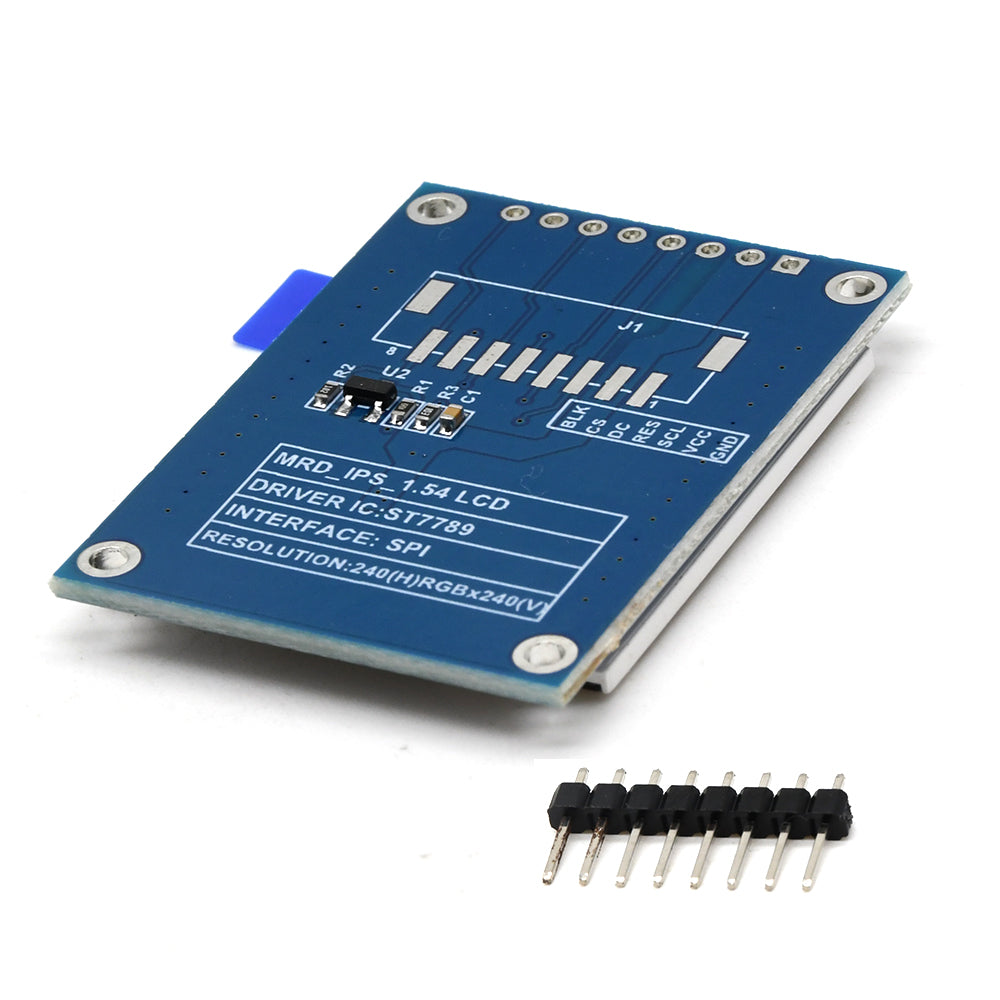

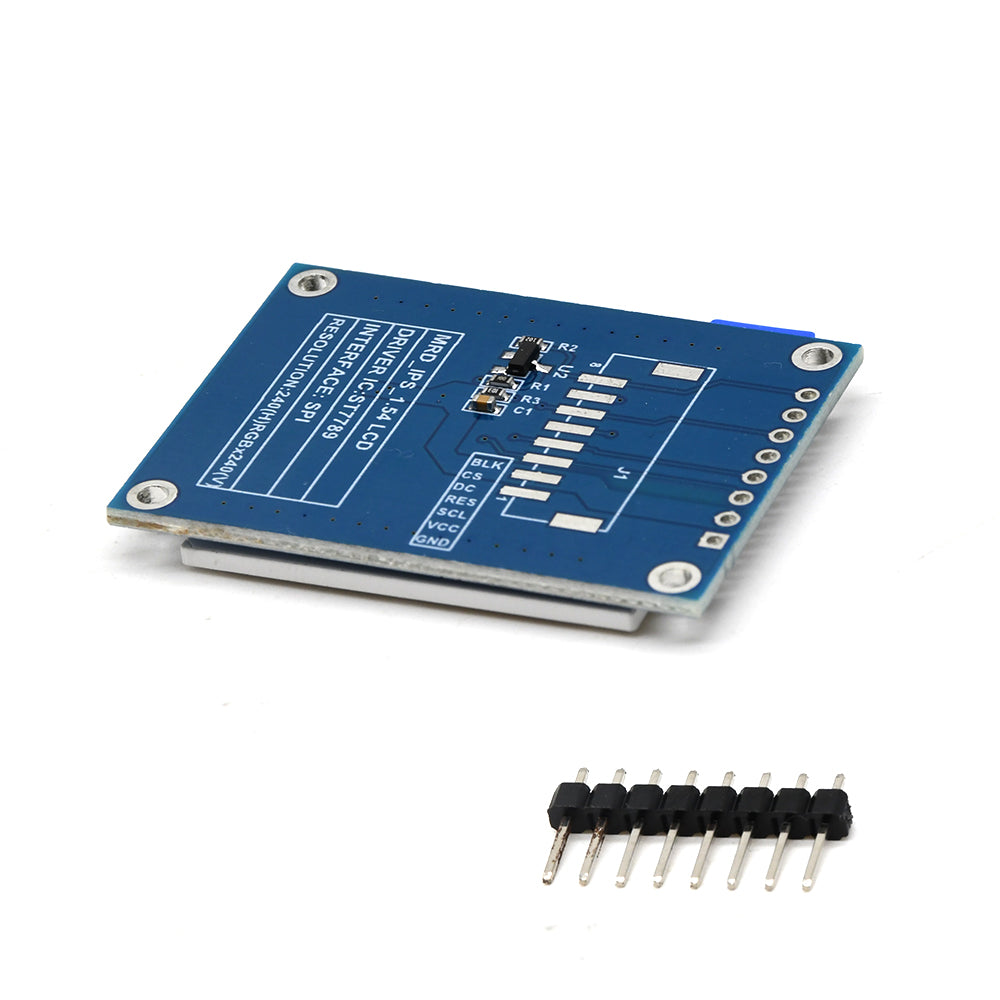

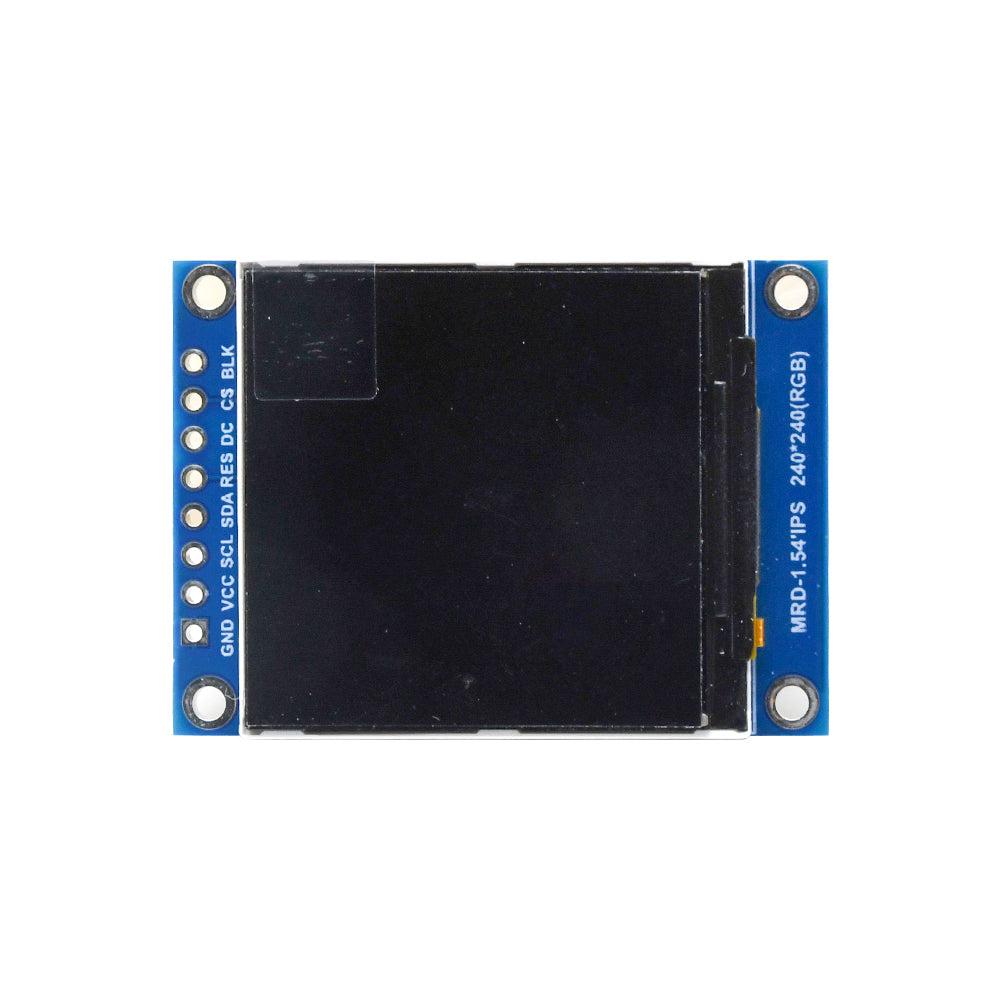

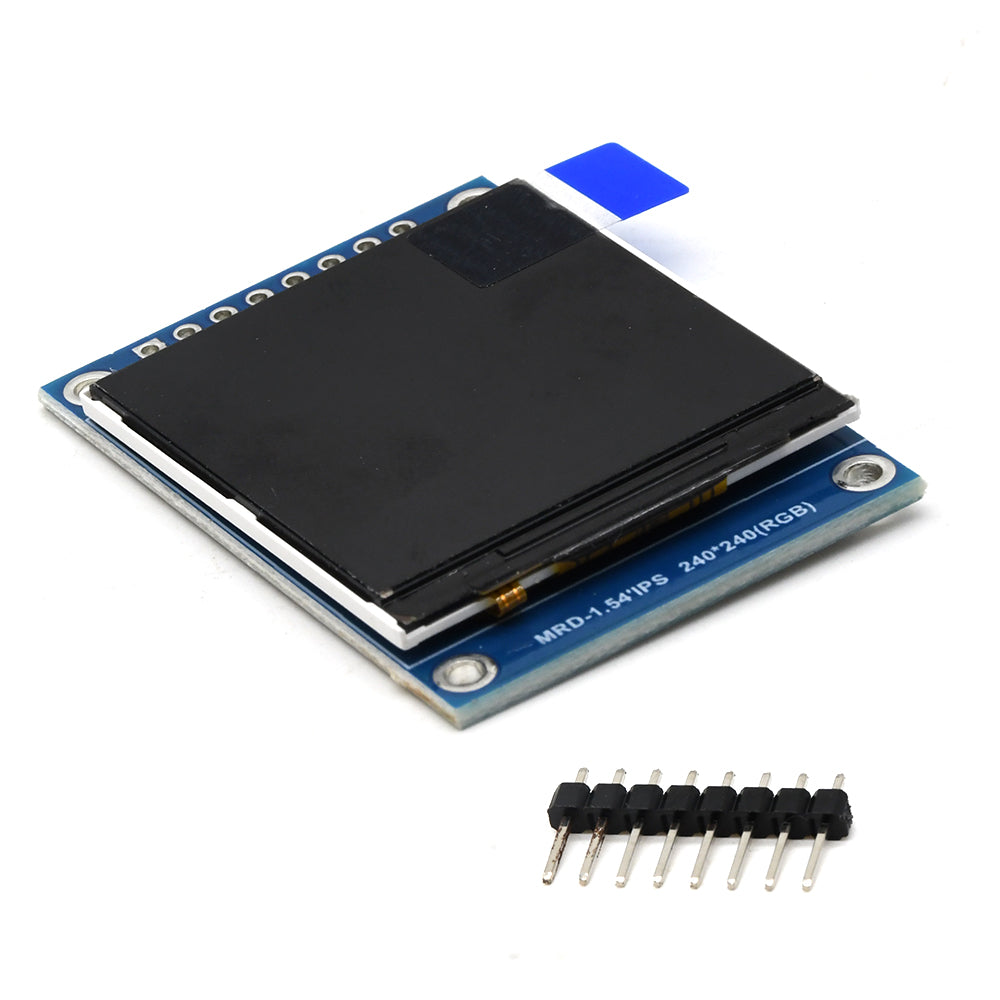

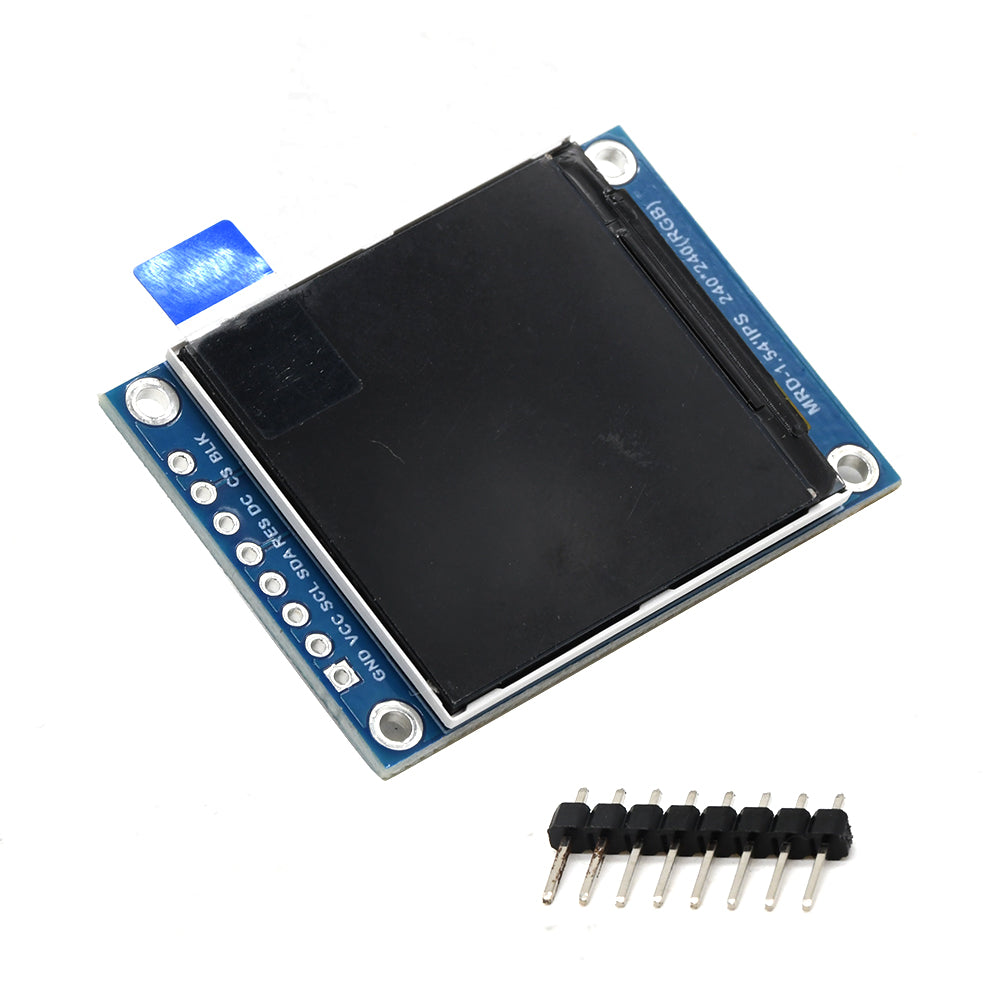

- ER-TFTM1.54-1 is 240x240 pixel 1.54 inch IPS tft lcd display with ST7789 controller and breakout board,superior display quality,super wide viewing angle and easily controlled by MCU such as 8051, PIC, AVR, ARDUINO,ARM and Raspberry PI.It can be used in any embedded systems,industrial device,security and hand-held equipment which requires display in high quality and colorful image.It's 4-wire serial spi interface with pin header connection.
- It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi.It can be used in any embedded systems,industrial device,security,medical and hand-held device.
- Of course, we wouldn't just leave you with a datasheet and a "good luck!" We prepared the interfacing documents,libraries and examples for arduino due,mega 2560,uno,nano and for 8051 microcontroller user,we also prepared the interfacing document and demo code.
Specification:
| Gross Weight (kg) | 0.0220 |
|---|---|
| Manufacturer | EastRising |
| Continuity Supply | We promise the long term continuity supply for this product no less than 10 years since 2019. |
| Part Number | ER-TFTM1.54-1 |
| Display Format | 240x240 Dots |
| Interface | 4-Wire Serial SPI |
| IC or Equivalent | ST7789VW |
| Appearance | RGB |
| Diagonal Size | 1.54" |
| Connection | Metal Pin |
| Outline Dimension | 32.00(W)x43.72(H) |
| Visual Area | 28.72x28.72mm |
| Active Area | 27.72(W)x27.72(H)mm |
| Character Size | No |
| Dot (Pixel) Size | No |
| Dot (Pixel) Pitch | 0.115x0.115mm |
| IC Package | COG |
| Display Type | TFT-LCD Color |
| Touch Panel Optional | No |
| Sunlight Readable | No |
| Response Time(Typ) | 20ms |
| Contrast Ratio(Typ) | 500:1 |
| Colors | 4K/65K/262K |
| Viewing Direction | No |
| Viewing Angle Range | Left:80.0, Right:80.0 , Up:80.0, Down:80.0degree |
| Brightness(Typ) | 400cd/m2 |
| Backlight Color | White Color |
| Backlight Current (Typ) | No |
| Power Supply(Typ) | 2.8V |
| Supply Current for LCM(Max) | No |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Series Number | ER-TFT1.54-1 |
Package Include:
- 1x 1.54 inch TFT IPS LCD Display Module 240x240 SPI for Arduino Raspberry Pi
