1-8000MHz AD8318 RF Logarithmic Detector 70dB RSSI Measurement Power Meter Board Module Hight Sensitivity DC 7-15V

1-8000Mhz Ad8318 Rf Logarithmic Detector 70Db Rssi Measurement Power Meter Board Module Hight

1-8000MHz AD8318 RF Logarithmic Detector 70dB RSSI Measurement Power Meter Board Module Hight Sensitivity DC 7-15V

SKU:X13158
Regular price $25.44 Sale price $11.99







Descriptions:

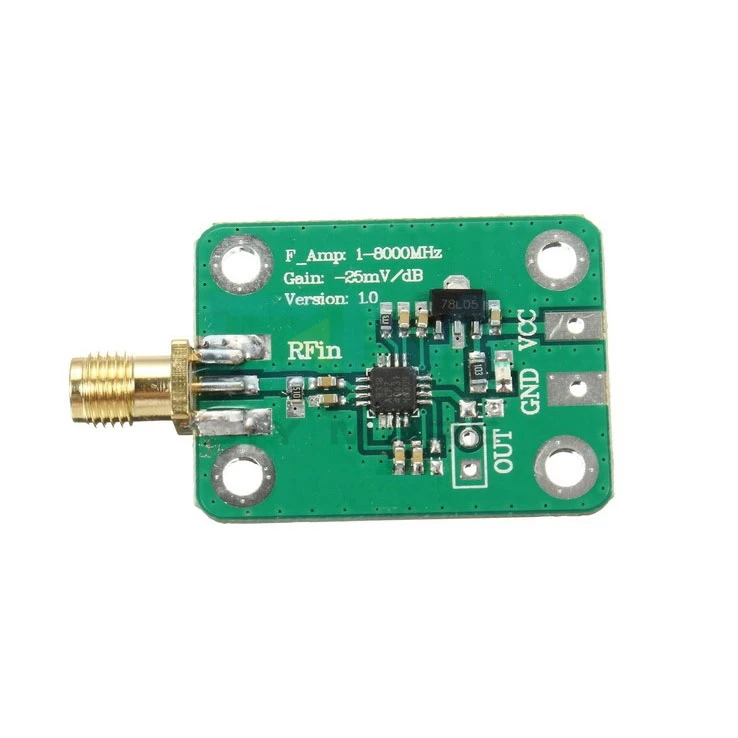

The RF detector is made of AD8318 chip, the design of the power supply voltage regulator circuit such that the detection accuracy tends to official data.
The operating frequency range is 1-8000MHz, can detect -65 to 5dBm RF signal and with DC voltage output the detected signal strength (in dBm, logarithmic detection).
The RF signal is converted into a DC voltage output. RF signal corresponding to the amplitude or power of the output voltage.
You can do signal strength indicator RSSI, spectrum analyzer, gain control.
It has very good sensitivity.


Specifications:






The operating frequency: 1-8000MHz
Dynamic Range: -65dBm to + 5dBm
The detection slope: -25 mV / dB (Typical values)
The detection output voltage range: 0.5--2.1V
Power supply voltage: 7-15VDC (containing the power regulator circuit)
The input impedance: 50 ohms
RF interface: standard SMA female
Size:5*3cm/1.97*1.18inch


Package included:

1 x 1-8000MHz AD8318 RF Logarithmic Detector 70dB RSSI Measurement Power Meter
