10PCS 100R 200R 500R 1K 2K 2.2K 3K 5K 10K 20K 50K 100K 500K 1M Ohm RM 065 RM065 Trimpot Trimmer Potentiometer Variable Resistor

10PCS 100R 200R 500R 1K 2K 2.2K 3K 5K 10K 20K 50K 100K 500K 1M Ohm RM 065 RM065 Trimpot Trimmer Potentiometer Variable Resistor

SKU:14074310
Regular price $1.99

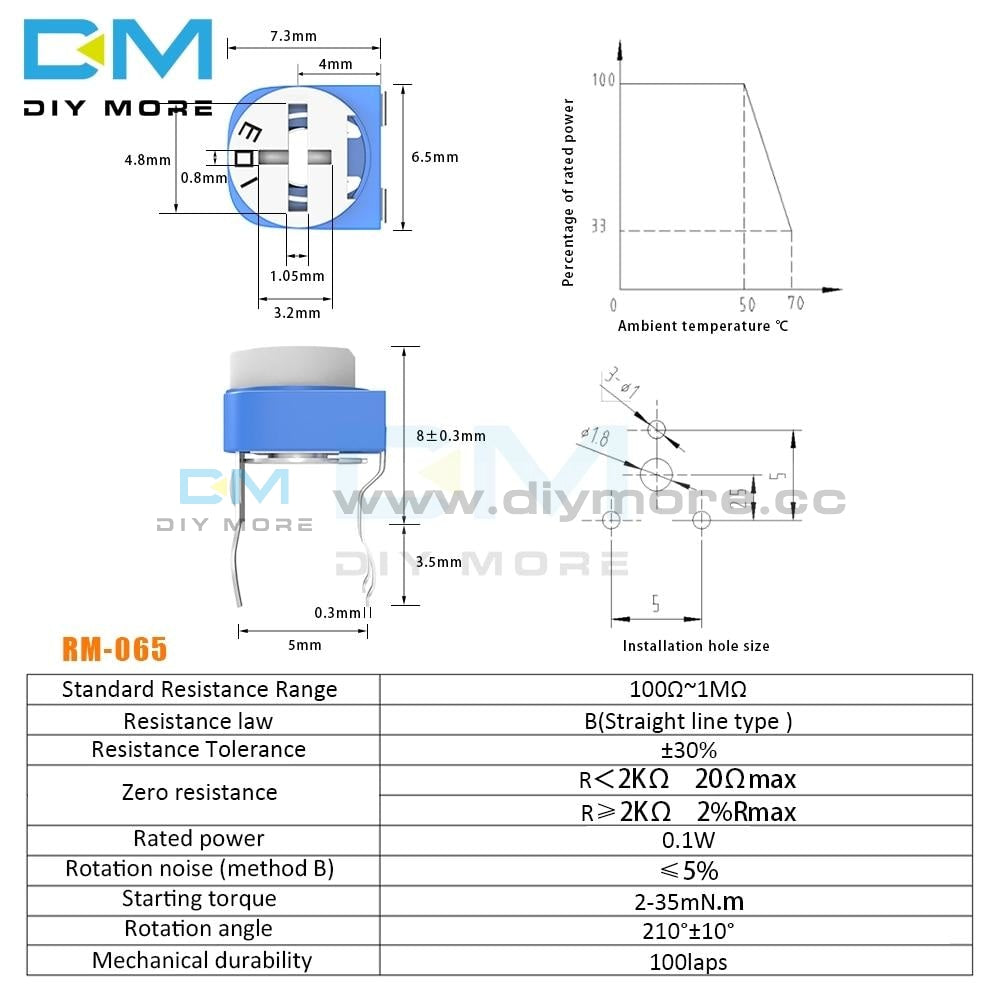

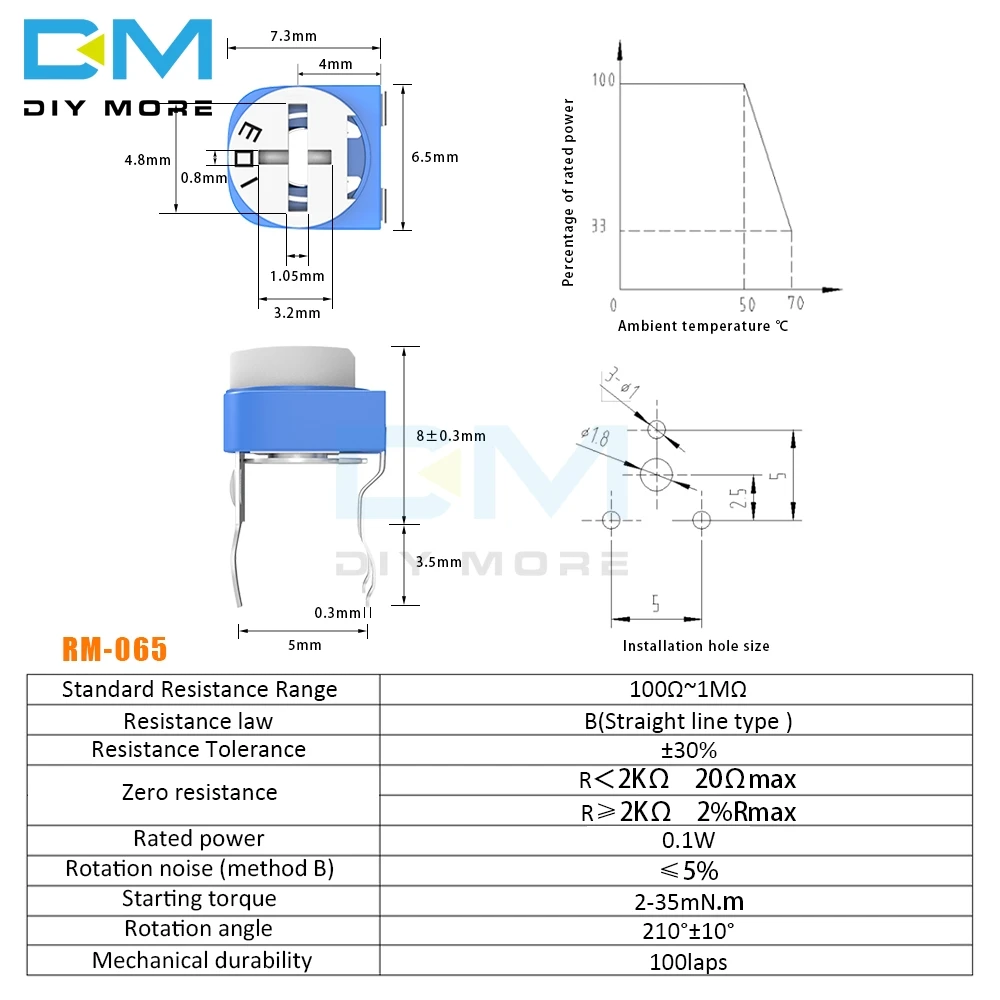

Specification:

Model number: RM065 WH06-2

Technology: Carbon Film Resistance

range (Ohms): 100Ω, 200Ω, 500Ω, 1KΩ, 2KΩ, 2.2KΩ, 3KΩ, 3.3KΩ, 5KΩ, 10KΩ, 20KΩ, 50KΩ, 100KΩ, 200KΩ, 500KΩ, 1MΩ

Resistance Tolerance: ± 30%

Rotation angle: 210 ° ± 10 °

Starting torque: 2-35mN.m

Mechanical strength: resistance film can withstand 1kg pressure does not break

Resistance change characteristics: B

Maximum use voltage: 50V

Rate Power: 0.1W

Residual resistance: no more than 5% of the nominal resistance, the maximum does not exceed 20Ω

Rotational life: no-load rotation after 100 laps, the maximum resistance change of ± 15%

Load life: load rated power 3 hours, the maximum resistance change of ± 5%









trust seal
  • guaranteeQuality checked
  • Special gift cardsSpecial gift cards
  • Free return Within 60 days
  • Consultancy86-0755-85201155

Specification:

Model number: RM065 WH06-2

Technology: Carbon Film Resistance

range (Ohms): 100Ω, 200Ω, 500Ω, 1KΩ, 2KΩ, 2.2KΩ, 3KΩ, 3.3KΩ, 5KΩ, 10KΩ, 20KΩ, 50KΩ, 100KΩ, 200KΩ, 500KΩ, 1MΩ

Resistance Tolerance: ± 30%

Rotation angle: 210 ° ± 10 °

Starting torque: 2-35mN.m

Mechanical strength: resistance film can withstand 1kg pressure does not break

Resistance change characteristics: B

Maximum use voltage: 50V

Rate Power: 0.1W

Residual resistance: no more than 5% of the nominal resistance, the maximum does not exceed 20Ω

Rotational life: no-load rotation after 100 laps, the maximum resistance change of ± 15%

Load life: load rated power 3 hours, the maximum resistance change of ± 5%
