12V/24V Power Supply 10W/20W Voice Playback Module w/ 8M Byte Flash MP3 Player

12V/24V Power Supply 10W/20W Voice Playback Module w/ 8M Byte Flash MP3 Player

SKU:XG0022
Regular price $7.99

Product description

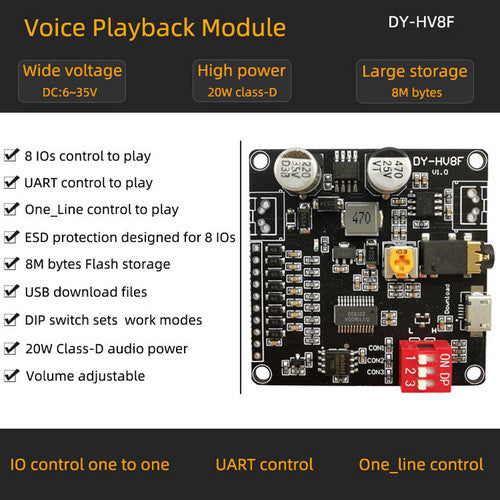

  • This is a intelligent voice playback module, integrated IO segment trigger, UART serial port control, ONE_line single bus serial port control, standard MP3 and other 7 working modes, simple dial switch settings; onboard 20 W Class D power amplifier; Support MP3, WAV Decode format, onboard 64Mbit (8Mbyte) memory, Can be used to connect to computer via USB data cable to update flash memory audio files.
Product features
  • Support MP3 and WAV decoding formats.
  • Support sampling rate (KHz): 8/11. 025/12/16 / 22,05 / 24/32 / 44.1 / 48th
  • 24-bit DAC output, dynamic range support 90dB, signal-to-noise ratio support 85dB.
  •  DC 6 ~ 35V ultra large working voltage.
  • built-in 64Mb (8M bytes) memory, no need for a memory card.
  • built-in high-power amplifier output, drive 4Ω speaker maximum output 20W, drive 8Ω speaker maximum output 10W.
  • UART serial port control voice broadcast function, can control playback, pause, song selection, volume addition and subtraction, etc., the largest selection of 65,535 songs, baudrate of 9600 bit / s.

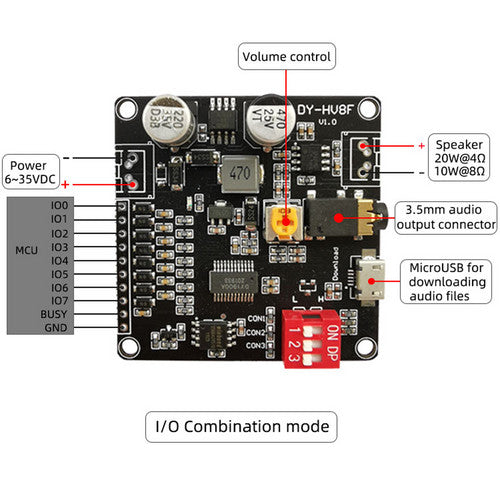

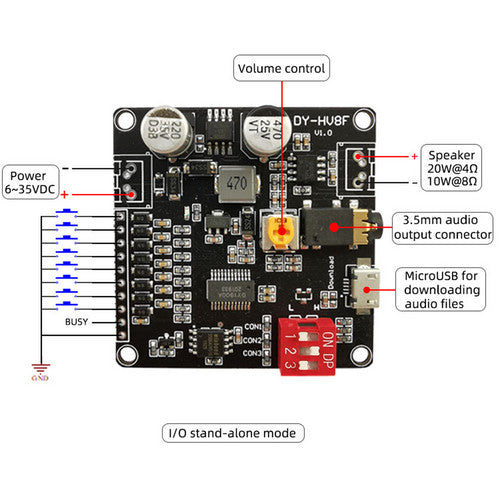

  • support IO one-to-one trigger playback function, 8 IO ports individually trigger 8 tracks or 8 IO ports to trigger 255 tracks.
  • support One_line single bus serial port control, can control playback, pause, song selection, volume addition and subtraction and other functions.

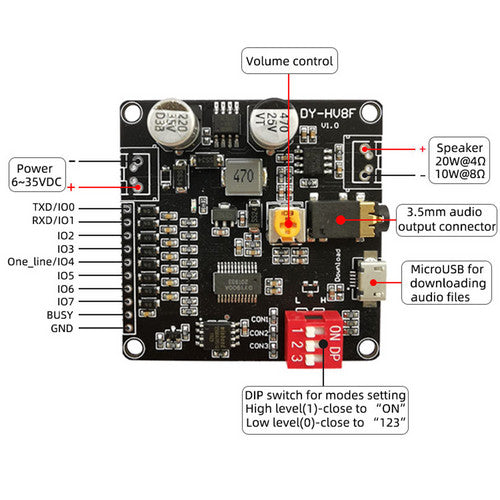

  • support 3 configuration IO for up to 7 working mode selection, dial switch settings, easy to operate.
  • 8 IO design ESD protection
Package included:
  • 1PCS 12V / 24V Voice Playback Module One-to-One Trigger Serial Port Control 10W/20W
trust seal
  • guaranteeQuality checked
  • Special gift cardsSpecial gift cards
  • Free return Within 60 days
  • Consultancy86-0755-85201155
Product description
  • This is a intelligent voice playback module, integrated IO segment trigger, UART serial port control, ONE_line single bus serial port control, standard MP3 and other 7 working modes, simple dial switch settings; onboard 20 W Class D power amplifier; Support MP3, WAV Decode format, onboard 64Mbit (8Mbyte) memory, Can be used to connect to computer via USB data cable to update flash memory audio files.
Product features
  • Support MP3 and WAV decoding formats.
  • Support sampling rate (KHz): 8/11. 025/12/16 / 22,05 / 24/32 / 44.1 / 48th
  • 24-bit DAC output, dynamic range support 90dB, signal-to-noise ratio support 85dB.
  •  DC 6 ~ 35V ultra large working voltage.
  • built-in 64Mb (8M bytes) memory, no need for a memory card.
  • built-in high-power amplifier output, drive 4Ω speaker maximum output 20W, drive 8Ω speaker maximum output 10W.
  • UART serial port control voice broadcast function, can control playback, pause, song selection, volume addition and subtraction, etc., the largest selection of 65,535 songs, baudrate of 9600 bit / s.
  • support IO one-to-one trigger playback function, 8 IO ports individually trigger 8 tracks or 8 IO ports to trigger 255 tracks.
  • support One_line single bus serial port control, can control playback, pause, song selection, volume addition and subtraction and other functions.
  • support 3 configuration IO for up to 7 working mode selection, dial switch settings, easy to operate.
  • 8 IO design ESD protection
Package included:
  • 1PCS 12V / 24V Voice Playback Module One-to-One Trigger Serial Port Control 10W/20W
