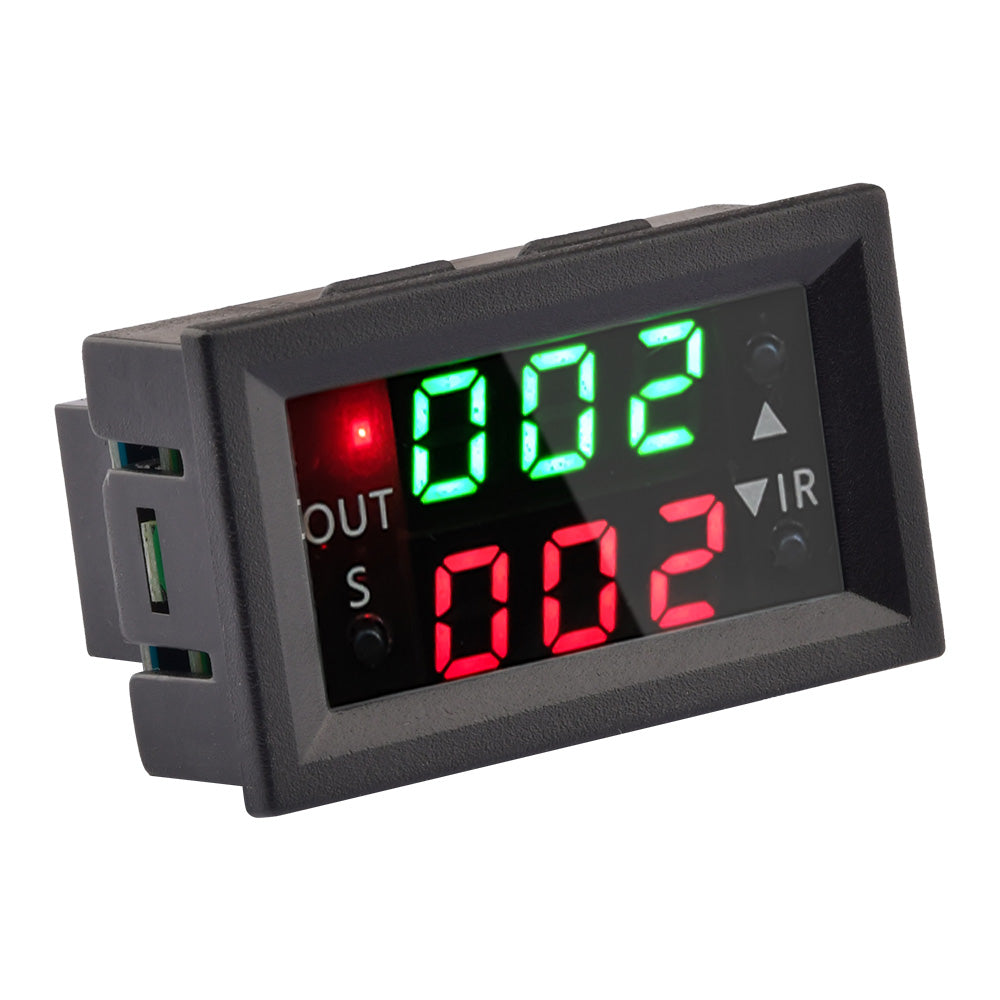

DC 12V Dual LED Display Time Relay Module T2401-N Digital Time Delay Relay Cycle Timer Switch Control Module Passive Output
DC 12V Dual LED Display Time Relay Module T2401-N Digital Time Delay Relay Cycle Timer Switch Control Module Passive Output
SKU:X-HX0410A
Regular price
$6.99
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Product selling point
1: Wide range of applications
2: Exquisite appearance
3: Small size
4: Simple to use
5: Passive output
Parameter
Contacts de-energized No output
Can be connected to loads other than 12V

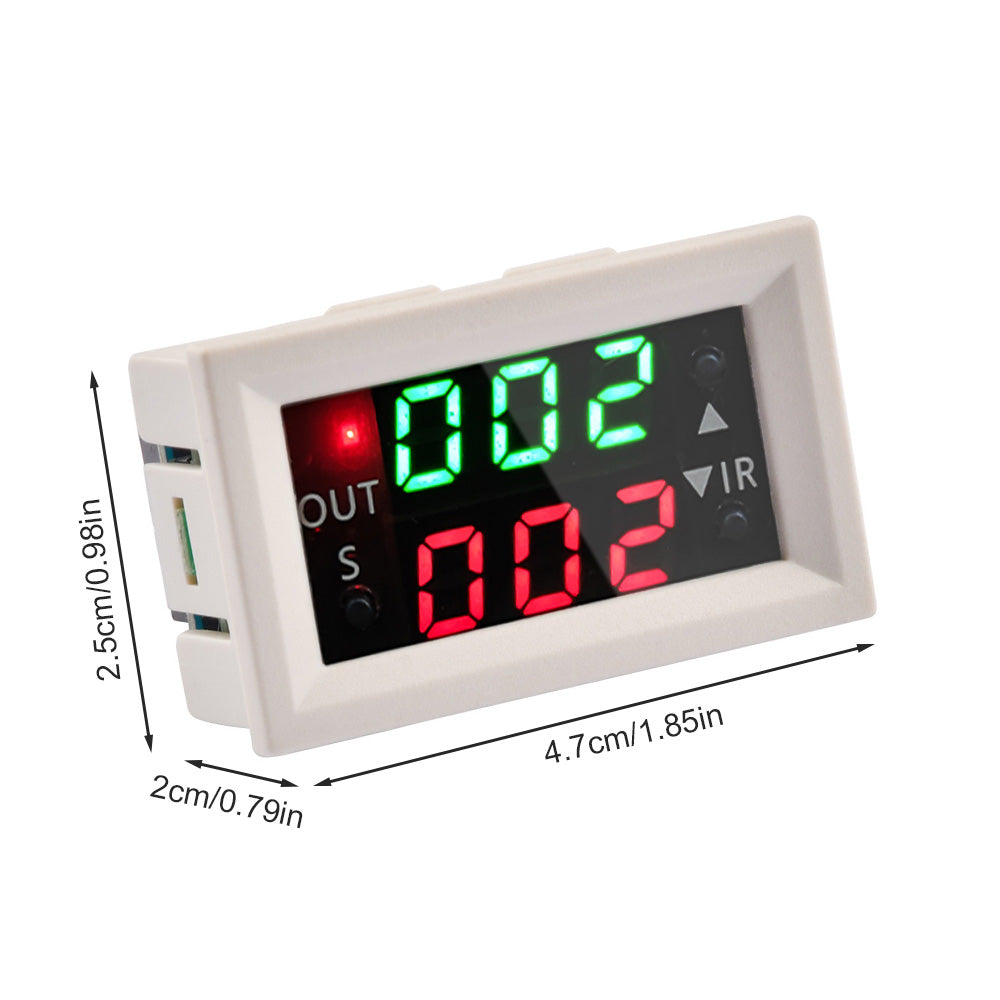

Size: 47.6×28.6×33.2mm
Embedded installation
Mounting opening: 45×26.1mm
Green on and red off and the timing display starts. The stop timer unit is easy to set independently and easy to use
1-way normally open relay control on-off
There is a setting lock to prevent accidental touch
Adjustable timing range
0~999 (seconds, minutes, hours) Minimum timing unit: 1 second
Timing error: ±4.5%
Integrated crystal oscillator
Power-on auto-run power-off save settings
Working voltage: DC12V
load power
DC12V 20A240wAC220V 150ow ( max )
Loop switch supported
Alternate 1 switch is not supported
List:
1*DC12V delay dual display digital time relay module
