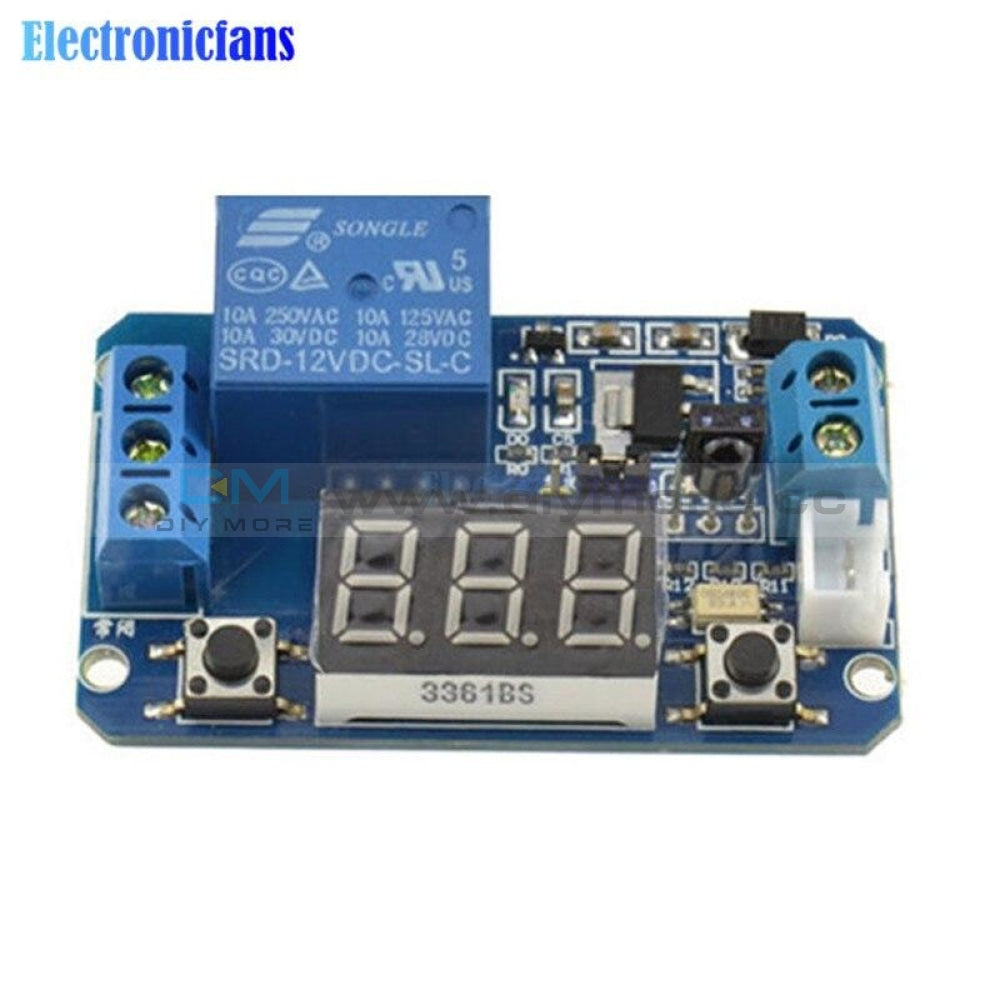

Infrared Remote Control 12V Timer Delay Relay LED Tube Display Module Arduino

Infrared Remote Control 12V Timer Delay Relay LED Tube Display Module Arduino

SKU:010604
Regular price $8.99

HTB1ZYSui4PI8KJjSspoq6x6MFXaU

1. This product currently on the market can basically achieve all delay and timing functions, the main features are:

(1) 0-999 seconds delay range. After power relay to work (closed), relay off after delay;

(2) 0-999 seconds delay range. After power disconnect relay, the delay relay (closed);

(3) the range of 0-999 seconds delay. Power does not work, when there is a low level trigger external relays to work (closed), relay off after the delay;

(4) 0-999 seconds delay range. Power does not work, when there is an external high level trigger, the relay first job (closed), relay off after the delay;

(5) 0-999 seconds delay range. Power does not work, when there is a low level trigger external relays to disconnect the delay relay (closed);

(6) 0-999 seconds delay range. Power does not work, when there is an external high trigger relays to disconnect after delay relay (closed);

(7) 0-999 seconds delay range. Power does not work, when there are remote trigger, the relay first job (closed), relay off after the delay;

(8) 0-999 seconds delay range. Power does not work, when there are remote trigger, the relay disconnect after delay relay (closed);

(9) the range of 0-999 seconds delay. After power relay cycle work, disconnect relay, the delay relay (closed), continuous cycle;

(10) 0-999 seconds delay range. After power relay cycle work, the relay first job (closed), after the time delay relay disconnected, continuous cycle;

(11) 0-999 seconds delay range. Power does not work, when there is an external high trigger relays to disconnect after delay relay (closed), continuous cycle;

(12) 0-999 seconds delay range. Power does not work, when there is a low level trigger external relays to work (closed), after a time delay relay disconnected, continuous cycle;



(13) 0-999 seconds delay range. Power does not work, when there are remote trigger, the relay disconnect after delay relay (closed), continuous cycle;

(14) 0-999 seconds delay range. Power does not work, when there are remote trigger, the relay first job (closed), after a time delay relay disconnected, continuous cycle;

(15) 0-999 minutes delay range. After power relay to work (closed), relay off after delay;

(16) 0-999 minutes delay range. After power disconnect relay, the delay relay (closed);

(17) 0-999 minutes delay range. Power does not work, when there is a low level trigger external relays to work (closed), relay off after the delay;

(18) 0-999 minutes delay range. Power does not work, when there is an external high level trigger, the relay first job (closed), relay off after the delay;

(19) 0-999 minutes delay range. Power does not work, when there is a low level trigger external relays to disconnect the delay relay (closed);

(20) 0-999 minutes delay range. Power does not work, when there is an external high trigger relays to disconnect after delay relay (closed);

(21) 0-999 minutes delay range. Power does not work, when there are remote trigger, the relay first job (closed), relay off after the delay;

(22) 0-999 minutes delay range. Power does not work, when there are remote trigger, the relay disconnect after delay relay (closed);

(23) 0-999 minutes delay range. After power relay cycle work, disconnect relay, the delay relay (closed), continuous cycle;

(24) 0-999 minutes delay range. After power relay cycle work, the relay first job (closed), after the time delay relay disconnected, continuous cycle;

(25) 0-999 minutes delay range. Power does not work, when there is an external high trigger relays to disconnect after delay relay (closed), continuous cycle;

(26) 0-999 minutes delay range. Power does not work, when there is an external high level trigger, the relay first job (closed), after a time delay relay disconnected, continuous cycle;



(27) 0-999 minutes delay range. Power does not work, when there are remote trigger, the relay disconnect after delay relay (closed), continuous cycle;

(28) 0-999 minutes delay range. Power does not work, when there are remote trigger, the relay first job (closed), after a time delay relay disconnected, continuous cycle;

(29) 0-999-hour delay range. After power relay to work (closed), relay off after delay;

(30) 0-999-hour delay range. After power disconnect relay, the delay relay (closed);

(31) 0-999-hour delay range. Power does not work, when there is a low level trigger external relays to work (closed), relay off after the delay;

(32) 0-999-hour delay range. Power does not work, when there is an external high level trigger, the relay first job (closed), relay off after the delay;

(33) 0-999-hour delay range. Power does not work, when there is a low level trigger external relays to disconnect the delay relay (closed);

(34) 0-999-hour delay range. Power does not work, when there is an external high trigger relays to disconnect after delay relay (closed);

(35) 0-999-hour delay range. Power does not work, when there are remote trigger, the relay first job (closed), relay off after the delay;

(36) 0-999-hour delay range. Power does not work, when there are remote trigger, the relay disconnect after delay relay (closed);

(37) 0-999-hour delay range. After power relay cycle work, disconnect relay, the delay relay (closed), continuous cycle;

(38) 0-999-hour delay range. After power relay cycle work, the relay first job (closed), after the time delay relay disconnected, continuous cycle;

(39) 0-999-hour delay range. Power does not work, when there is an external high trigger relays to disconnect after delay relay (closed), continuous cycle;

(40) 0-999-hour delay range. Power does not work, when there is an external high level trigger, the relay first job (closed), after a time delay relay disconnected, continuous cycle;

(41) 0-999-hour delay range. Power does not work, when there are remote trigger, the relay disconnect after delay relay (closed), continuous cycle;

(42) 0-999-hour delay range. Power does not work, when there are remote trigger, the relay first job (closed), after a time delay relay disconnected, continuous cycle;

(43) 0-999 ms delay range. After power relay to work (closed), relay off after delay;

(44) 0-999 ms delay range. After power disconnect relay, the delay relay (closed);

(45) 0-999 ms delay range. Power does not work, when there is a low level trigger external relays to work (closed), relay off after the delay;

(46) 0-999 ms delay range. Power does not work, when there is an external high level trigger, the relay first job (closed), relay off after the delay;

(47) 0-999 ms delay range. Power does not work, when there is a low level trigger external relays to disconnect the delay relay (closed);

(48) 0-999 ms delay range. Power does not work, when there is an external high trigger relays to disconnect after delay relay (closed);

(49) 0-999 ms delay range. Power does not work, when there are remote trigger, the relay first job (closed), relay off after the delay;

(50) 0-999 ms delay range. Power does not work, when there are remote trigger, the relay disconnect after delay relay (closed);

(51) 0-999 ms delay range. After power relay cycle work, disconnect relay, the delay relay (closed), continuous cycle;

(52) 0-999 ms delay range. After power relay cycle work, the relay first job (closed), after the time delay relay disconnected, continuous cycle;

(53) 0-999 ms delay range. Power does not work, when there is an external high trigger relays to disconnect after delay relay (closed), continuous cycle;

(54) 0-999 ms delay range. Power does not work, when there is an external high level trigger, the relay first job (closed), after a time delay relay disconnected, continuous cycle;

(55) 0-999 ms delay range. Power does not work, when there are remote trigger, the relay disconnect after delay relay (closed), continuous cycle;

(56) 0-999 ms delay range. Power does not work, when there are remote trigger, the relay first job (closed), after a time delay relay disconnected, continuous cycle;
2. The product cycle delay module for New Digital LED countdown display, available with 5V, 9V, 12V, 24V relay

3. Product Delay time can be set via the remote control on their own, set up, at the next power-up after the countdown display and work in accordance with the set value

4. Product for precision delay product, 0.1% error per second, the delay range of 0 to 999 seconds, one second for each LED changes; delay range 0-999 minutes, every 1 minute LED digital display changes have led per second decimal display prompts; delay range 0-999 hours, hourly LED digital display changes have led second decimal display prompts; range 0-999 ms delay, LED digital display changes every millisecond;

5.You can achieve low-power mode, turn off the LED display, save energy;

6.dedicated a special remote control, multi-function integrated use;

7.The wide range of products can be used in many fields;


The main parameters:


Current: operating current of less than 300mA (relay)
Load: 250V 10A AC or 30V 10A DC
Power consumption: 0.5W
Delay Range: 0-999 seconds or 0-999 minutes or 0-999 ms

Size: 55.8mmx34mm

Package Included:

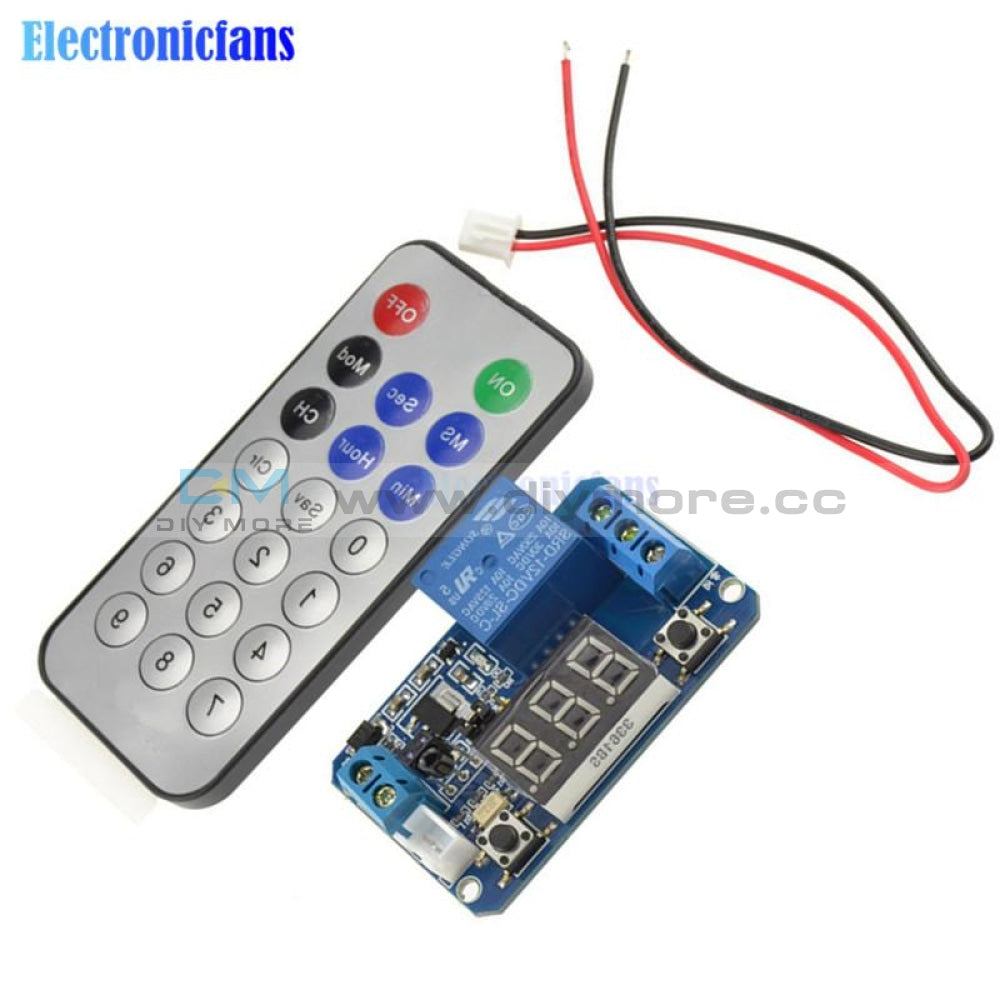

1 x Infrared remote control 12V timerdelay relay LED tubedisplaymodule for Arduino

HTB1jCuMiY_I8KJjy1Xaq6zsxpXaS

123

HTB1CoFQi_TI8KJjSsphq6AFppXax
