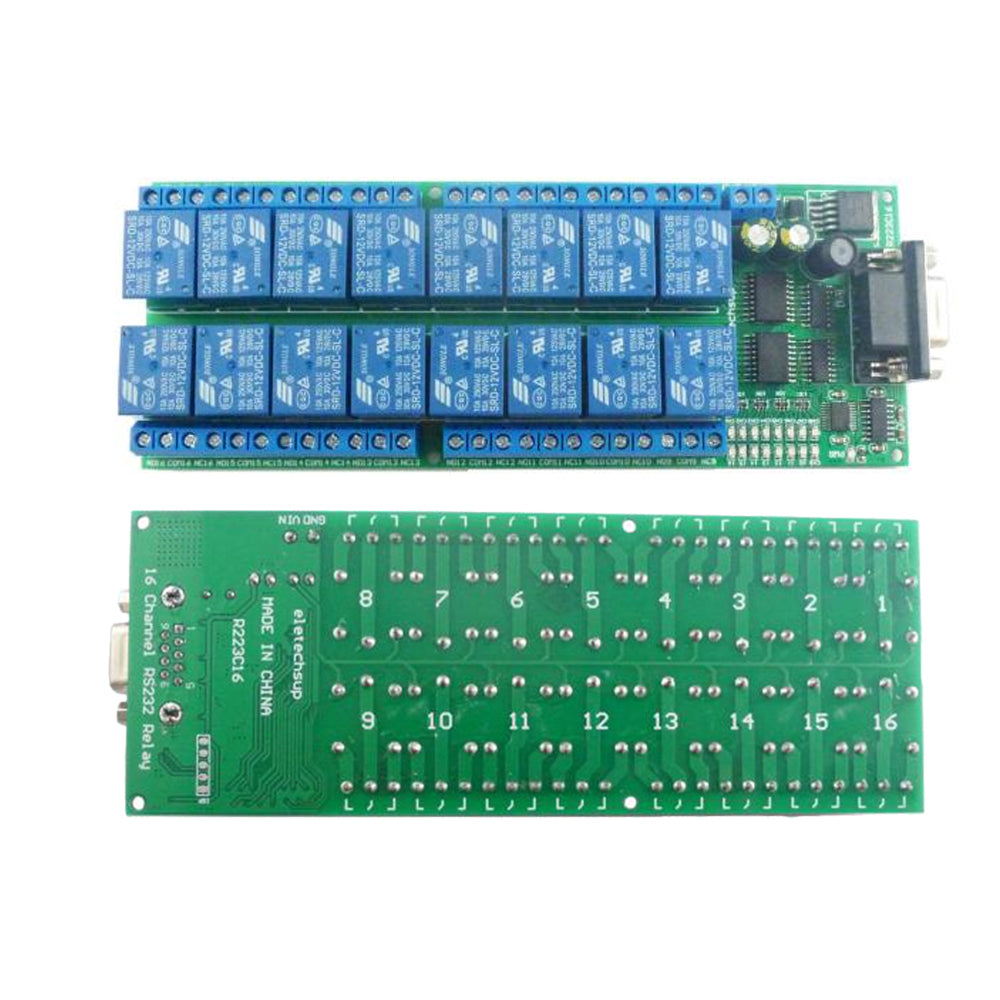

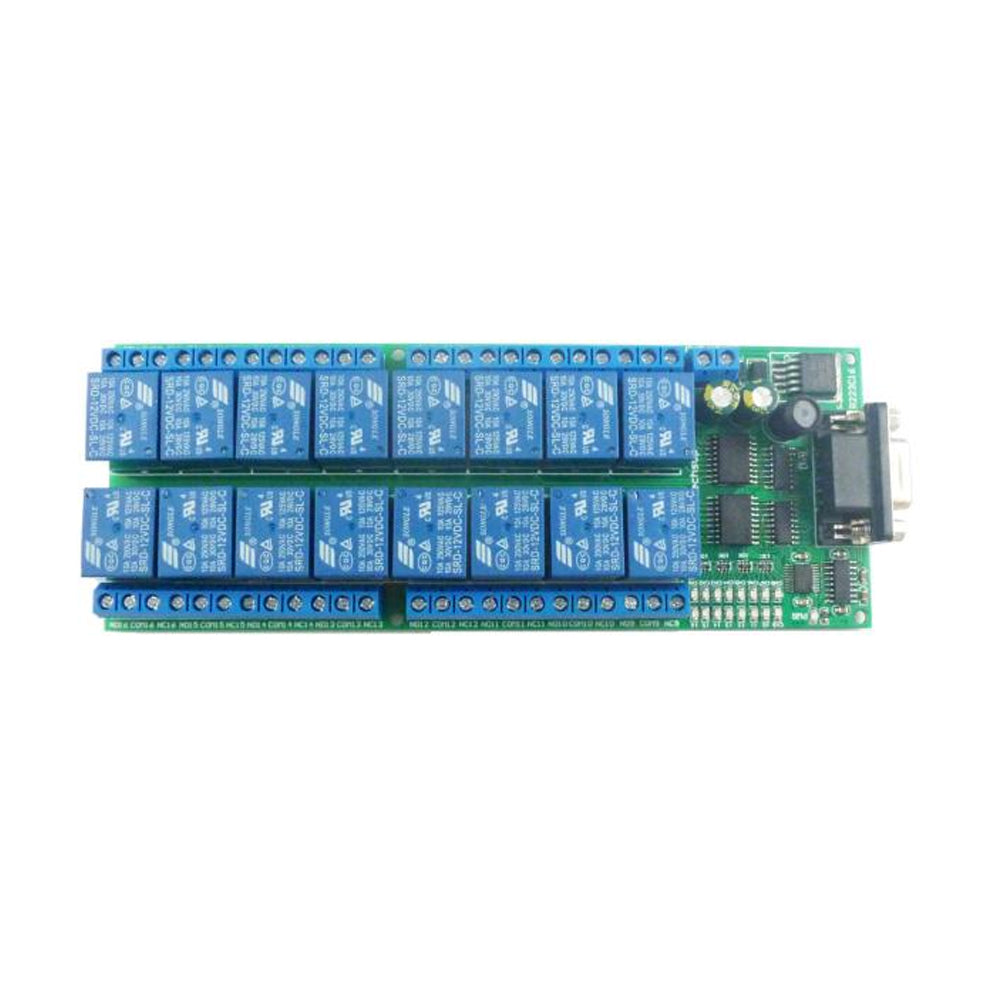

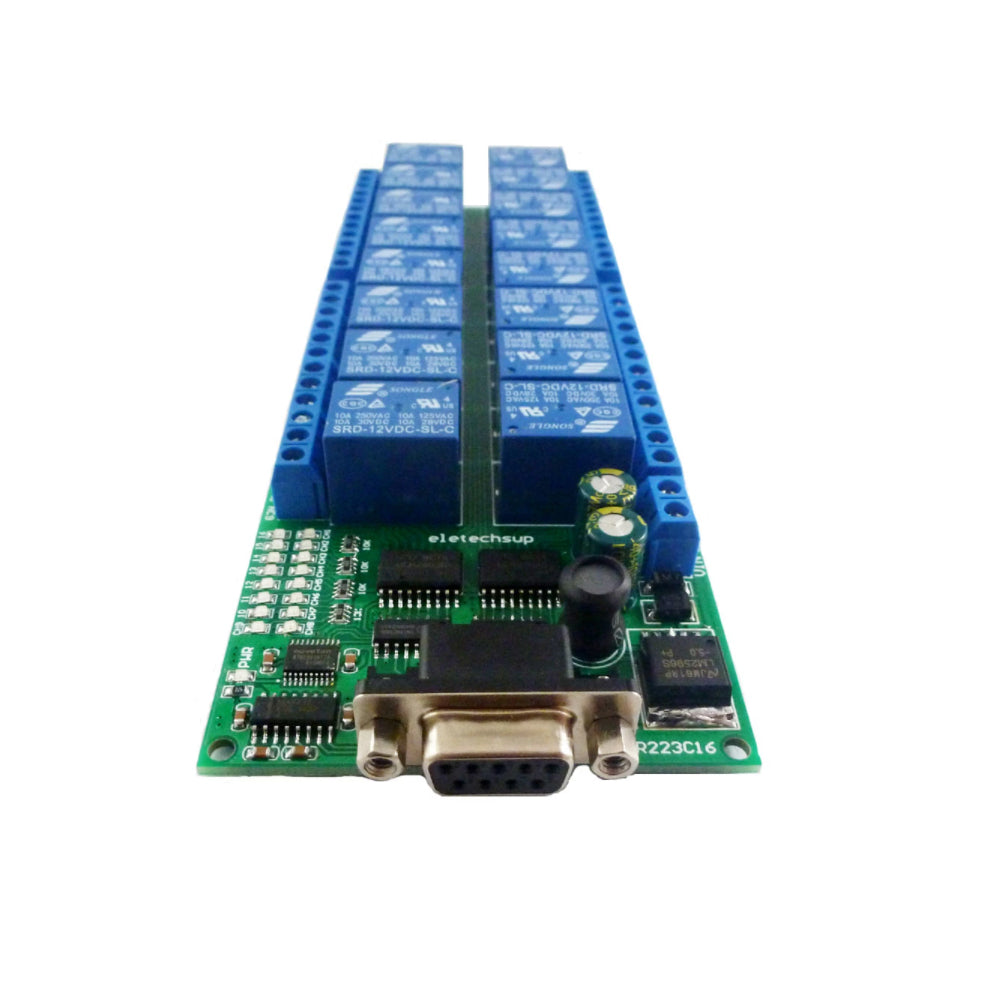

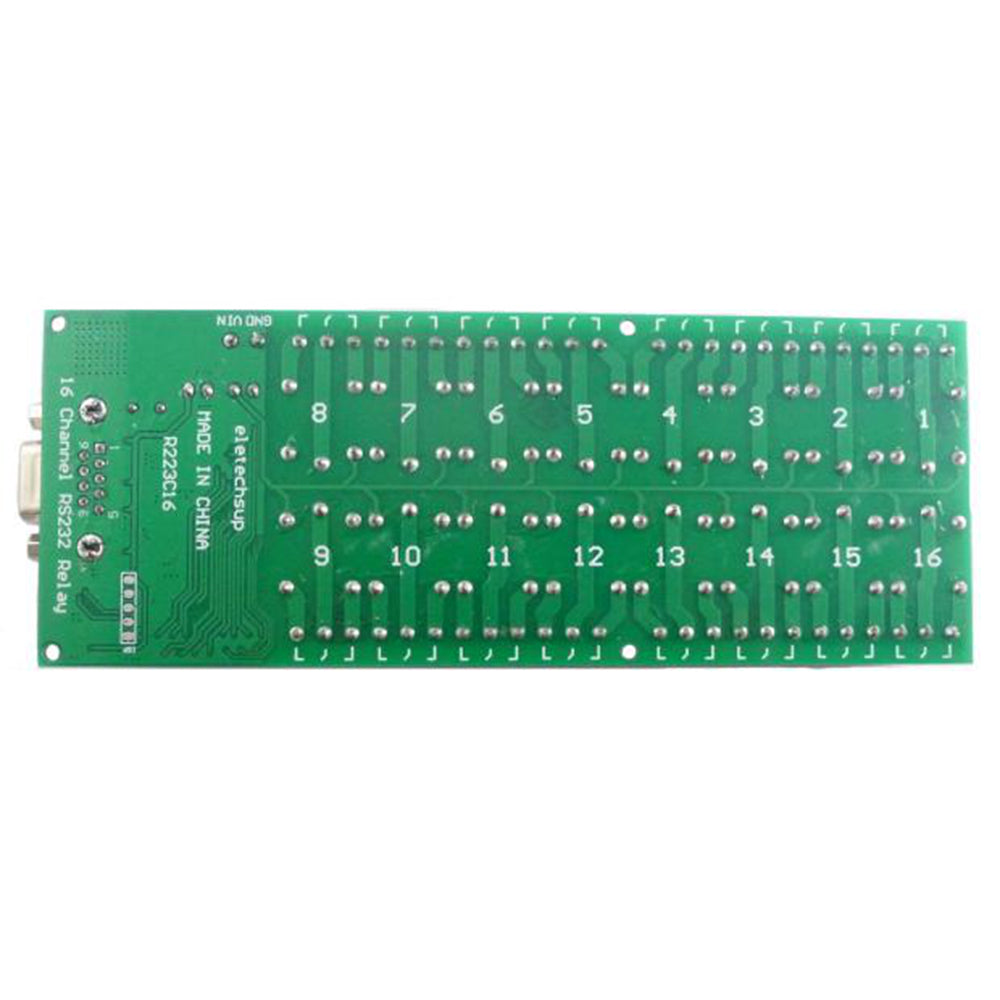

16 Channel RS232 Relay DB9 Female Interface Serial Port Remote Control Switch
16 Channel RS232 Relay DB9 Female Interface Serial Port Remote Control Switch
SKU:XM0018
Regular price
$28.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Features:
- DC 12V power supply.
- Standby current (all relays closed) 18MA, 1 relay open 46MA, 2 relays open 73MA, 3 relays open 100MA,4 relays open 126MA,5 relays open 153MA,6 relays open 179MA, 7 relays open 204MA,8 relays open 230MA…
- "Open" "Close" "Momentary" "Self-locking" "Interlock" "Delay"(Only AT command) “All Relays Open” “All Relays Close” 8 Commands
- Two kinds of commands: AT command and 8-byte command, the two commands are automatically recognized, no need to switch.
- Under the "Delay" command ,the maximum delay is 9999 seconds(Only AT command)
- Output indication : relay output with LED indicators,easy to see working status of the relay;
- Baud rate 9600kbps, 8 data bits, one stop bit, no parity.
- Size: 172 * 65 * 19mm
- Weight: 228 g
- Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDC
- NO : Relay normally open contact
- COM : Relay common contact
- NC : Relay normally closed contact
- Open : NO connection COM, NC disconnect COM
- Close : NO disconnect COM, NC connection COM
- Momentary : Enter the Momentary command, the Rreceiver Relay is Open, delay of 0.5 seconds after, Relay is Close;
- Toggle : Enter the Toggle command, the Rreceiver Relay is Open, Enter the Toggle command again, Relay is Close;
- Latched : Enter the Channel 1 Latched command, the receiver Channel 1 is Open, the Channel 2 is Close.
- Enter the Channel 2 Latched command the receiver Channel 2 is Open, the Channel 1 is Close.
- Enter the Channel 3 Latched command the receiver Channel 1 is Close, the Channel 2 is Close.
- Delay : Enter the Delay command, the Rreceiver Relay is Open, delay of 0-9999 seconds after, Relay is Close;
- During the delay, Eter the Close command, immediately close the relay
- Command Description, Please refer to "R223C16 16 Channel RS232 Relay commamd"
- Wiring Diagram:
- DC 12V control circuit,Wiring diagram below. "LOAD" may be camera,LED lights, fans, motors and other DC 12V equipment
- DC 1-100VAC 85-265V control circuit,Wiring diagram below(Note:If not DC 12V load, need another DC 12V power supply). "LOAD" may be LED lights, fans, motors Lights, fluorescent lights, solar water heaters and other DC AC equipment
