1Set MAX6675 K-type Thermocouple Temperature Sensor Board -200~1300C Range SPI Module 4Pins Wire 5V DC For Arduino
1Set MAX6675 K-type Thermocouple Temperature Sensor Board -200~1300C Range SPI Module 4Pins Wire 5V DC For Arduino
SKU:010601
Regular price
$9.99
Sale price
$6.69
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
1.Working voltage: DC5V
2, Operating Current: 50mA
3, the temperature measuring range: -200°C - 1300 °C [Test procedure for 0-1023 °C]
4, the temperature measurement accuracy: ± 1.5 °C
5, the temperature resolution: 0.25 °C
6, the output mode: SPI digital signal
7, with a fixed mounting holes for easy fixed installation.
8, storage temperature: -50 ~ 150 °C
9, the module weight: 4g
10, module size: 25mm * 15mm * 13mm
This module is only for reference routines and instructions, please note left after shoot-mail or contact sales technical hair item.

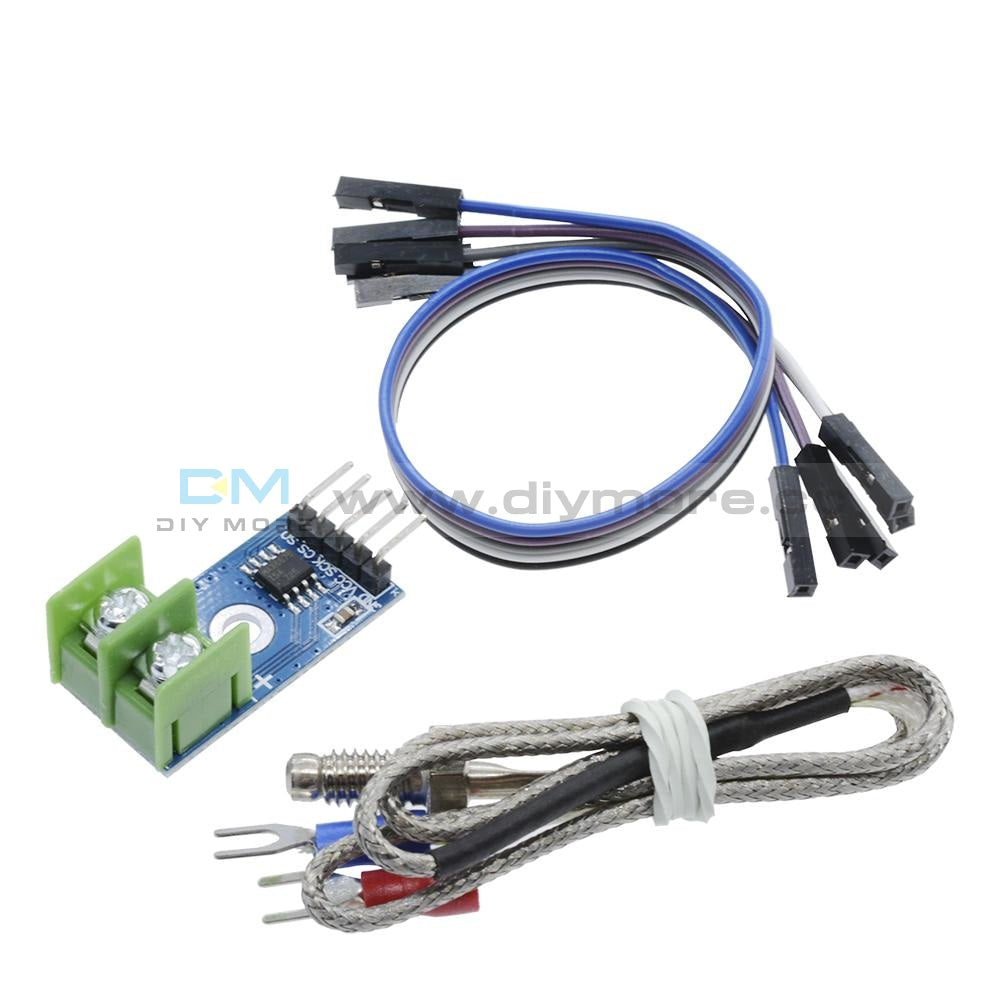

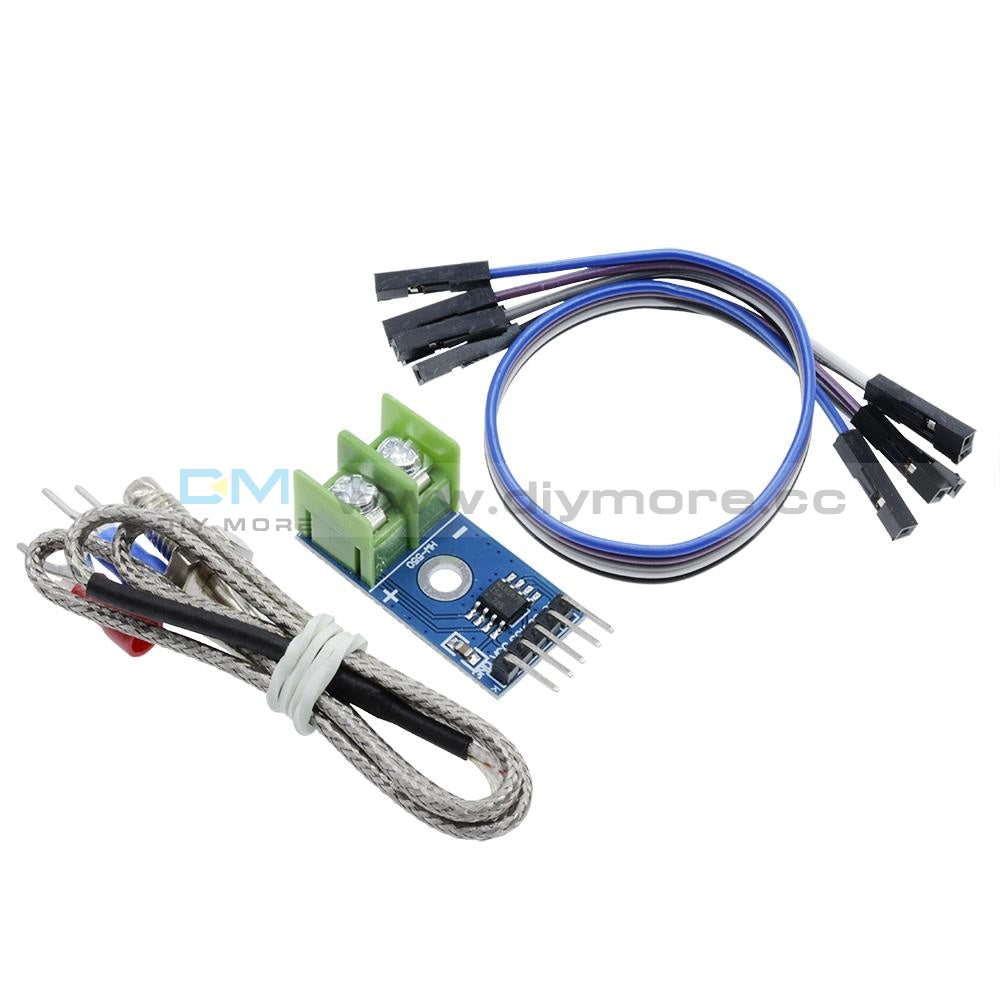

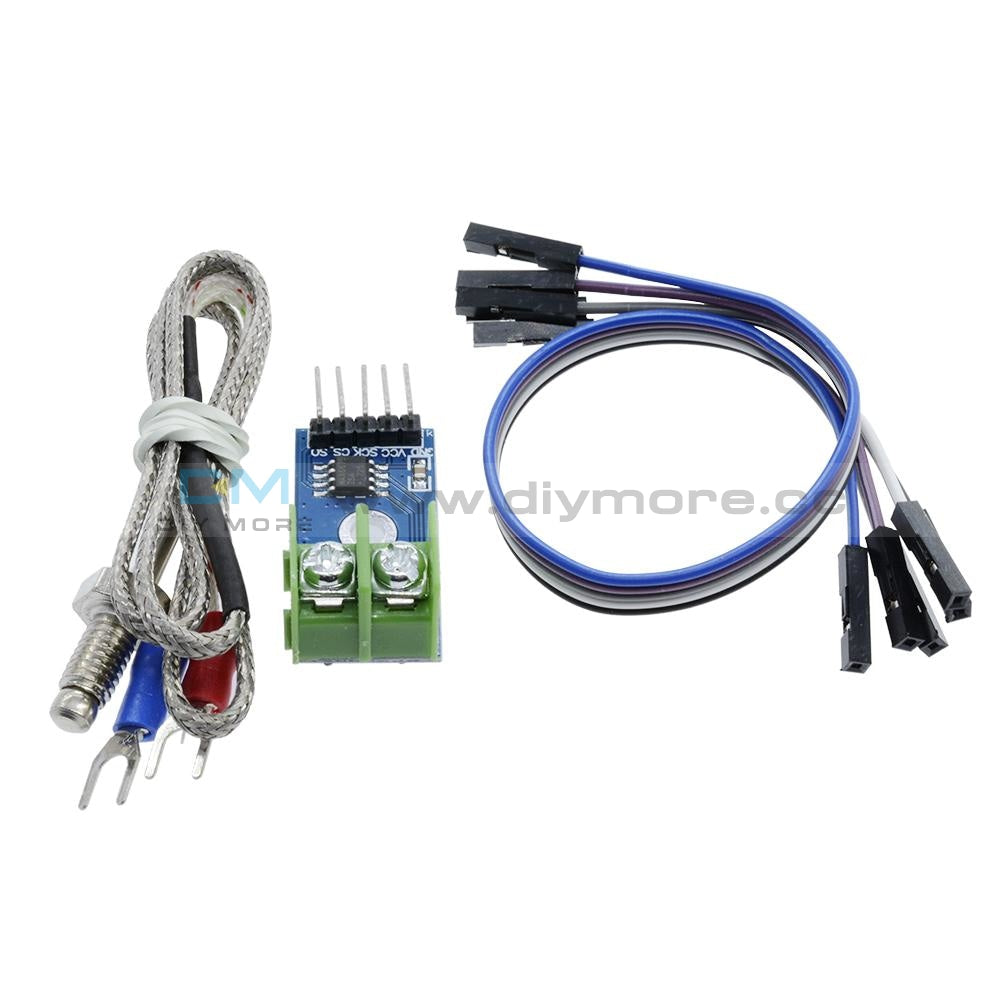

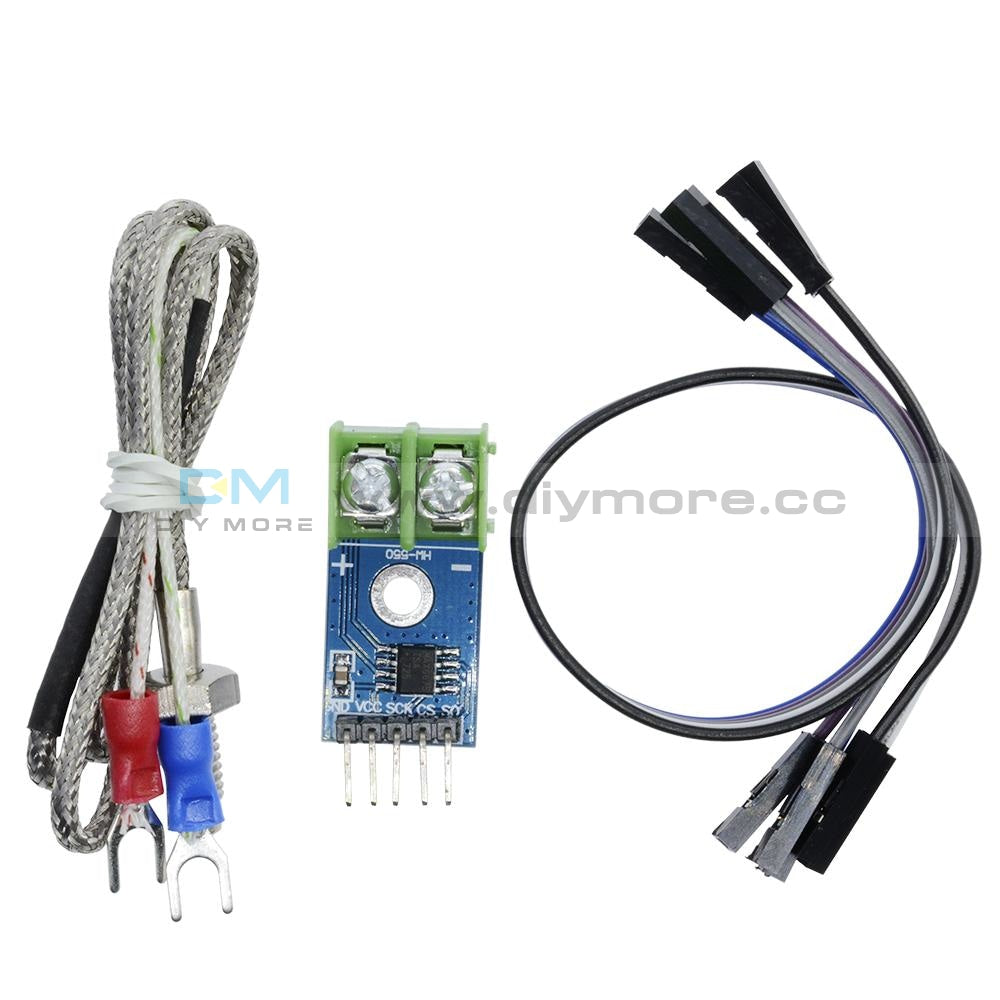

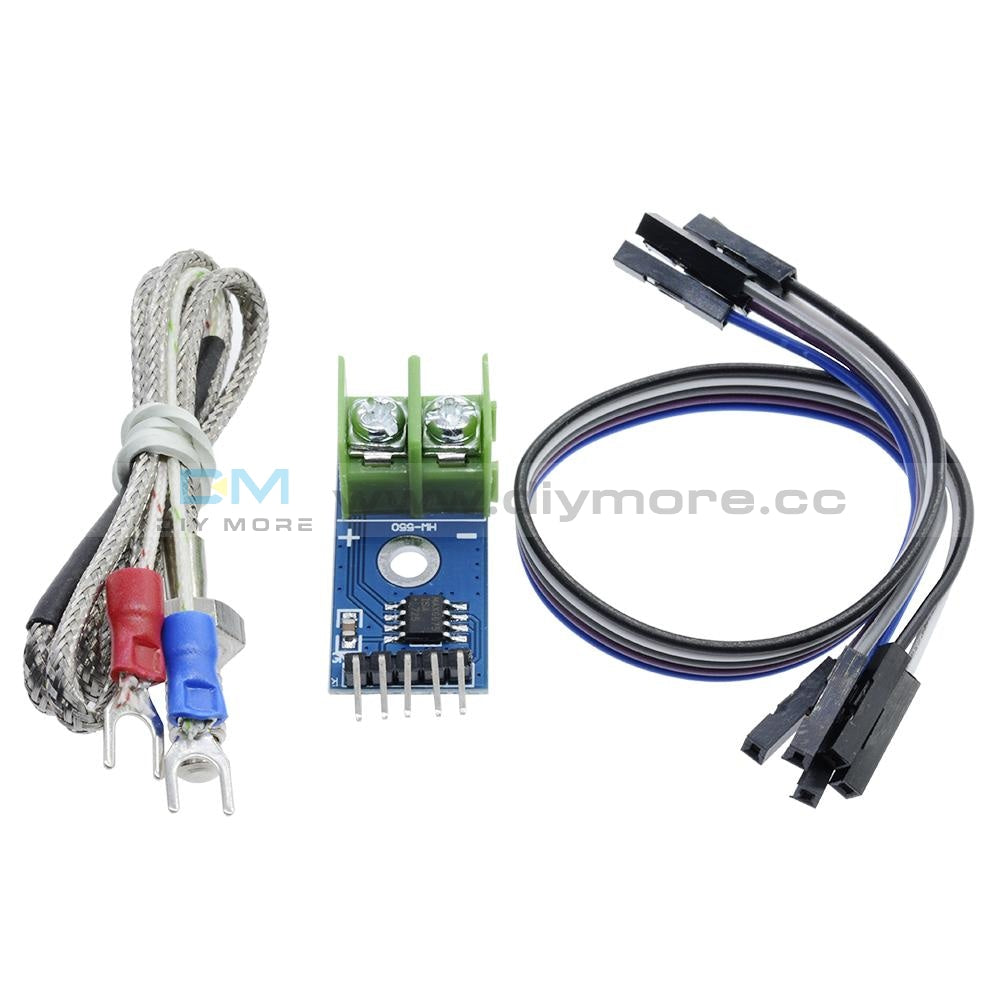

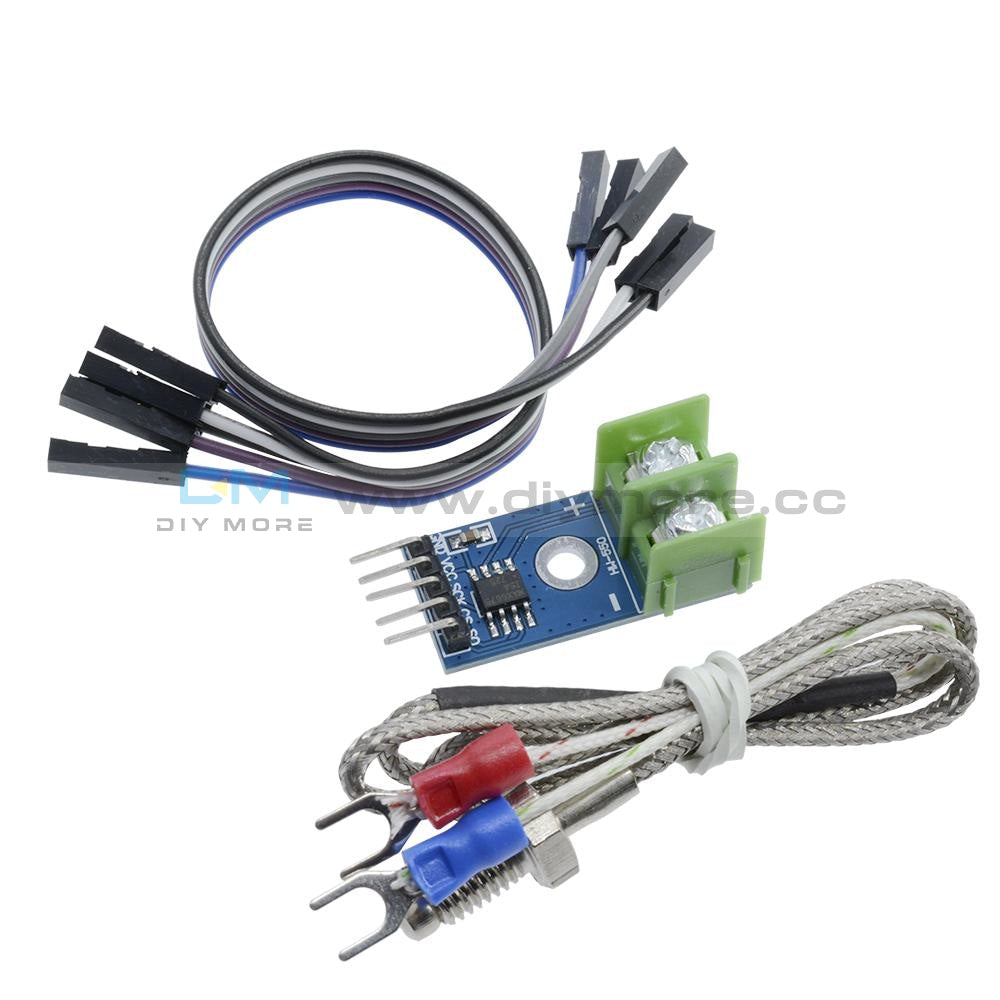

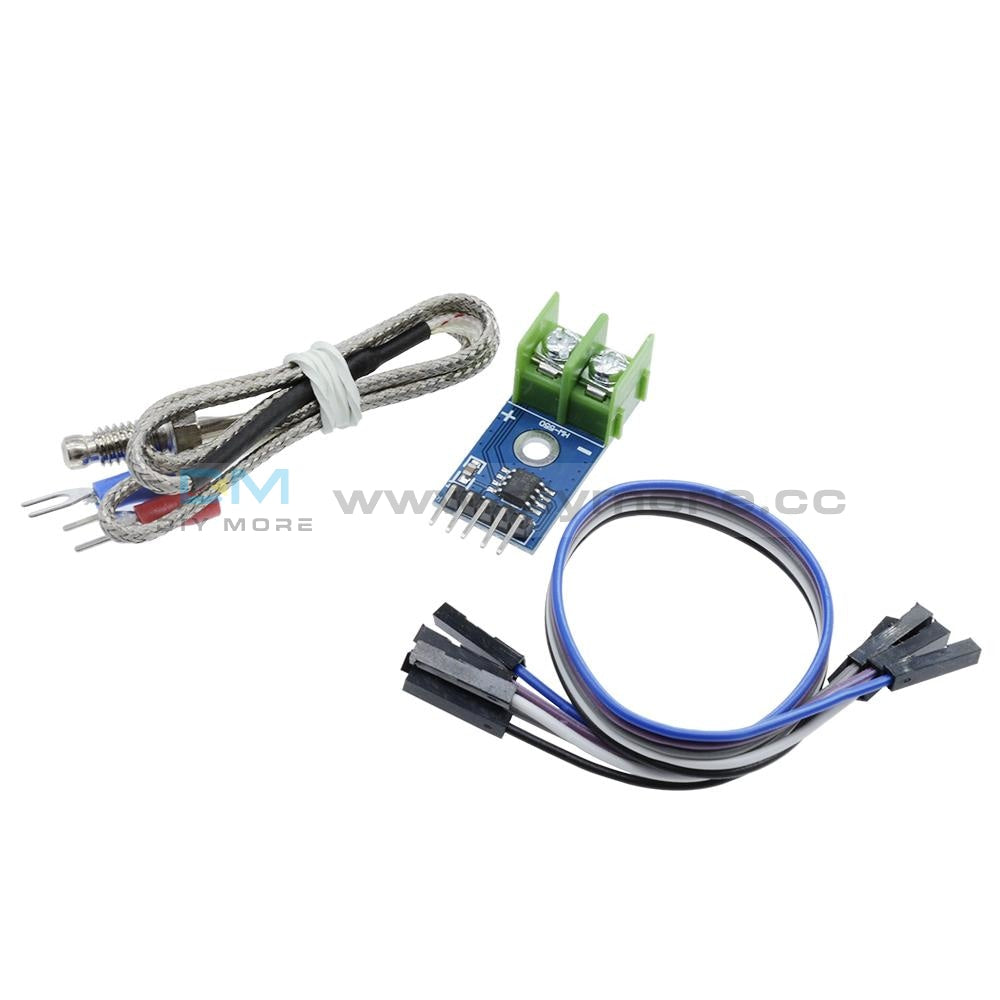

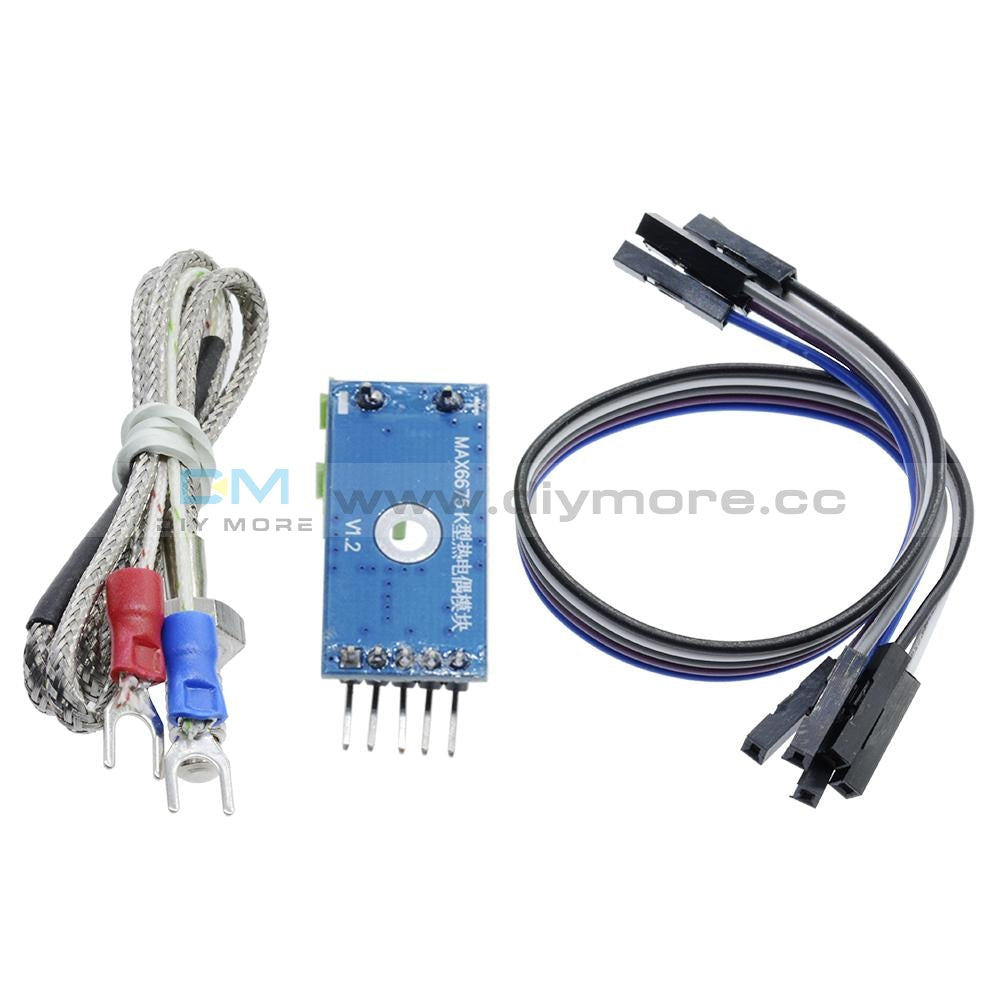

Package Included:
- 1PCS*MAX6675 Module
- 1PCS*K Type Thermocouple Thermocouple Sensor
- 1PCS* 4PINDuPontline
