2/4/6P Way Push Release Connector Plate Amplifier Speaker Terminal Strip Block U

2/4/6P Way Push Release Connector Plate Amplifier Speaker Terminal Strip Block U

SKU:050853
Regular price $4.99

Descriptions:
  • 2 pins, 2 positions, spring load design, push type speaker terminal board.
  • This spring loaded terminals ensure a solid connection and make wire hookups a Put.
  • Specilized design to your custom speakers or speaker upgrades for speaker cable connecting.
Specification:
  • Product: 2 Terminal Speaker Connector Plate
  • Type: Push Release Type
  • RoHS: Yes
  • Rated Load: AC 50V 3A
  • Wire Range: AWG 24-16
  • Temperature: -40 to 55 C
  • Contact Resistance: <= 0.03 Ohm
  • Insulation Resistance: >= 100M Ohm
  • Withstand Voltage: AC 500V 1 Minute
  • Actuating Force: 1 Kgf
  • Color Polarity Coding: Red/Black
  • Life: >10000 Times
  • Pin Quantity: 2 pin
  • Mounting Hole Center Distance : 35mm/ 1.4inch
  • Position: 2 Way (1 row)
  • Mounting Hole Dia: 3mm/ 0.12inch
  • Size: 44*20*15mm
4 Way Speaker Terminal

Features:
  • 4 pins, 4 positions, spring load design, push type speaker terminal board.
  • This spring loaded terminals ensure a solid connection and make wire hookups a Put.
  • Specilized design to your custom speakers or speaker upgrades for speaker cable connecting.
Specification:
  • Product: 4 Terminal Speaker Connector Plate
  • Type:Push Release Type
  • Material: Plastic, Metal
  • RoHS: Yes
  • Rated Load: AC 50V 3A
  • Wire Range: AWG 24-16
  • Temperature: -40 to 55 C
  • Contact Resistance: <= 0.03 Ohm
  • Insulation Resistance: >= 100M Ohm
  • Withstand Voltage: AC 500V 1 Minute
  • Actuating Force: 1 Kgf
  • Color Polarity Coding: Red/Black
  • Life: >10000 Times
  • Position:4 Way (1 row)
  • Mounting Hole Center Distance: 60mm/ 2.4inch
  • Pin Quantity:4 pin
  • Size:70*24*20mm

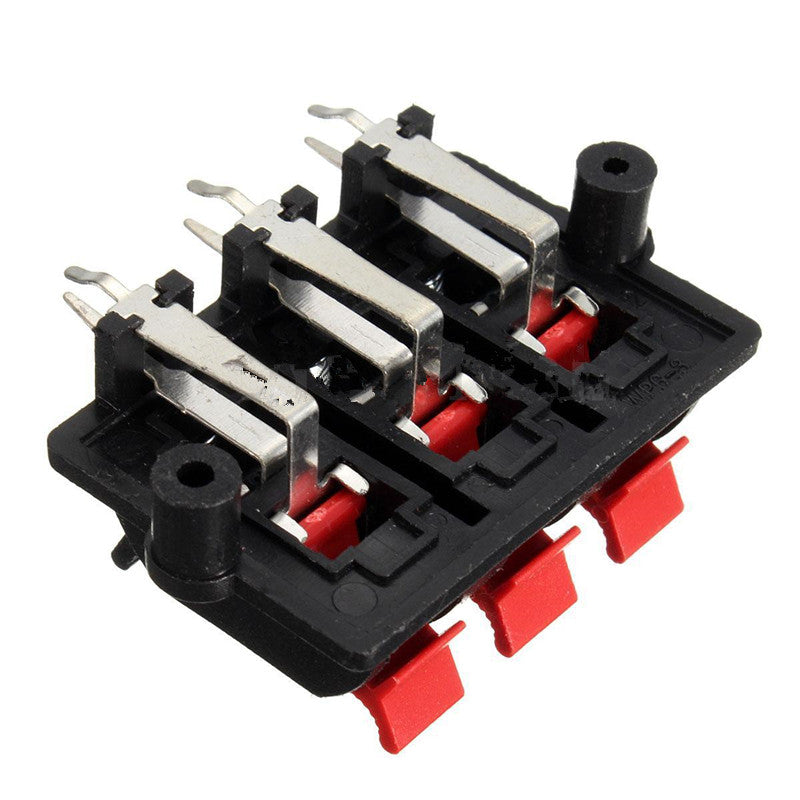

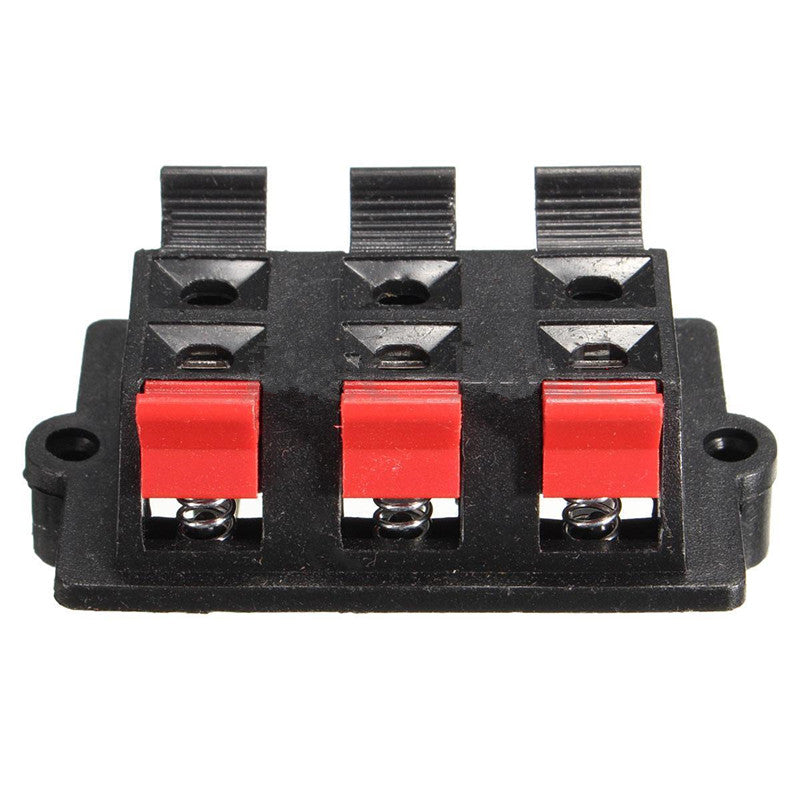

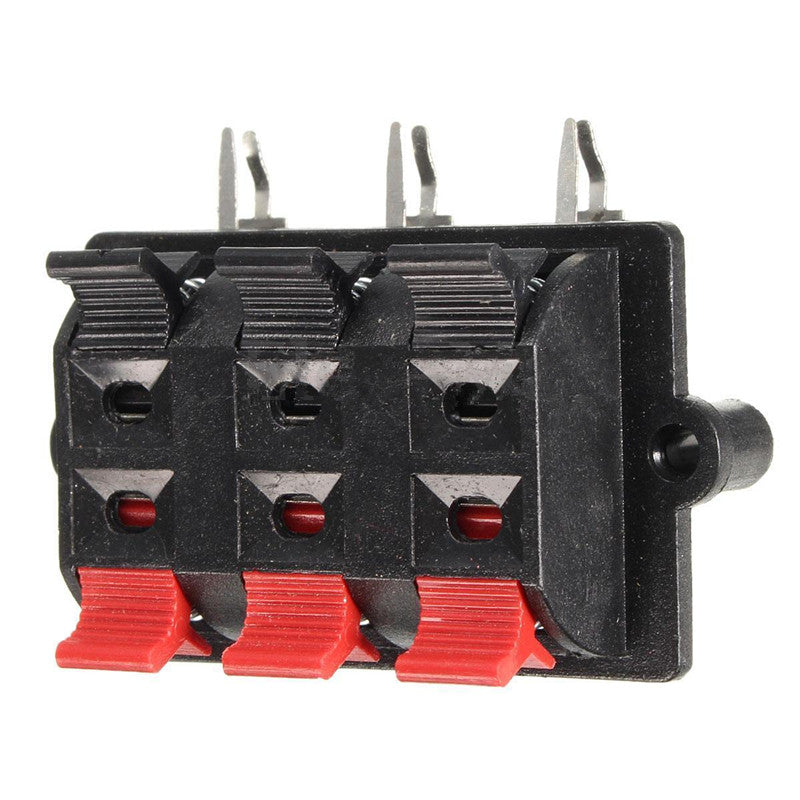

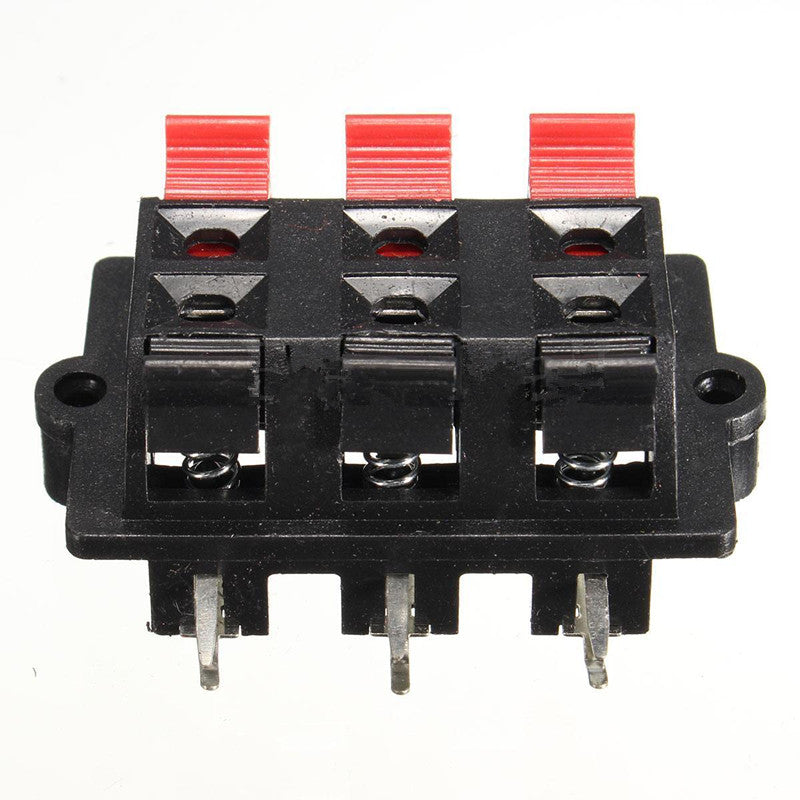

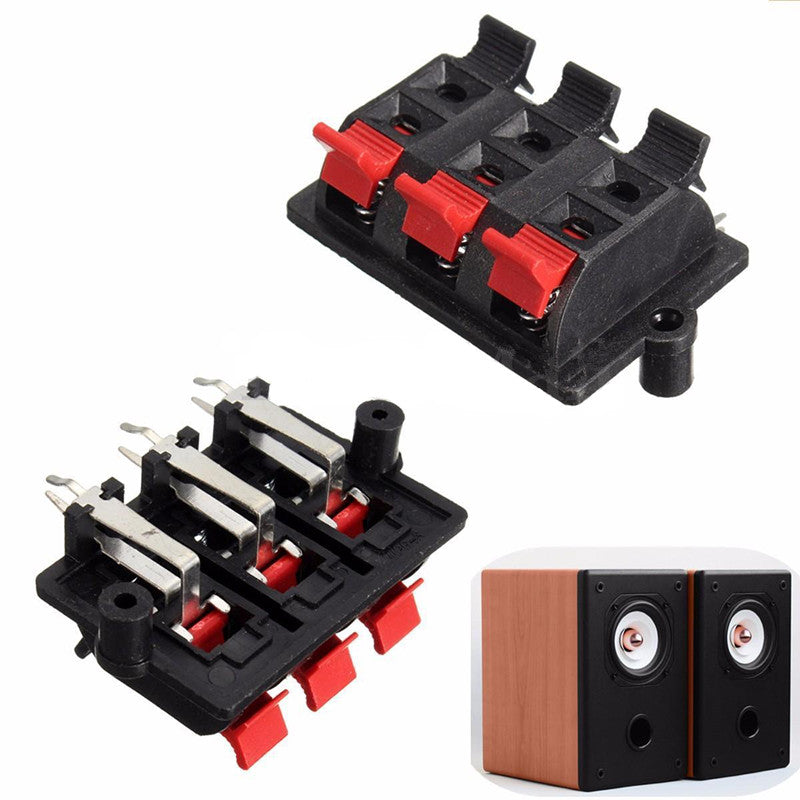

6 Way Speaker Terminal
Features:
  • 6 pins, 6 positions, spring load design, push type speaker terminal board.
  • This spring loaded terminals ensure a solid connection and make wire hookups a Put.
  • Specilized design to your custom speakers or speaker upgrades for speaker cable connecting.
Specification:
  • Type: 6 Terminal Speaker Connector Plate.
  • Material: Plastic, Metal
  • RoHS: Yes
  • Rated Load: AC 50V 3A
  • Wire Range: AWG 24-16
  • Temperature: -40 to 55 C
  • Contact Resistance: <= 0.03 Ohm
  • Insulation Resistance: >= 100M Ohm
  • Withstand Voltage: AC 500V 1 Minute
  • Actuating Force: 1 Kgf
  • Color Polarity Coding: Red/Black
  • Life: >10000 Times

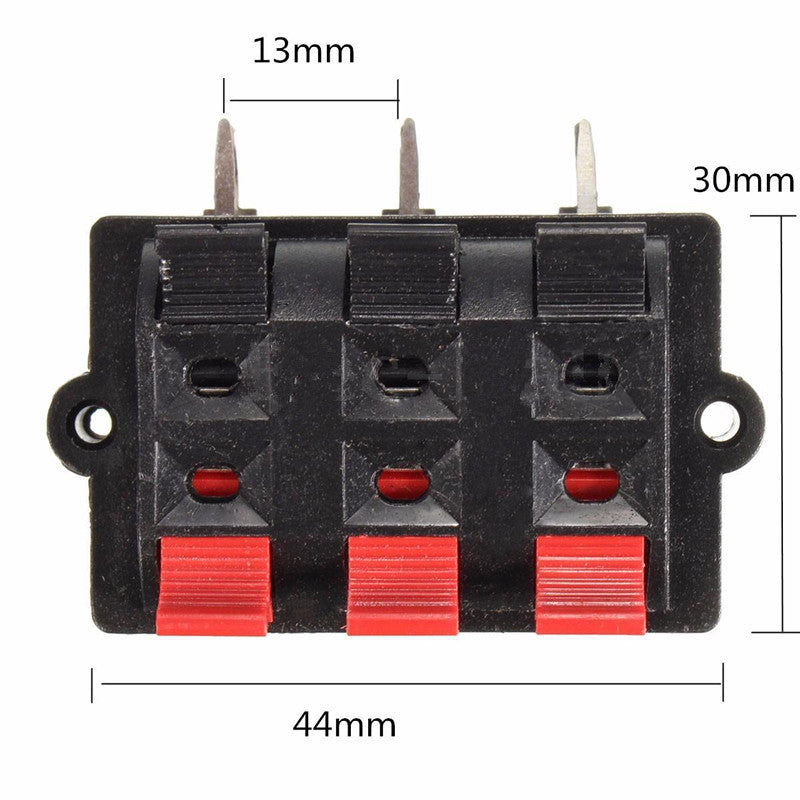

  • Size: 44*30*20mm
  • Position: 6 Way (2 row)
  • Pin Quantity:6 pin
  • Mounting Hole Dia: 3mm/ 0.12inch
  • Mounting Hole Center Distance: 45mm/ 1.8inch
