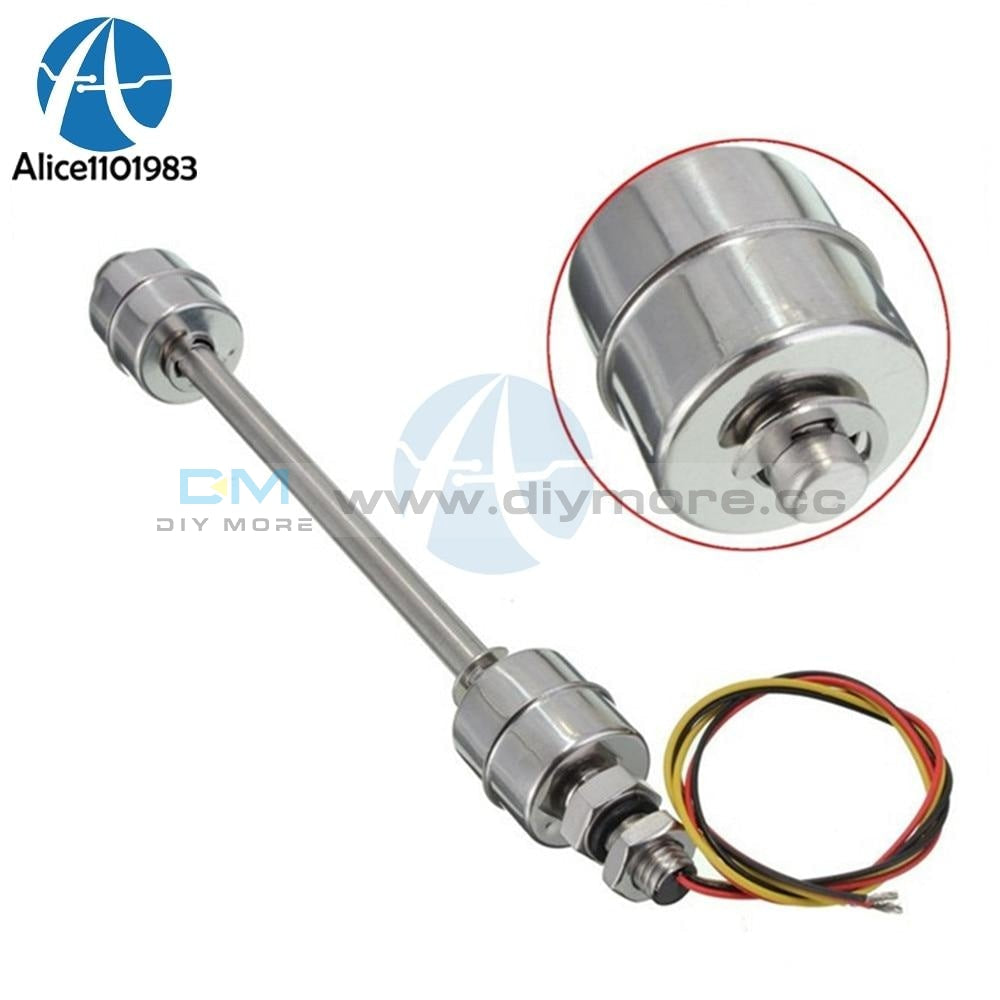

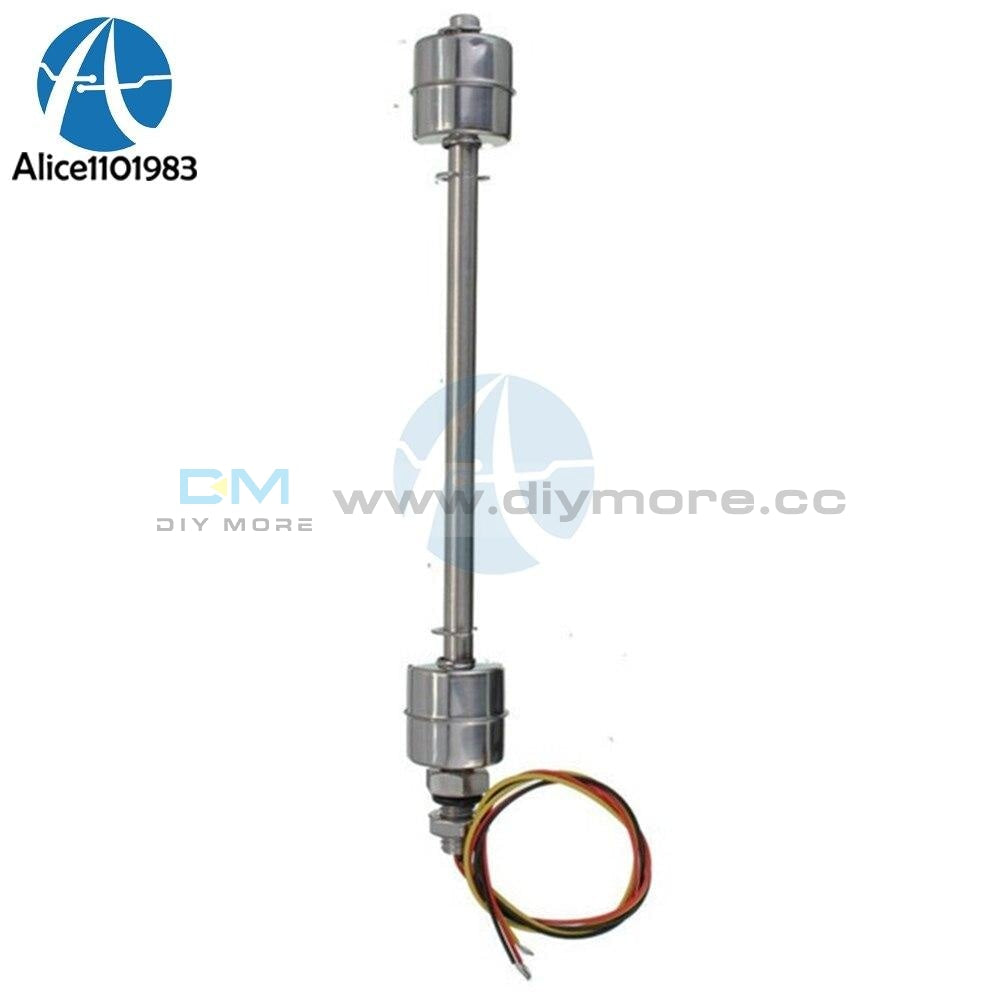

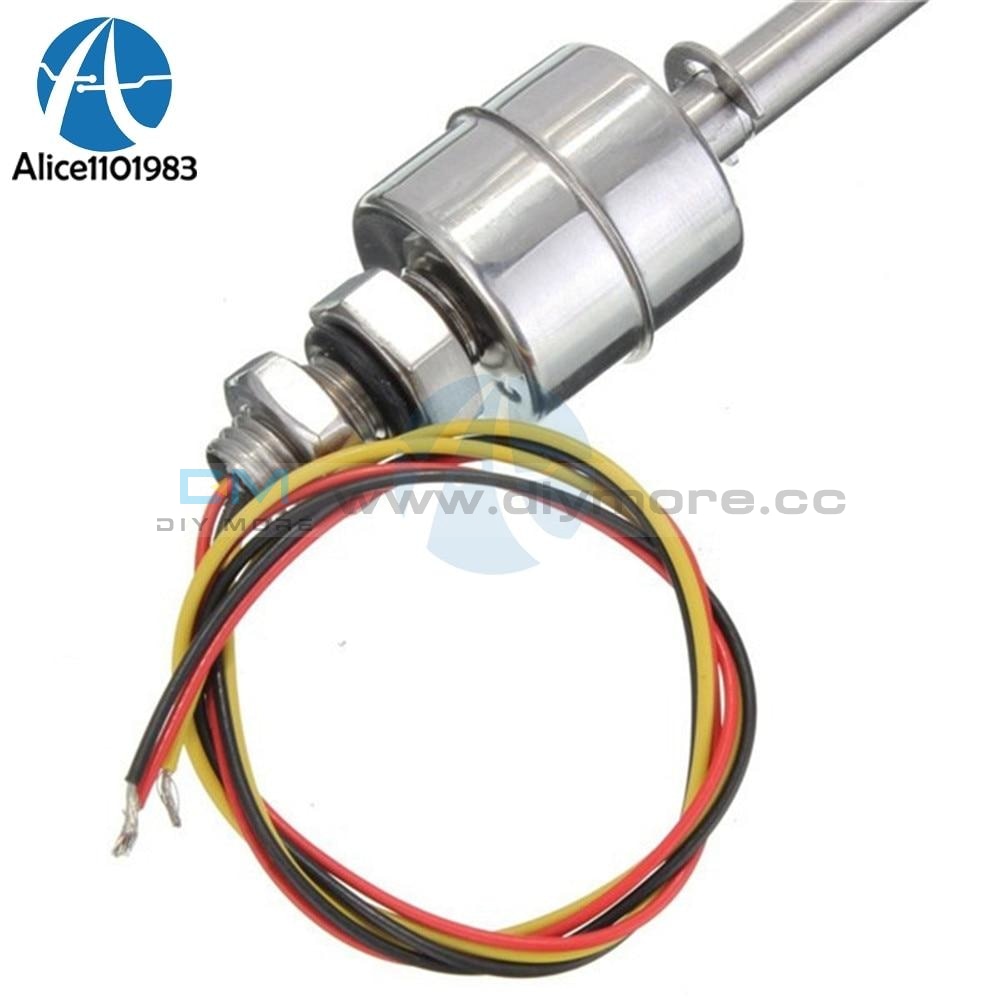

220V 200mm Stainless Steel Double Float Switch Water Level Sensor Module For Water tanks Liquid Level Control Controller

220V 200mm Stainless Steel Double Float Switch Water Level Sensor Module For Water tanks Liquid Level Control Controller

SKU:051046
Regular price $9.99

Specification:
Material:stainless steel
Cable length:30cm
Float body Length:200mm
Switching voltage: max. 220VDC
Switching current: max. 1.5A
Carry current: max. 3.0A
Feature:
1. Double float switch can be used in water tank, ponds, tanks, fish tank, and other liquid level control (drainage or water),
do the upper and lower level alarm switch. Inside contacts are use reed switch sensitivity is very high.
2. Float ball point can not move in anywhere , the float point is fixed, up and down have circlip limit.
3. The circlip moving is not use, inside reed contacts are not moving.
4. Float switch can not directly control the pump or solenoid valve, float switch inside the reed contact current, control a large load will burn.
5. Control solenoid valves, alarms to add small relays, control water pump need to add a small relay and AC contactor. (According to the pump power equipped with the corresponding AC contactor).
Package Include:
1 x Stainless Steel Float Switch Double Ball
