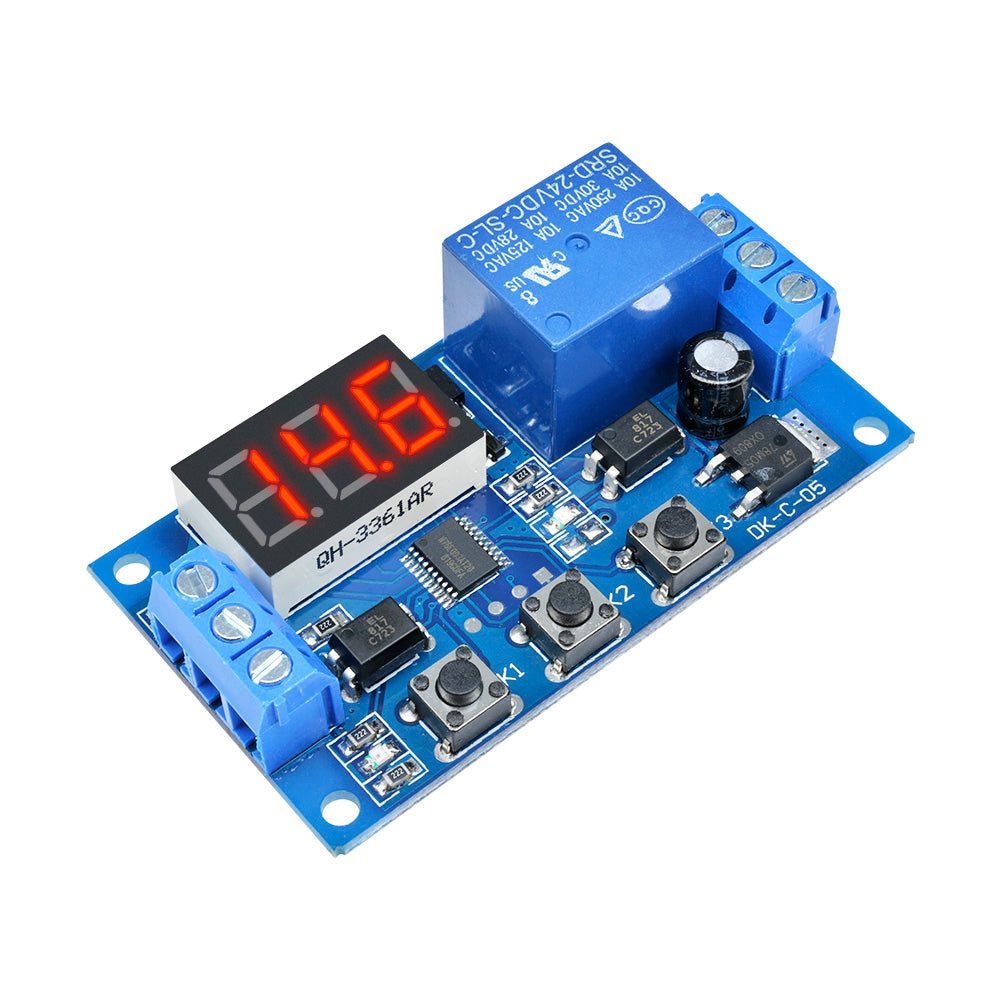

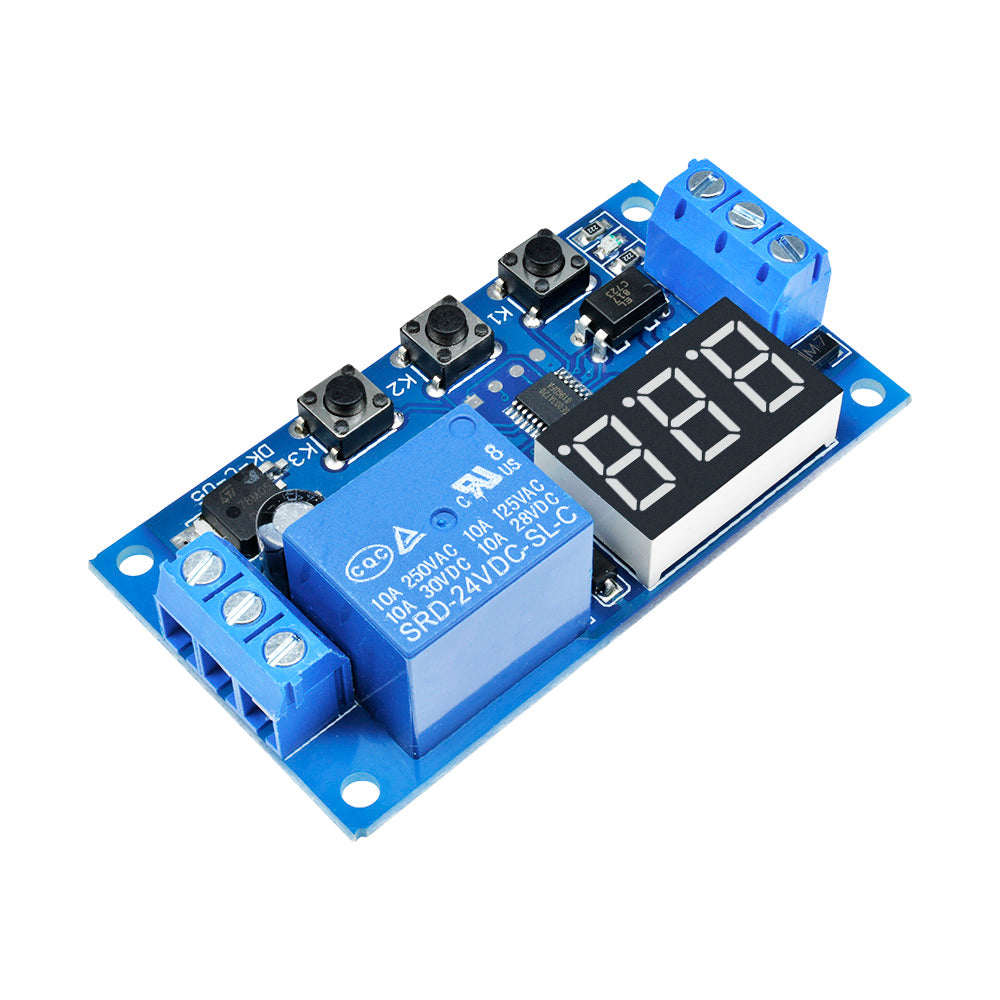

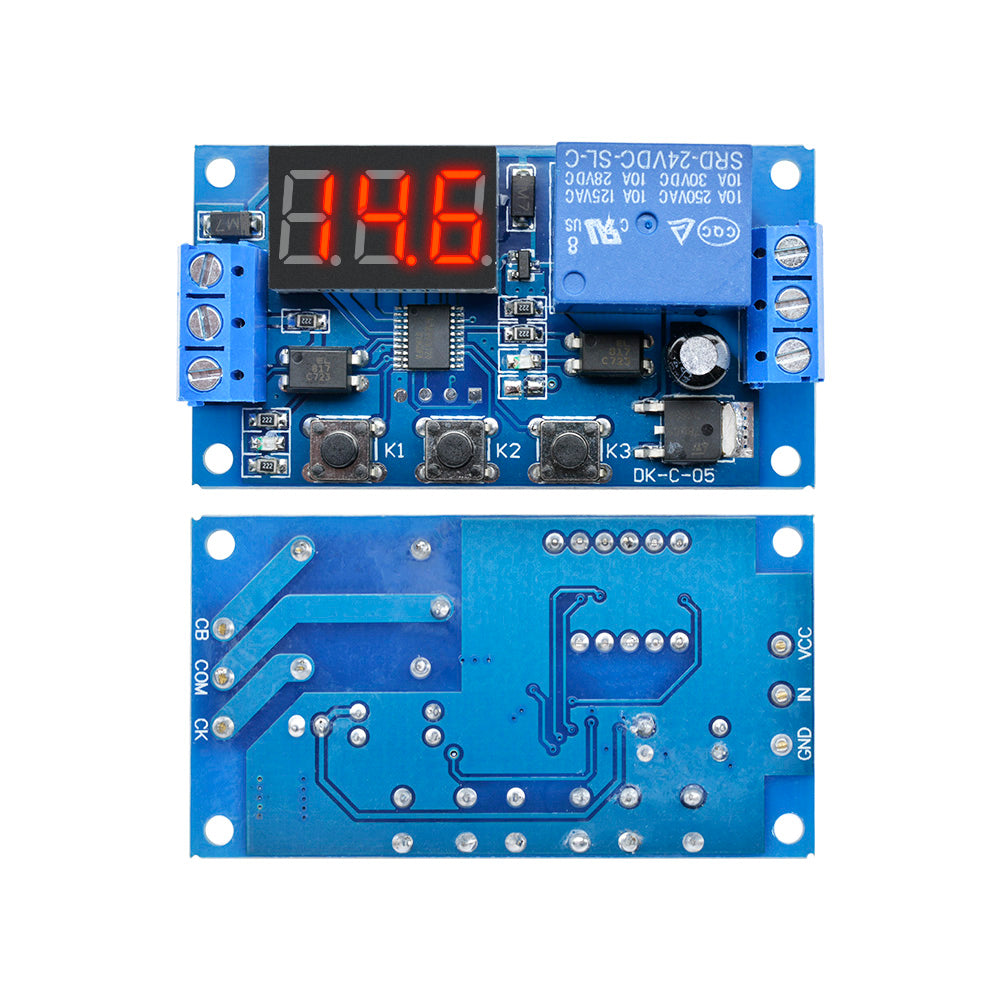

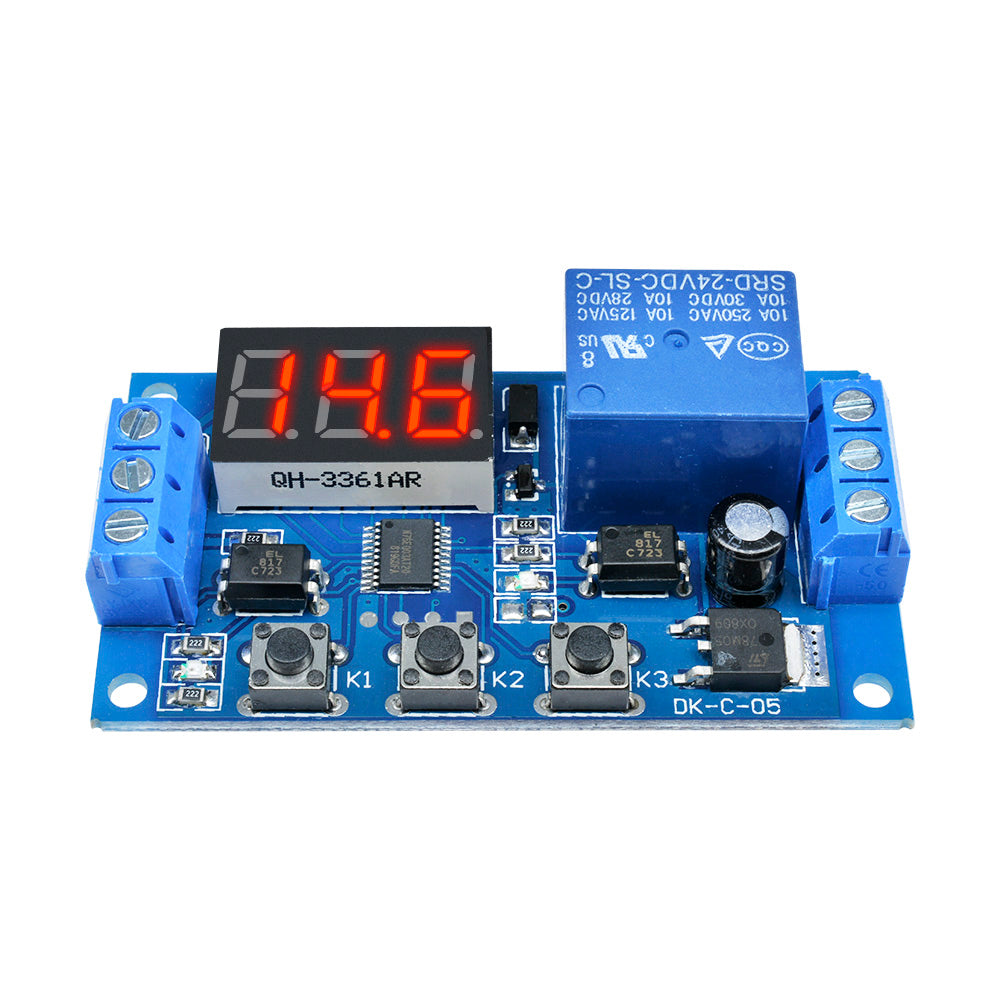

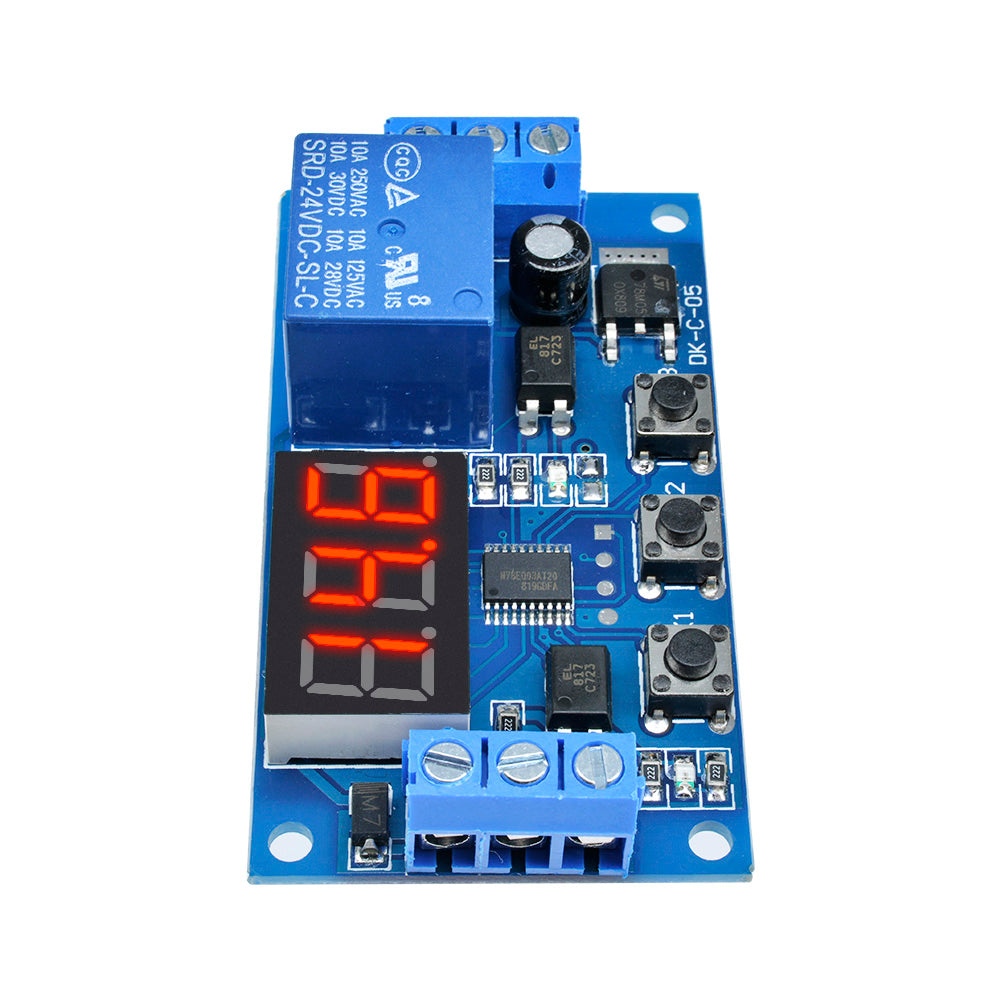

24V Digital LED Trigger Delay Time Cycle Timer Control Switch Relay Module
24V Digital LED Trigger Delay Time Cycle Timer Control Switch Relay Module
SKU:100001
Regular price
$6.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
This is a delay timer module with high performance, which is convenient and practical for users.
Features:
Features:
- New upgrades to simplify, meeting the users' needs.
- Increase the power supply anti-reverse function.
- The use of opto isolated input and output, enhanced anti-jamming capability and consumption.
- The last setting parameters can be memorized after power off.
- Signal terminal voltage signal can be maintained for a long time.
- To ensure stability, industrial grade PCB board.
- P-1: Monostable trigger delay, a signal to trigger relay, time is up, the relay disconnect;
- P-2: A signal trigger and countdown begins, T1 seconds after, the relay open T2 seconds, then close;
- P-3: Open T1 seconds, disconnect T2 seconds, infinite loop. Users can set the relay time T1 and T2;
- P-4: The relay opens when a signal triggers, when the trigger signal disappears, digital countdown begins, and the relay closes when the time is up.
- Working Voltage: DC 24V
- Timing Range(Settable): 0.1~99.9 seconds; 1~999 seconds; 1~999 minutes
- Signal Voltage: DC 4~20V
- Output Capacity: Can Control the Load within DC 30V 10A or AC 220V 10A
- Static Current: 20mA
- Working Current: 50mA
- Working Temperature: -40~85°C
- PCB Size: 64 * 35 * 18mm / 2.52 * 1.4 * 0.7in (L * W * H)
- PCB Weight: 25g / 0.89oz
- 1 X Delay Timer Module
