RC522 Card Read Antenna RF RFID Reader IC Card Proximity Module MFRC-522 + Key

RC522 Card Read Antenna RF RFID Reader IC Card Proximity Module MFRC-522 + Key

SKU:010230
Regular price $4.99

Feature:

The RC522 use of advanced modulation and demodulation concept completely integrated in all types of 13.56MHz passive contactless communication methods and protocols.

14443A compatible transponder signals. The digital part of to handle the ISO14443A frames and error detection.
In addition, support rapid CRYPTO1 encryption algorithm, terminology validation products.

RC522 support series of high-speed non-contact communication, two-way data transmission rate up to 424kbit/s.

As new members of the 13.56MHz reader card series of highly integrated chip family, RC522 RC500 RC530 There are a lot of similarities, but also have many of the characteristics and differences.

Communication between it and the host SPI mode helps to reduce the connection narrow PCB board volume, reduce costs.

RC522 chip:
RC522 is applied to the highly integrated read and write 13.56MHz contactless communication card chip, launched by the company for the "table" application of a low-voltage, low-cost, small size of the non-contact card chip to read and write, smart meters and portable handheld devices developed better choice.

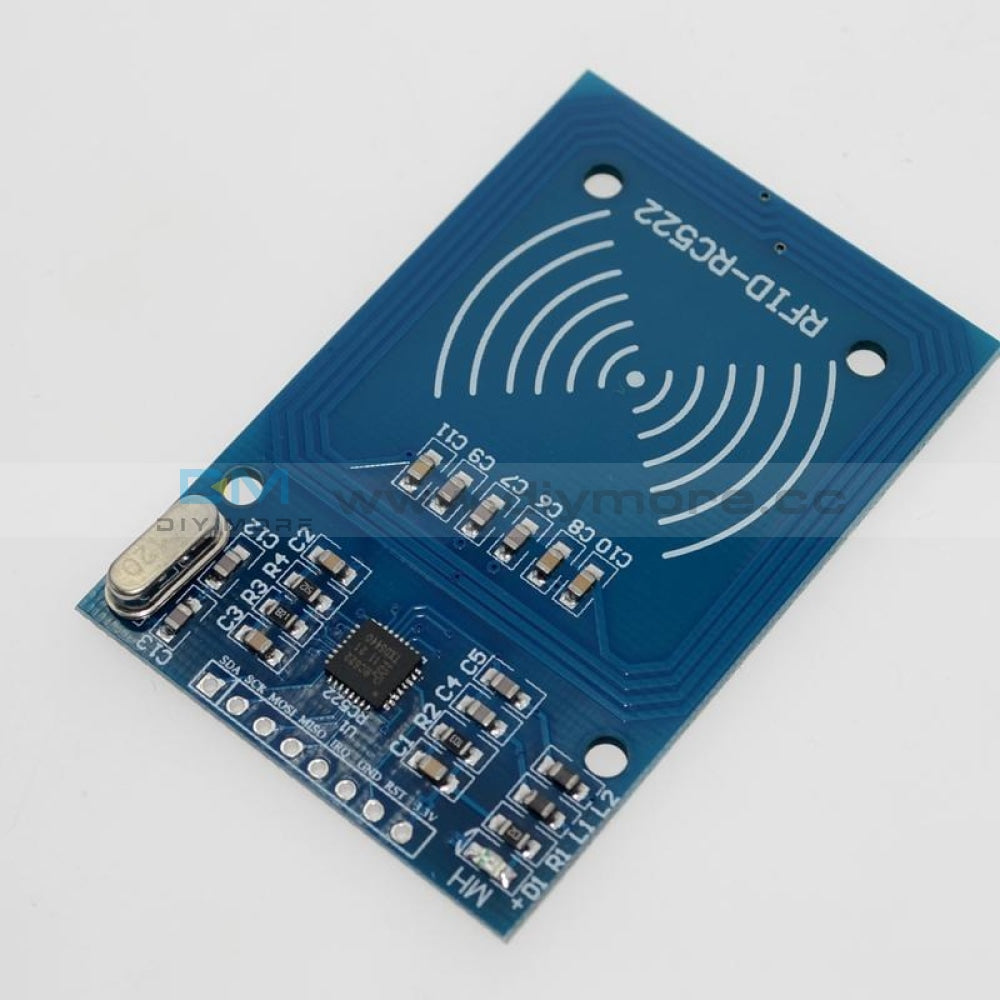

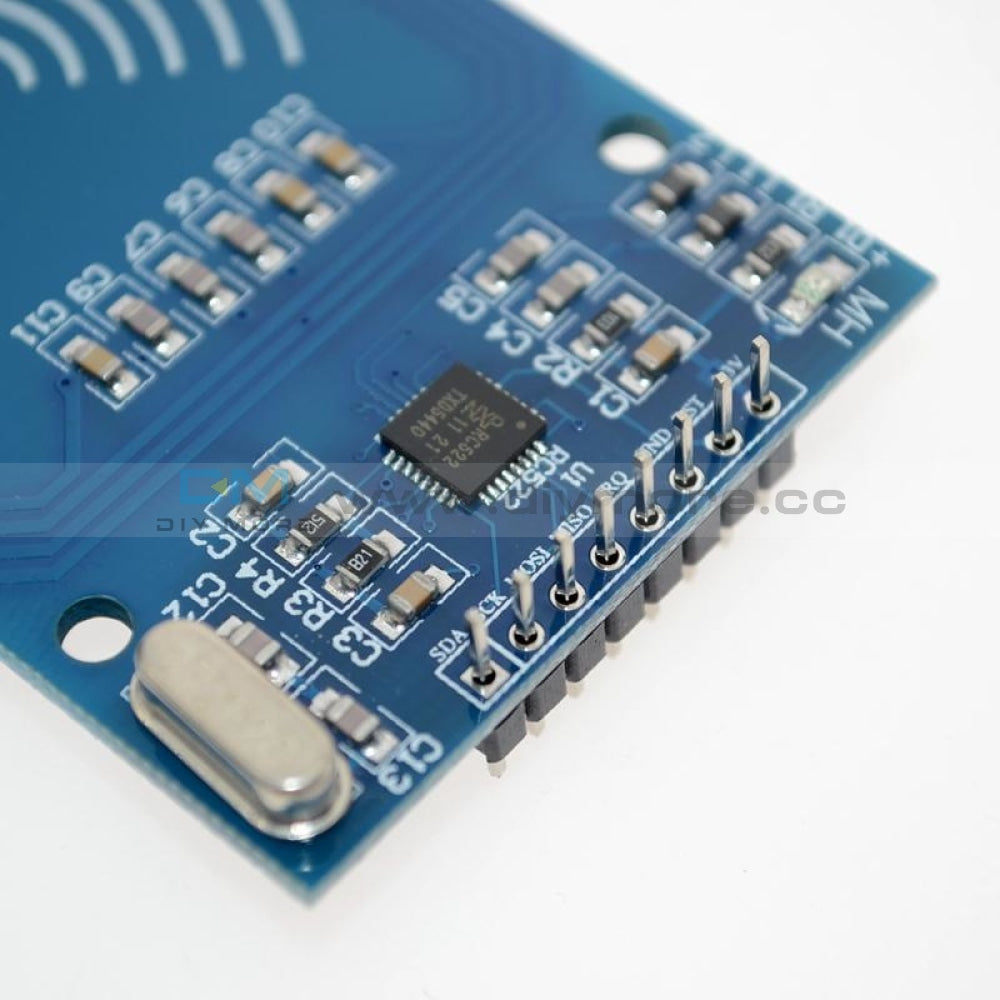

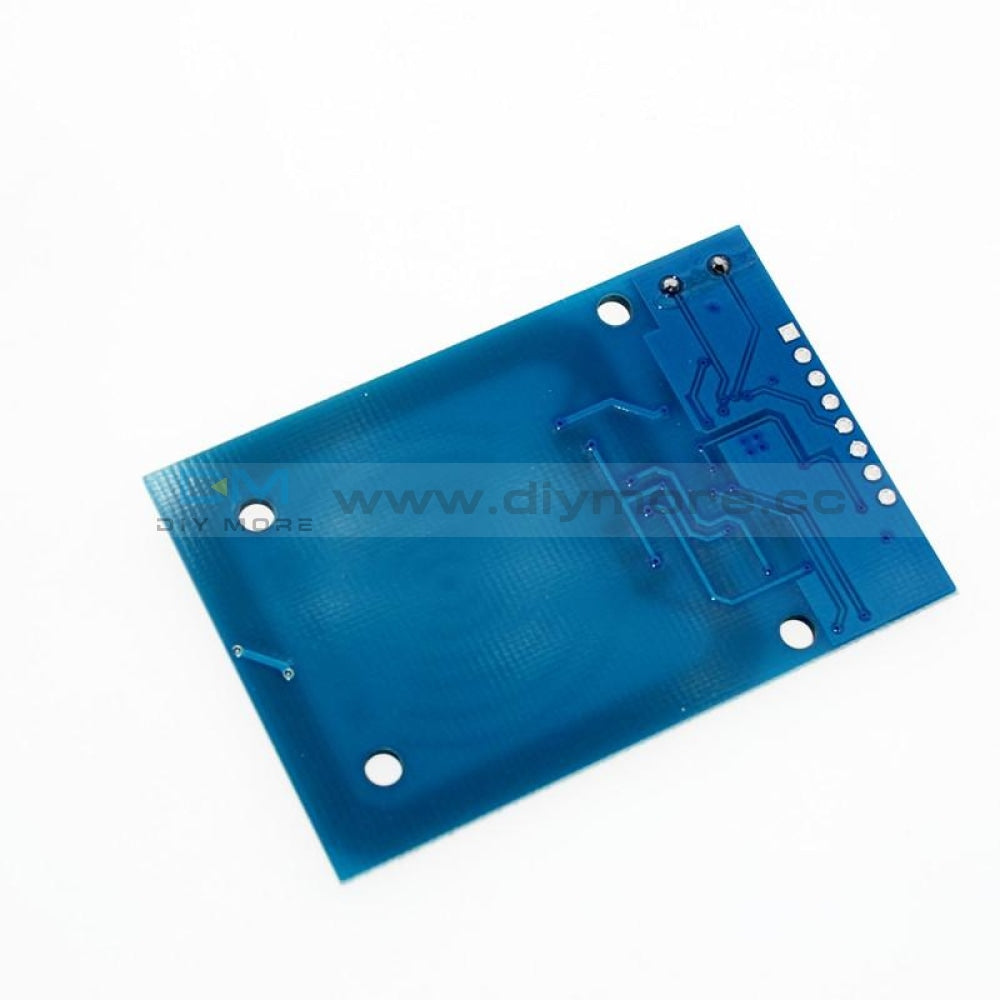

RFID module:
The RC522-AN module the the original Philips RC522 chip design circuit card reader, easy to use, low cost, and applies to the user equipment development, the reader and the development of advanced applications, the need for the user RF card terminal design/production.
This module can be directly loaded into the various reader molds.
Utilizes a voltage of 3.3V, through the SPI interface simple few lines directly with any user CPU motherboard connected communication can ensure that the module is stable and reliable work, distance card reader.

Electrical parameters:
1. Operating current :13-26mA/DC 3.3V
2. Idle current :10-13mA/DC 3.3V
3. Sleep current: <80uA
4. Peak current: <30mA
5. Operating Frequency: 13.56MHz
6. Supported card types: S50, S70 Ultralight, Pro, DESFire
7. Product physical characteristics: size: 40mm×60mm
8. Environmental Operating temperature: -20-80 degrees Celsius
9. Environmental Storage Temperature: -40-85 degrees Celsius
10.Relative humidity: relative humidity 5% -95%
11.Module interfaces SPI Parameter
12.Data transfer rate: maximum 10Mbit/s

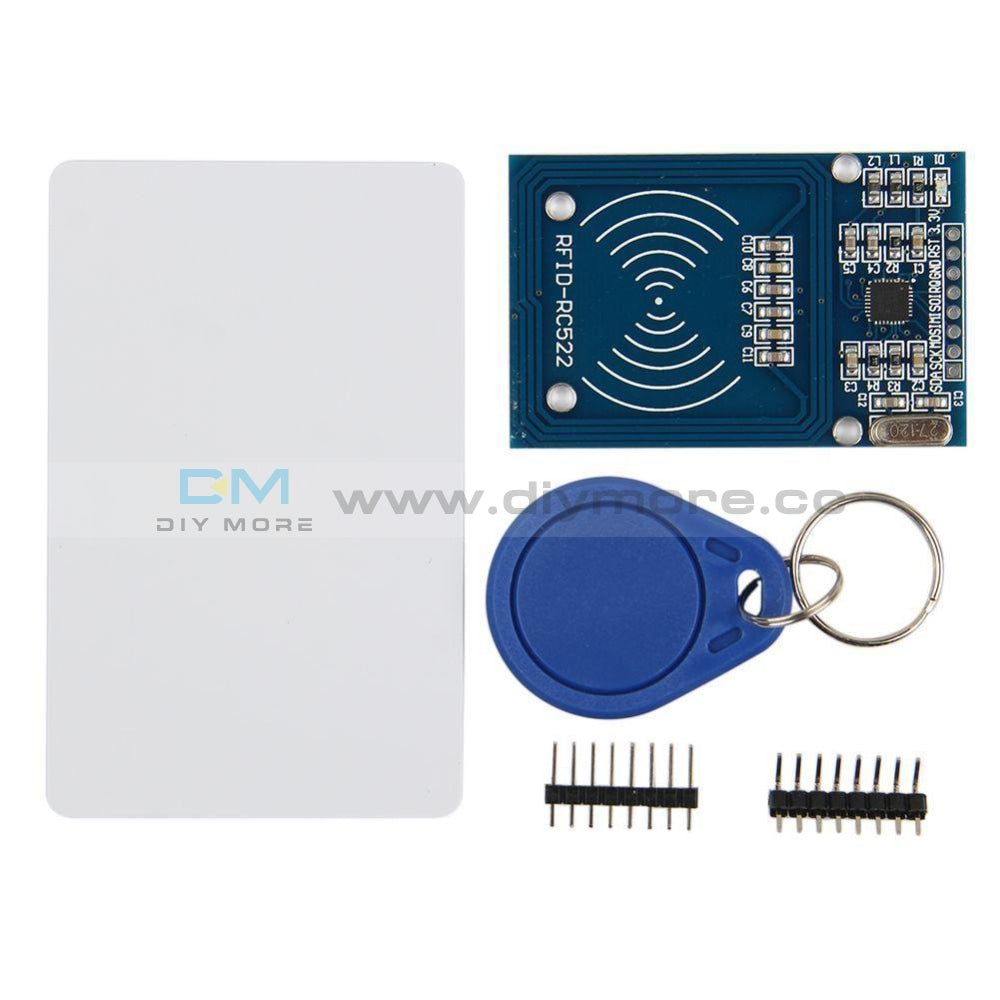

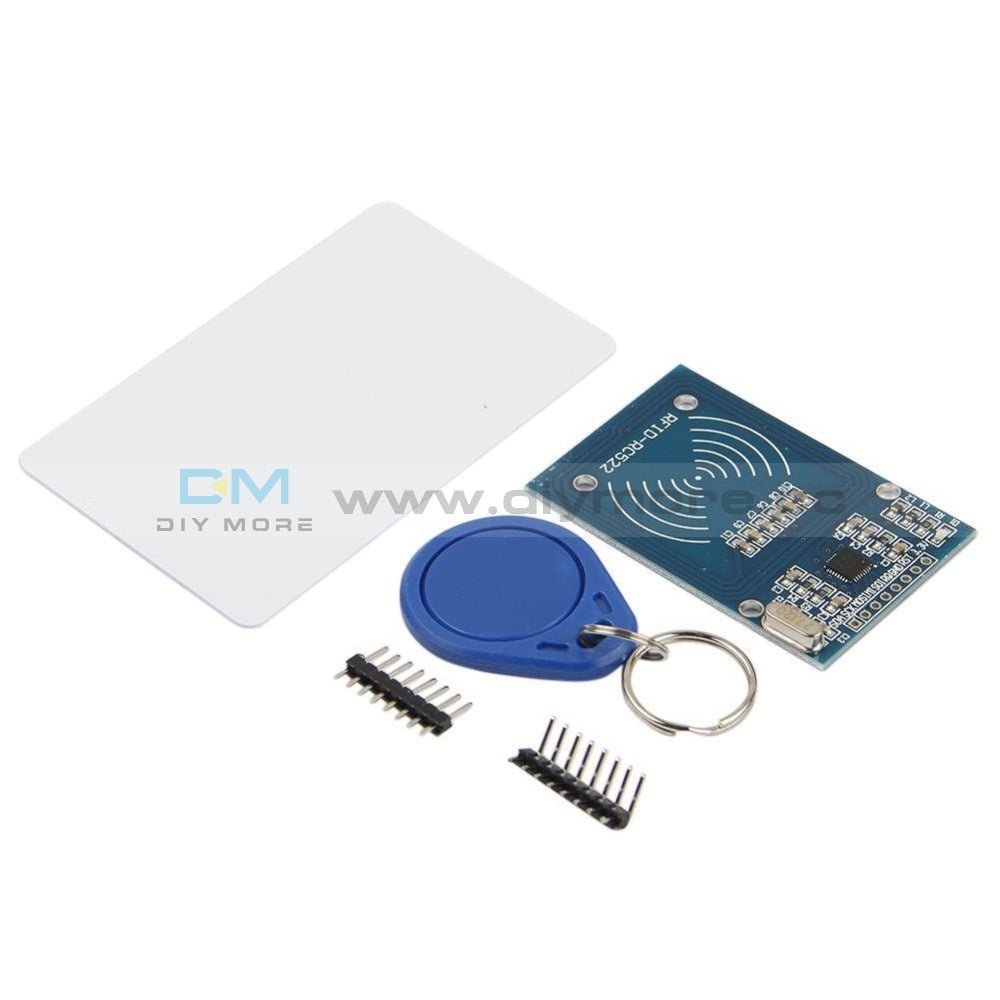

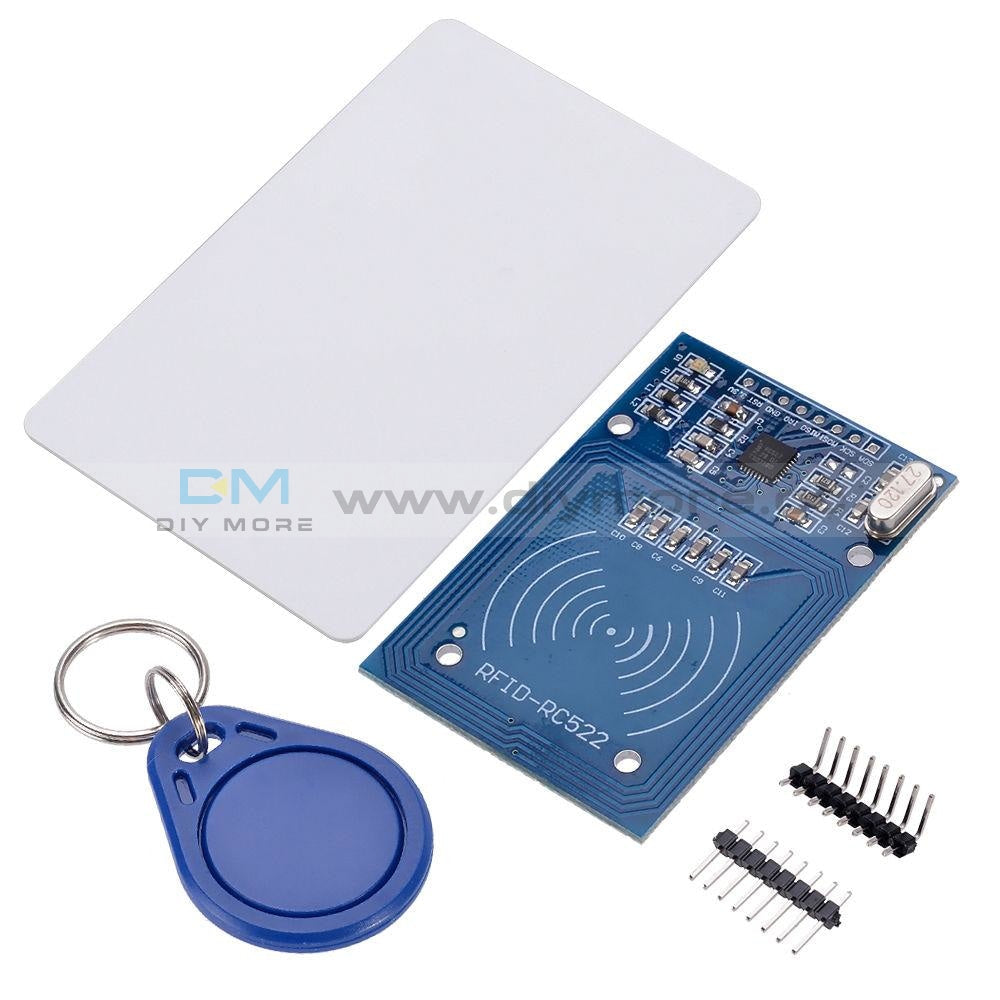

Package include:
1 x RC522 Card Read Antenna RFID Reader IC Card Proximity Module
