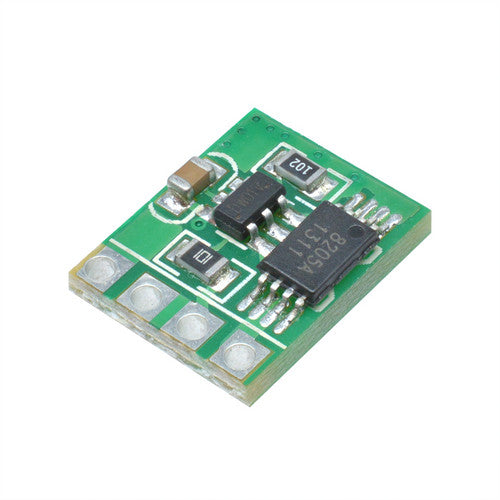

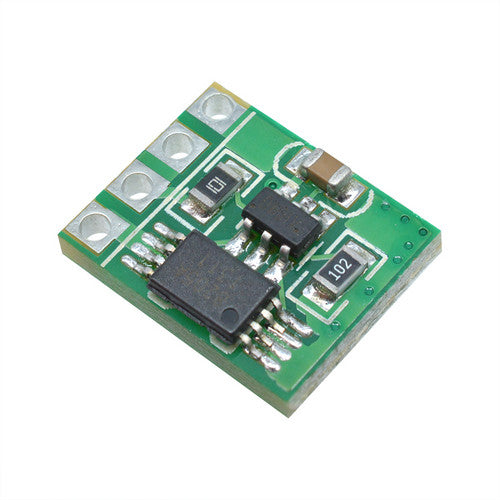

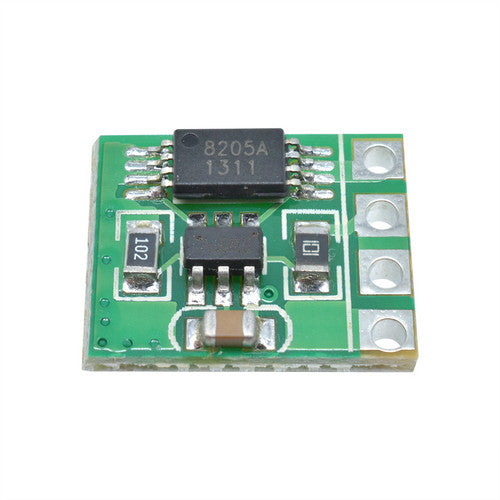

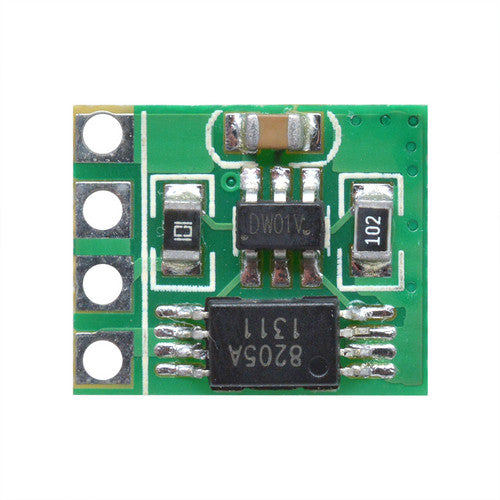

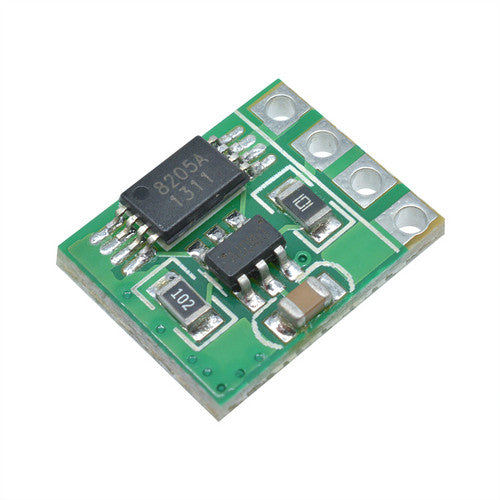

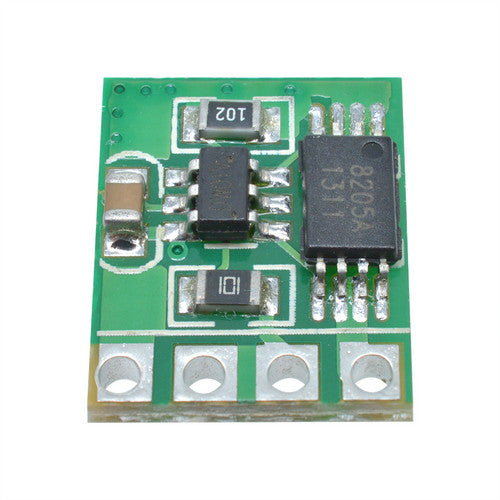

3.7V 4.2V 18650 Li-ion Lithium Battery Over Discharge Protection Board Charger
3.7V 4.2V 18650 Li-ion Lithium Battery Over Discharge Protection Board Charger
SKU:012776
Regular price
$4.99
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Functions:
- Over Charge Protection
- Over Discharge Protection
- Short Circuit Protection
- Overcurrent Protection
- Over Charge Detection Voltage: 4.28±0.05V
- Over Charge Release Voltage: 4.26±0.05V
- Over Discharge Detection Voltage: 2.5±0.1V
- Over current Detection Current: 1-3A
- Overcurrent protection : 3.2±0.2A
- Size : 12.6x10.2x2.1mm
- Weight : 0.34g
- B- connected to battery negative
- B+ connected to battery positive
- P+ Connect the charger/load positive
- P- Connect the charger/load negative
- 3.7V lithium battery 18650
- TP4056 Charging module
- 1 x Battery Charger Discharge Protection Module (not contain other parts)
