3-Axis CNC TB6560 Stepper Motor Driver CNC Engraver Controller Board
3-Axis CNC TB6560 Stepper Motor Driver CNC Engraver Controller Board
SKU:010347
Regular price
$41.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Description:
- Toshiba TB6560AHQ chip - High power, maximum 3.5A drive current chipset
- 1-1/16 microstep setting - Higher accuracy and smoother operation than standard 1, 1/2 step
- Adjustable drive current settings for each axis - 25%,50%,75%,100% of full current can be set for different stepper motors
- Overload, over-current and over-temperature safety - Full protection for your computer and peripheral equipment
- On board current switching - Power output can be set according to specific user requirement
- Full closed-type optical isolation to protect the user's computer and equipment
- Relay spindle interface - Outputs Max. 36V 7.5A for spindle motors or coolant pump (only one device can be powered by this output!)
- 4 channel inputs interface- Can be used for XYZ limit and emergency stop
- Professional design - Two stage signal processing with super anti-jamming
- Bipolar constant current chopper drive with non-resonant region - Controls motors smoothly through range without creep effect
- Four control inputs (divided into pairs of knives) - Allows setting of limit and emergency stop
- Universal architecture - Supports most parallel software MACH3, KCAM4, EMC2 etc!
- Please connect the power supply to the power switch of DC 12-36 V
- > 12-16V DC power supply for Nema 17 stepper motors
- > 16-24V DC power supply for Nema 23 stepper motors
- > 24-36V DC power supply for Nema 34 stepper motors
- The power output of 12V shall be applied to the radiator fan of 12V
- Driver output compatible with 2 or 4 phase, 4,6 or 8 lead stepper motors, 3A max.
- Suitable for unipolar or bipolar stepper motors.
- Voltage regulated spindle speed controlled by parallel interface as function of supply voltage.

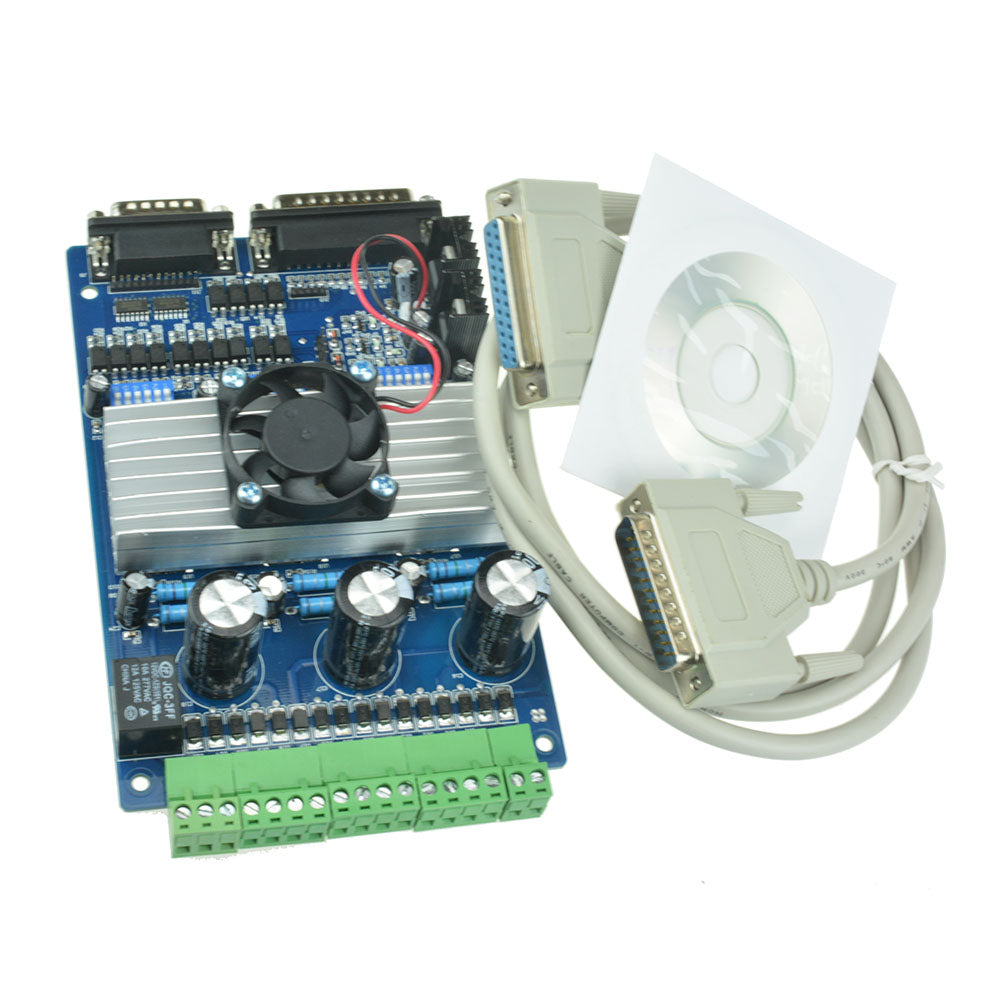

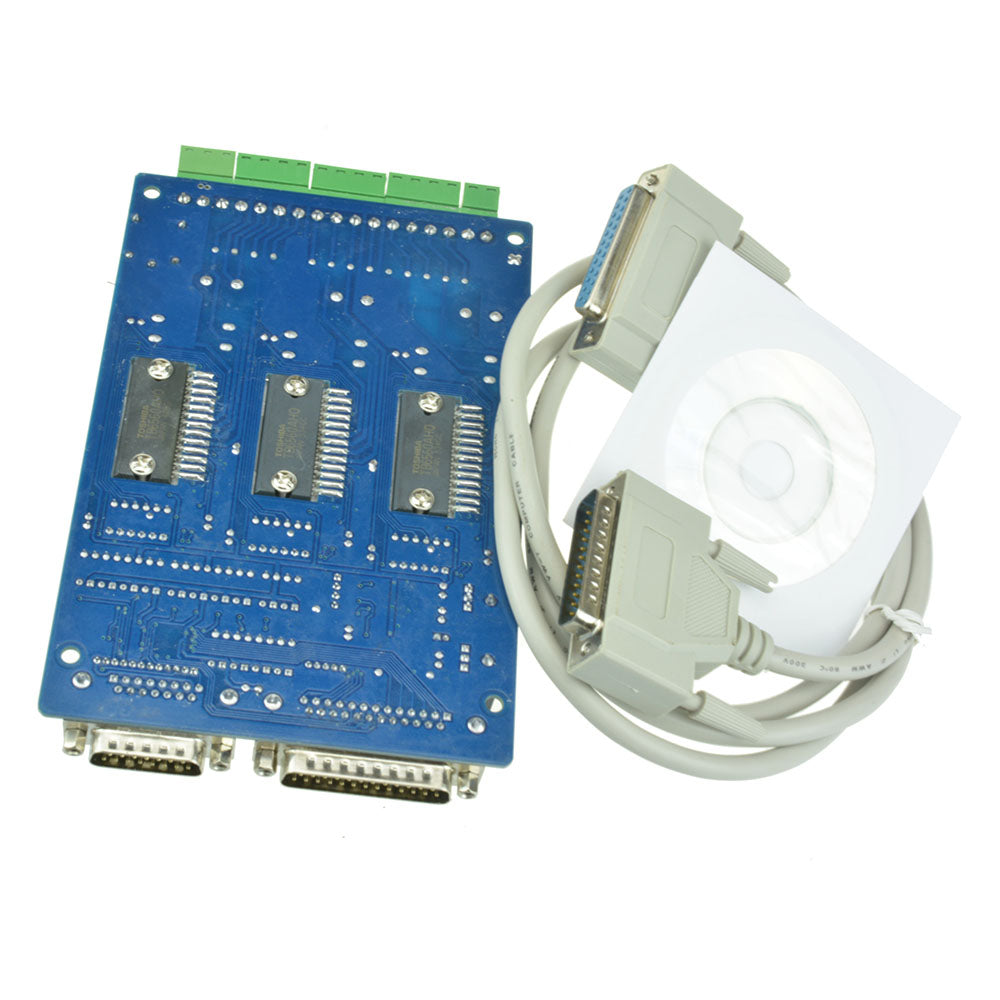

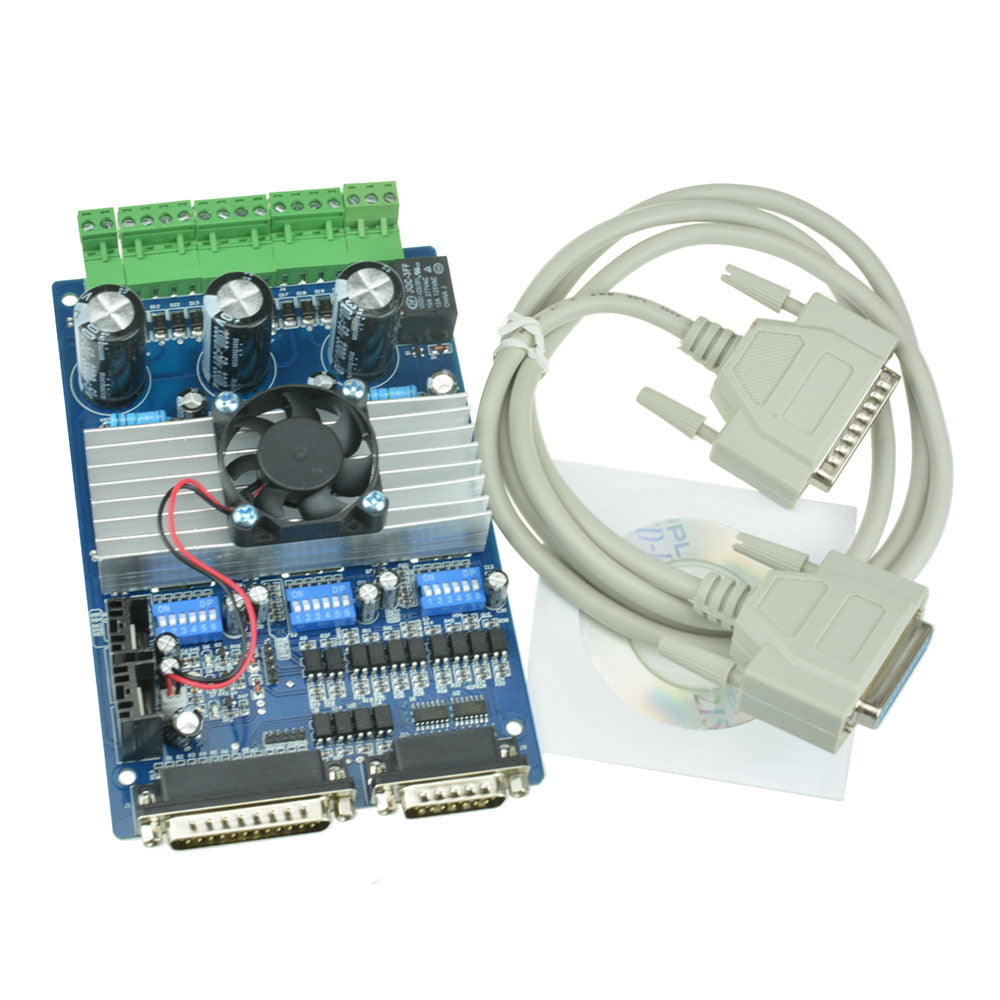

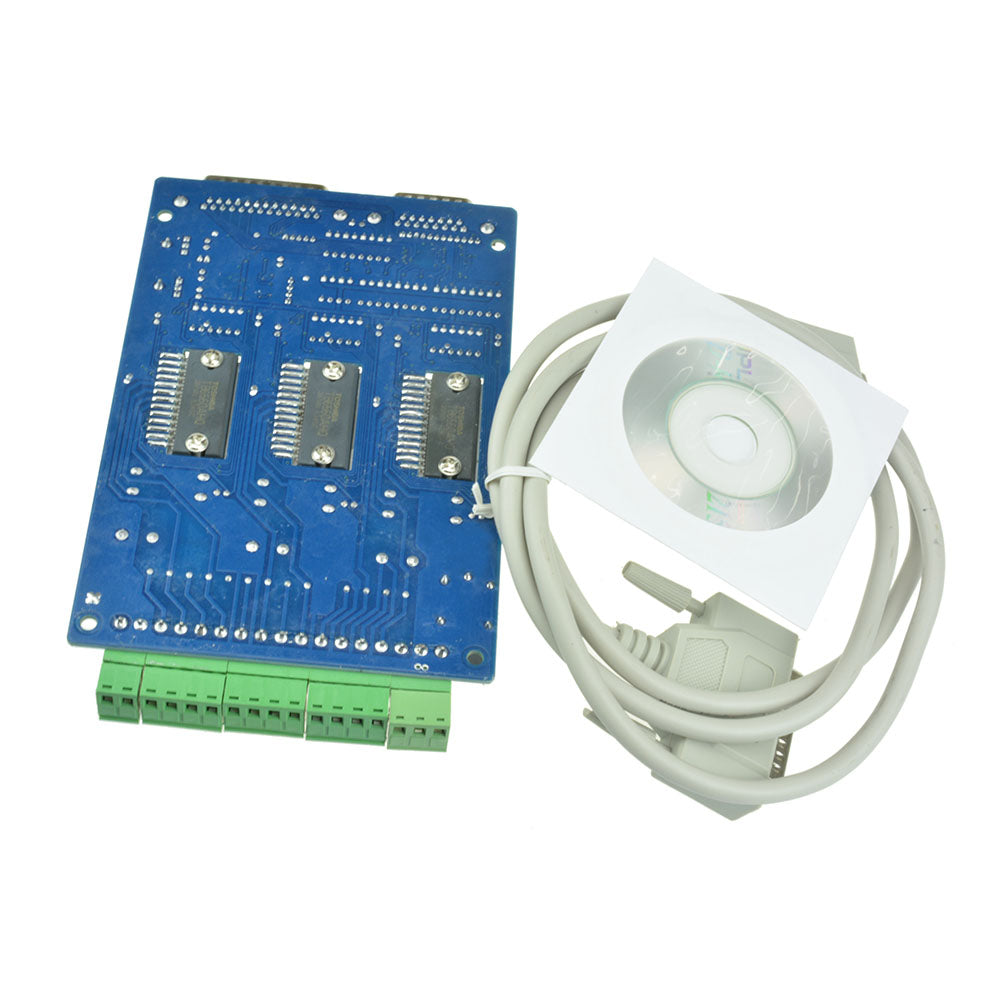

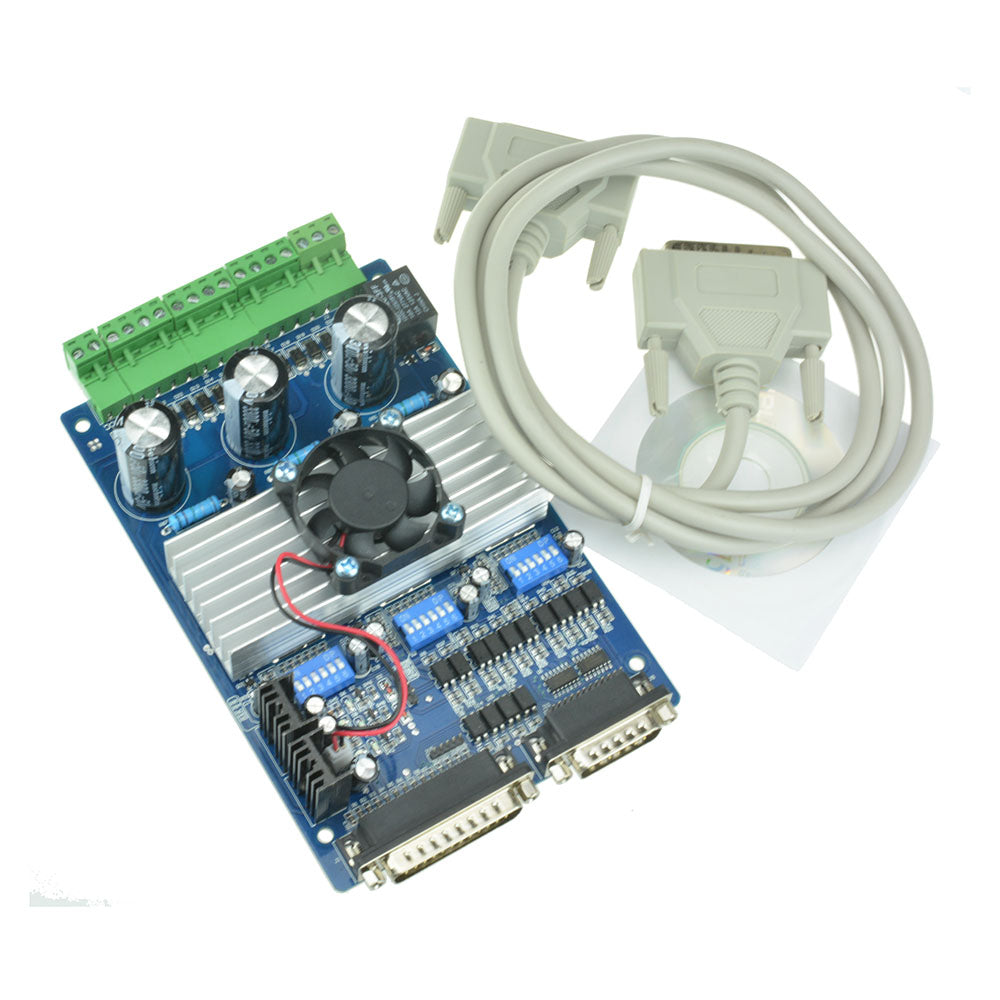

- 1PC*TB6560 mould
- 1PC*DB25 parallel cable
- 1PC*CD software(English Manual )
