3 Colour DC 8V~15V 6-bit RF signal frequency counter 0.1MHz~65MHz
3 Colour DC 8V~15V 6-bit RF signal frequency counter 0.1MHz~65MHz
SKU:XQ0027-03
Regular price
$10.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Reference description:
Technical Parameters:
- PLJ-6LED-A is a cost-effective six-digit LED frequency display module specially designed for forum HAM friends. It is mainly used to display the frequency value of transceivers and other equipment, and can also be used for regular frequency measurement. This module has the characteristics of small and exquisite, reliable performance, good visual effect and low cost.
Technical Parameters:
- Gate time
- 0.1 second
- Measurement channel
- Input impedance: high impedance
- Measuring range: 0.1 MHz~65 MHz
- Measurement accuracy: 10 Hz
- Sensitivity: better than 60mVpp
- IF setting
- Independent dual intermediate frequency design, the minimum step of intermediate frequency adjustment is 100Hz, the intermediate frequency range is 0~99.9999MHz, and the mode of adding intermediate frequency or subtracting intermediate frequency can be set.
- Frequency reference
- Using 5032 package 13.000MHz Temperature Compensated Voltage Controlled Crystal Oscillator (VC-TCXO), the frequency stability is ±2.5ppm.
- Working voltage
- DC input: DC8V~15V (with power reverse polarity protection) or DC5V (hardware setting required).
- Working current
- Max 90mA

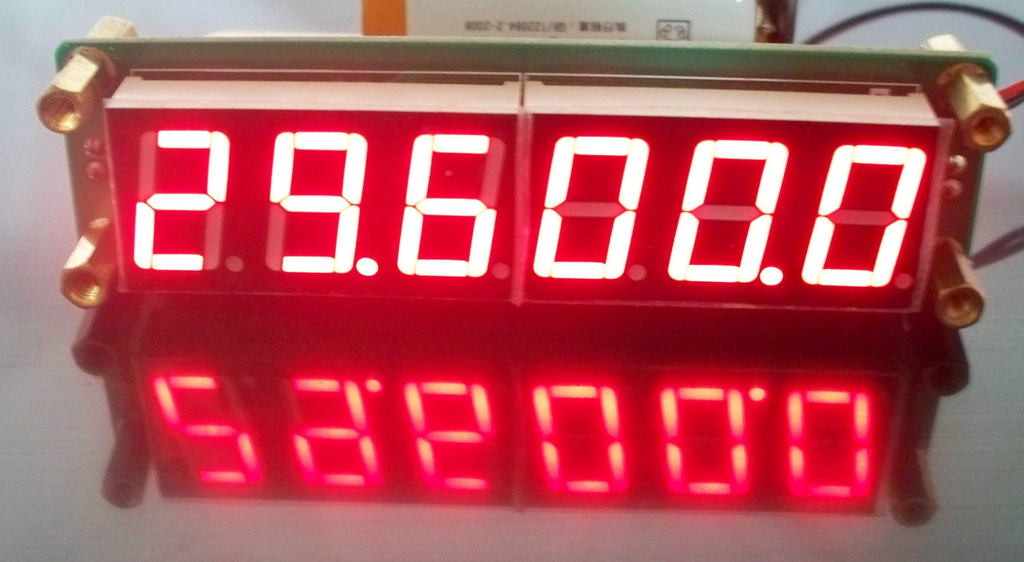

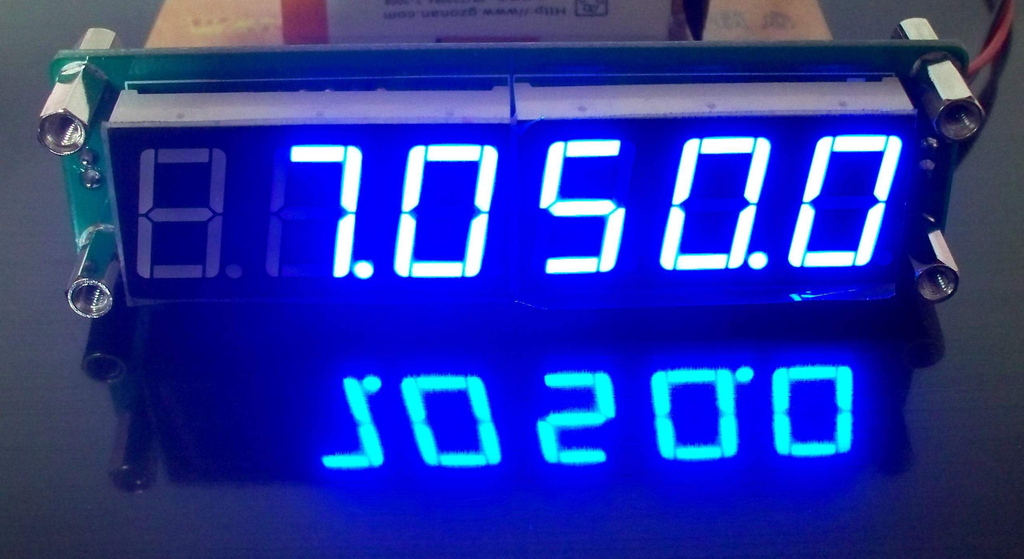

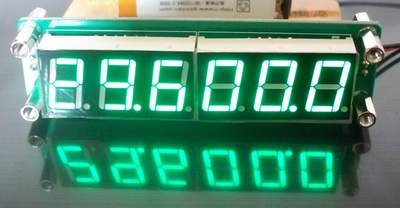

- Display digits
- Six-digit common anode LED display, the highest display six digits.
- Display brightness
- Eight-level LED brightness is adjustable, and the factory setting is the highest brightness.
- Physical dimensions
- Length × width × height: 91mm×28mm×20mm

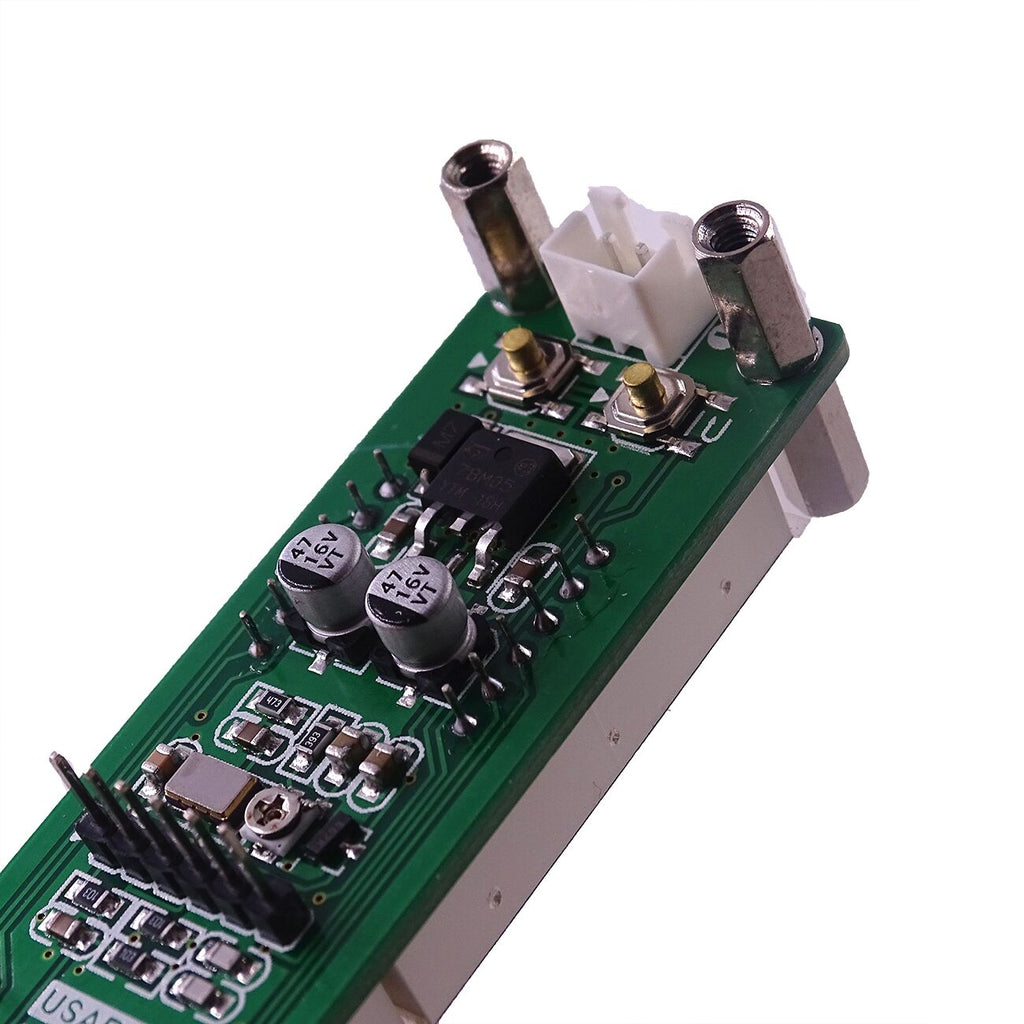

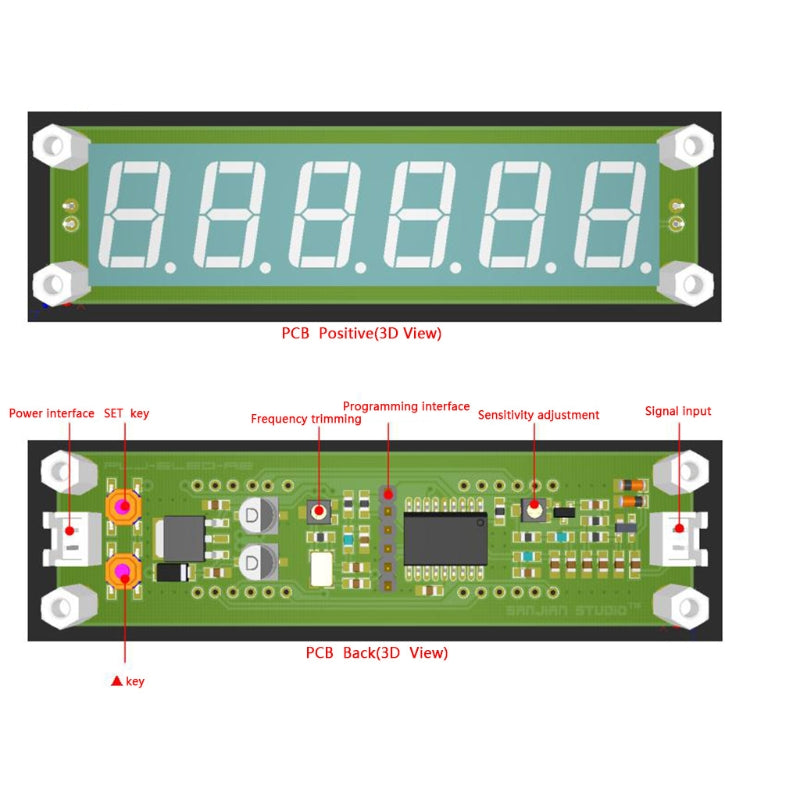

- Onboard interface
- RF IN (signal input): HX2.54-2P socket
- ICSP (programming interface): 2.54-6P pin
- DC IN (power interface): HX2.54-2P socket

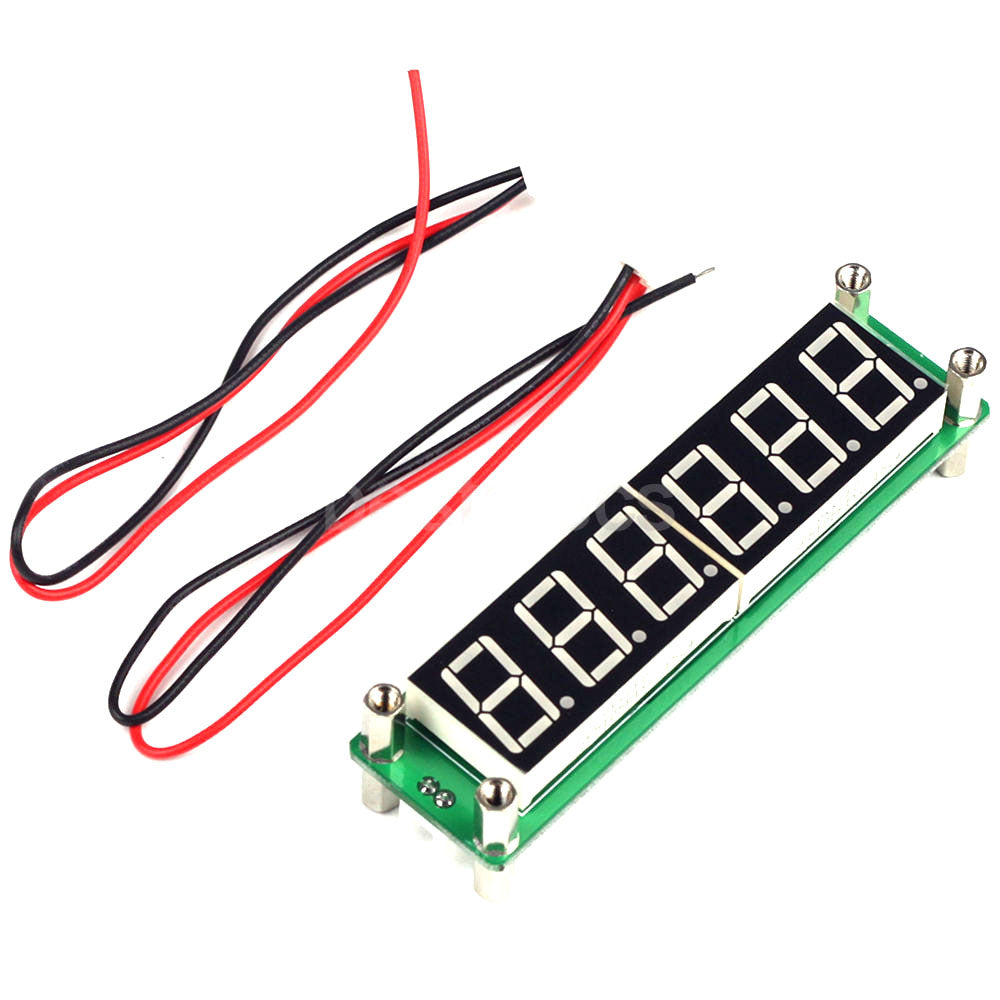

- 1 frequency counter
- 2 connecting wires
