3 Serial 3S 20A 18650 Li-ion Lithium Battery Charger Protection Board 10.8V 11.1V 12V 12.6V Electric 10A Lipo BMS PCB PCM Module

3 Serial 3S 20A 18650 Li-ion Lithium Battery Charger Protection Board 10.8V 11.1V 12V 12.6V Electric 10A Lipo BMS PCB PCM Module

SKU:X13091
Regular price $1.99

shipped within one bussiness day

Description:


3 series (for three 18650 batteries or polymer lithium battery series combination)
The rated voltage of 10.8 V (polymer battery)
18650 or 11.1 V (nominal voltage of 3.7 V lithium battery)
12.6 V voltage after a full battery (lithium)
20 a discharge (refers to the maximum discharge current limit)

The attribute of the lithium battery protection board:

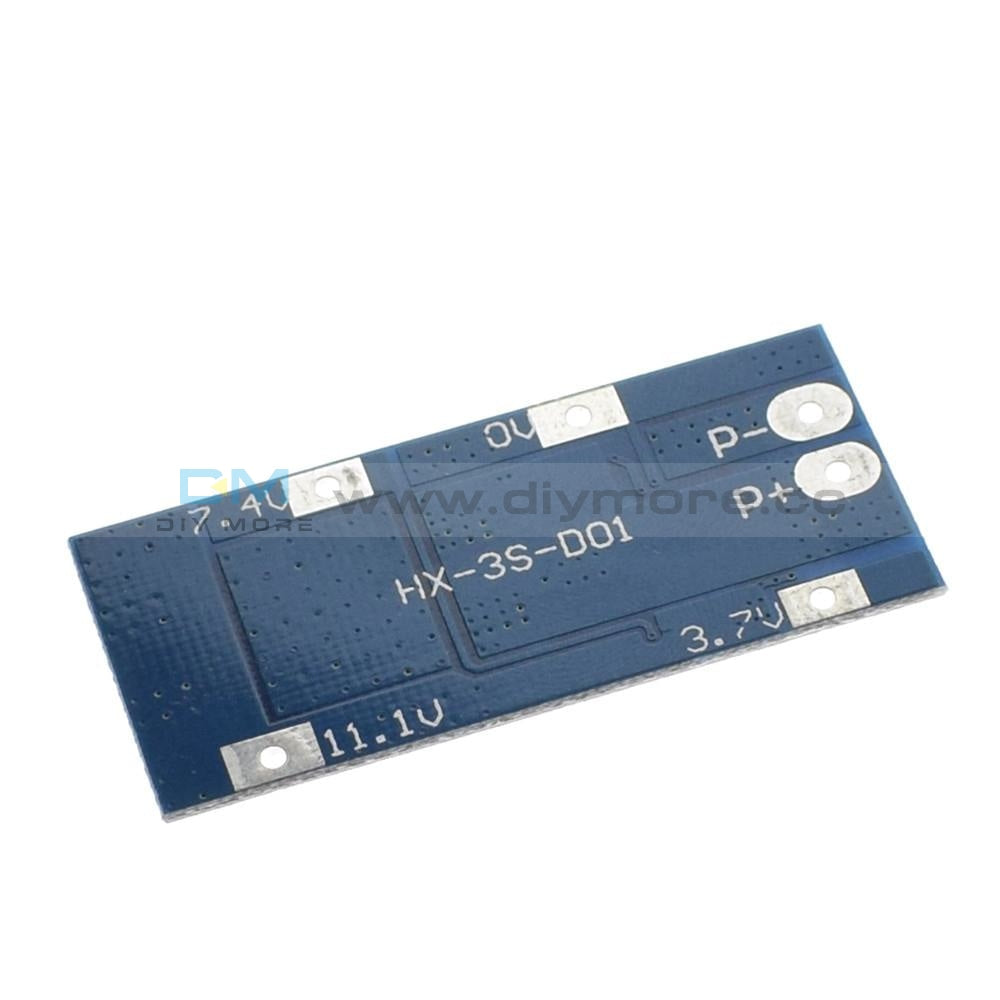

Models: HX - 3 s - D021 charging voltage range: 4.25 + / - 0.05 v to 4.35 v
Size: 51 * 23 * 4.0 mm discharge voltage range: 2.3 + / - 0.05 v to 3.0 v
Maximum working current: 10 a working temperature: - 40 - + 50 °
Maximum instantaneous current: 15-20 a storage conditions: - 40 - + 80 °
Static electricity: less than 50 ua useful life: more than 30000 hours
Resistance: less than 150 m Ω short circuit protection, can protect, delay the recovery.
The protection plate size and device description;

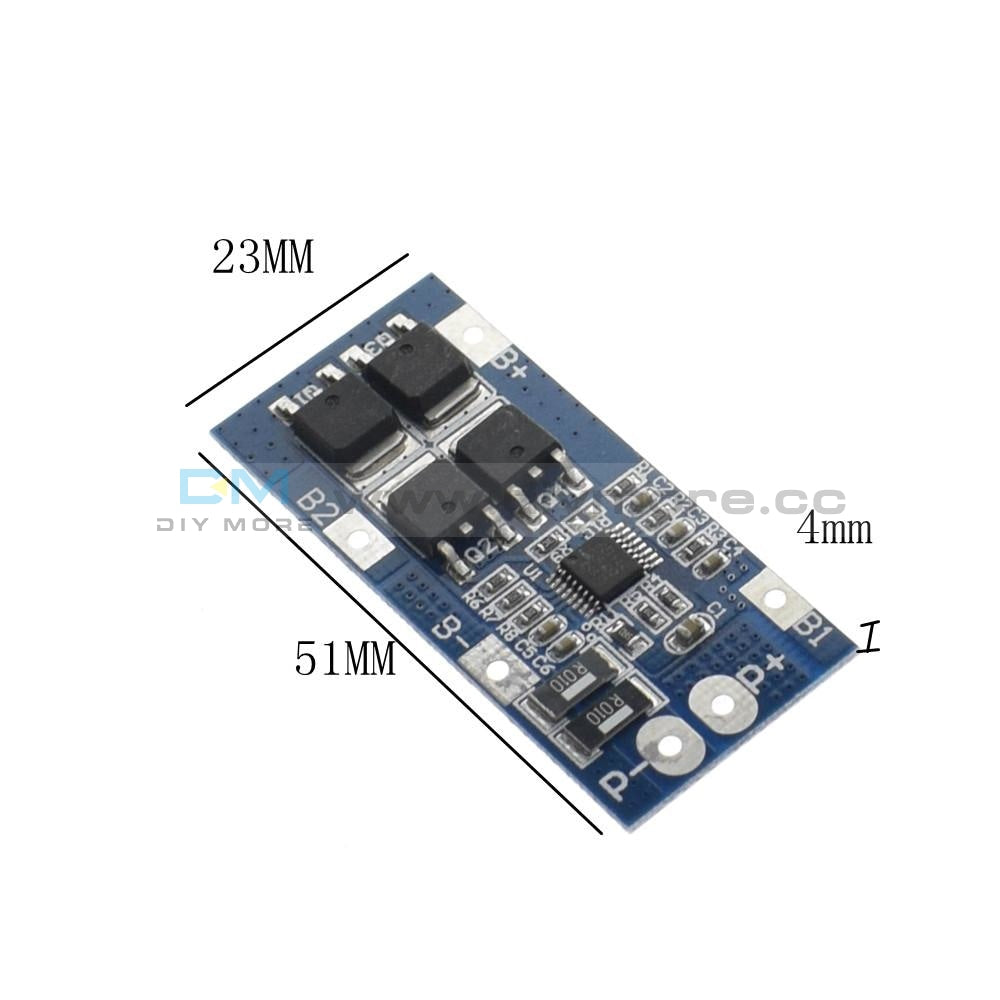

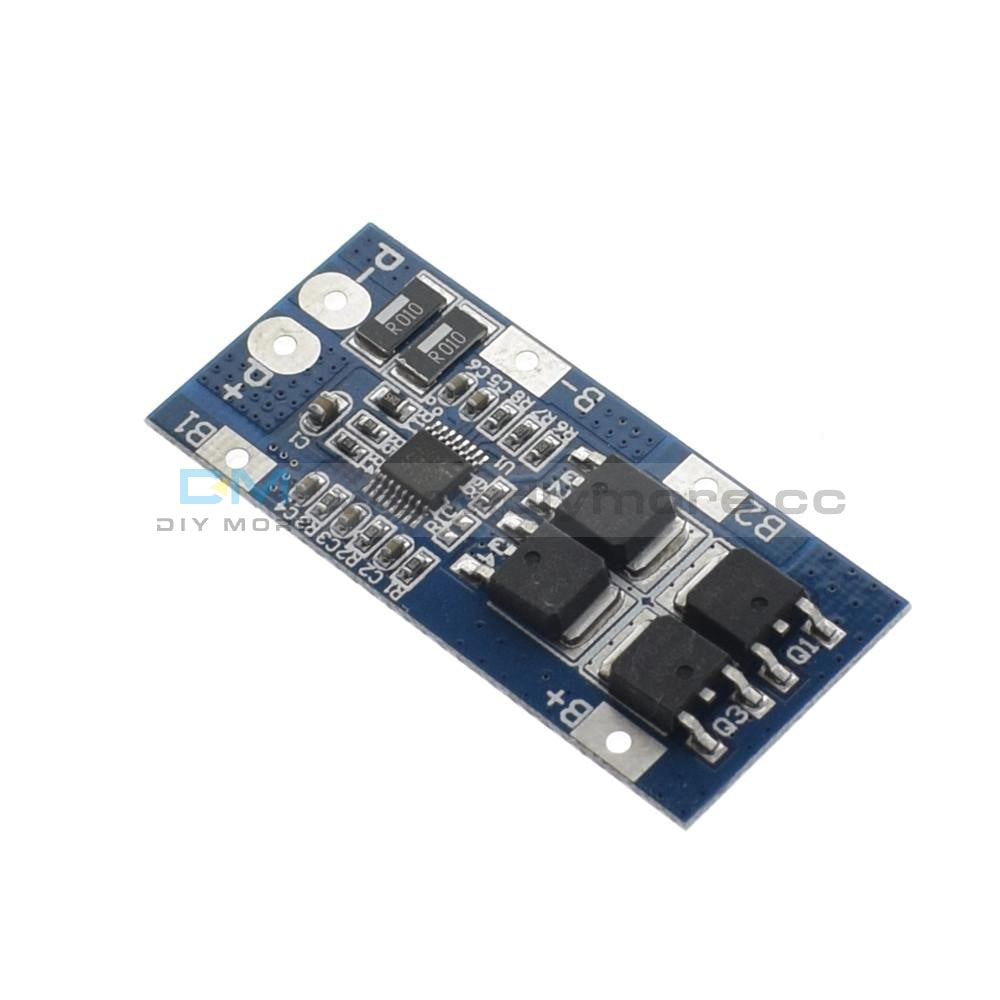

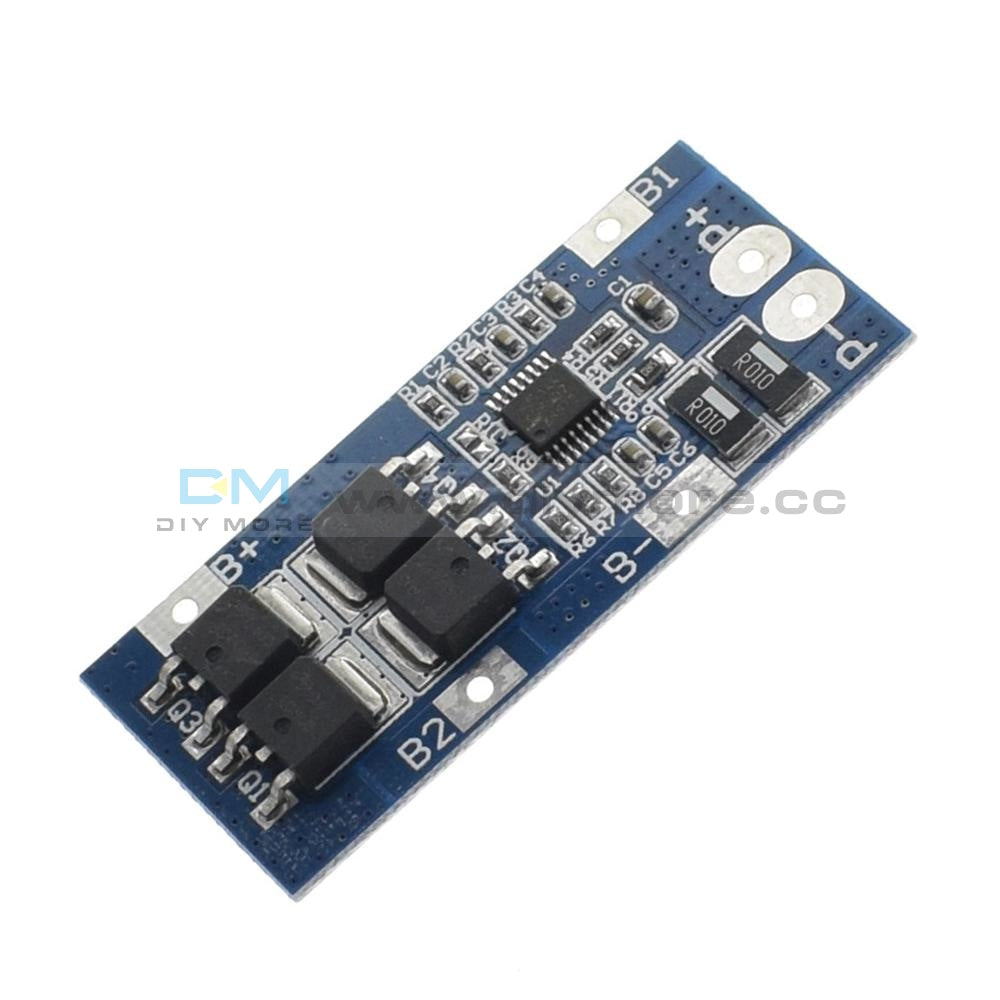

The protection plate size of 51*23*4 mm;Components for seiko S-8254AA protection chip and authentic AOS IC:D403 * 4PCS;

Note: more than 3 a current discharge products, battery discharge rate is more than 3 c.
Ratio calculation formula: 1 c rate of the battery, 2000 capacity is equal to 2 ah * 1 = 2 a maximum working current.


3 c ratio battery, 2000 capacity is equal to 2 ah * 3 = 6 a maximum working current.
In use battery heats is ratio is not applicable, this situation must not be used for a long time, the battery will soon be damaged.
