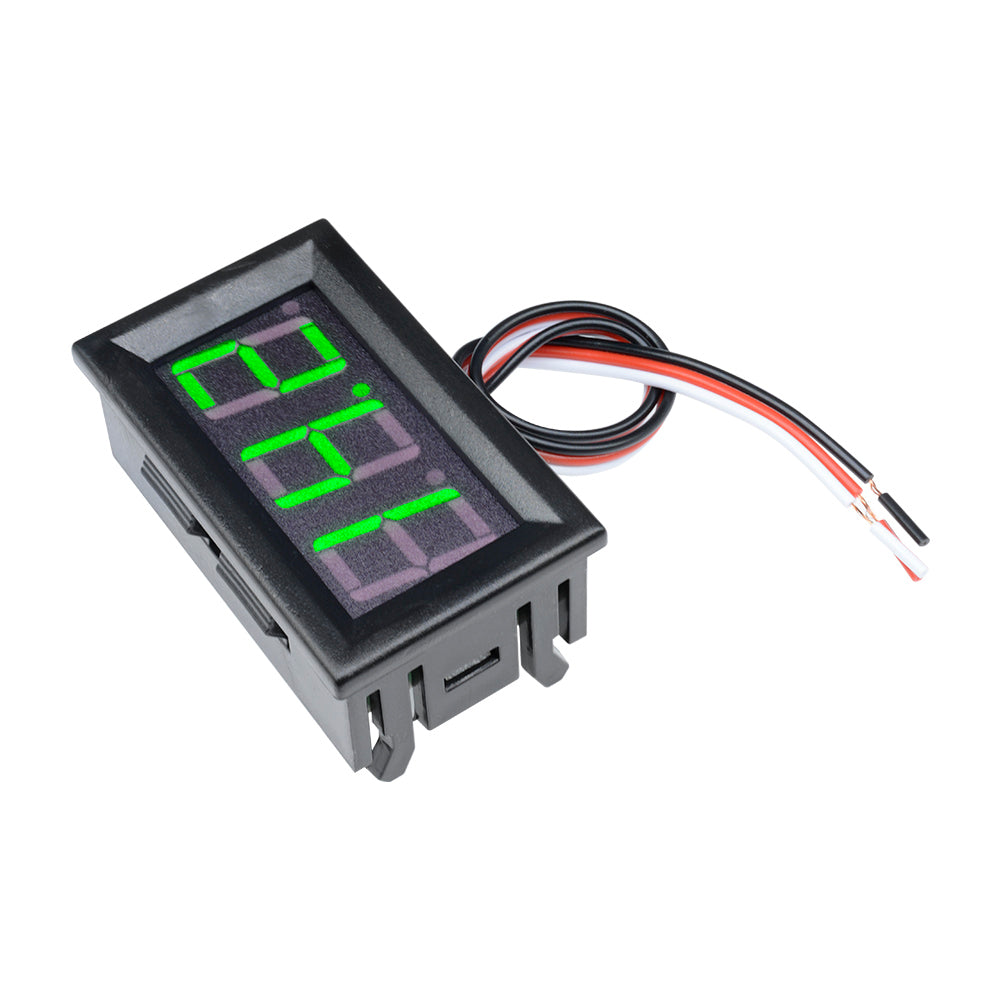

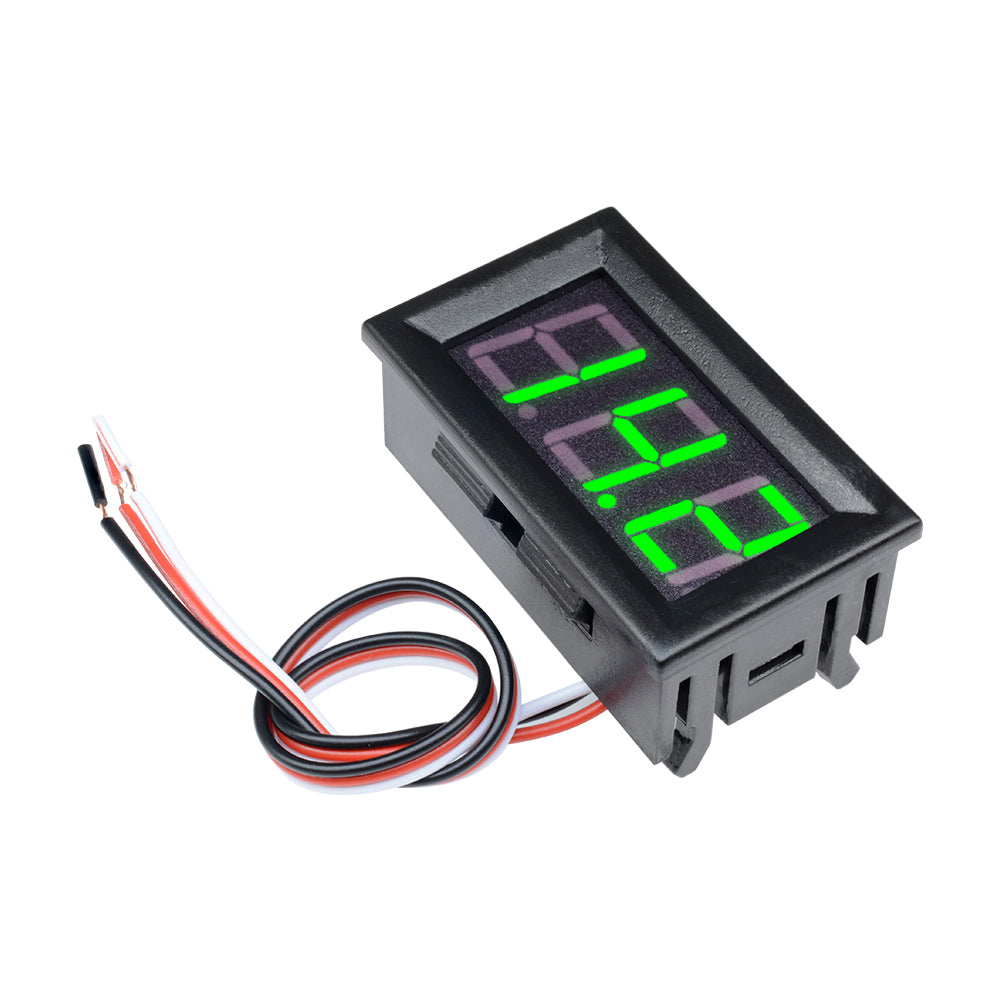

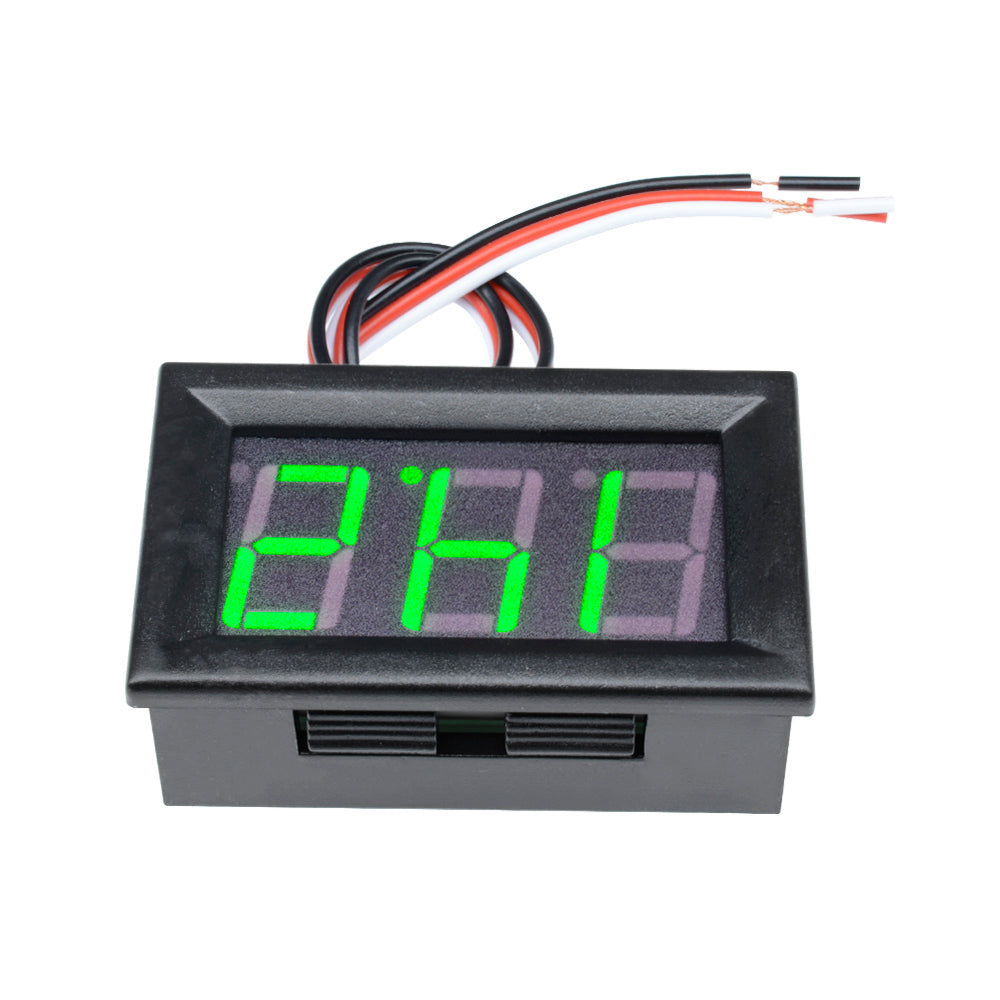

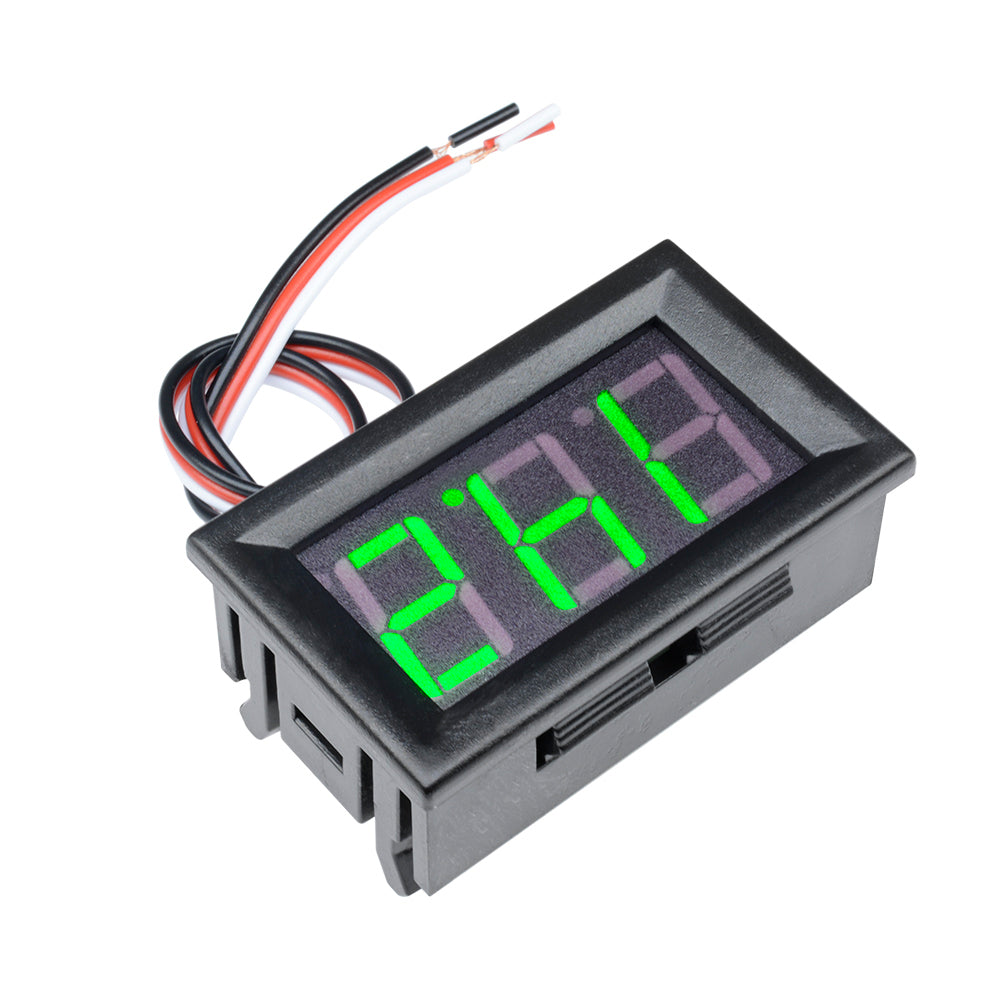

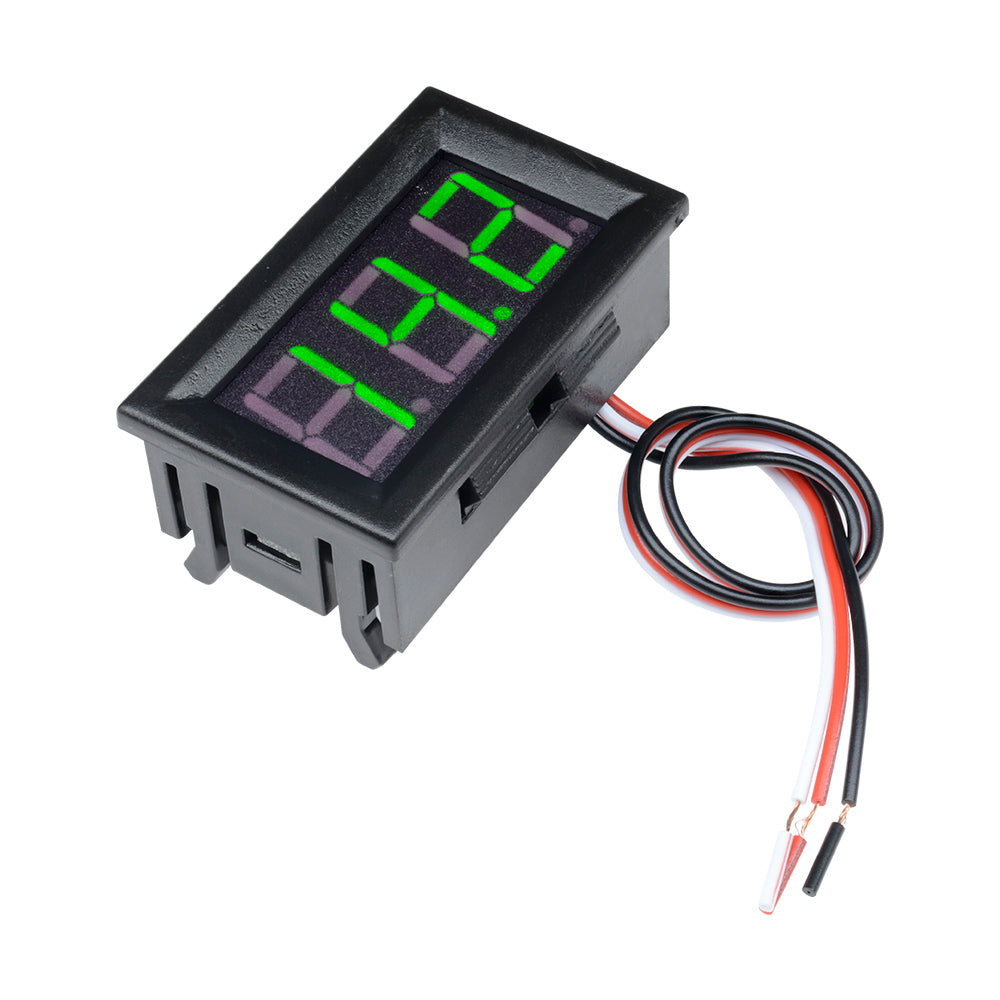

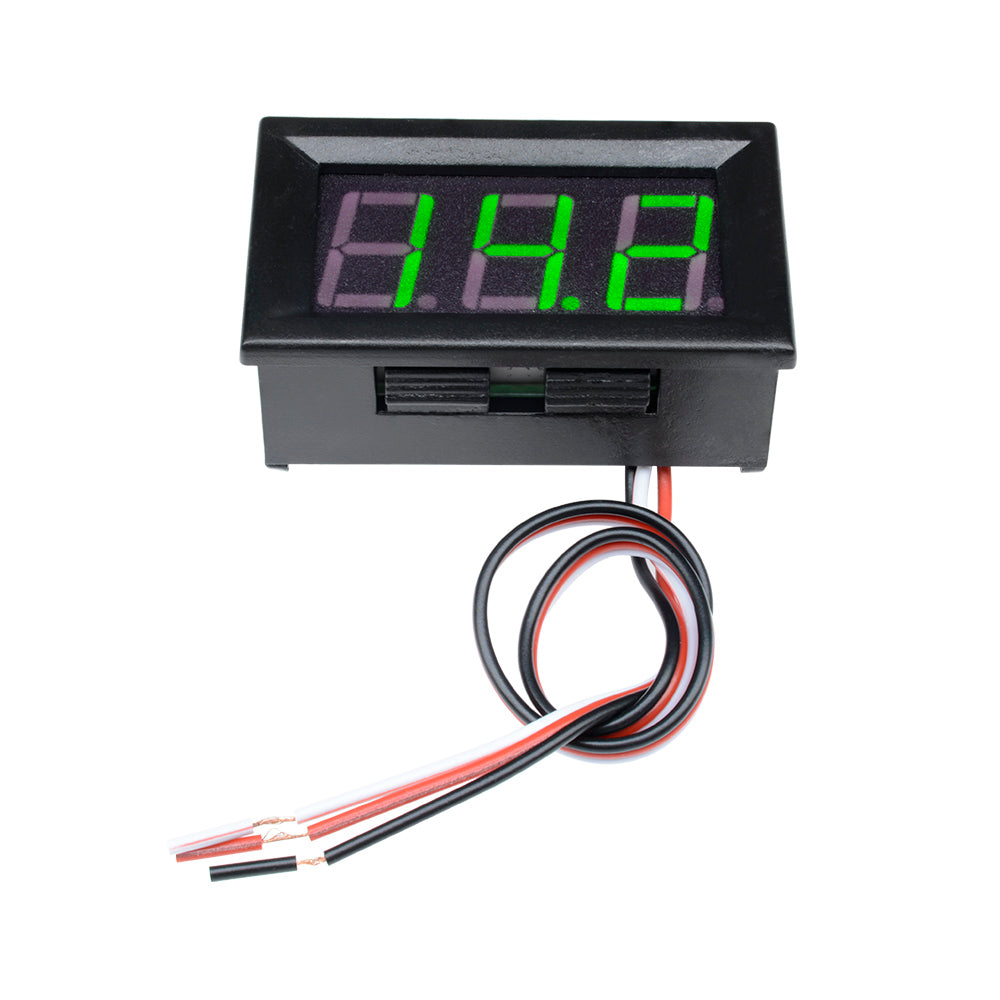

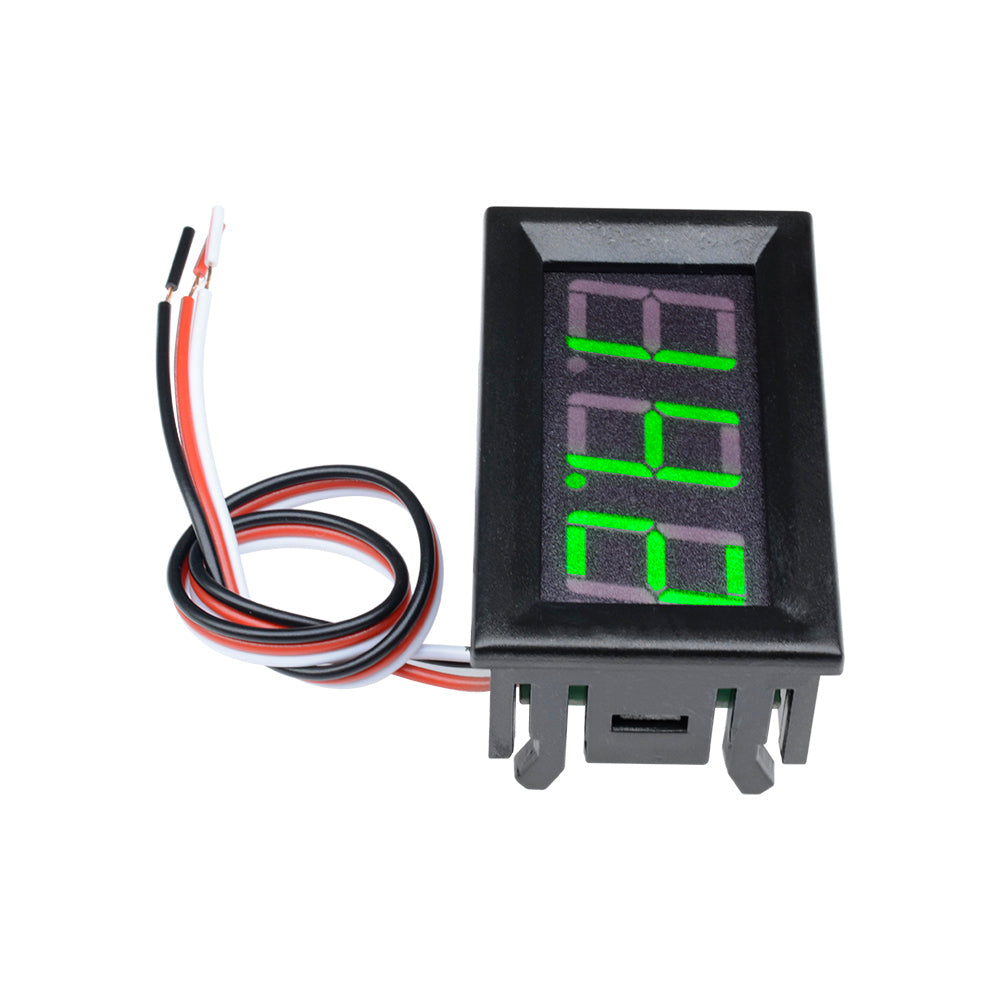

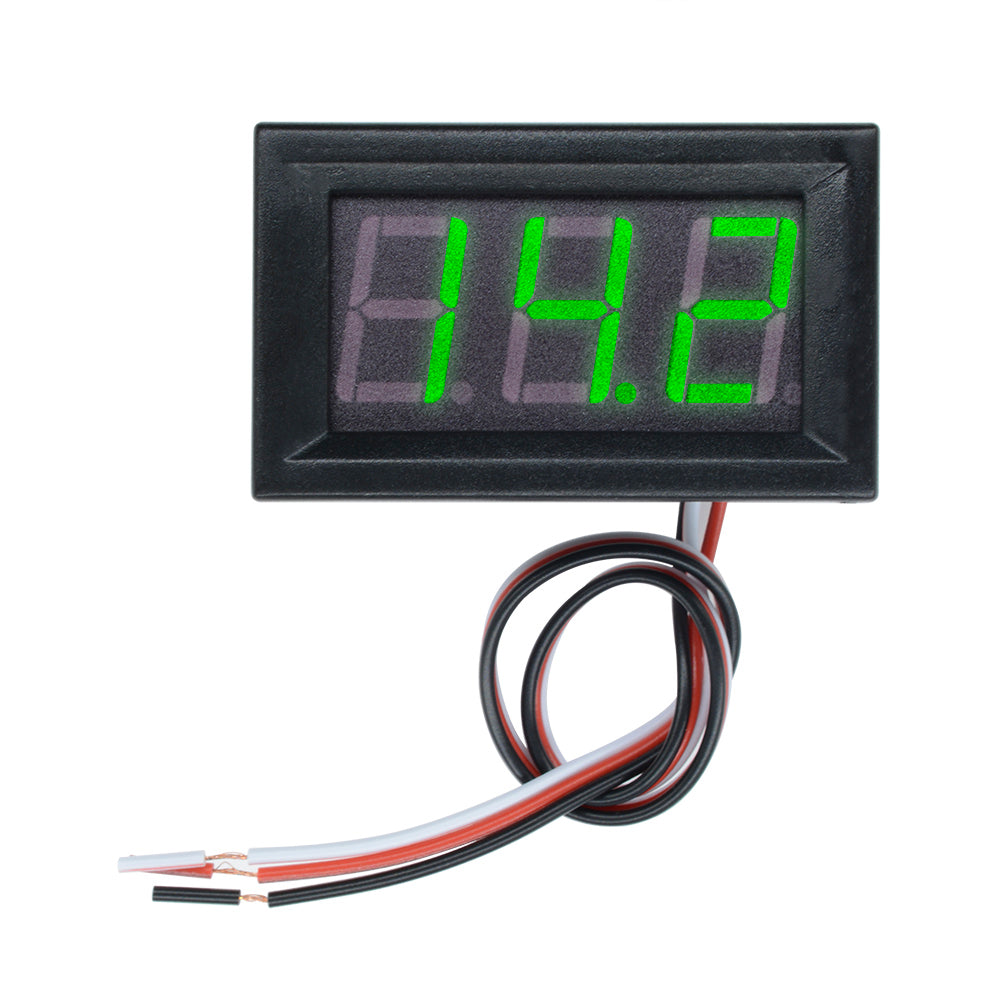

3 Wire 0.56" DC 4.7-30V Green 3 Bit Digital LED Voltmeter Panel Accurate Meter

3 Wire 0.56" DC 4.7-30V Green 3 Bit Digital LED Voltmeter Panel Accurate Meter

SKU:030519LV
Regular price $4.99

Description:
  • Ultra-low cost, high precision to meet most of the application requirements.
  • High precision
  • low starting working voltage, green minimum 4.7V
  • with reverse protection, anti-burn.
Technical Parameters:
  • Measuring range 0.00V-30.0V
  • Power supply range: DC4.70-30.0V
  • Maximum input: DC 30V.
  • Note: Input voltage higher than 30V may be permanently damaged!
  • Tolerance ± 1%; error greater than or equal to 10V ± 0.3V; error less than 10V ± 0.10
  • Input impedance> 100K ohms
  • Working current: <18mA
  • Refresh speed of about 300mS once
  • Display mode: three 0.56 "LED digital tube
  • Display color: green
  • Lead length : 20cm
  • Dimensions 48 x 29 x 22 mm(L*W*T)
  • Net weight:19g
  • Gross weight:26g
  • Operating temperature -10 ℃ ~ 65 ℃
Package Include:
  • 1 x 0.56" DC 4.7~30V LED Digital Voltmeter Panel Accurate Meter 3 Wire
