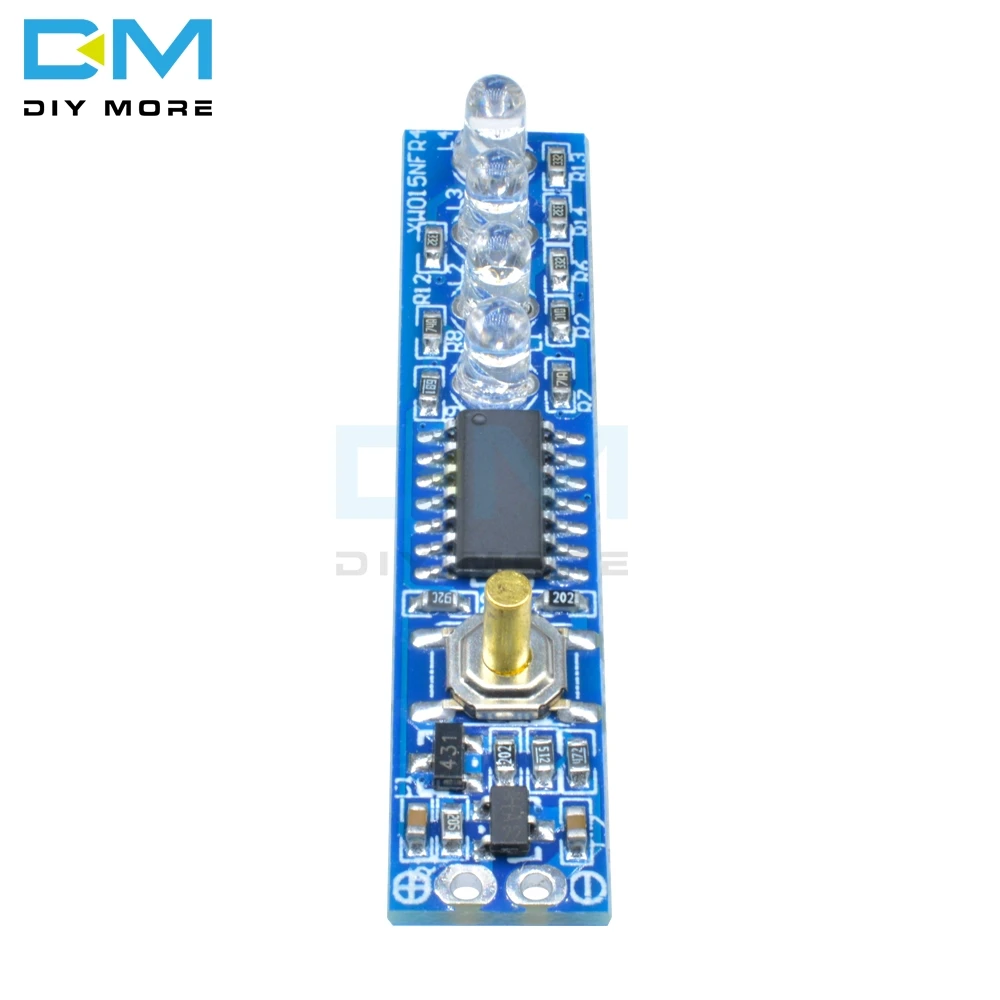

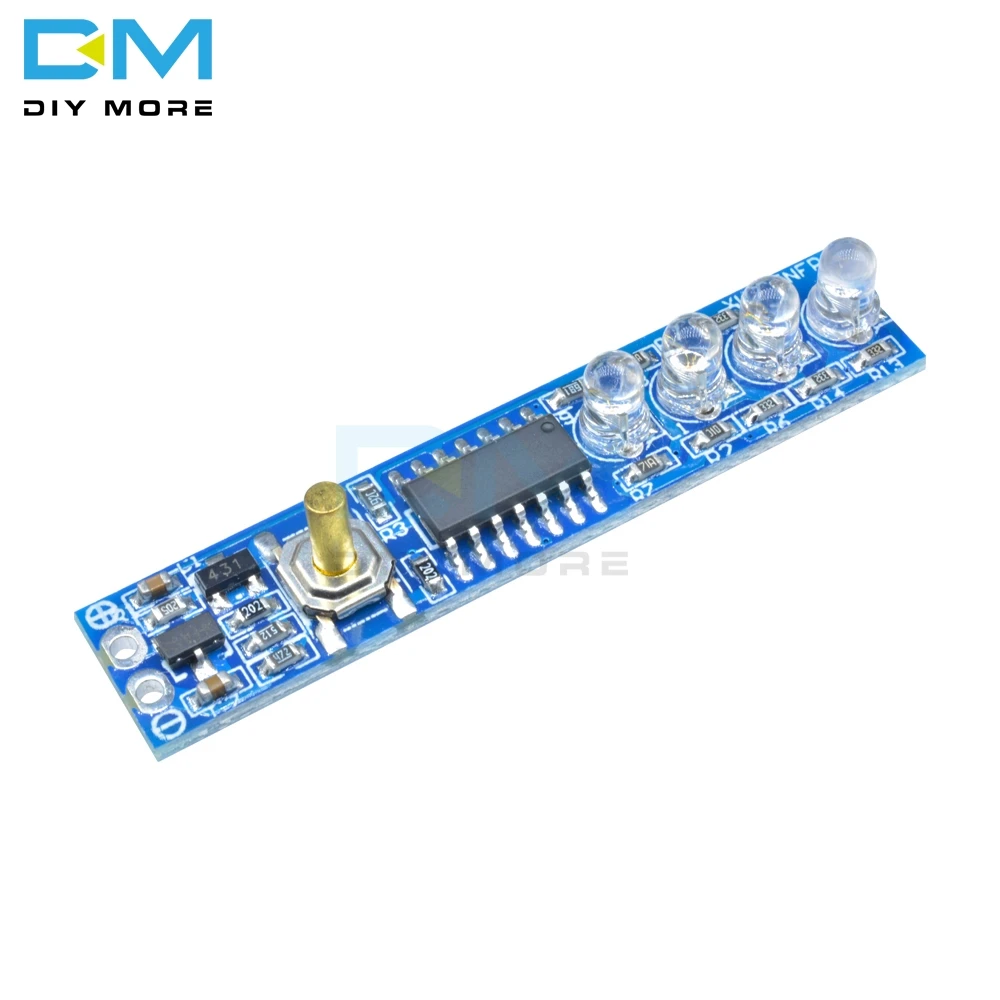

3S Lithium Battery Capacity Indicator 3 Serial LED Indicator Display Module Board Power Level For 18650 Lithium Battery DIY Kit

3S Lithium Battery Capacity Indicator 3 Serial Led Display Module Board Power Level For 18650 Diy

3S Lithium Battery Capacity Indicator 3 Serial LED Indicator Display Module Board Power Level For 18650 Lithium Battery DIY Kit

SKU:012552
Regular price $1.39










1.Intelligent electricity quantity display board;slightly push trigger switch,it will auto power off after 3 seconds display2.Static power consumption 2.3MA,and it can be disregarded
3.Plug-in indicator light color:25% red,other 3 pcs are green
4.Application Fields:battery electricity quantity detecting;only needs to connect seperately battery's positive and negative with electricity quantity board's positive and negative;slightly push trigger switch,then it can be able to detect current electricity quantity.4 LEDs will divide battery comprehensive capacity into 4 phases;slightly push the switch,electricity quantity will be shown




3S: Display indication:25% first light is on(voltage:10.4V);50% second light is on (voltage:11V);75% third light is on (voltage:11.5V);100% fourth light is on (voltage:12.4V)





Package Included:



1 x 3s 3 Serial  Lithium Battery Capacity Indicator Display Board







trust seal
  • guaranteeQuality checked
  • Special gift cardsSpecial gift cards
  • Free return Within 60 days
  • Consultancy86-0755-85201155










1.Intelligent electricity quantity display board;slightly push trigger switch,it will auto power off after 3 seconds display2.Static power consumption 2.3MA,and it can be disregarded
3.Plug-in indicator light color:25% red,other 3 pcs are green
4.Application Fields:battery electricity quantity detecting;only needs to connect seperately battery's positive and negative with electricity quantity board's positive and negative;slightly push trigger switch,then it can be able to detect current electricity quantity.4 LEDs will divide battery comprehensive capacity into 4 phases;slightly push the switch,electricity quantity will be shown




3S: Display indication:25% first light is on(voltage:10.4V);50% second light is on (voltage:11V);75% third light is on (voltage:11.5V);100% fourth light is on (voltage:12.4V)





Package Included:



1 x 3s 3 Serial  Lithium Battery Capacity Indicator Display Board
