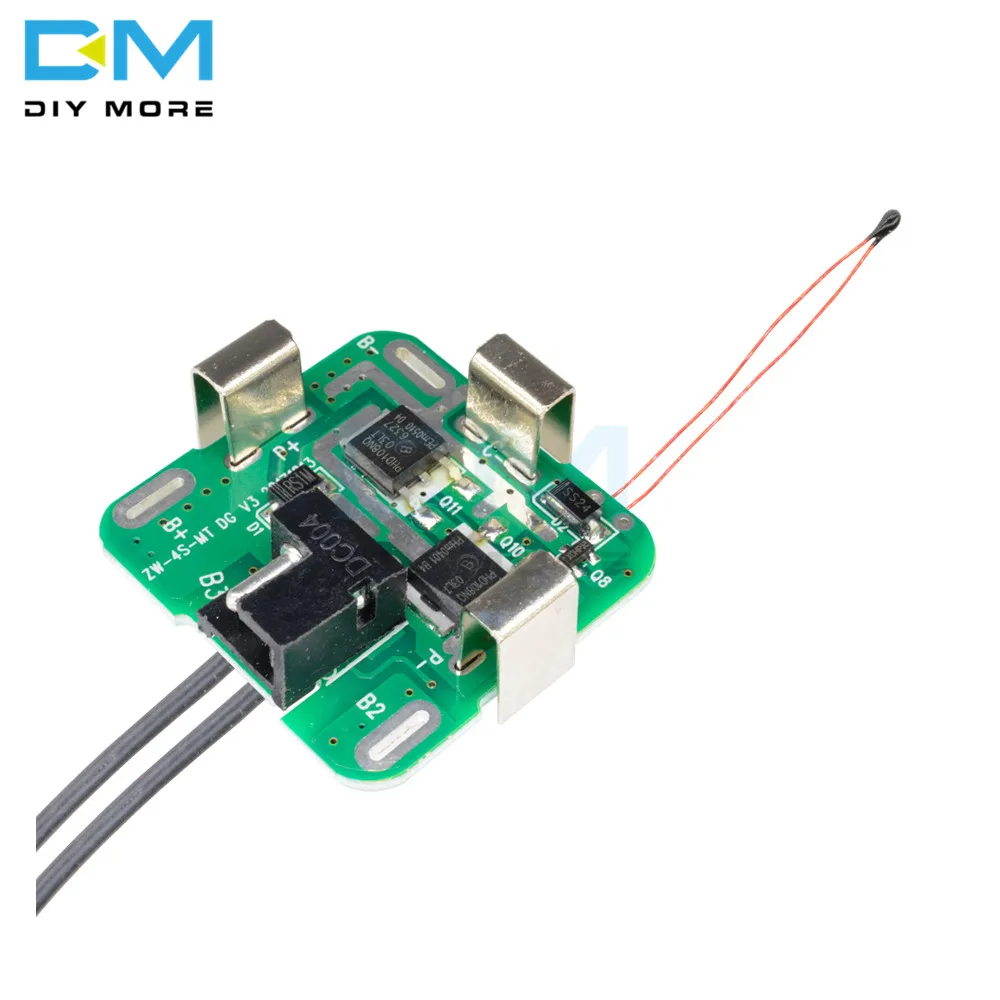

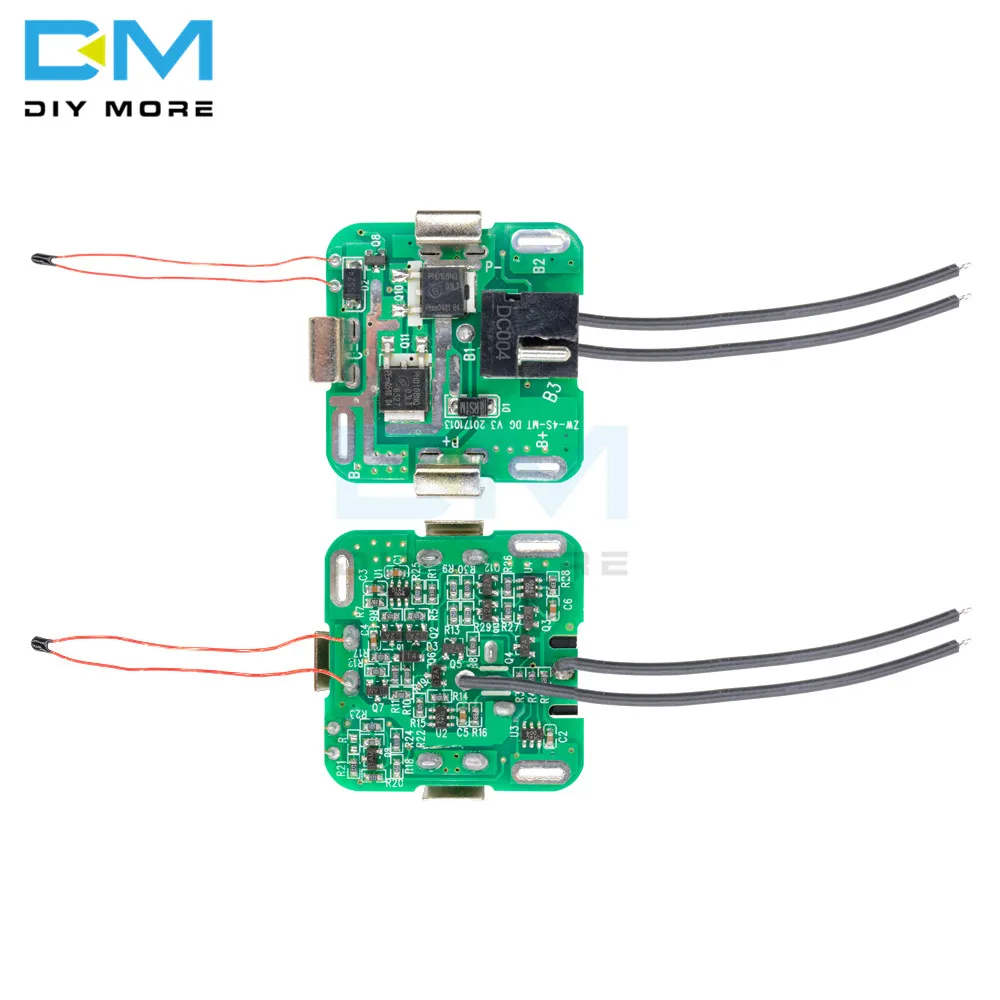

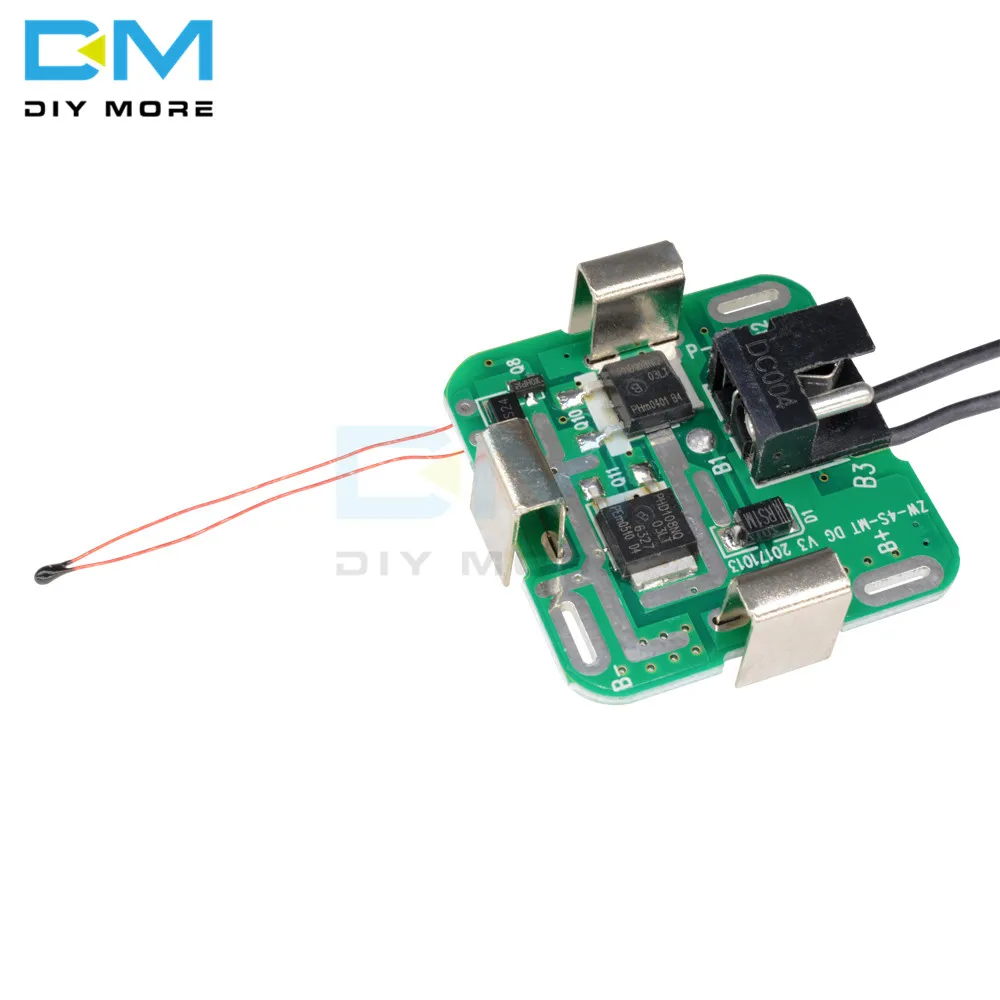

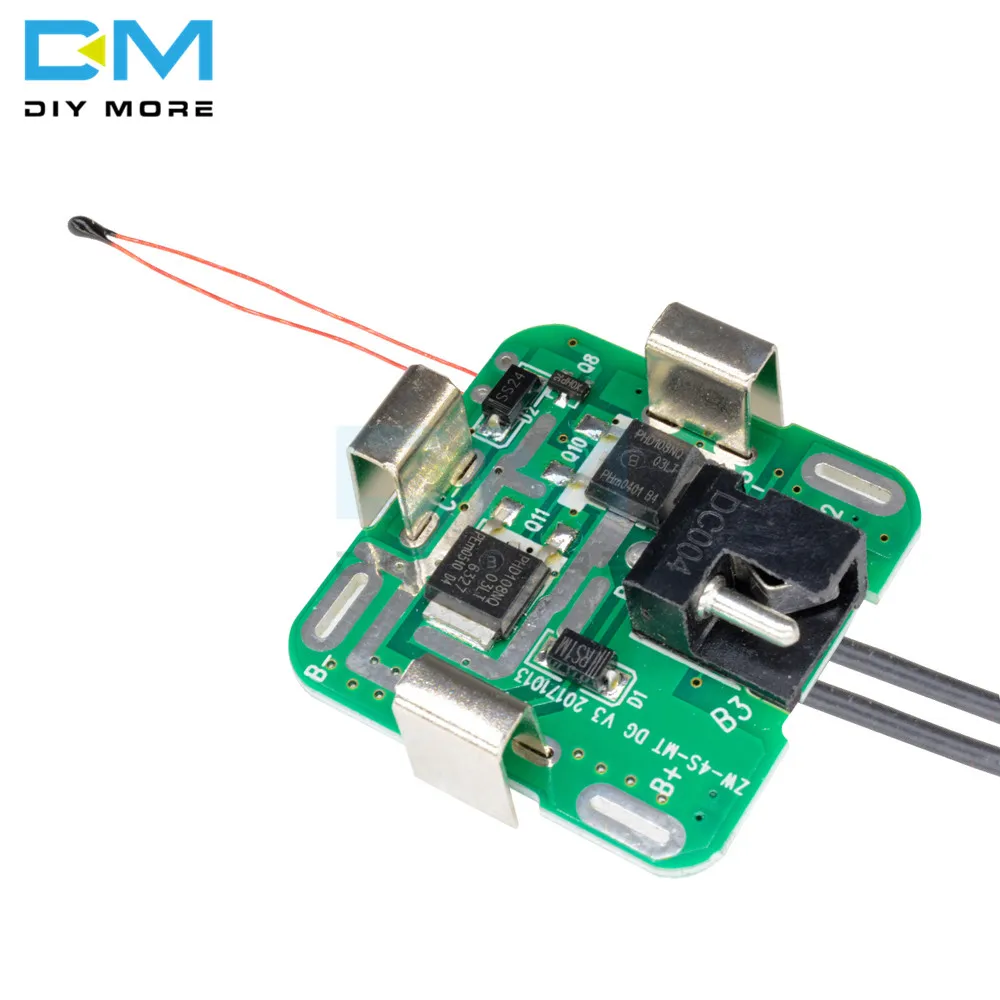

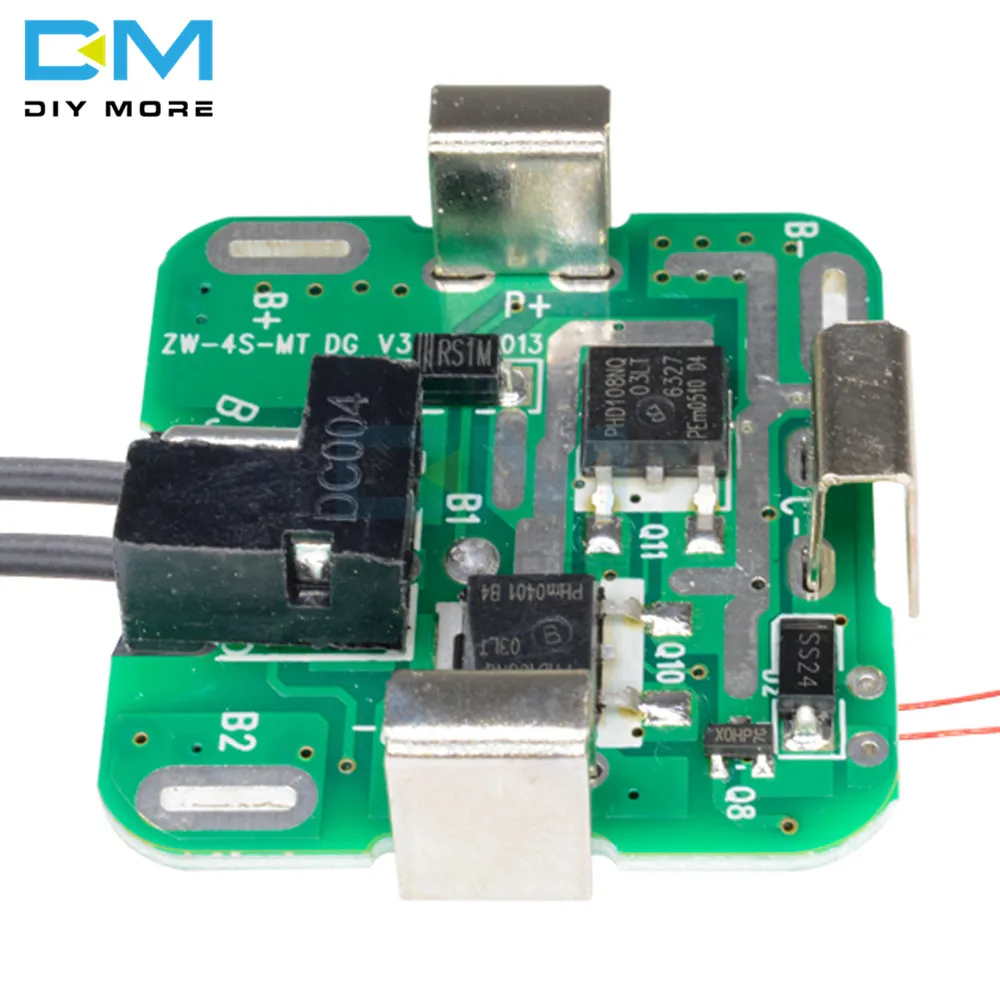

4S 40A Lithium Battery Charger Protection BMS Board Li-ion Module 14.8/16.8V

4S 4 Series String 16.8V Lithium Battery Protection Board 14.8V / For Power Tools Drill Straight Diy

4S 40A Lithium Battery Charger Protection BMS Board Li-ion Module 14.8/16.8V

SKU:012746
Regular price $4.99














The protection board uses a mature 4 string dedicated lithium battery protection chip, with high integration,
high sensitivity characteristics, through the detection of the battery voltage, charge and discharge current
and ambient temperature and other information on the battery overcharge, over discharge ,
Discharge over-current, short circuit, charge over-current, temperature protection and other real-time protection,
but also through the external circuit to achieve the adjustment of the parameters.
The protection board program design mature, worry-free, is your trusted product.





No Name content parameter
    1   Voltage   Charging voltage   16.8V
  Single charge voltage   4.2V
   2   Current Continuous discharge current   0-18A
   3   Overcharge protection   Overcharge single section detection voltage   4.2±0.05V
  Overcharge protection delay   1S
  Overcharge charge recovery voltage   4.13±0.05V
  Overcharge protection to lift the delay   20mS
   4   Over discharge protection   Over discharge test voltage   2.8V
 Over-release protection delay   1S
 Overdrive recovery voltage   3.0V
 Overdraft protection is released   20mS
   5   Overcurrent protection   Overcurrent detection voltage   0.1V
  Overcurrent detection current   32±3A
  Overcurrent detection delay  300mS±100mS
  Recovery state   Automatic recovery
   6   Short circuit protection   With or without short circuit protection   a short circuit protection
  Short circuit detection delay   20mS
  Short circuit detection voltage   0.8V
  Recovery state Automatic recovery after disconnecting the load
   7   Temperature protection   Over temperature protection temperature   70±5°
  Over temperature recovery temperature   60±5°
   8   Power consumption   Working state   30±5uA (25°)
  Sleep state   6±2uA(25°)
   10   Internal resistance   Discharge circuit resistance   ≤30±5mΩ

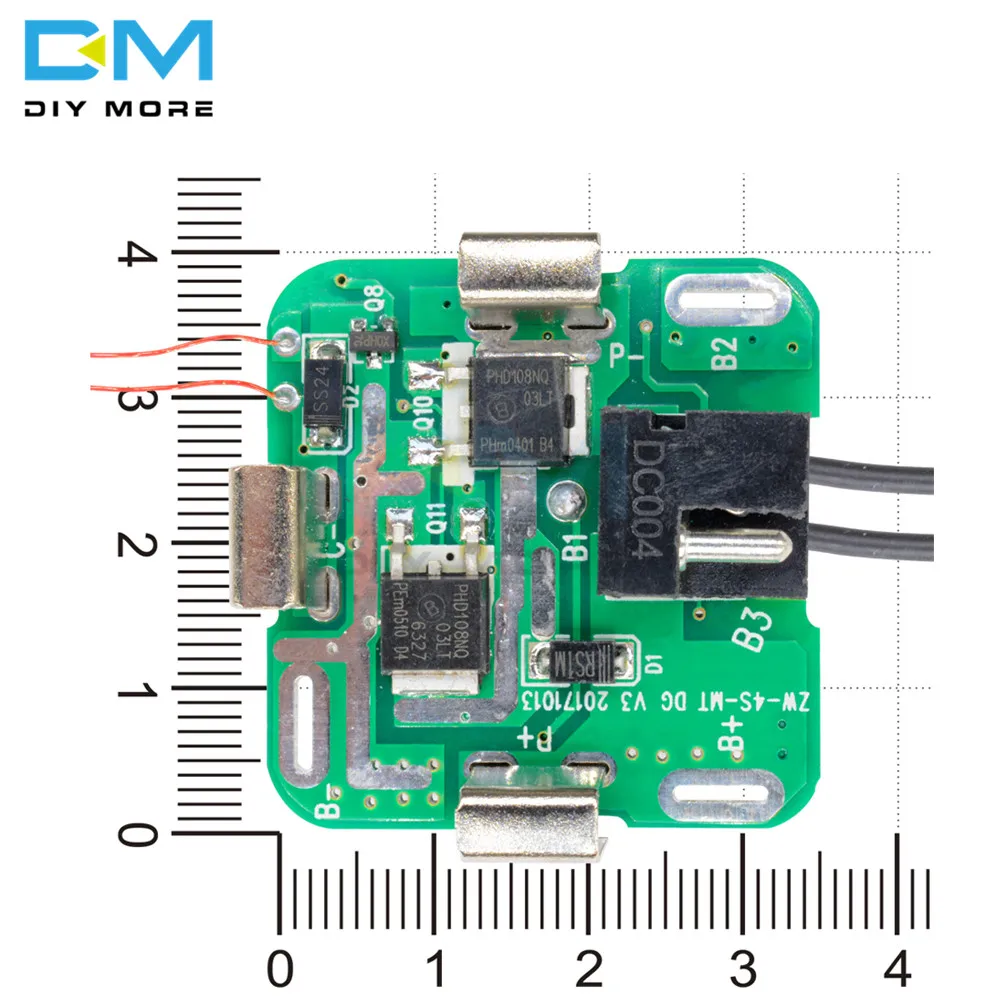

   11   size  Long X wide

  34mm X 34mm













012746 (3)012746 (4)012746 (5)012746 (6)012746 (8)012746 (9)
