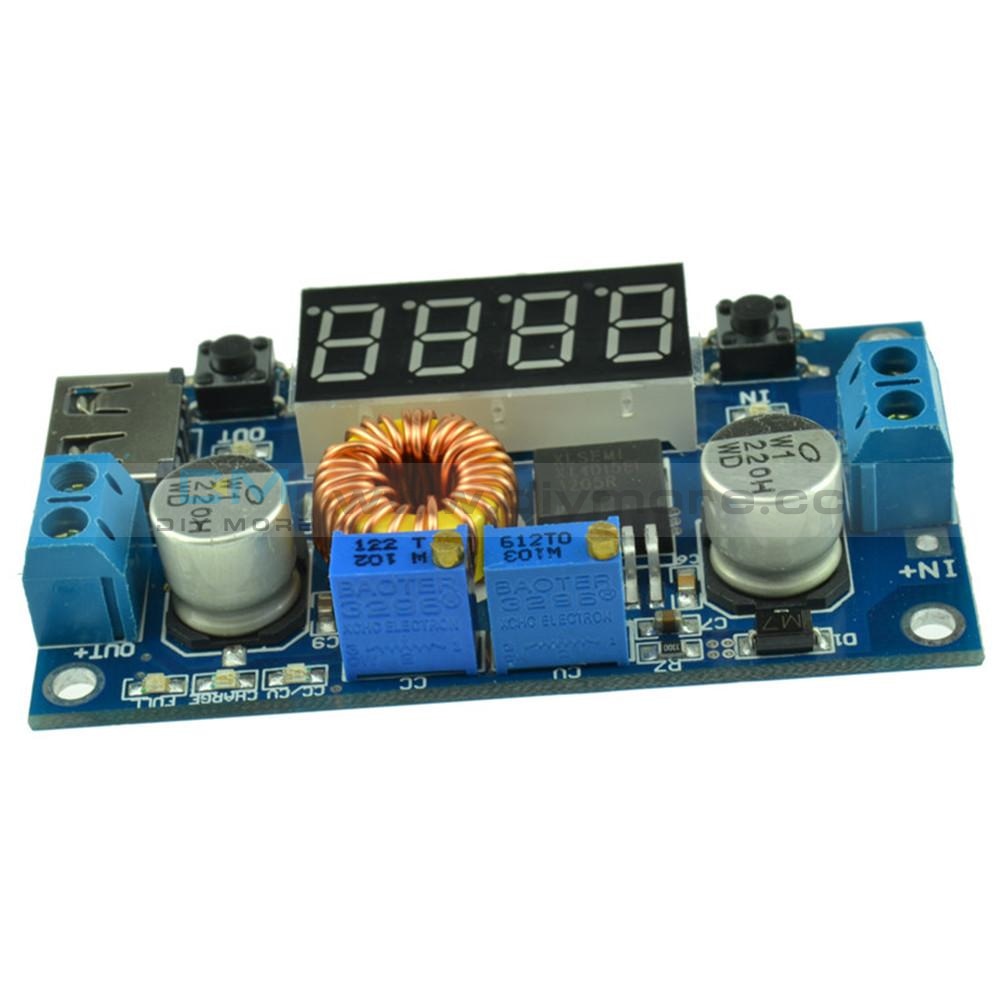

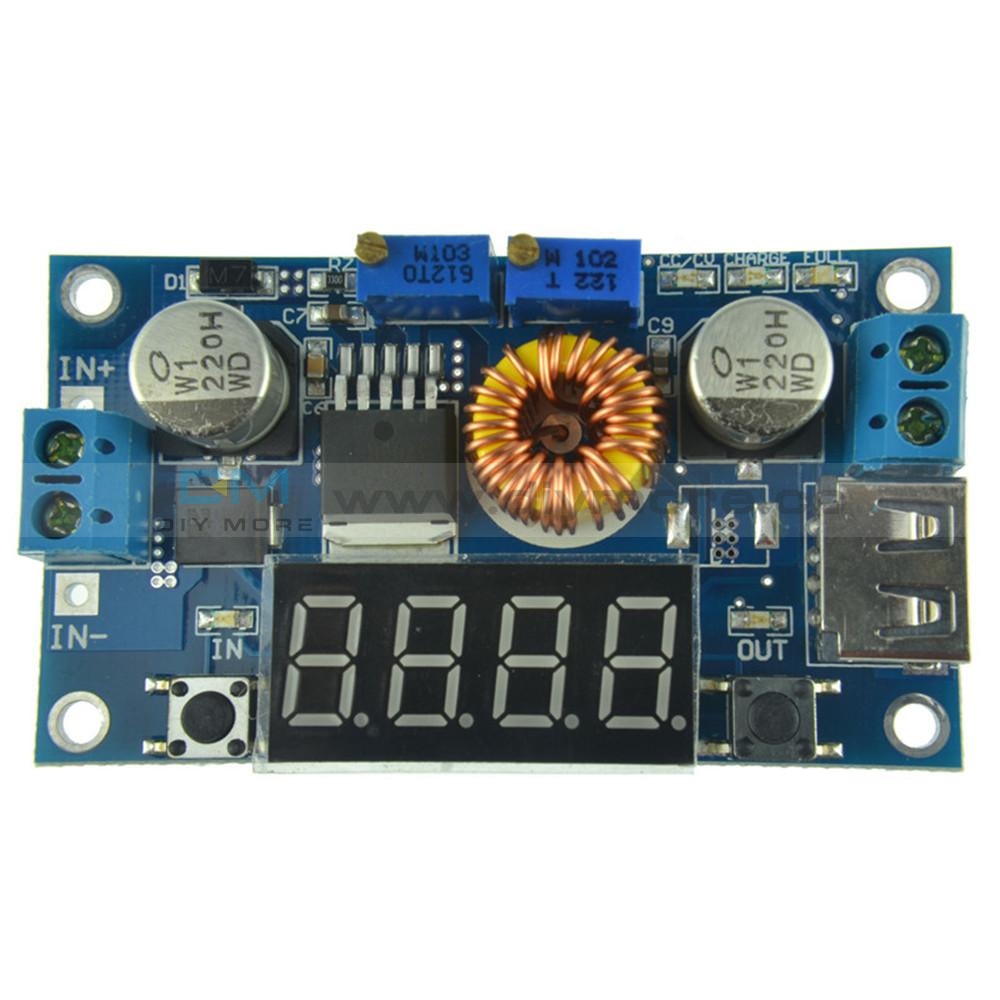

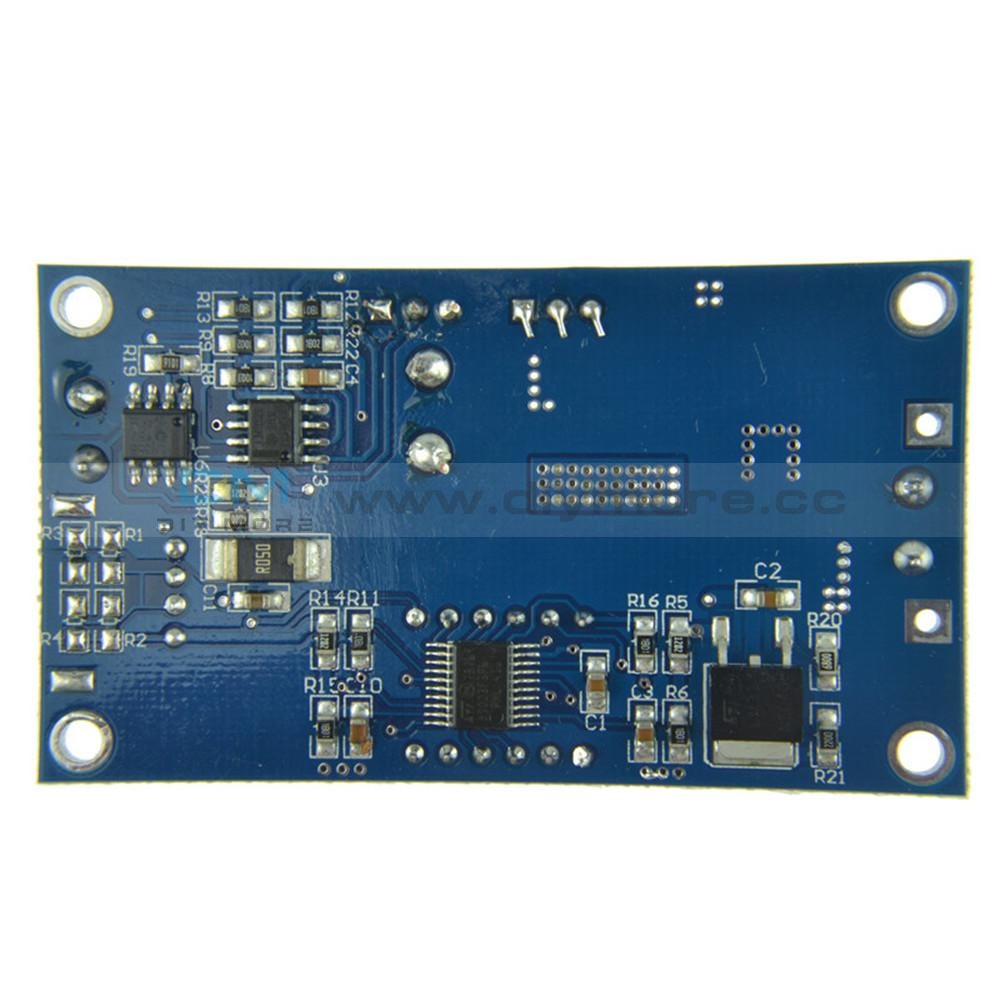

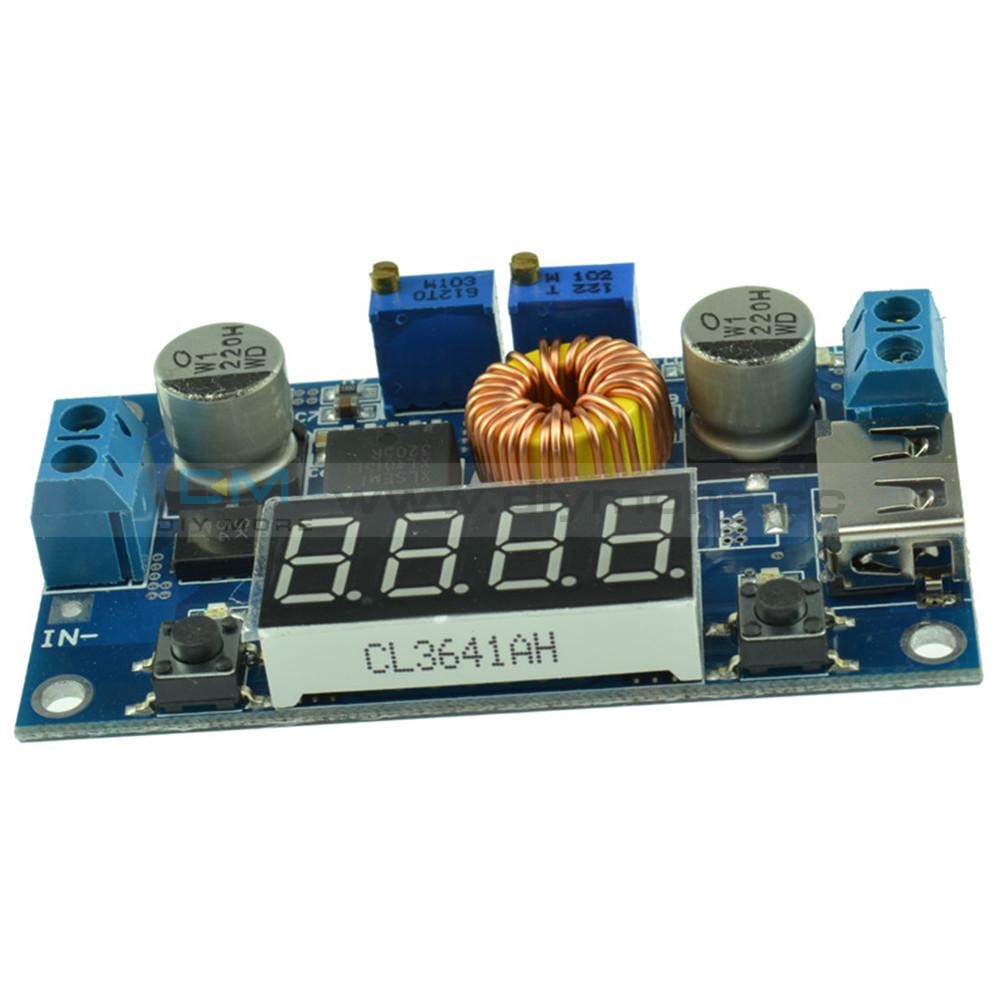

5A CV CC LED Drive Lithium charger Power Step-down Module W/ USB Voltmeter

5A CV CC LED Drive Lithium charger Power Step-down Module W/ USB Voltmeter

SKU:010530
Regular price $3.99

shipped within one bussiness day

Overview:
The item contains the voltmeter, ammeter, power meter, USB interface for charging the digital products.

Note:
1.When you use the product, the module inputs and outputs to be isolated from ground.

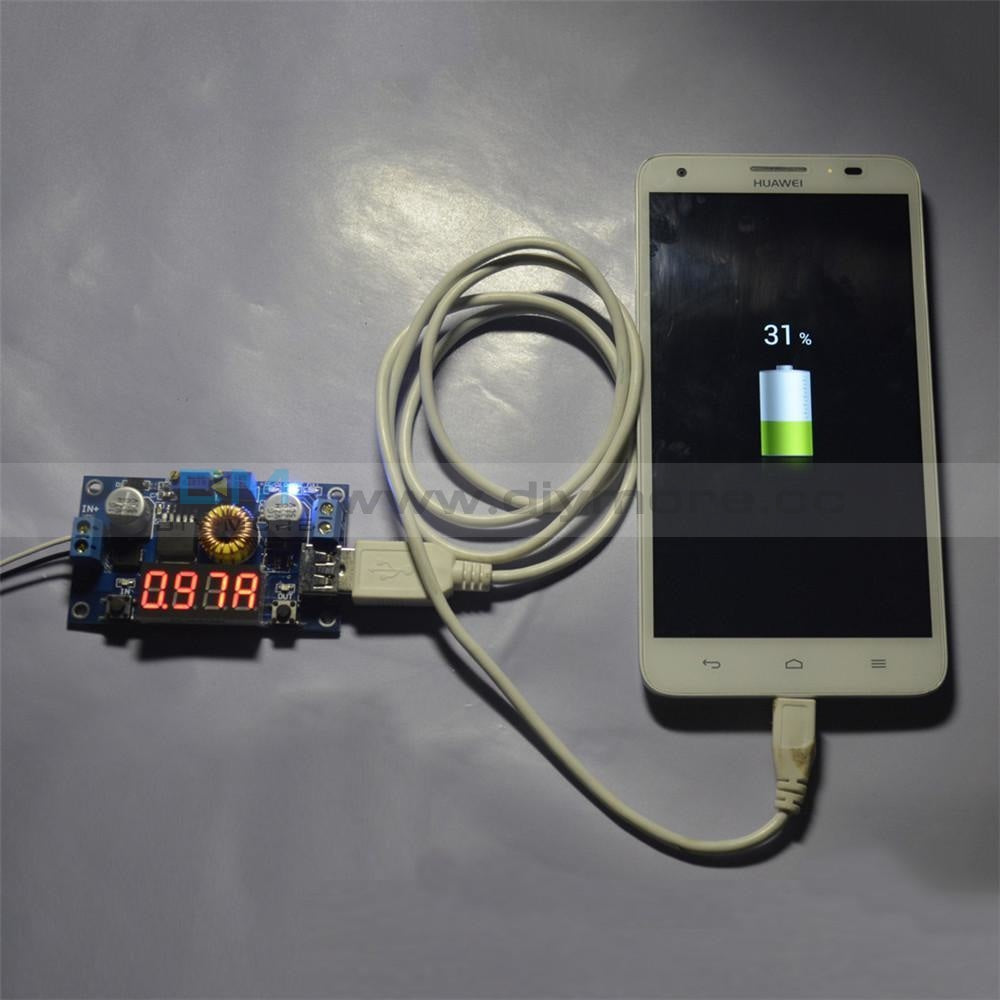

2.USB output voltage is consistent with the module, not a fixed 5V output. When charging for digital equipment, make sure USB output voltage is 5V.
3.Some customers report: “The module can not adjust the output voltage is always equal to the input voltage.” When you encounter this problem, please counterclockwise rotation of the “voltage potentiometer” 10 laps or more, then use the module you can adjust the output voltage. Because the factory default output voltage of about 20V.

Specifications:
1.Input voltage range:5-36VDC
2.Output voltage range:1.25-32VDC adjustable

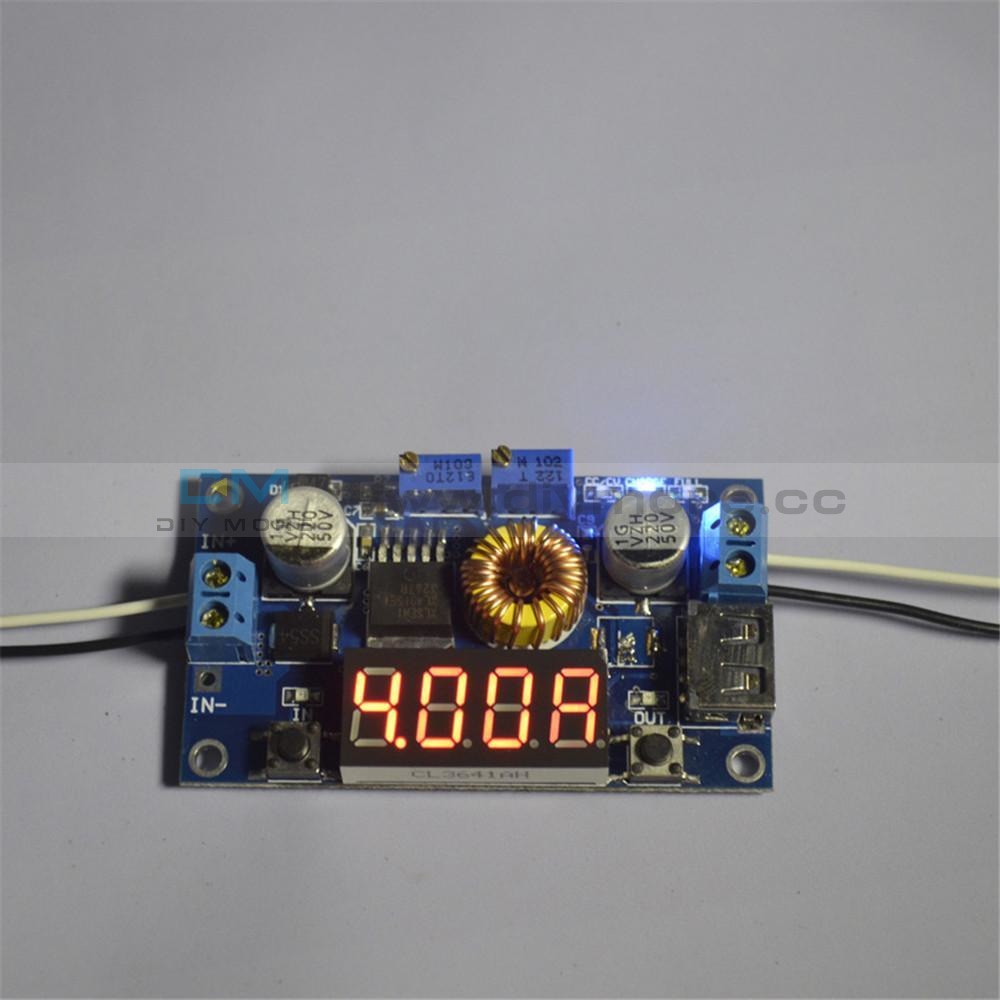

3.Output current: 0-5A
4.Output power: 75W
5.High efficiency up to 96%
6.Built in thermal shutdown function
7.Built in current limit function
8.Built in output short protection function
9.Input reverse polarity protection: None (if required, high current diode in series with the input).
10.L x W x H =68.2×38.8×15mm

Application:
1.Use as a step-down modules with overcurrent protection
2.Use as a battery charger
3.Use as a LED constant current driver module

Package Included:

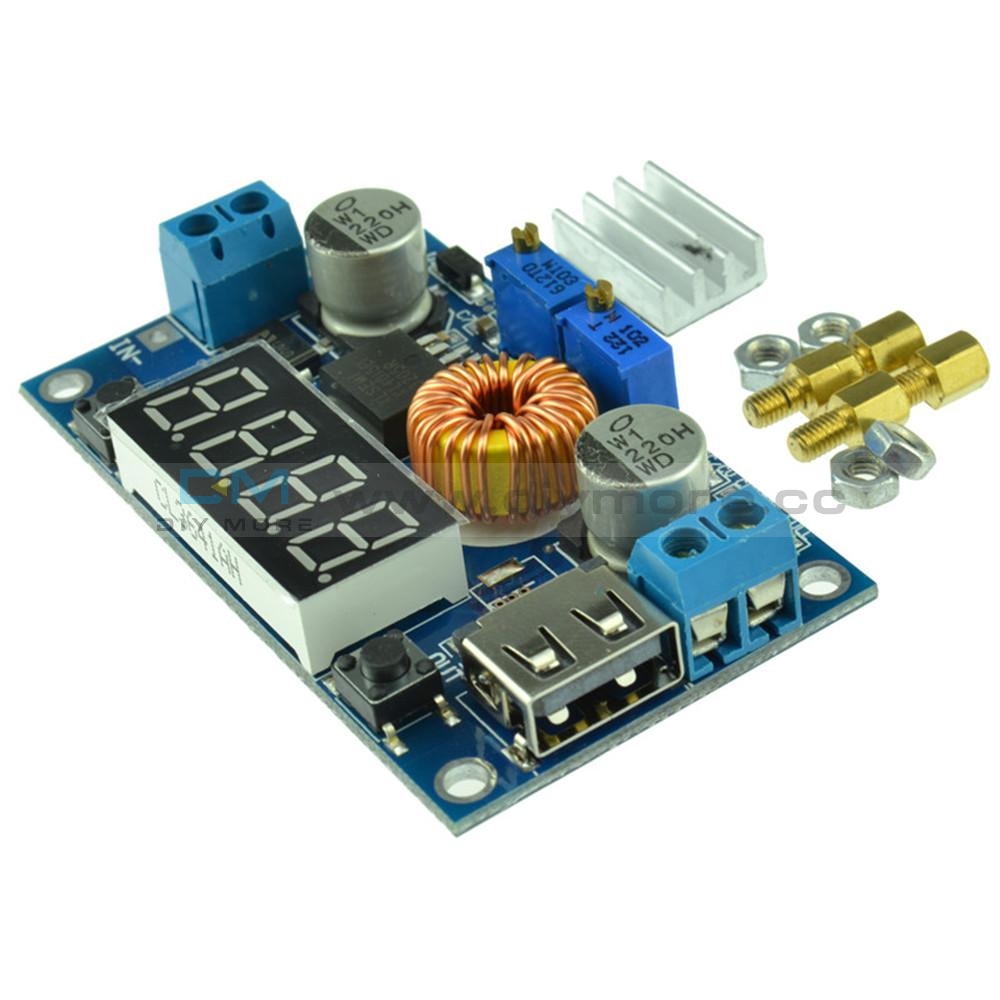

1 x 5A CC CV Step-down Module
