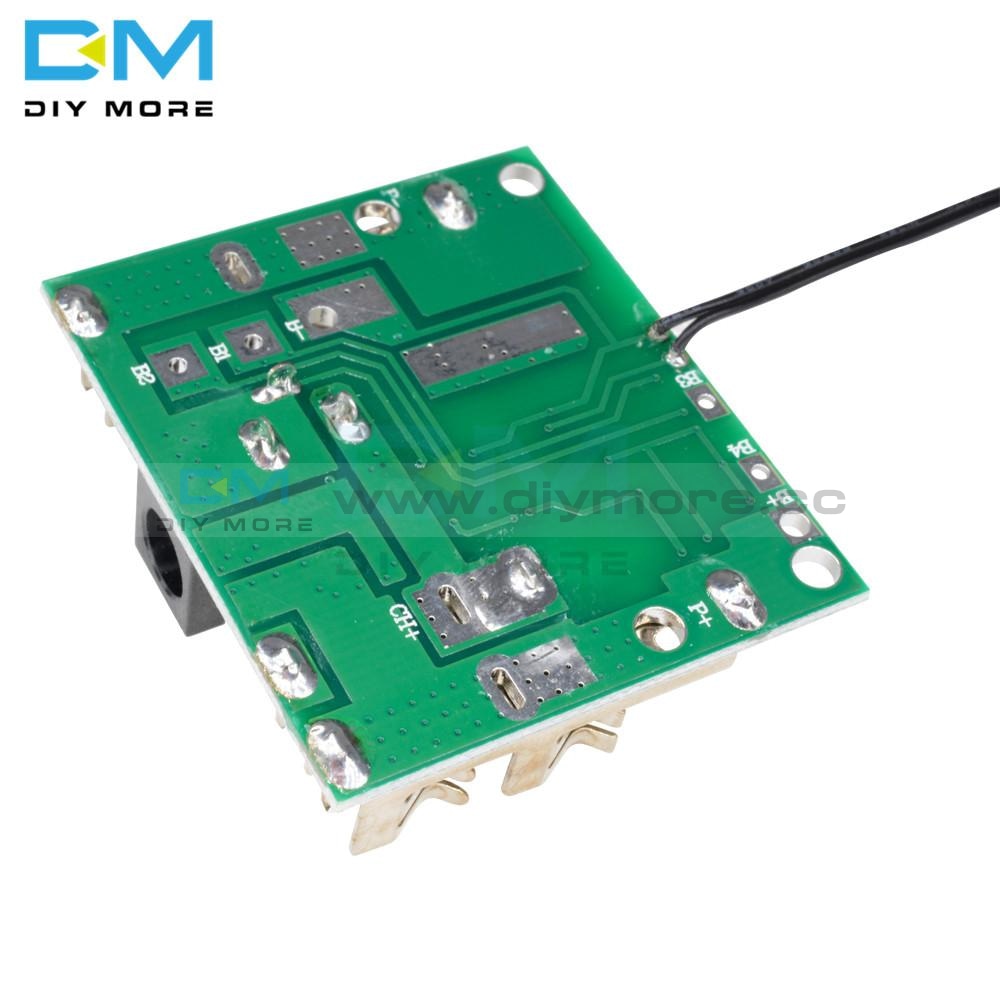

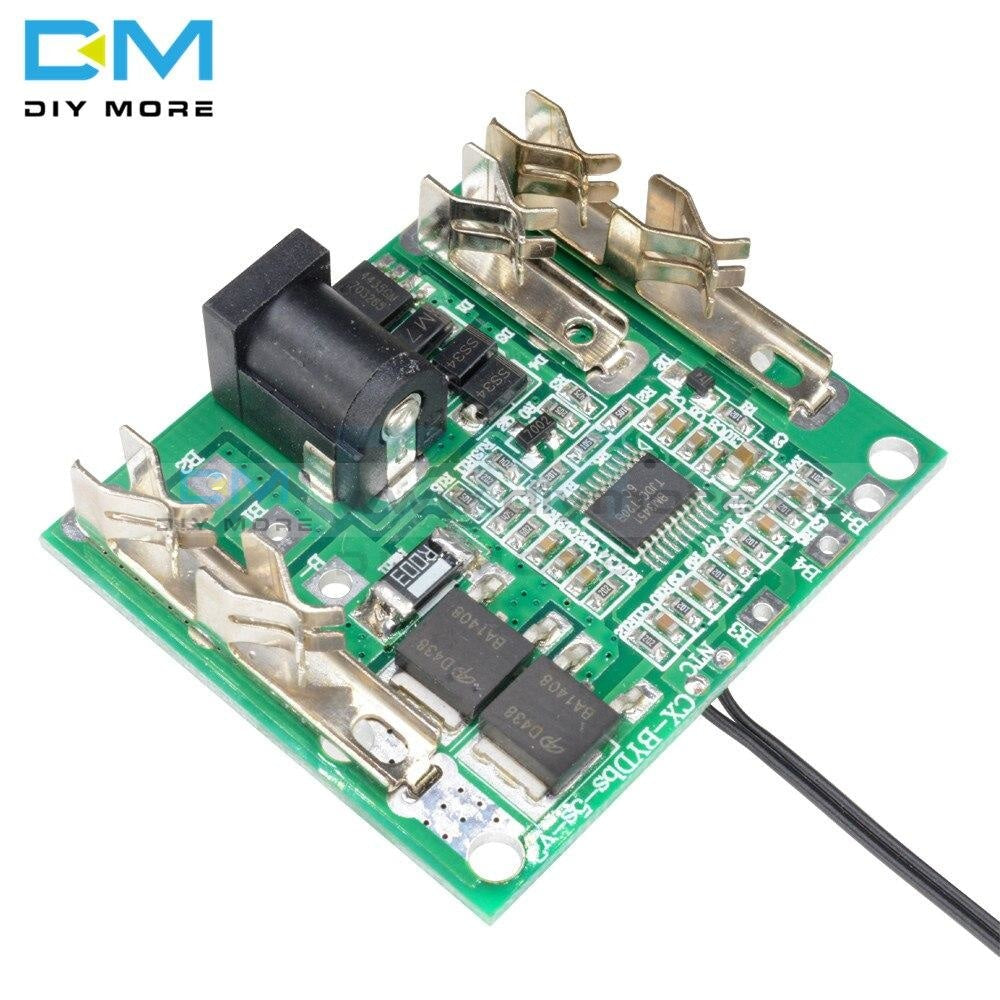

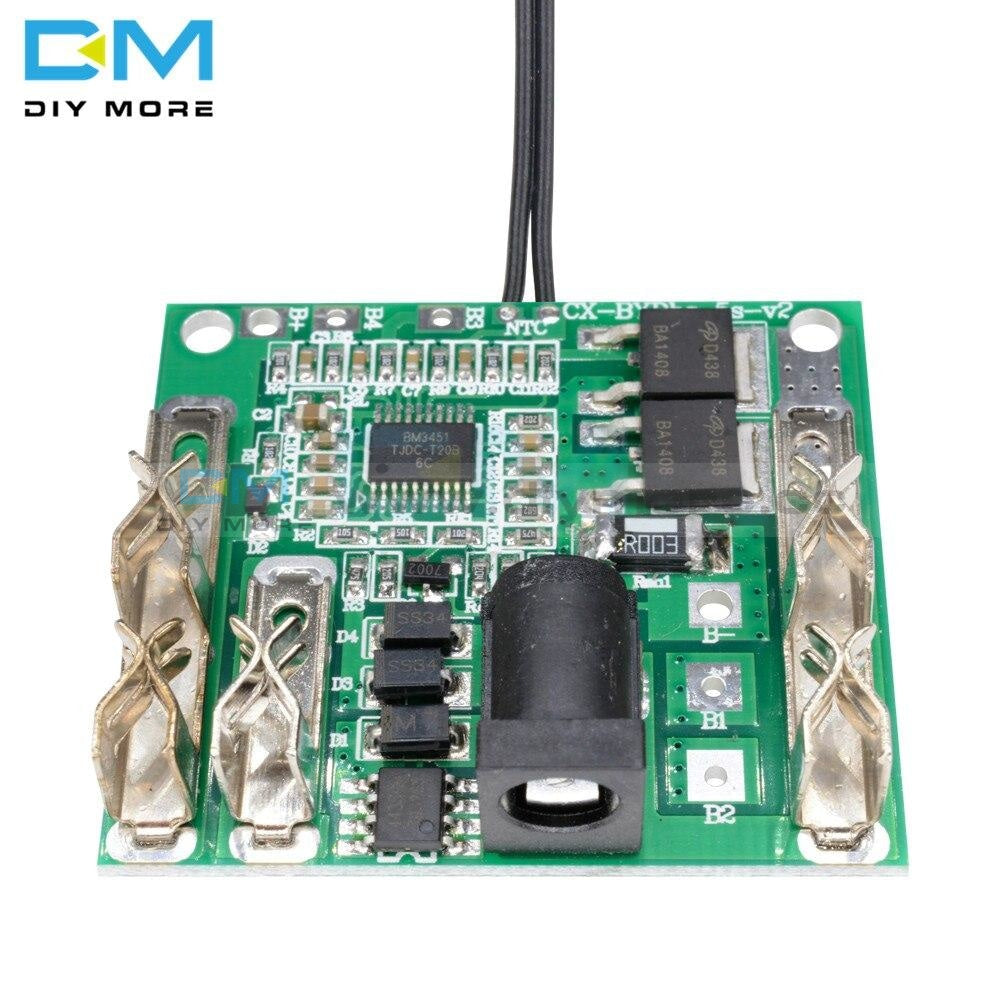

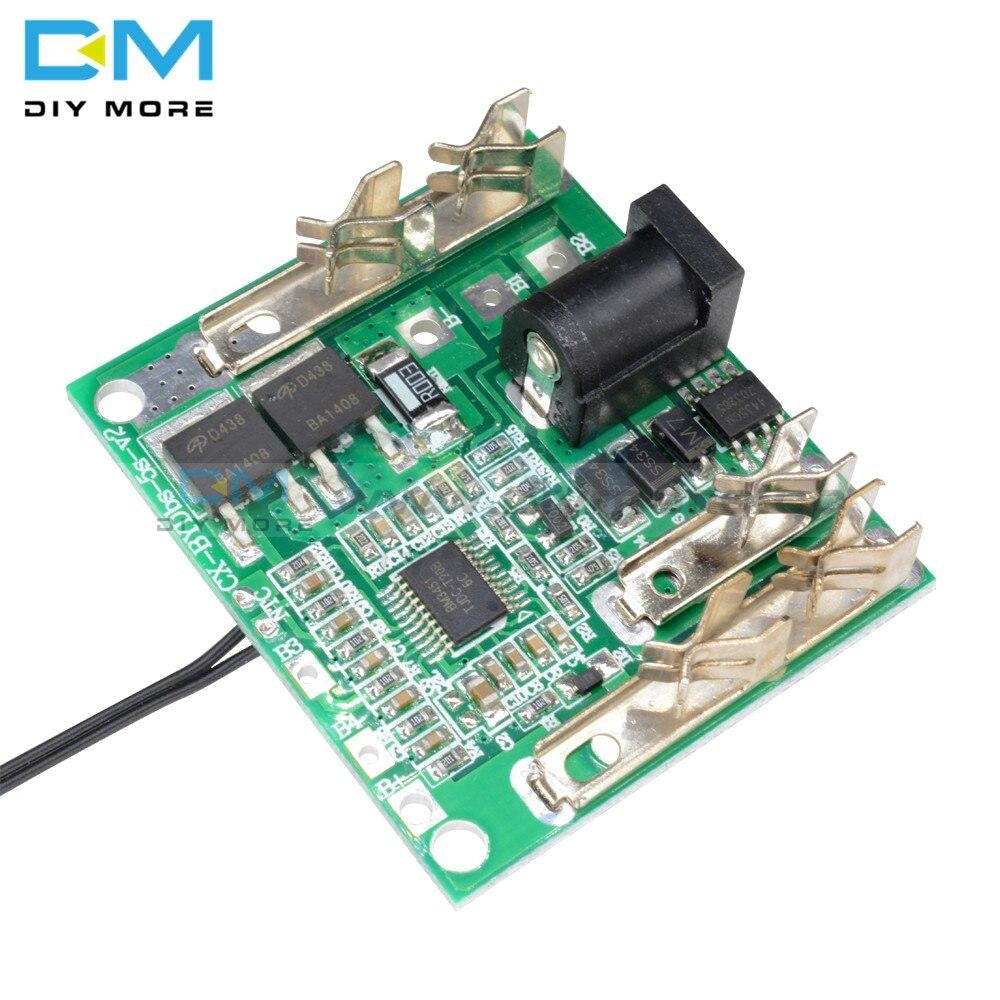

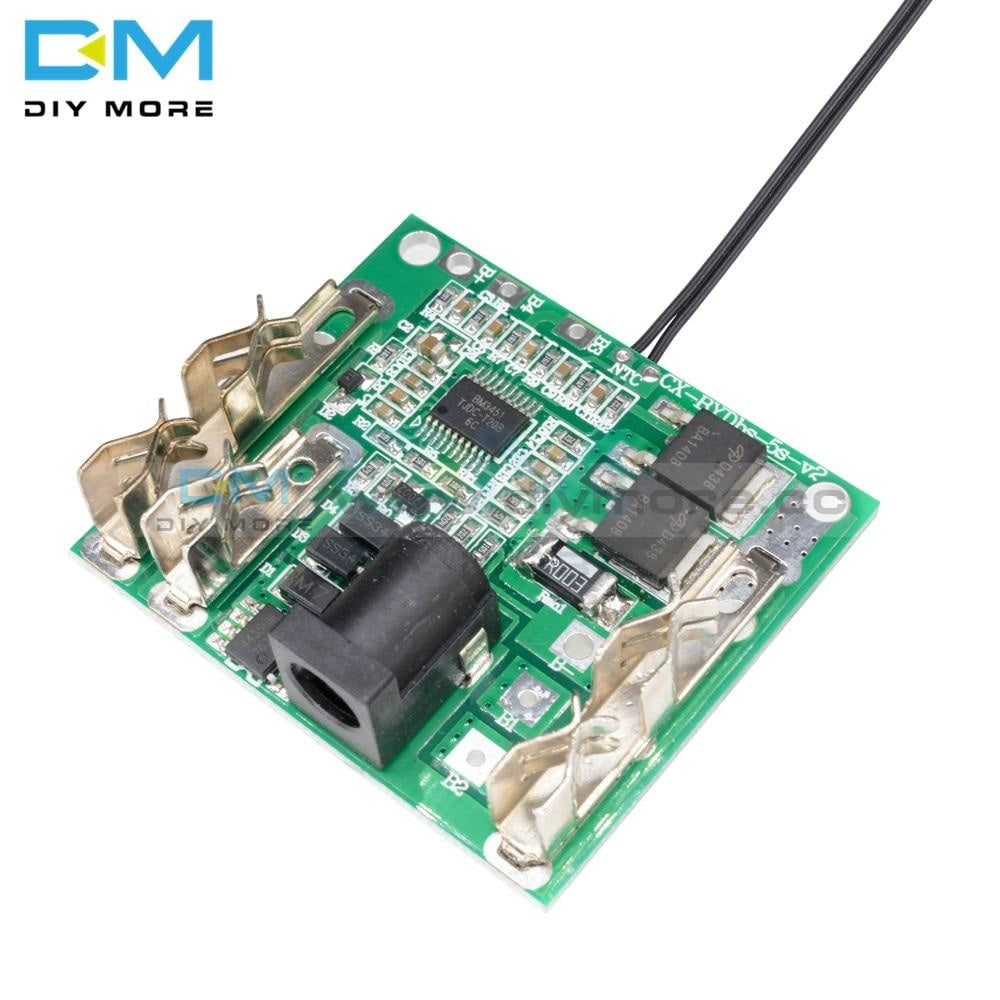

5PCS 5S 18V 21V 20A Battery Charging Protection Module Board BMS Li Ion Lithium Battery Pack Protection Circuit For Power Tools
5PCS 5S 18V 21V 20A Battery Charging Protection Module Board BMS Li Ion Lithium Battery Pack Protection Circuit For Power Tools
SKU:0126925
Regular price
$13.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Features:
- The protection board is for 5 series Li-ion batteries, mainly used for electric power tools.
- It uses special IC for 5S lithium batteries as processor to detect real-time voltage, charge and discharge current and ambient temperature of each battery.
- Stable various protective functions for charging and discharging, such as overcharge protection, over-discharge protection and short circuit protection.
- Low power consumption,the working current is about 25uA and quiescent current is about 6uA.
- Choosing the correct protection board and applying it appropriately is vital to the longevity your batteries.
Specifications:
| Voltage | Charge Voltage | 19/21V |
| Single Cell Charge Voltage | 3.8/4.25V | |
| Current | Continuous Discharge Current | 8-20A |
| Overcharge Protection | Overcharge Single Cell Detection Voltage | 3.85-4.25V |
| Overcharge Protection Delay | 1S | |
| Overcharge Single Cell Recovery Voltage | 3.75-4.13V | |
| Overcharge Protection Release Delay | 1mS | |
| Over-discharge Protection | Over-discharge Single Cell Detection Voltage | 2-2.8V |
| Over-discharge Protection Delay | 1S | |
| Over-discharge Single Cell Recovery Voltage | 2.5-3.0V | |
| Over-discharge Protection Release Delay | 100±20mS | |
| Over-current Protection | Over-current Detection Voltage | 0.1-0.4V |
| Over-current Detection Current | 30±5A | |
| Over-current Detection Delay | 1S | |
| Recovery State | Auto | |
| Short Circuit Protection | Support | Yes |
| Short Circuit Detection Delay | 250uS | |
| Short Circuit Release Delay | 1S | |
| Short Circuit Detection Voltage | 0.8V | |
| Recovery State | Auto after Disconnect Load | |
| Over Temperature Protection | Protection Temperature | 70±5° |
| Recovery Temperature | 55±5° | |
| Power Consumption | Working State | 25uA (25°) |
| Stand-by State | 6uA(25°) | |
| Internal Resistance | Discharge Main Circuit Internal Resistance | 30±5mΩ |
| Temperature | Operating Temperature | -40°-85° RH≤75% |
| Store Temperature | -40°-125° RH≤75% | |

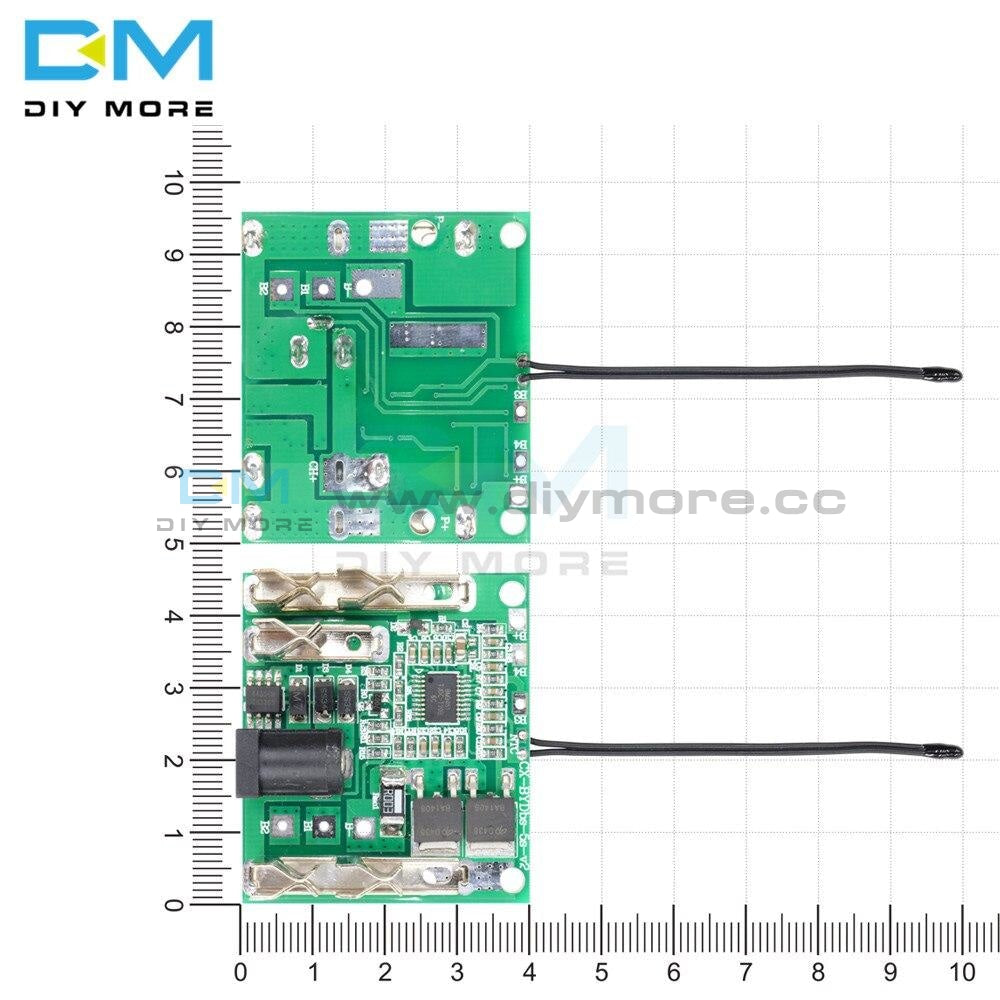

| Size | Length*Width | 46*40mm/1.81*1.57" |
Package Includes:
5 x Protection Board
