5PCS lot 3362P Trimmer Potentiometer Variable Resistor 100R 200R 500R 1K 2K 5K 10K 20K 50K 100K 200K 500K 1M Ohm Cermet Trimpot

5PCS lot 3362P Trimmer Potentiometer Variable Resistor 100R 200R 500R 1K 2K 5K 10K 20K 50K 100K 200K 500K 1M Ohm Cermet Trimpot

SKU:1400275
Regular price $0.99


Specification:
Model: 3362P
Power Rating: 315 volts max, 5W at 70°C, 0W at 125°C
Temperature Coefficient: ±250ppm/°C
Tolerance: ±10%
PIN Number: 3

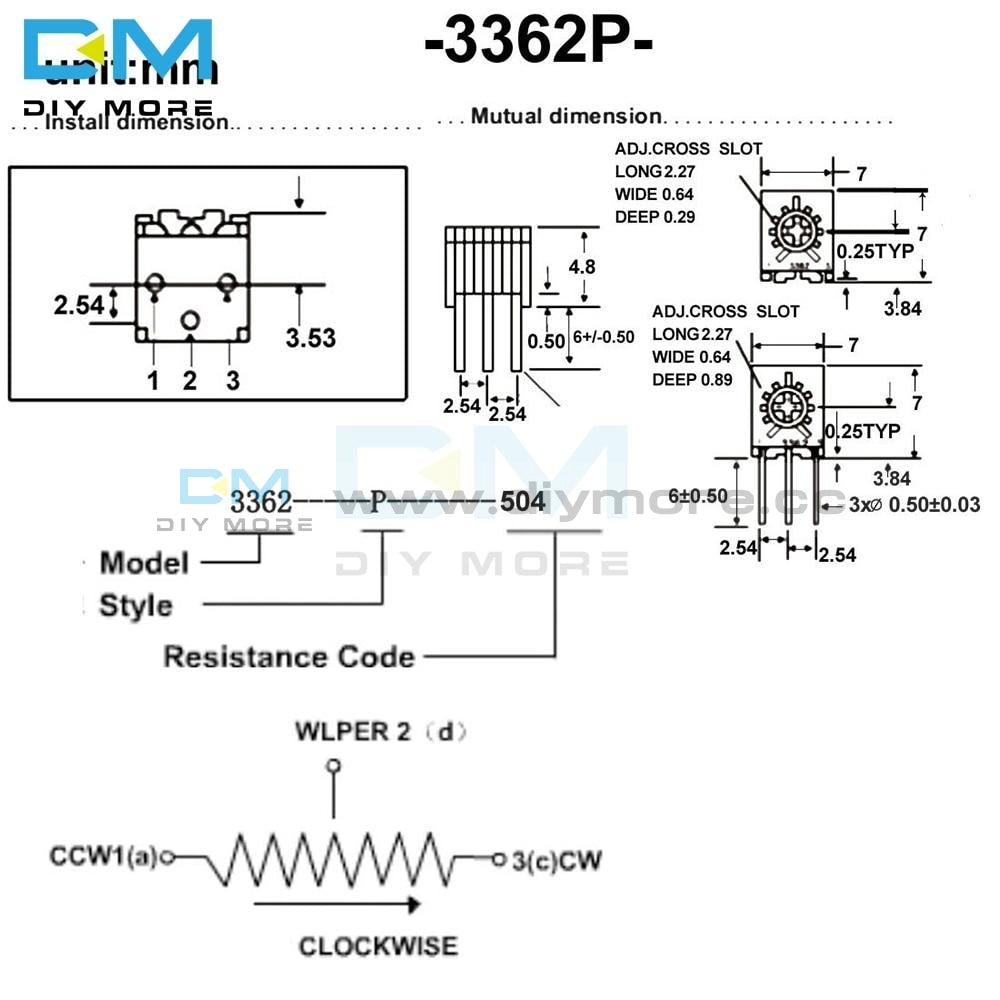

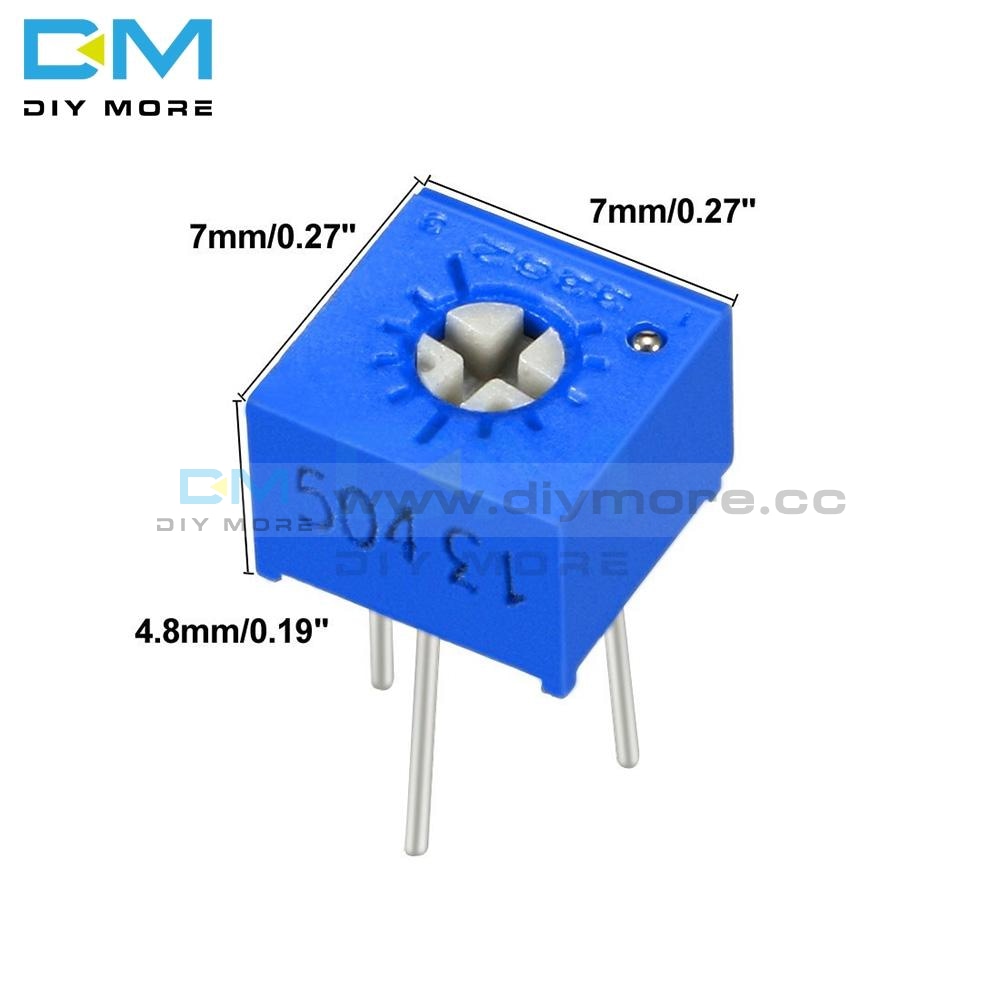

Size: 0.27 x 0.27 x 0.19 inch/7 x 7 x 4.8mm
Rotational Life: 200 cycles
Style:Top Adjustment, linear change
Mounting Type: Through Hole(DIP)
Material: Cermet,durable and sturdy
Application: Apply for PCB or DIY

Resistance Value:
3362P-101 100 Ohm
3362P-102 1K Ohm
3362P-103 10K Ohm
3362P-104 100K Ohm
3362P-105 1M Ohm
3362P-201 200 Ohm
3362P-202 2K Ohm
3362P-203 20K Ohm
3362P-204 200K Ohm
3362P-501 500 Ohm
3362P-502 5K Ohm
3362P-503 50K Ohm
3362P-504 500K Ohm
