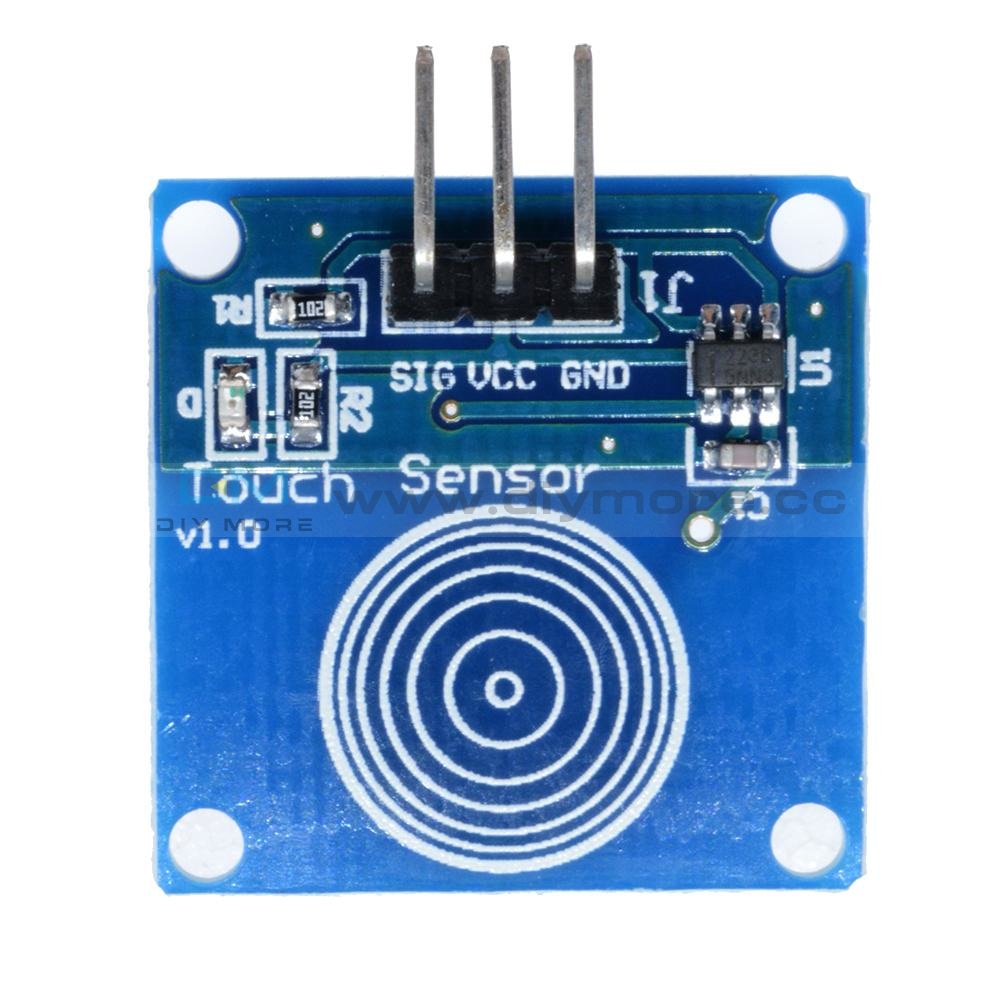

5PCS TTP223B Digital Touch Sensor Capacitive Touch Switch Module for Arduino

5PCS TTP223B Digital Touch Sensor Capacitive Touch Switch Module for Arduino

SKU:0103845
Regular price $1.59

shipped within one bussiness day

Overview:

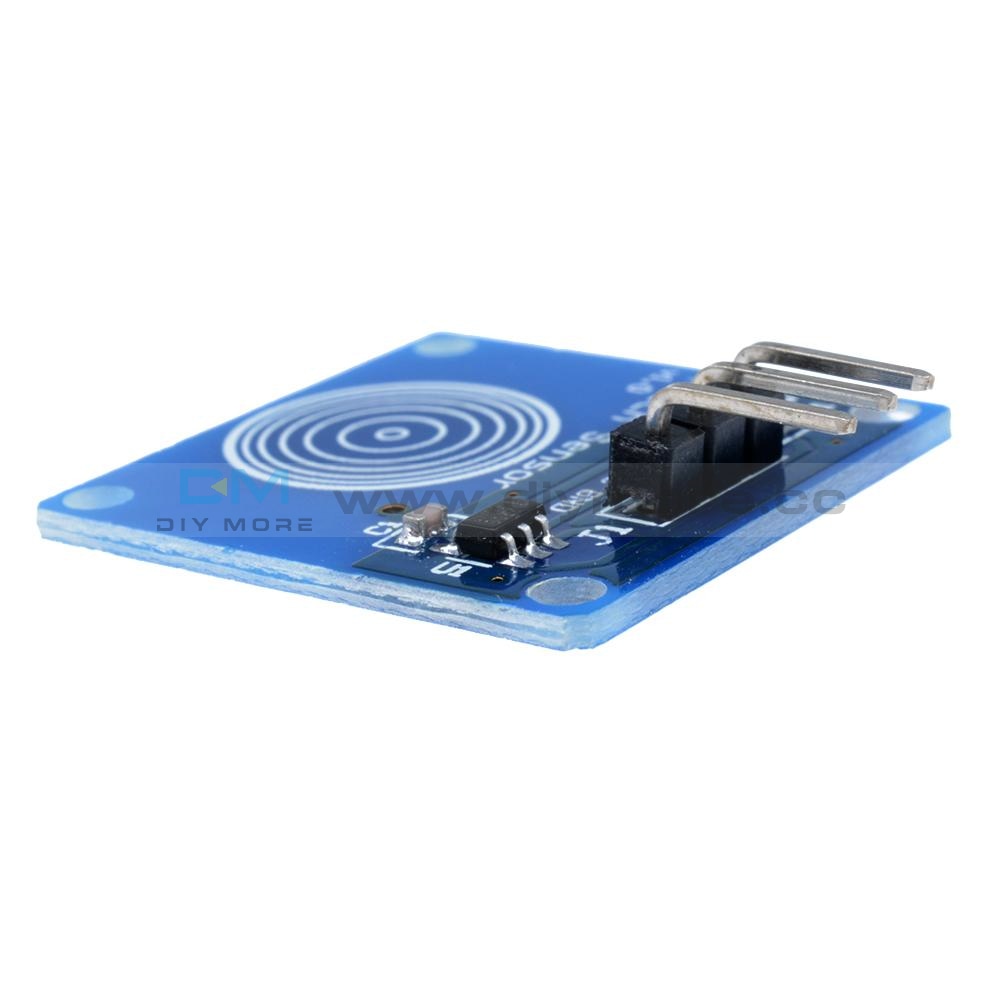

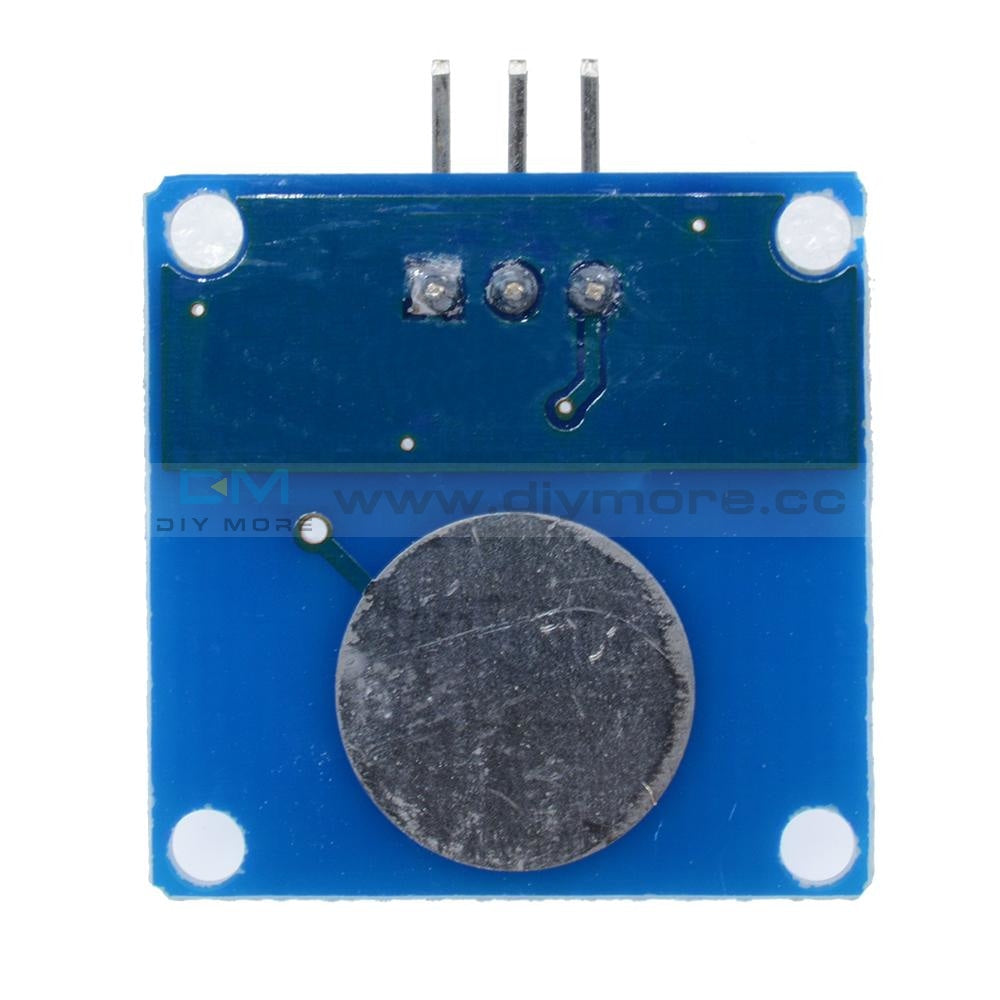

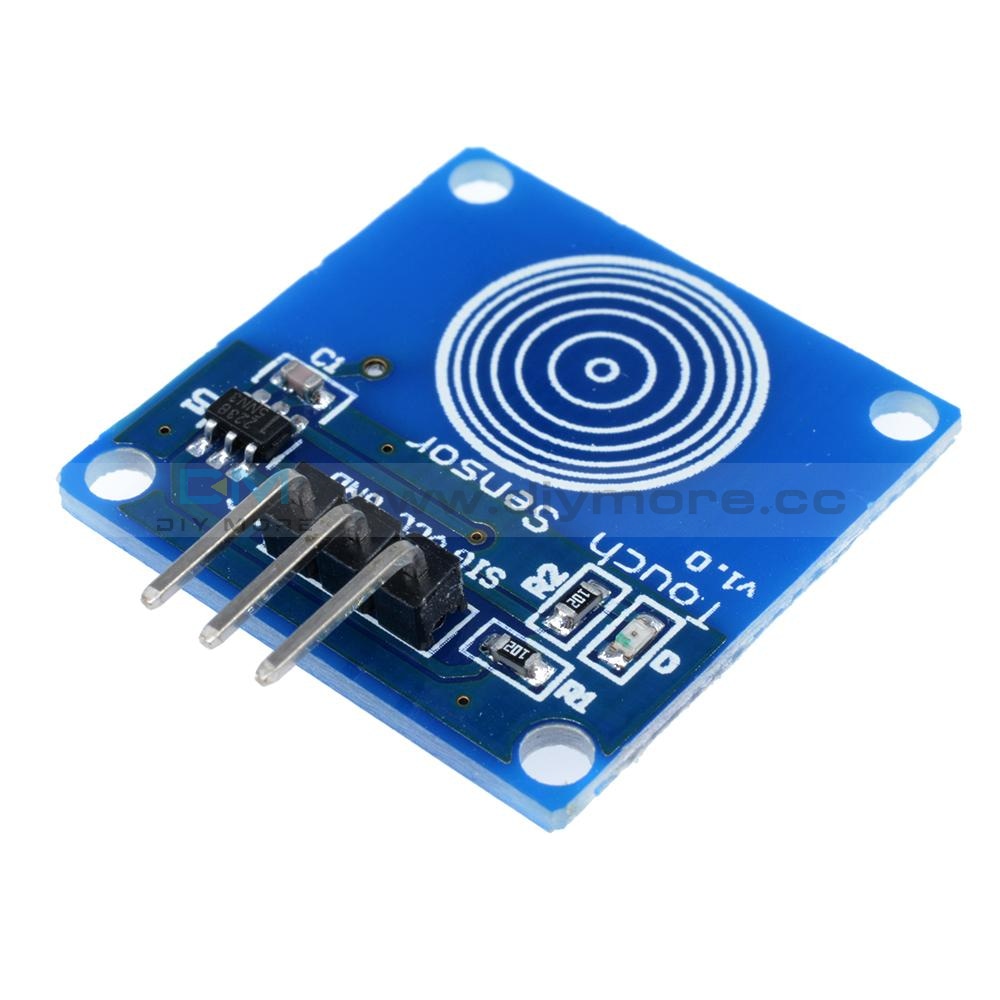

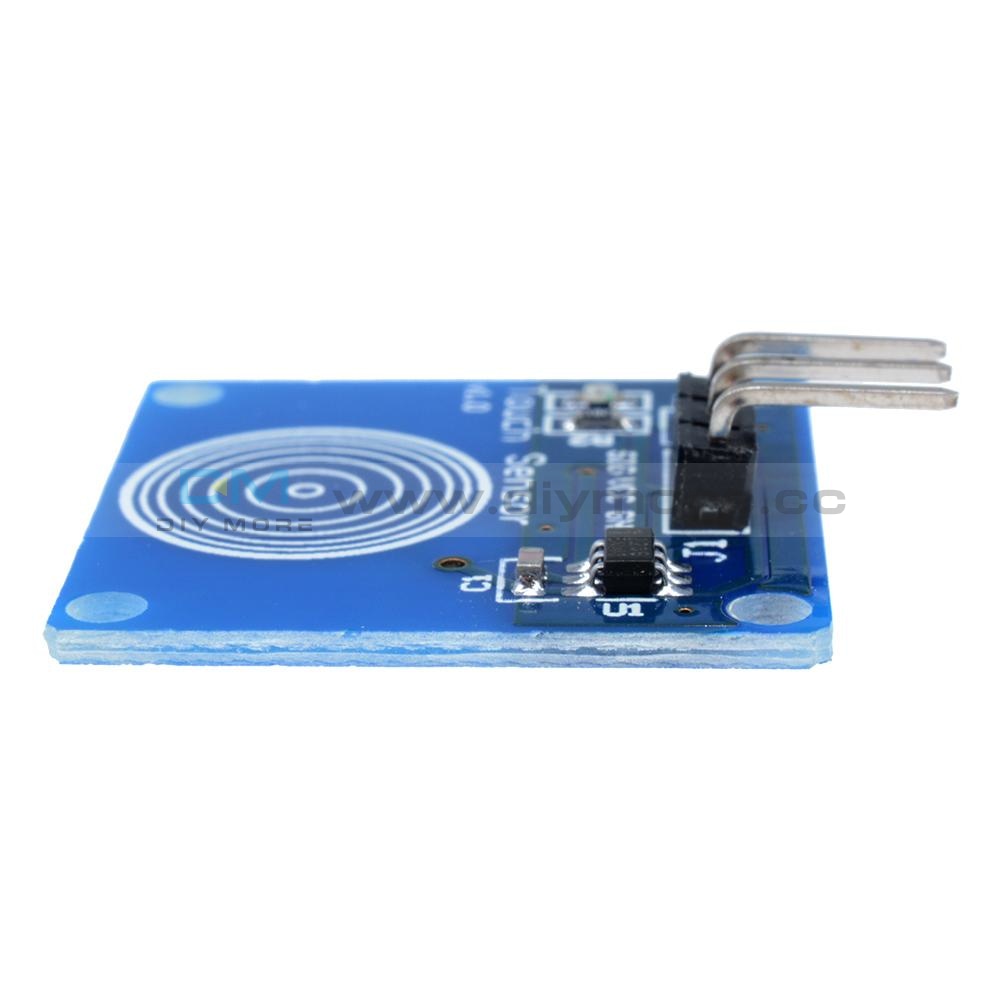

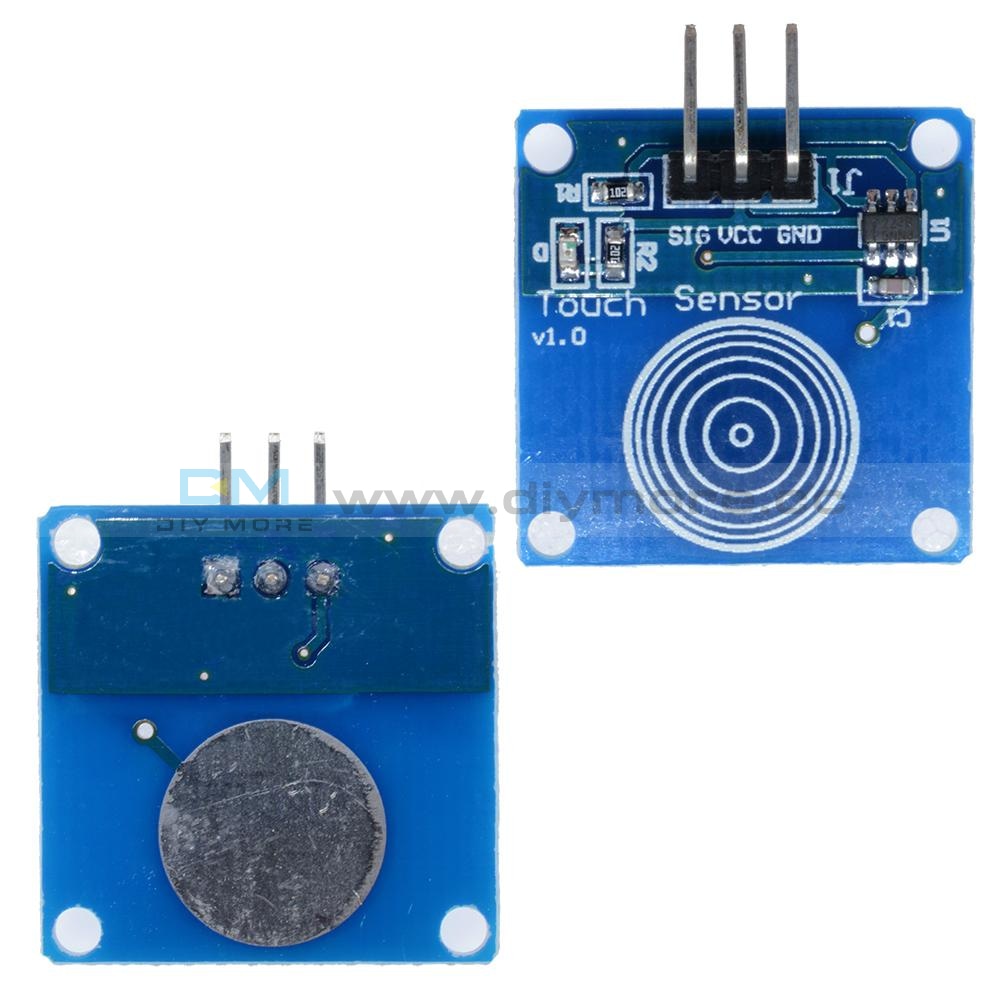

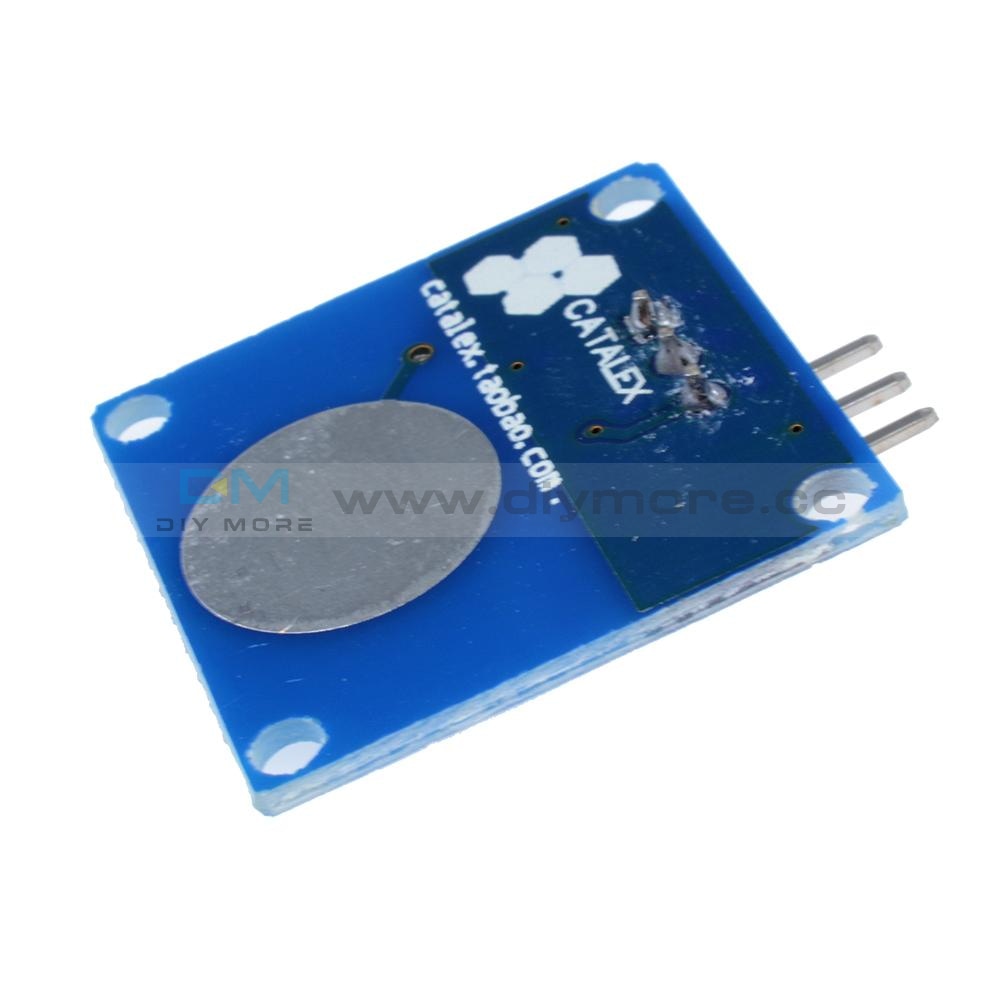

  • The module is based on a touch-sensing IC (TTP223B) capacitive touch switch module.
  • In the normal state, the module output low, low power consumption; When a finger touches the corresponding position, the module output high, if not touched for 12 seconds, switch to low-power mode
  • Jog type : the initial state is low , high touch , do not touch is low ( similar touch of a button feature )
  • Module can be installed in such as surface plastic, glass of non-metallic materials. In addition to the thin paper ( non-metallic ) covering the surface of the module , as long as the correct location of the touch , you can make hidden in the walls, desktops and other parts of buttons

Features:
Low power consumption
Power supply for 2 ~ 5.5V DC
Can replace the traditional touch of a button
Four M2 screws positioning holes for easy installation

Specification:

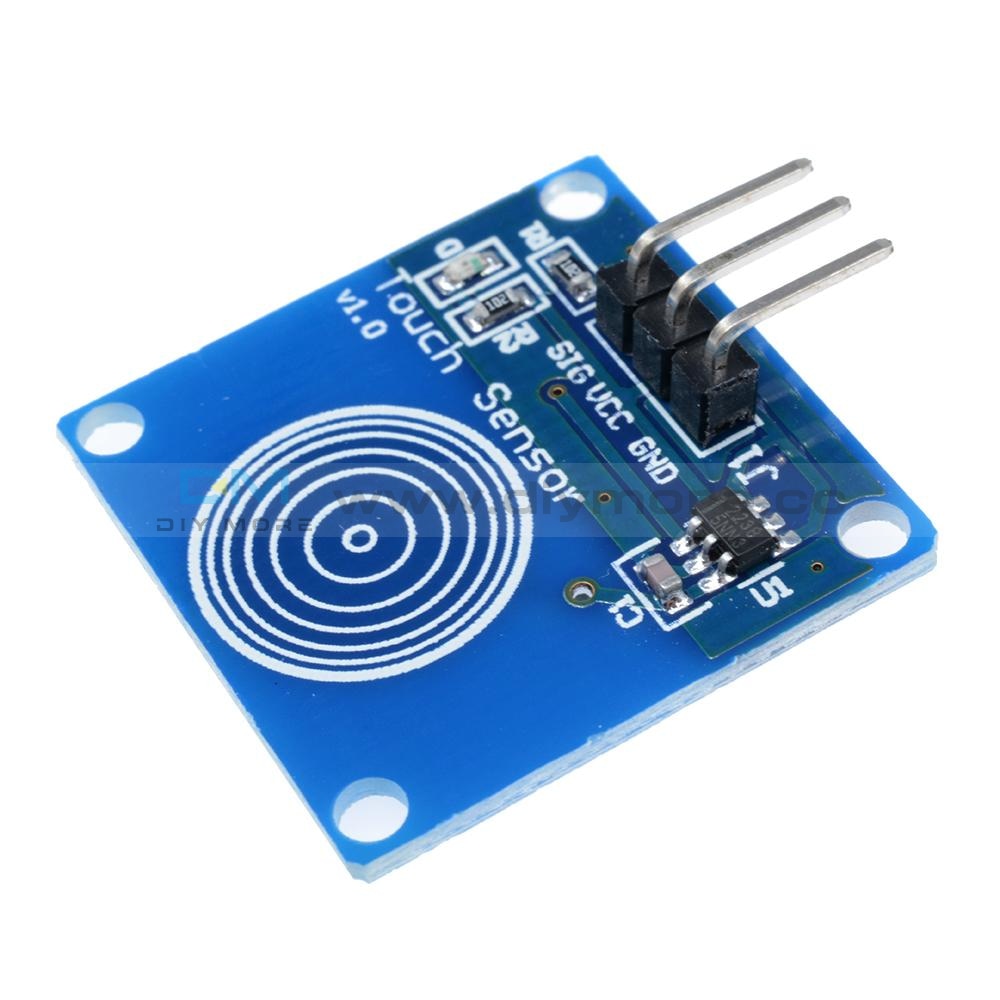

-Control Interface : A total of three pins (GND, VCC, SIG), GND to ground , VCC is the power supply , SIG digital signal output pin ;
-Power Indicator : Green LED, power on the right that is shiny ;
-Touch area : Similar to a fingerprint icon inside the area , you can touch the trigger finger .
-Positioning holes : 4 M2 screws positioning hole diameter is 2.2mm, the positioning of the module is easy to install , to achieve inter- module combination ;

Package Included:

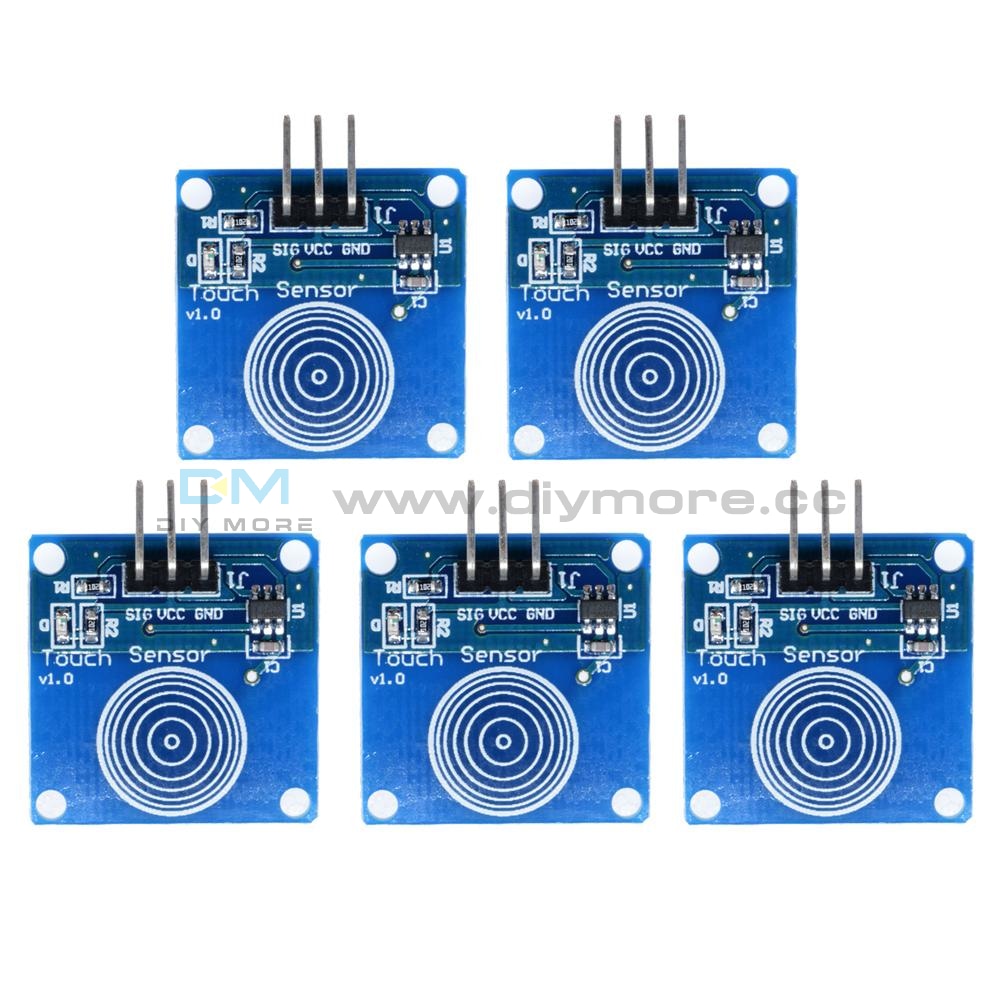

5 x TTP223B Touch Sensors
