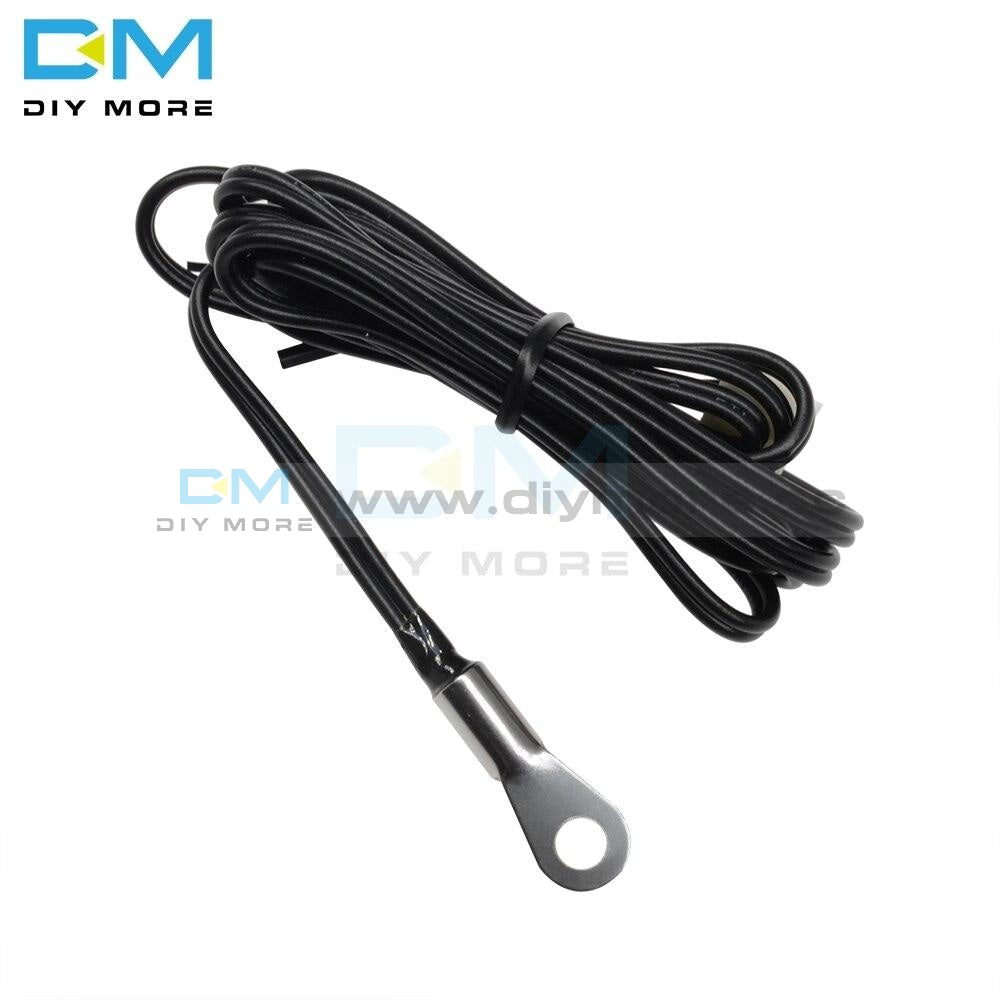

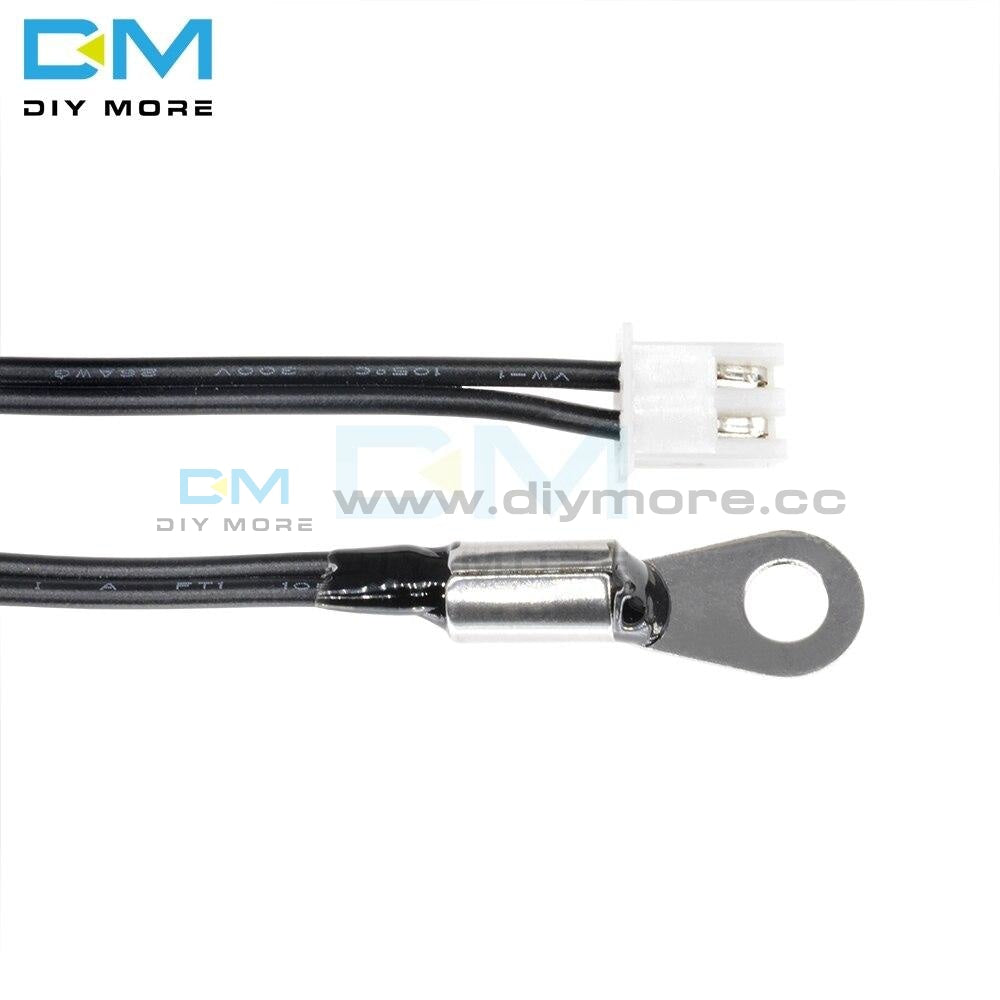

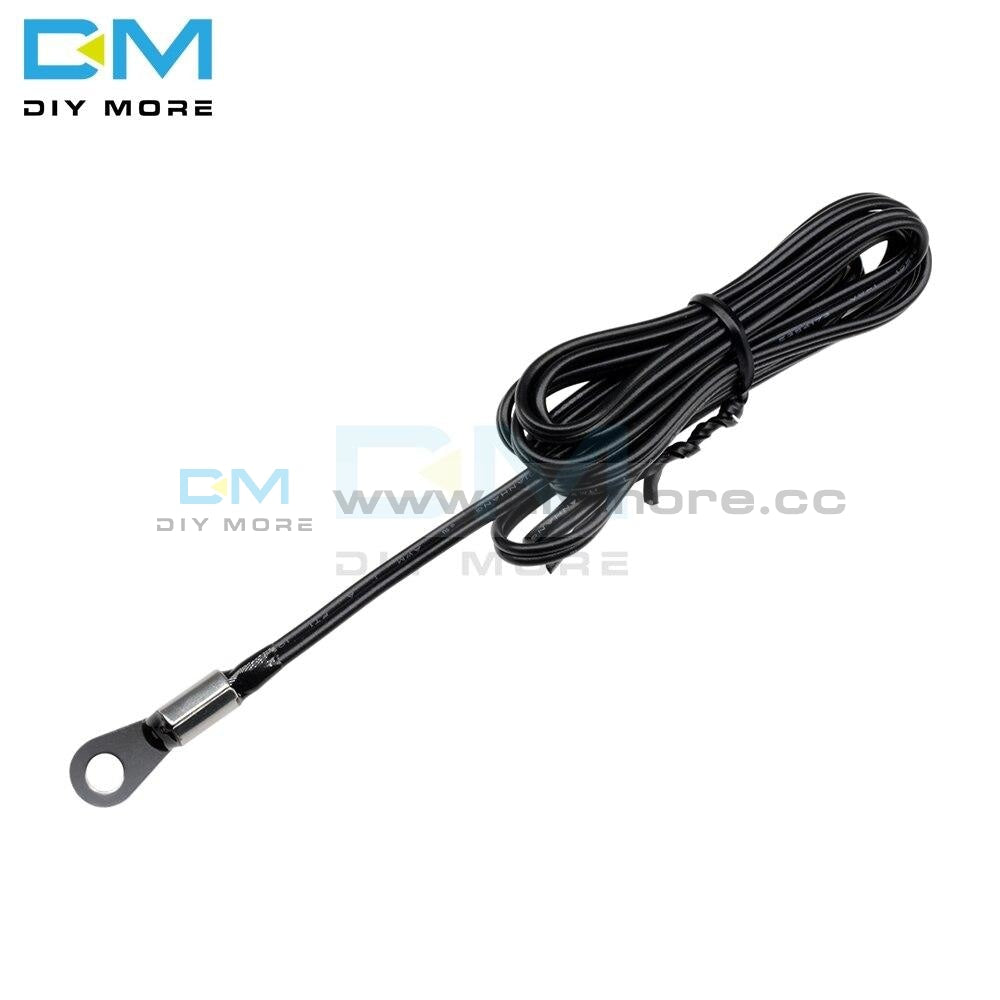

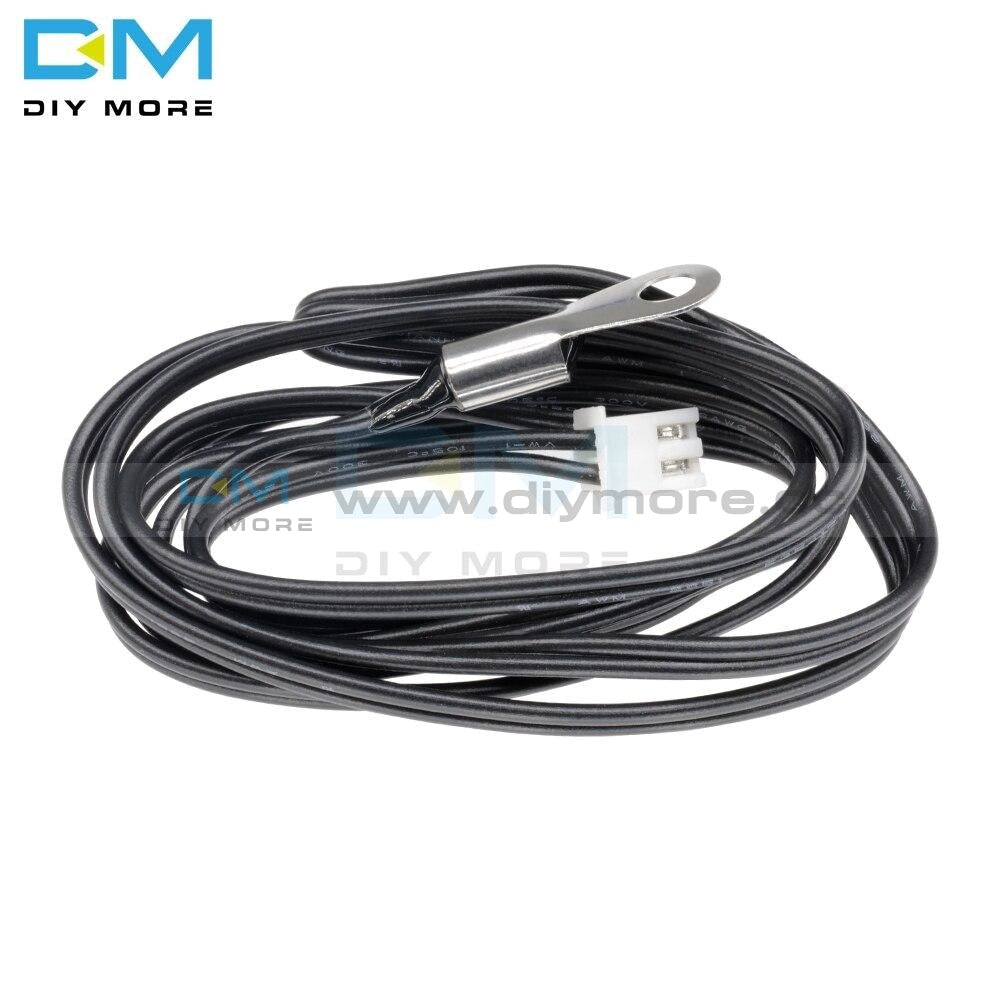

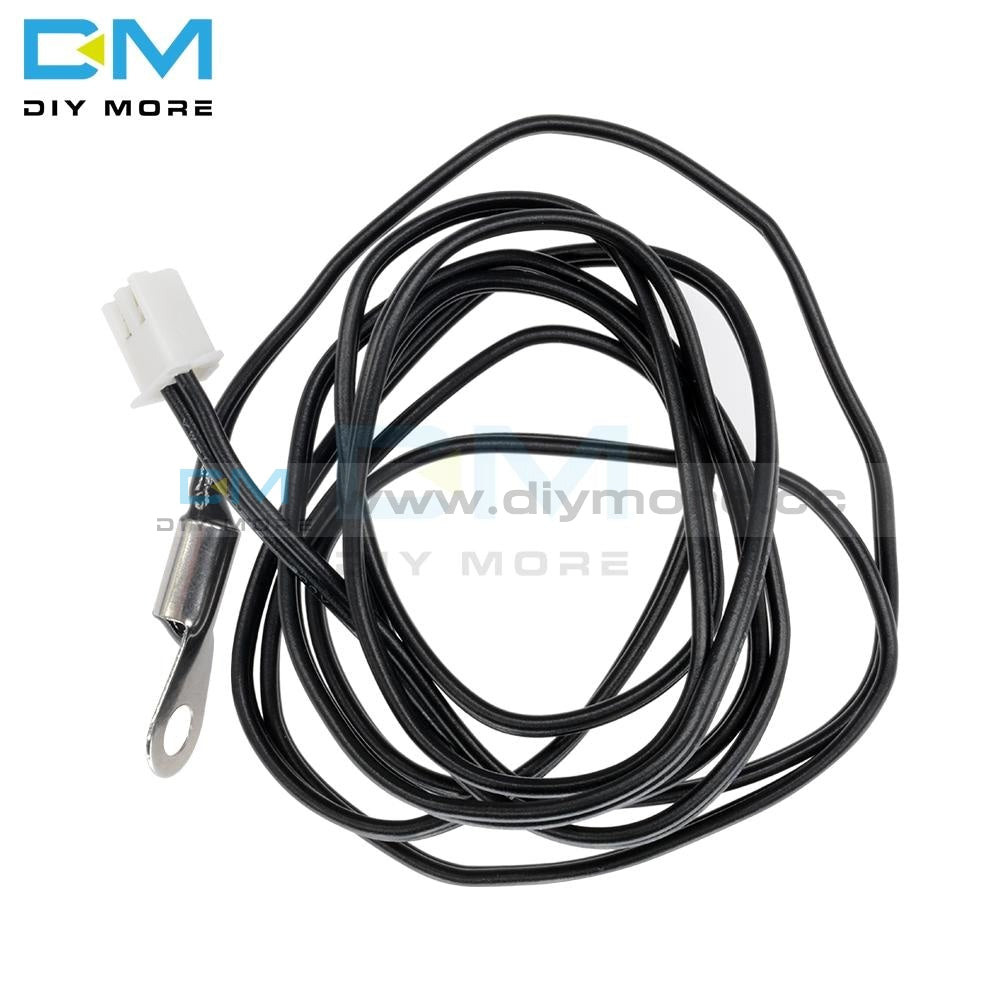

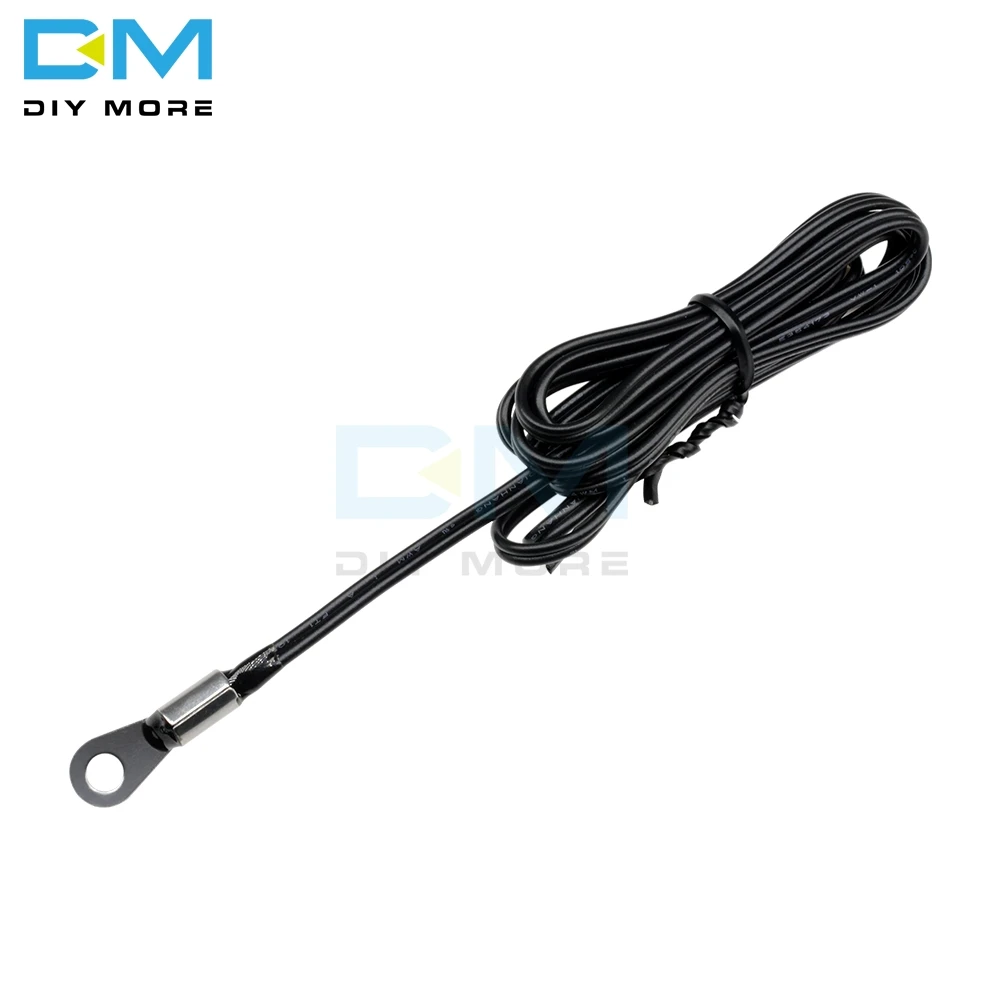

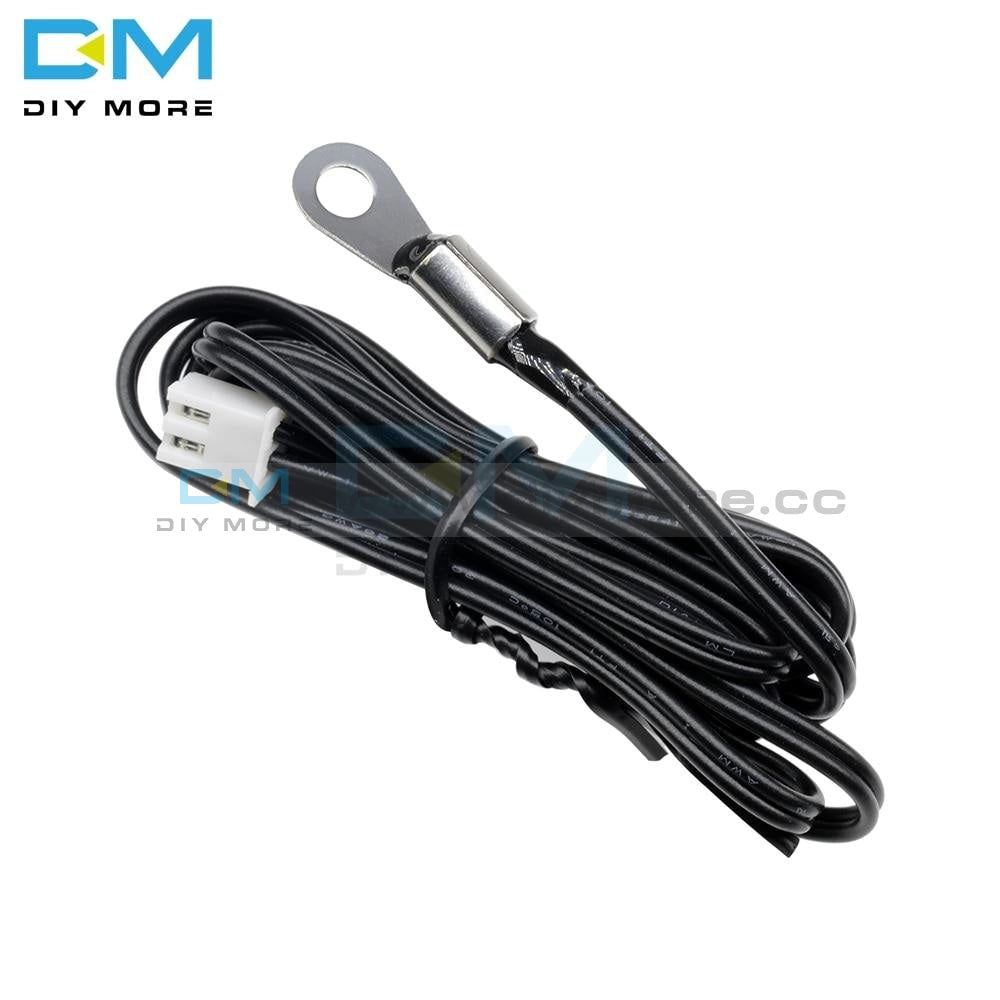

5PCS NTC 10k 1% 3950 Fixed Mounting Hole 1M Thermistor Temperature Sensor

5PCS NTC 10k 1% 3950 Fixed Mounting Hole 1M Thermistor Temperature Sensor

SKU:X520795
Regular price $5.99

The main parameters:

Resistance and accuracy R25: 10kΩ ± 1% (at25°C)
B value and accuracy B25/50: 3950K ± 1%
Dissipation coefficient: 2 mW/°C (in air)
Thermal time constant: 15 s (in air)
Rated power: 2.5 mW (at 25 ° C)
Operating temperature: -30 ~ 105 ° C
Copper ring model 5.5-4 inner diameter 4mm


Introduction: CWF precision NTC temperature sensor is a high precision, high reliability NTC thermistor with PVC

Wire connection, encapsulated into the required shape with insulation, heat conduction and waterproof material, easy to install and far

Distance measurement temperature control.



Applications: For frequency converters, household air conditioners, automotive air conditioners, refrigerators, freezers, water heaters, water dispensers, heaters, dishwashers, disinfection cabinets, washing machines, dryers, medium and low temperature drying ovens, incubators, etc.
Temperature measurement and control.



Features: 1: New process, stable product performance and long-term work. (annual resistance drift rate ≤ 1%)

2: The resistance value and the B value are high in accuracy, good in consistency, and interchangeable. (The resistance value and B value precision can be respectively

Up to ±0.5%)

3: High sensitivity and rapid response. (The temperature coefficient of resistance can reach -(2~5)%/°C)

4: It adopts double-layer sealing process, has good insulation sealing and anti-mechanical collision, anti-bending ability and high reliability.

5: It can be packaged according to the installation conditions used, which is convenient for users to install.

6: Can be made into high-dissipation products, the test current can be much higher than the traditional structure of the sensor, simplifying the test circuit.

Package Included:

5 x wires



trust seal
  • guaranteeQuality checked
  • Special gift cardsSpecial gift cards
  • Free return Within 60 days
  • Consultancy86-0755-85201155

The main parameters:

Resistance and accuracy R25: 10kΩ ± 1% (at25°C)
B value and accuracy B25/50: 3950K ± 1%
Dissipation coefficient: 2 mW/°C (in air)
Thermal time constant: 15 s (in air)
Rated power: 2.5 mW (at 25 ° C)
Operating temperature: -30 ~ 105 ° C
Copper ring model 5.5-4 inner diameter 4mm


Introduction: CWF precision NTC temperature sensor is a high precision, high reliability NTC thermistor with PVC

Wire connection, encapsulated into the required shape with insulation, heat conduction and waterproof material, easy to install and far

Distance measurement temperature control.



Applications: For frequency converters, household air conditioners, automotive air conditioners, refrigerators, freezers, water heaters, water dispensers, heaters, dishwashers, disinfection cabinets, washing machines, dryers, medium and low temperature drying ovens, incubators, etc.
Temperature measurement and control.



Features: 1: New process, stable product performance and long-term work. (annual resistance drift rate ≤ 1%)

2: The resistance value and the B value are high in accuracy, good in consistency, and interchangeable. (The resistance value and B value precision can be respectively

Up to ±0.5%)

3: High sensitivity and rapid response. (The temperature coefficient of resistance can reach -(2~5)%/°C)

4: It adopts double-layer sealing process, has good insulation sealing and anti-mechanical collision, anti-bending ability and high reliability.

5: It can be packaged according to the installation conditions used, which is convenient for users to install.

6: Can be made into high-dissipation products, the test current can be much higher than the traditional structure of the sensor, simplifying the test circuit.

Package Included:

5 x wires
